Power Supply Testing

Main Power Supply and Ground Circuit

EC-MAIN-01:

EC-MAIN-01 - Connector Views:

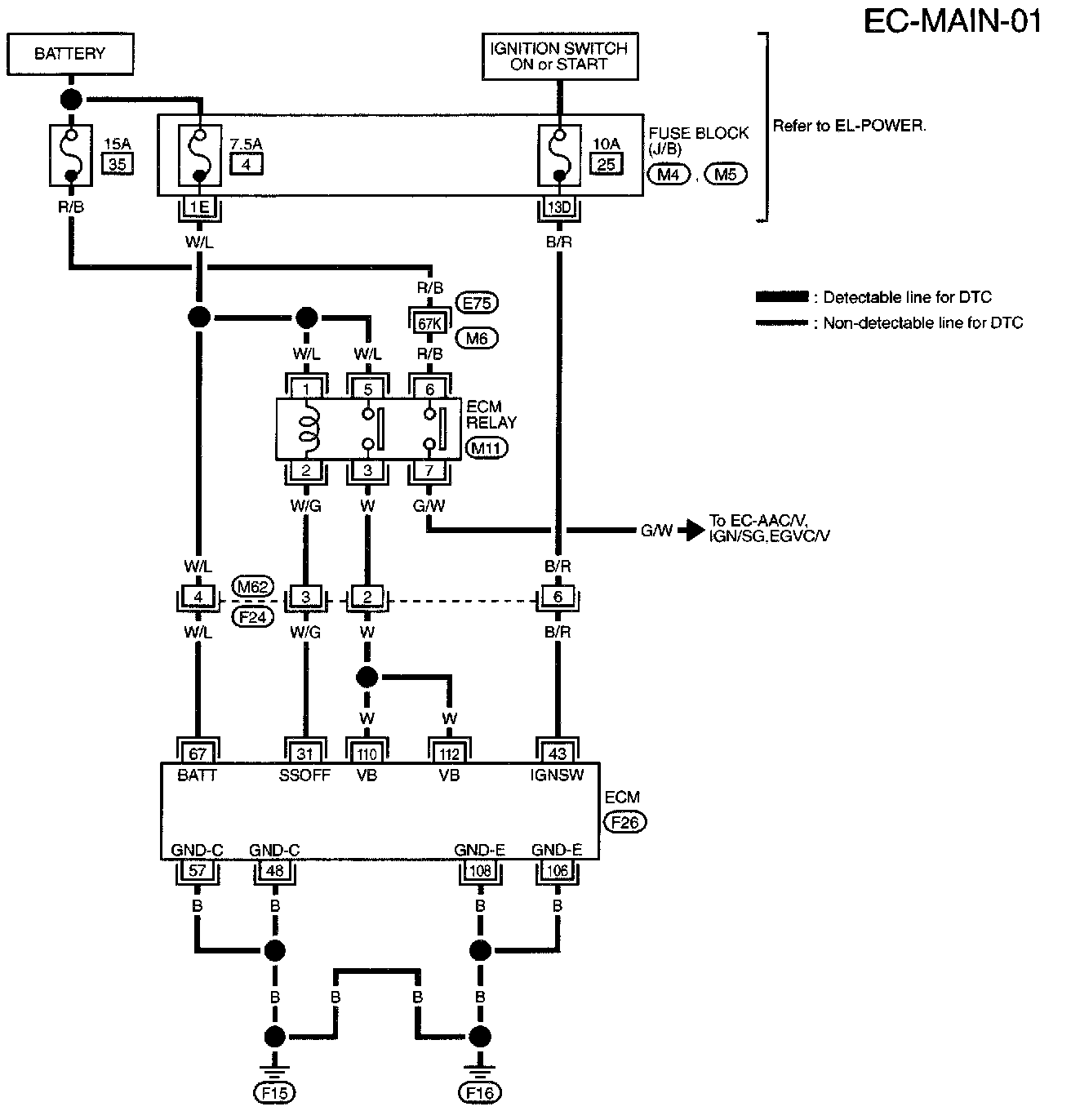

WIRING DIAGRAM

M6,E75 Connector Views:

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

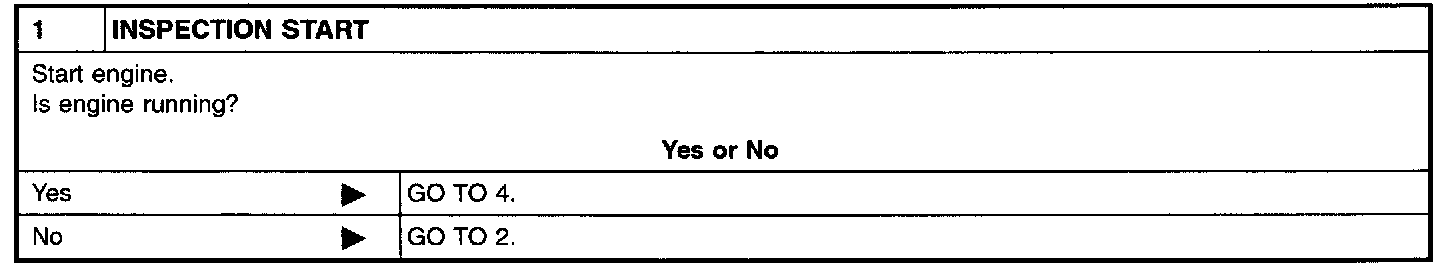

Step 1:

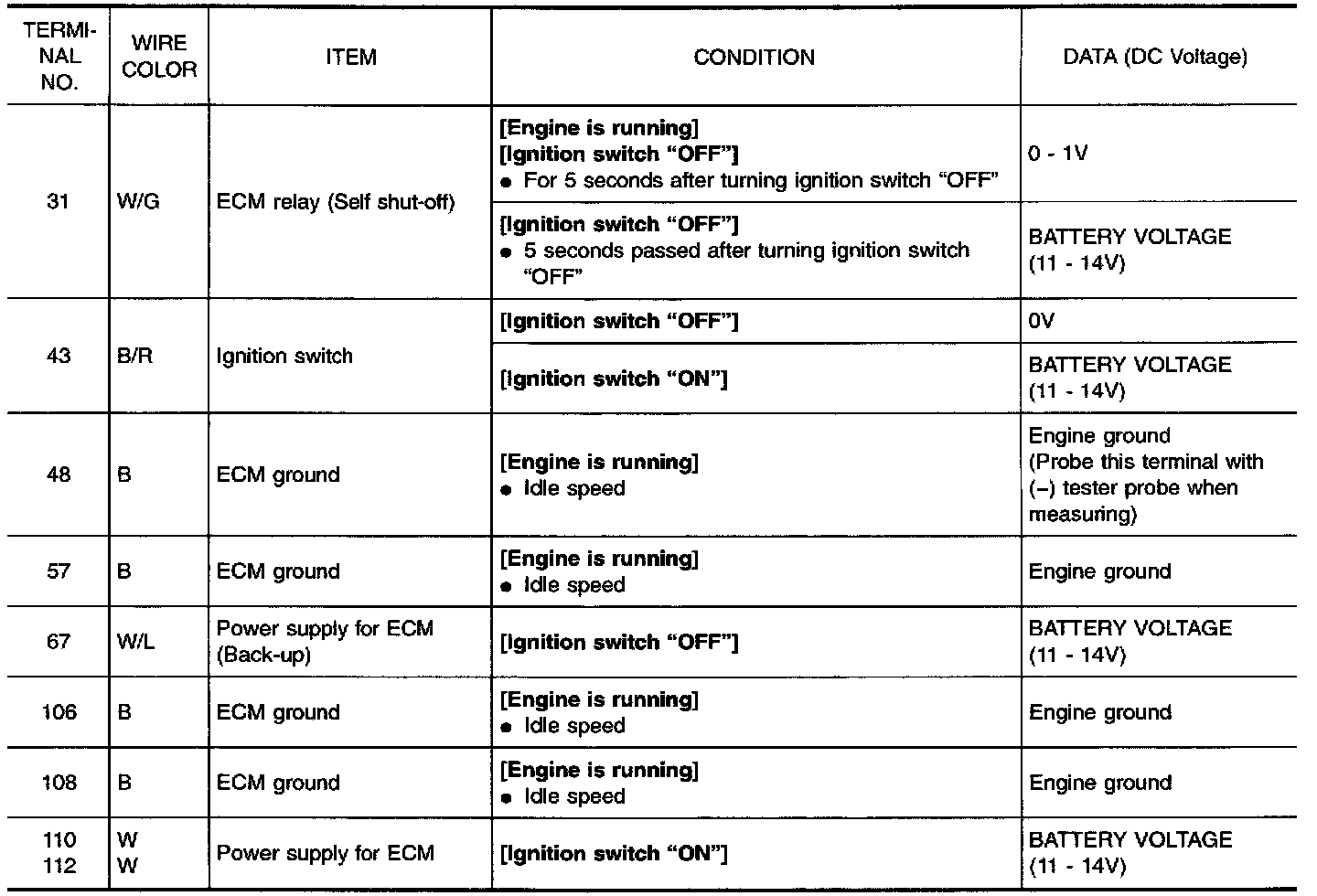

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and 48 (ECM ground).

Step 2:

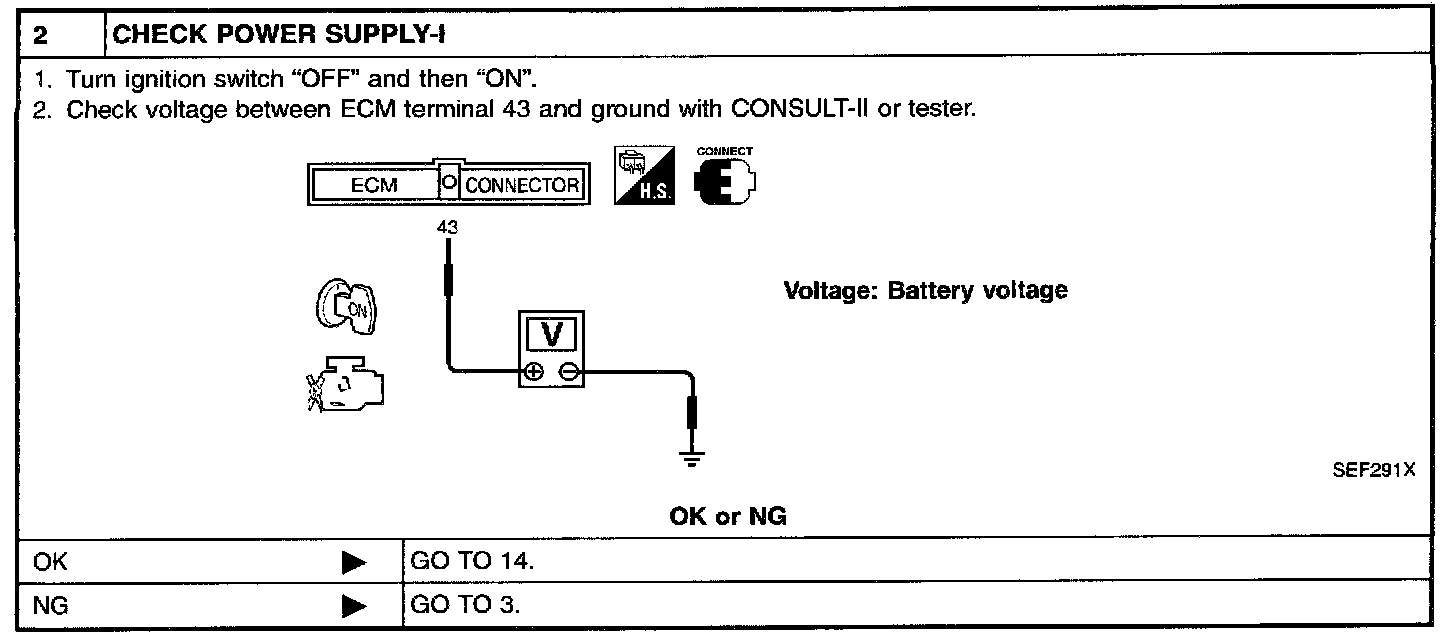

Step 3:

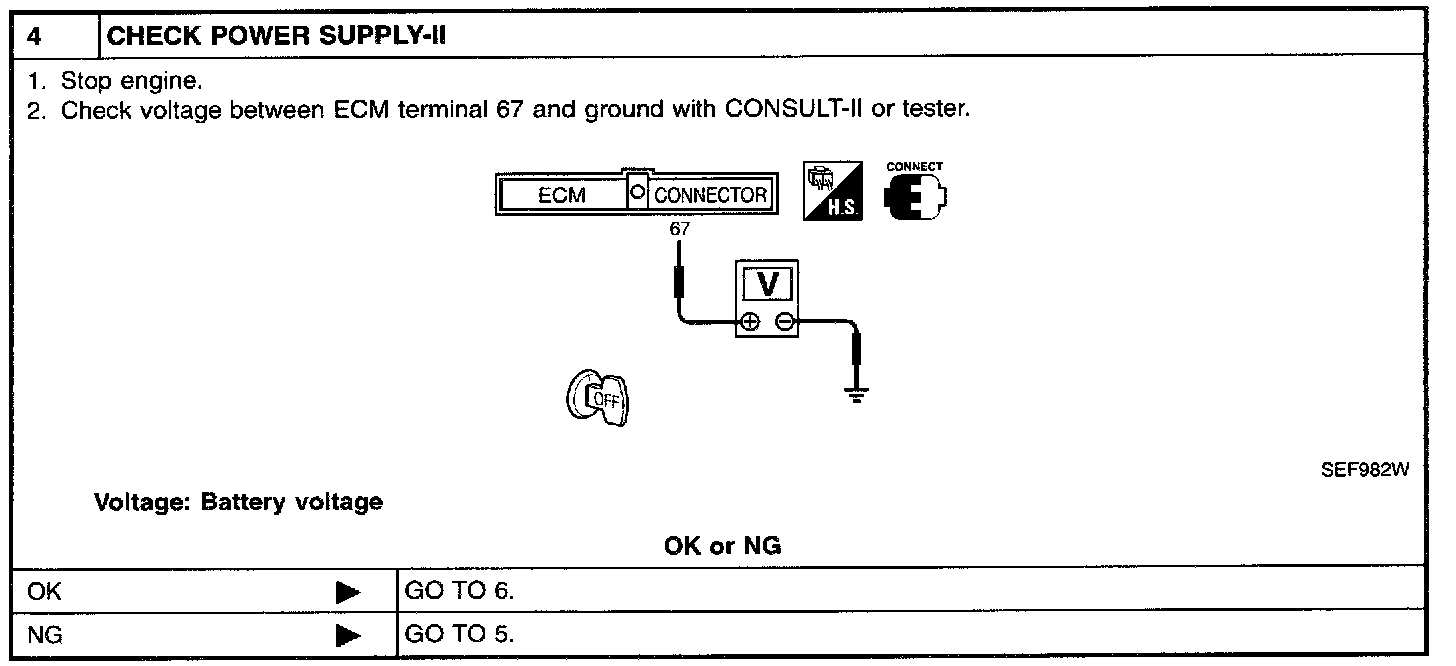

Step 4:

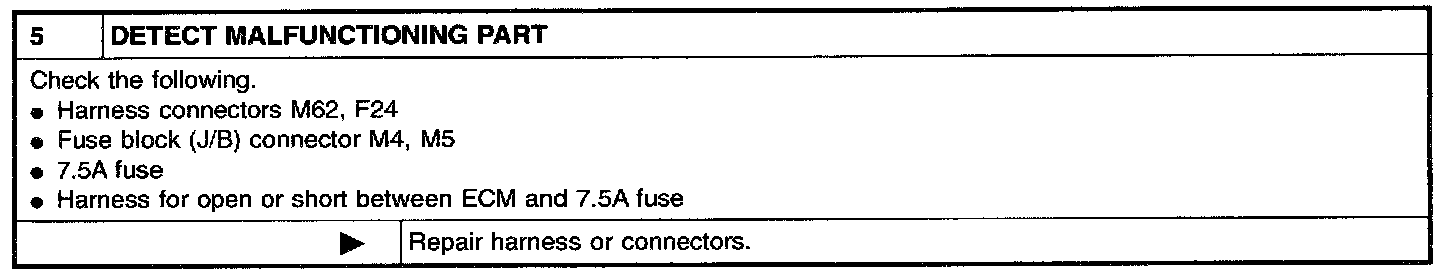

Step 5:

Step 6:

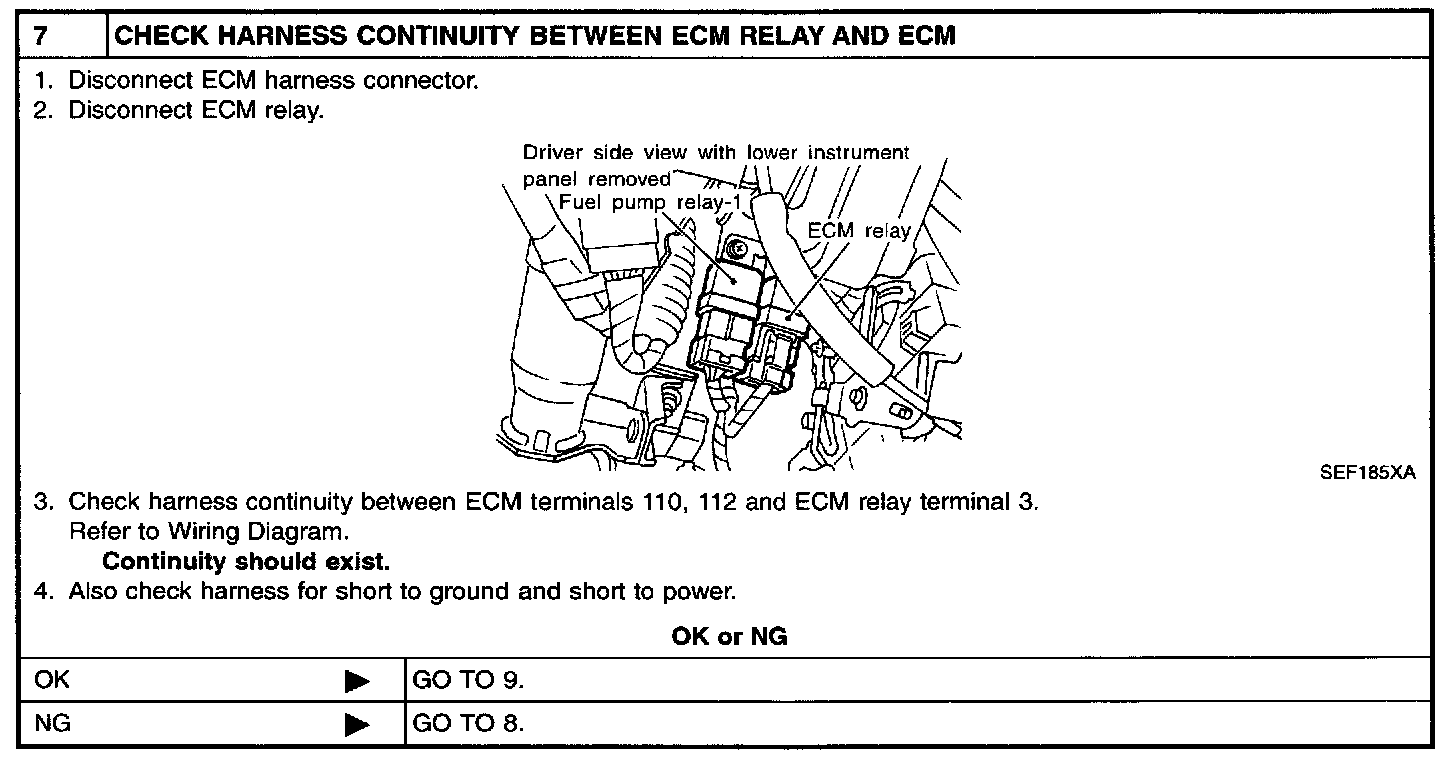

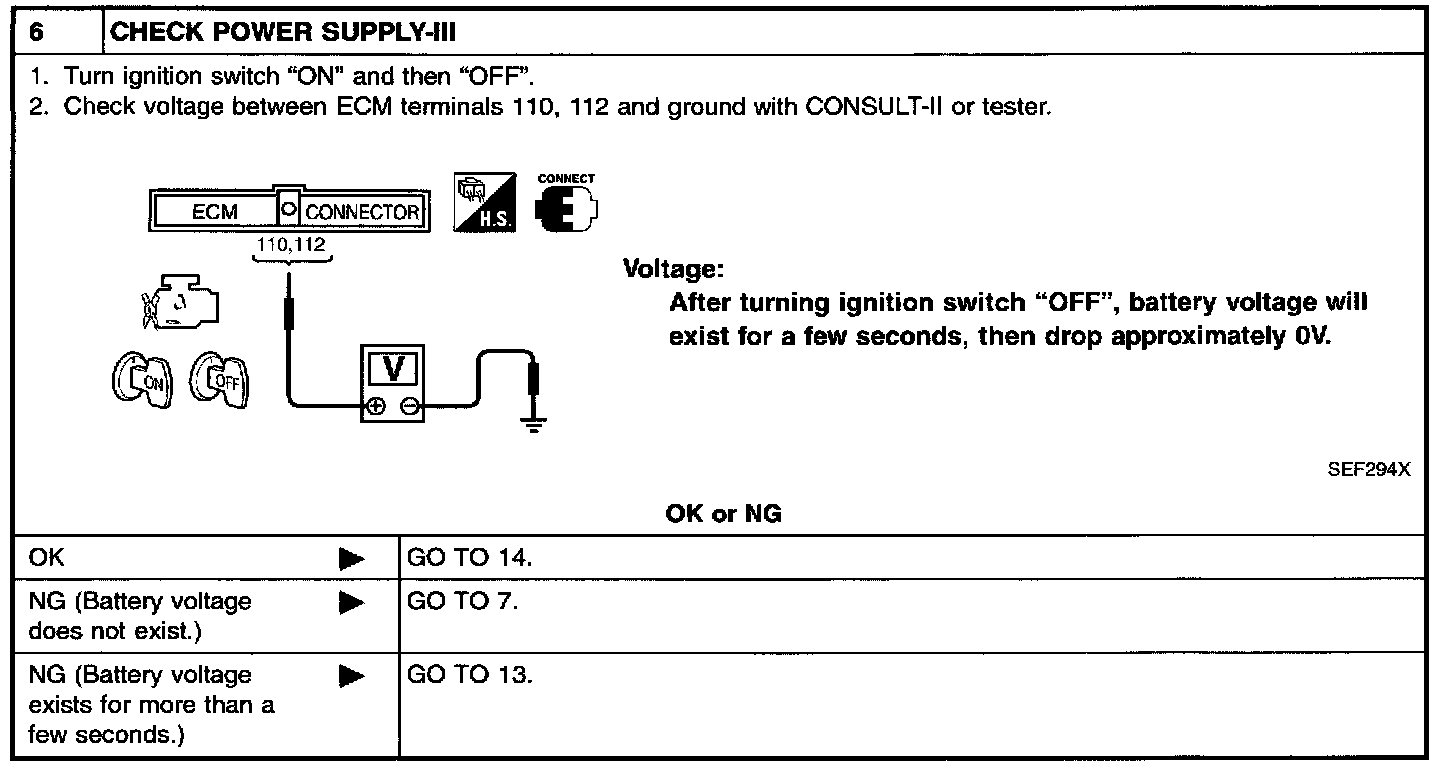

Step 7:

Step 8:

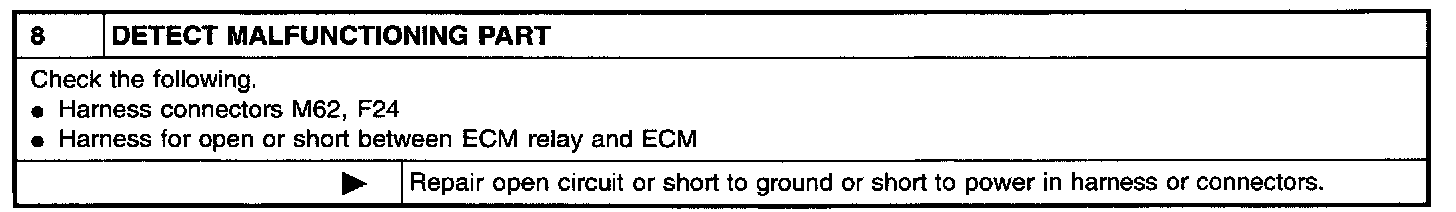

Step 9:

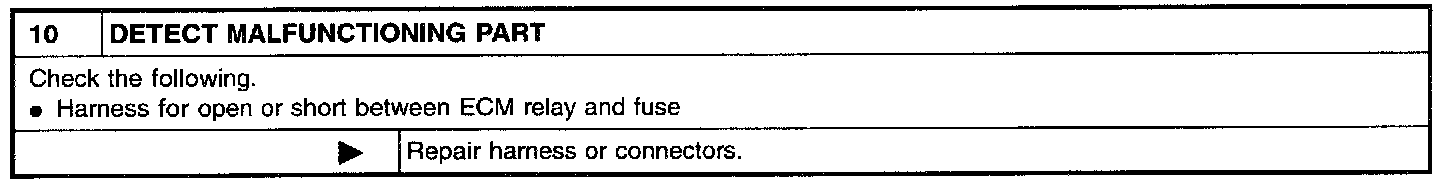

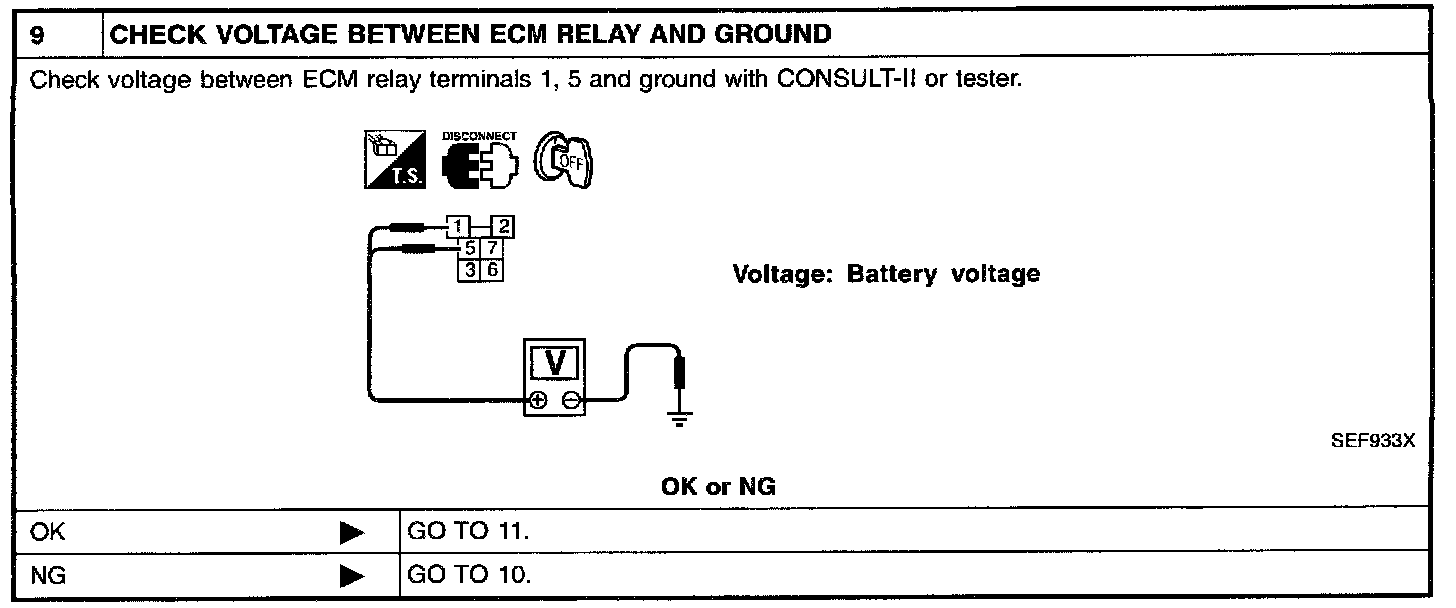

Step 10:

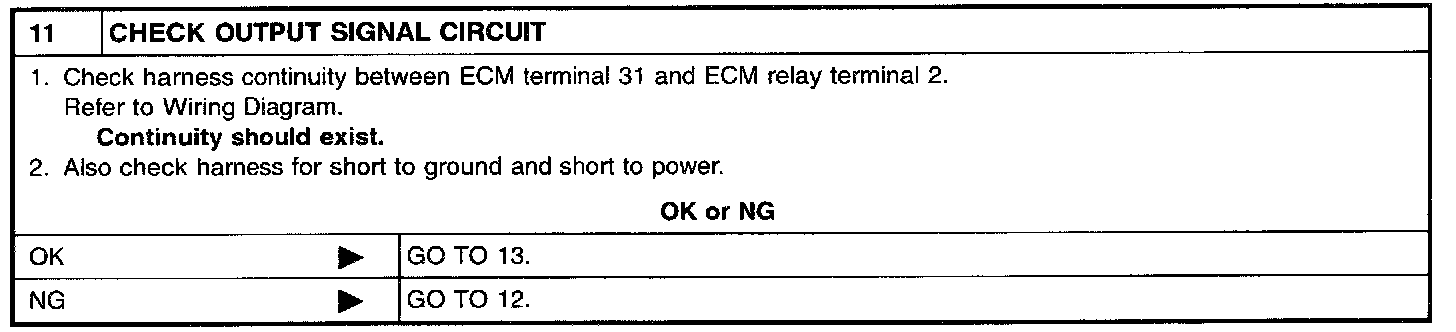

Step 11:

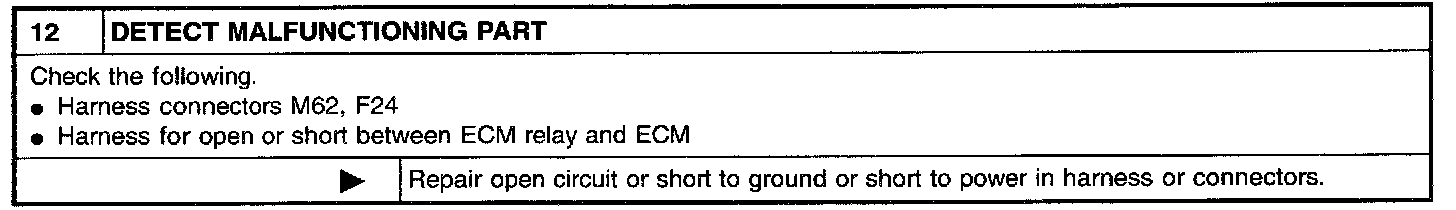

Step 12:

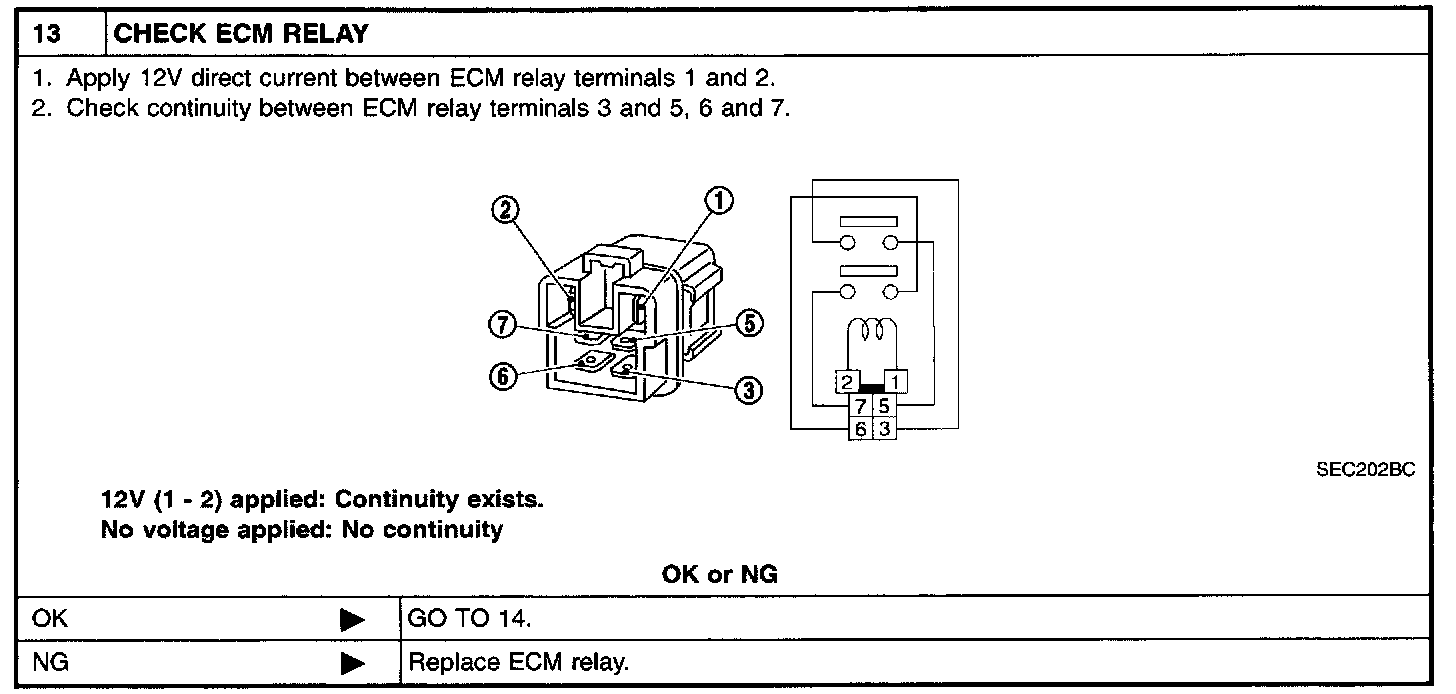

Step 13:

Step 14:

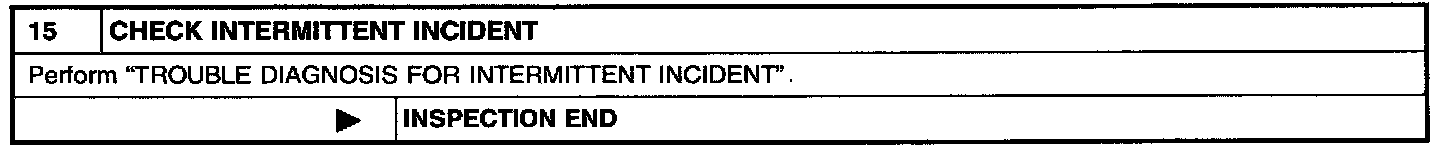

Step 15:

DIAGNOSTIC PROCEDURE
