Consult-II - Software Cards Updated

Reference:
ITB00-017

Classification:
TE00-004

Date:
March 15, 2000

CONSULT-II SOFTWARE CARDS

APPLIED VEHICLES: All CONSULT-II Compatible Infiniti Vehicles

SERVICE INFORMATION
There are now three software cards used with the CONSULT-II tester. Updates for all three cards are available through ASIST as of the March 15, 2000 CD. The Diagnostic (blue) and NATS (purple) software cards were previously provided with the CONSULT-II Kit. The latest ECM Reprogramming software card is orange in color.

If you have trouble with the operation of any card, you can restore the basic software with ASIST. Refer to the software card specific linked procedure provided in this bulletin for detail, or the "CONSULT-II Diagnostic Software Update procedure" in the printed copy of this bulletin.

NOTE: Software updates will be announced via Technical Service Bulletins whenever new software is available.

Following are illustrations of each of the software cards:

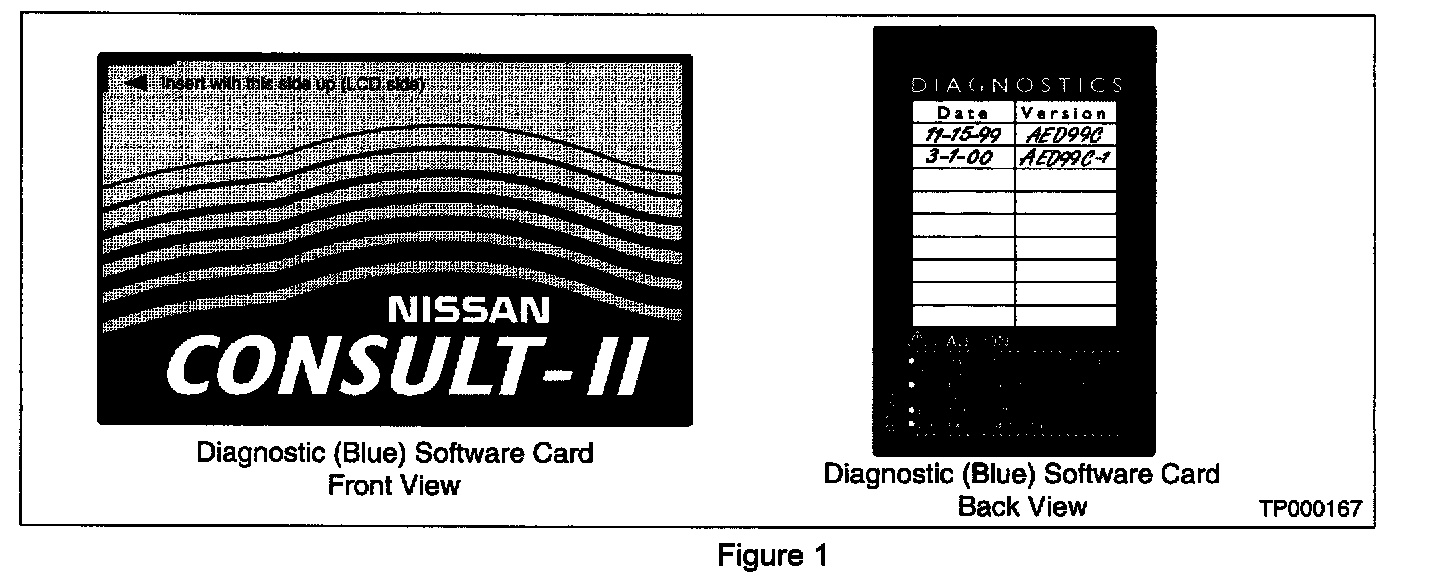

1. Diagnostic (Blue) Software Card (see Figure 1):

The Diagnostic software card is used for diagnosis of:

^ Engine
^ Smart Entrance
^ Automatic Transmission
^ Cruise Control (ASCD)
^ Anti-Lock Brake System (ABS)
^ Traction Control System (TCS)
^ Airbag
^ HICAS
^ In-Vehicle Multiplexing System (IVMS)
^ All Mode 4 WD
^ Active Suspension
^ Auto Drive Positioner

Click here for the "CONSULT-II Diagnostic Software Update Procedure (Diagnostic And Resident) (Blue Card)"or refer to the attached "CONSULT-II Software Update Procedure" in the printed copy of this bulletin.

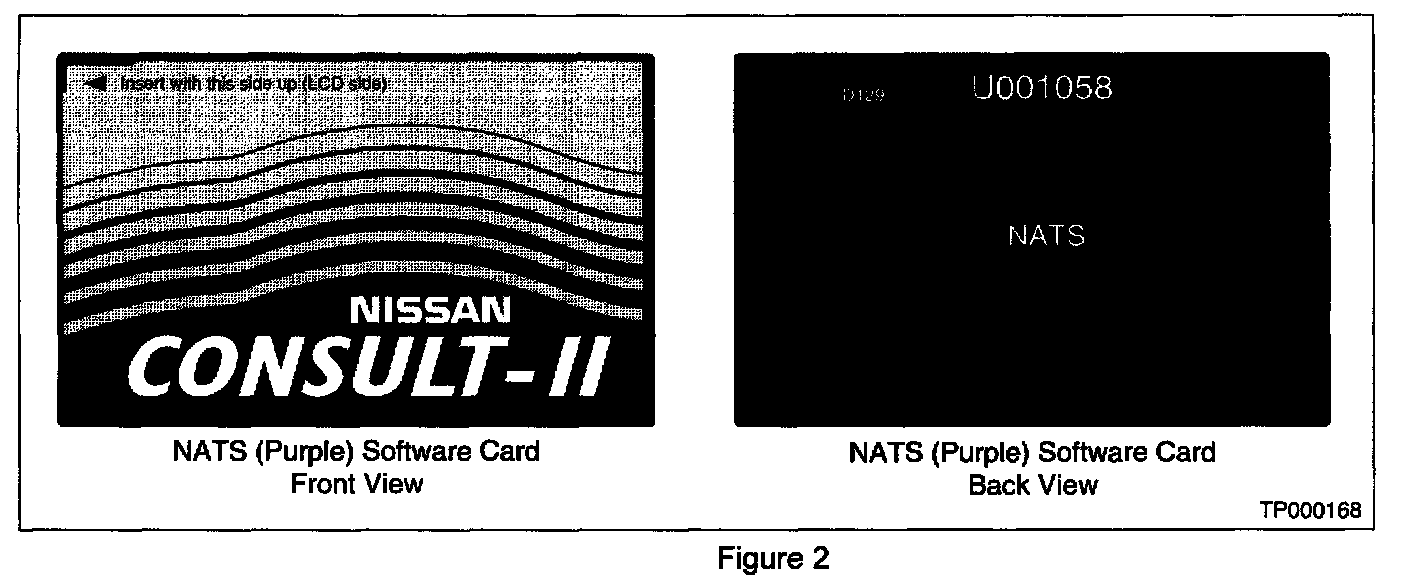

2. NATS (Purple) Software Card (see Figure 2):

The NATS software card is used for diagnosis and initialization of:

^ Nissan Anti-Theft System (NATS)
^ In-Vehicle Communication System (IVCS)

Click here for the "CONSULT-II NATS Software Update Procedure (NATS And Resident) (Purple Card)" or refer to the attached "CONSULT-II Software Update Procedure" in the printed copy of this bulletin.

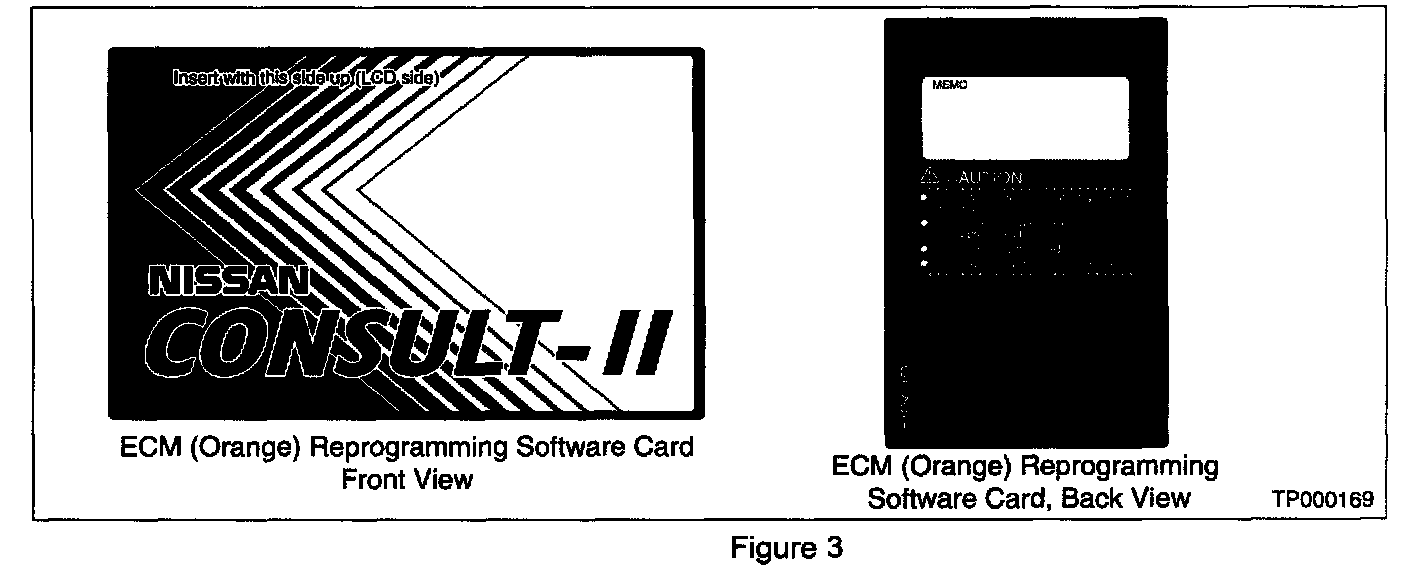

3. ECM (Orange) Reprogramming Software Card (see Figure 3):

The ECM Reprogramming software card is used for:

^ Engine Control Module (ECM) Reprogramming ONLY.

Click here for the "CONSULT-II ECM Reprogramming Software Update Procedure (ECM Reprogramming And Resident) (Orange Card)" or refer to the attached "CONSULT-II Software Update Procedure" in the printed copy of this bulletin.
