Lighting and Horns: Service and Repair

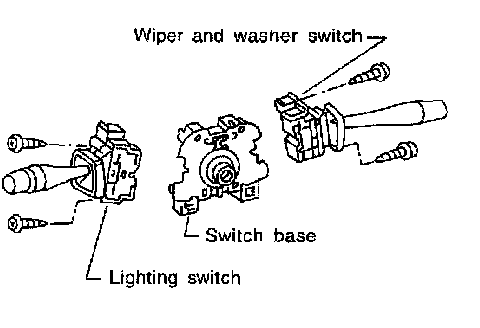

- Each switch can be replaced without removing combination switch base.

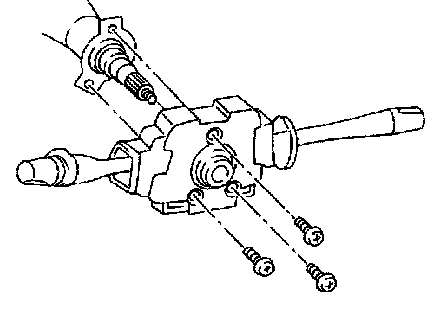

- To remove combination switch base, remove base attaching screw.

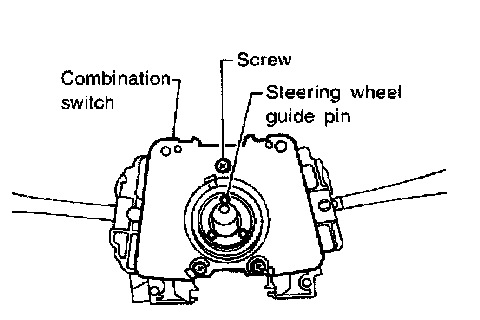

- Before installing the steering wheel, align the steering wheel guide pins with the screws which secure the combination switch.
