Headlamp (For Canada) - Daytime Light System
Headlamp (For Canada) - Daytime Light System
Trouble Diagnoses

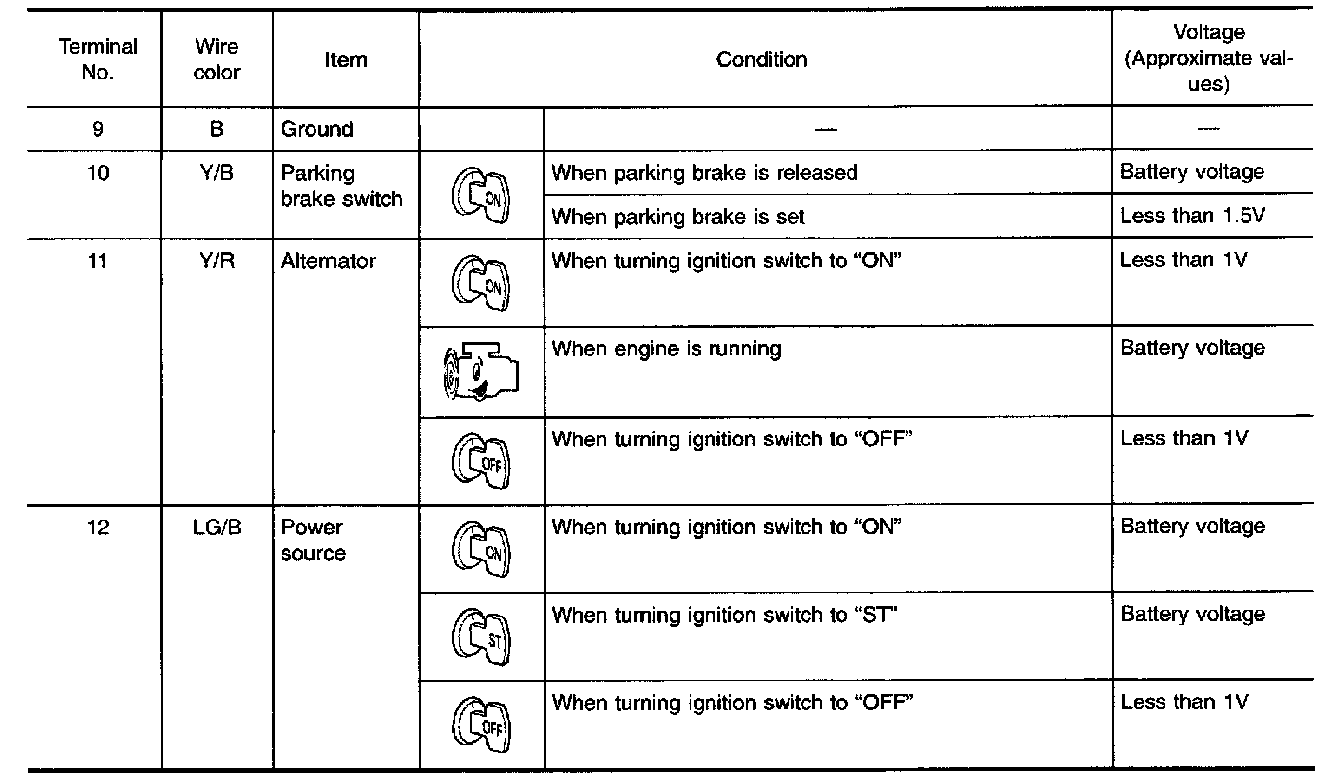

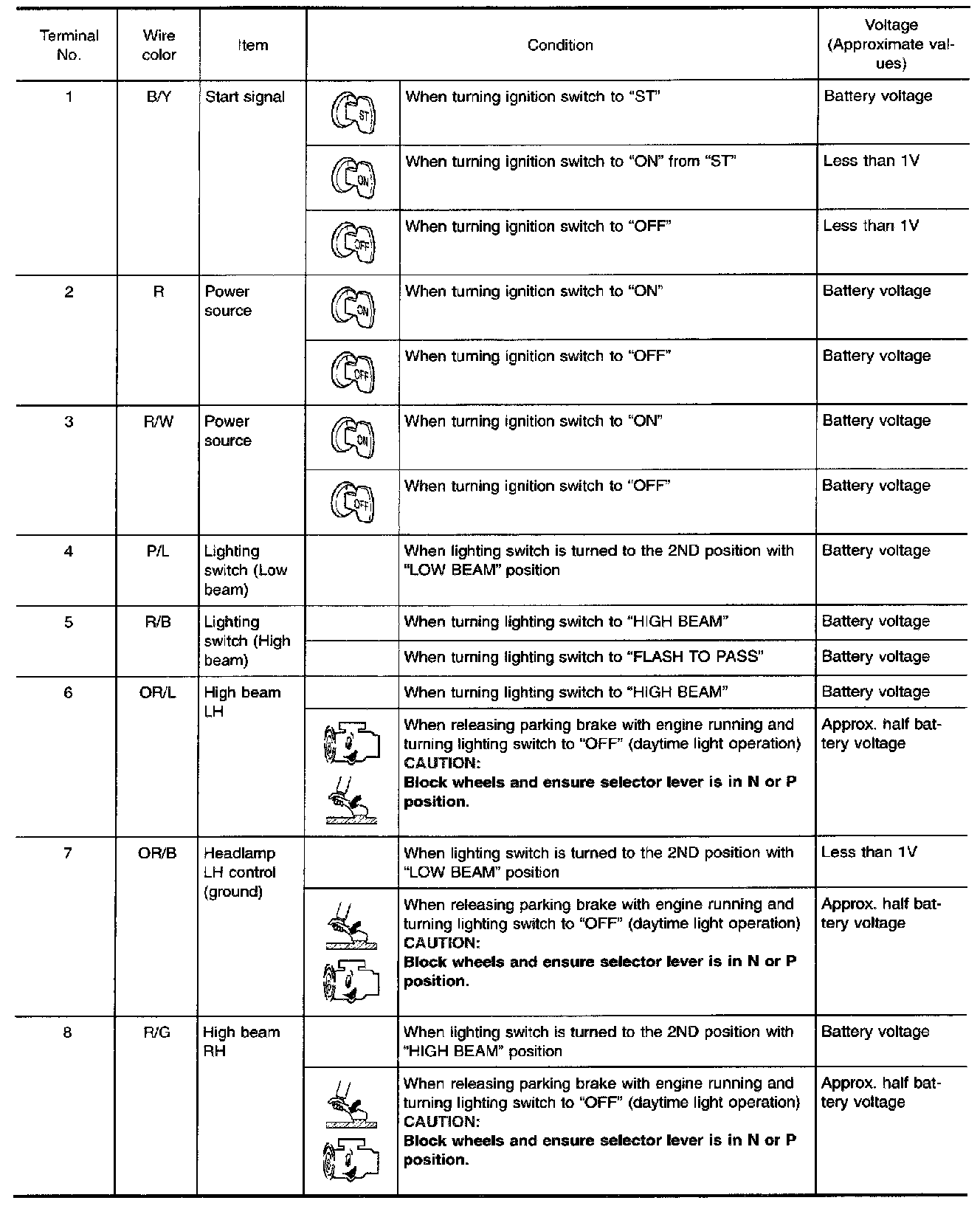

Daytime Light Control Unit Inspection Table
Battery Saver Control Unit Inspection Table
