For Canada

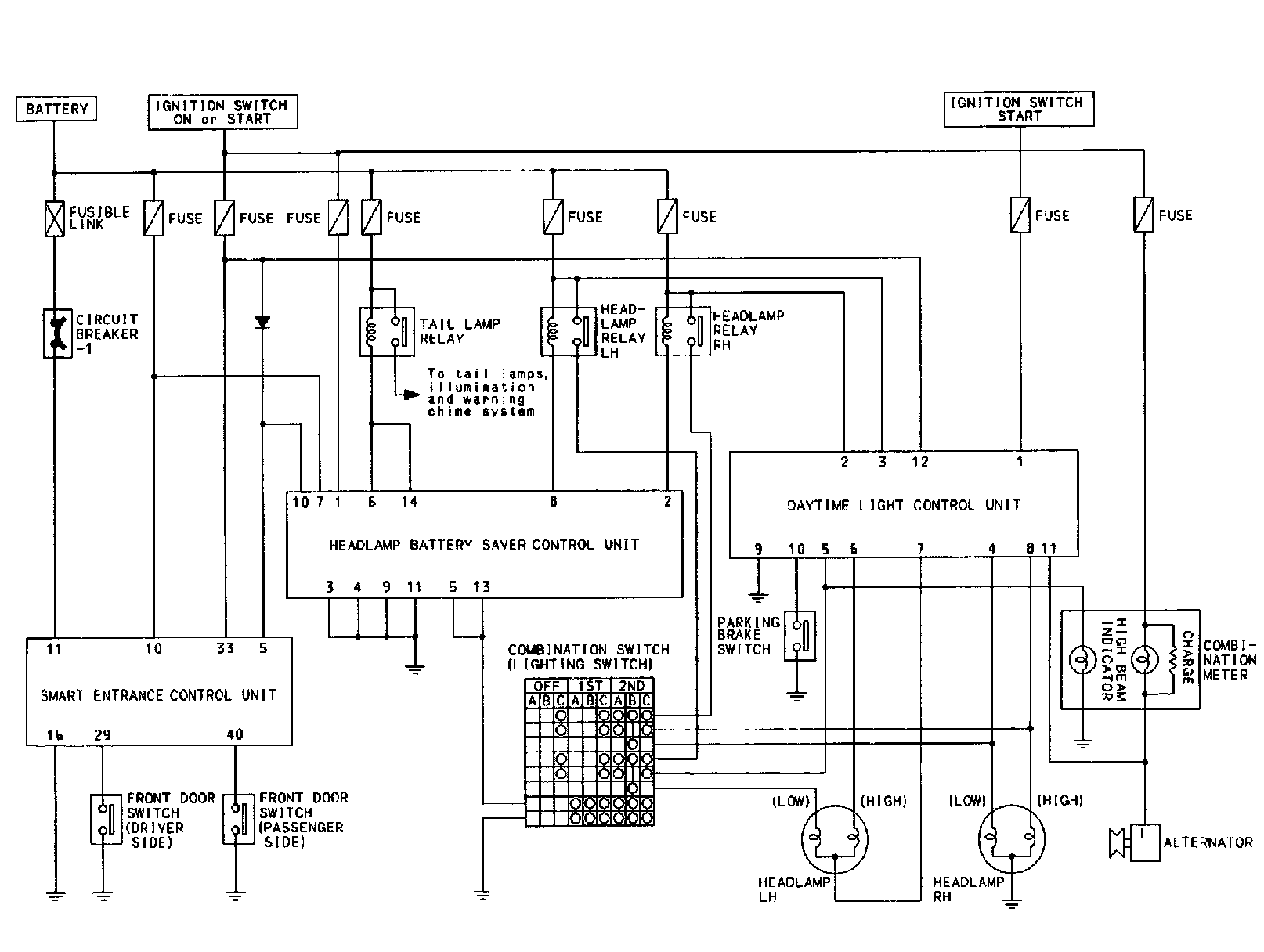

Schematic

Circuit Diagrams

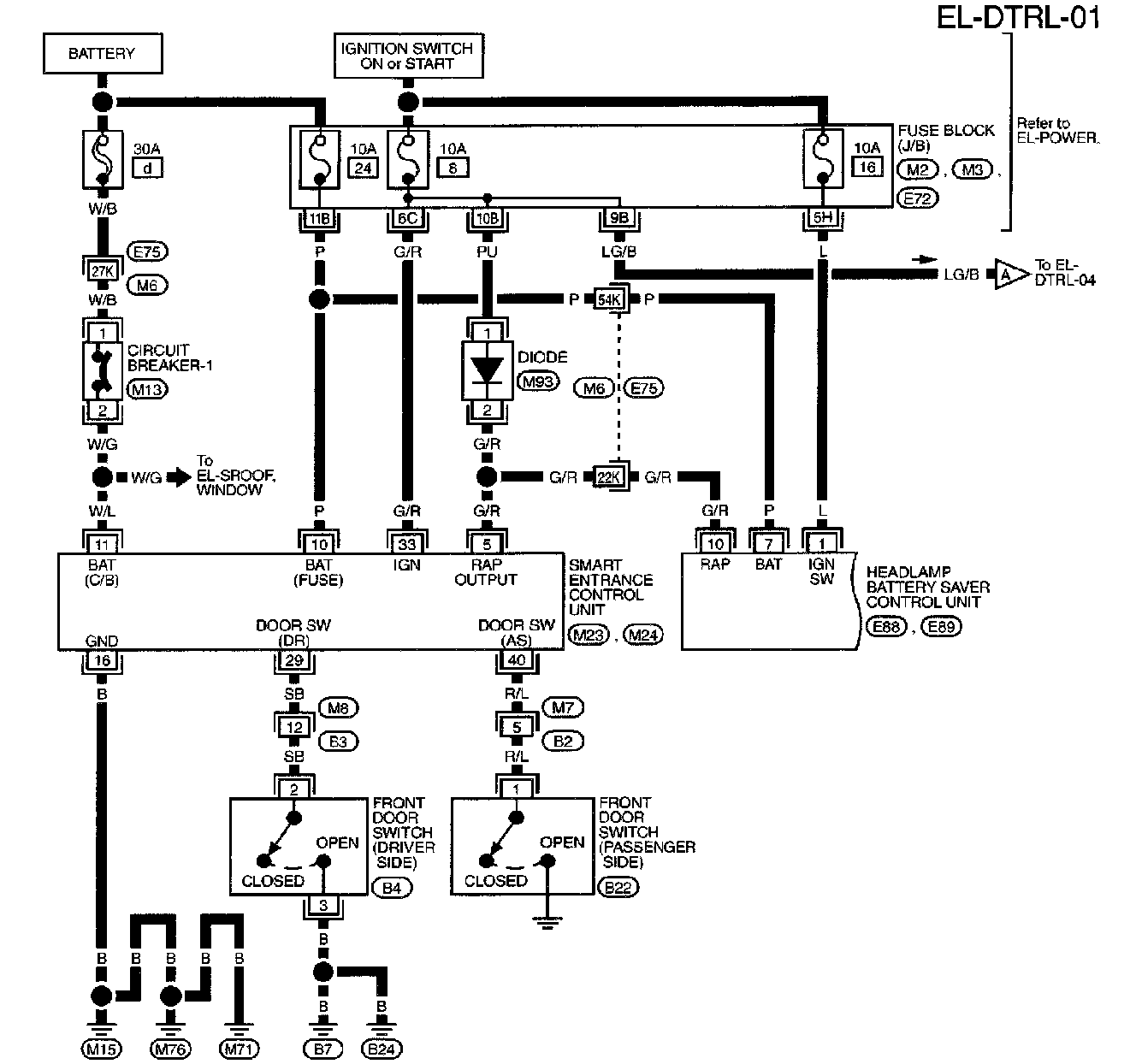

EL-DTRL-01:

(Part 1 of 4)
Fuse Block (J/B)
Circuit Breaker-1
Diode
Smart Entrance Control Unit
Headlamp Battery Saver Control Unit
Front Door Switch (Driver Side)
Front Door Switch (Passenger Side)

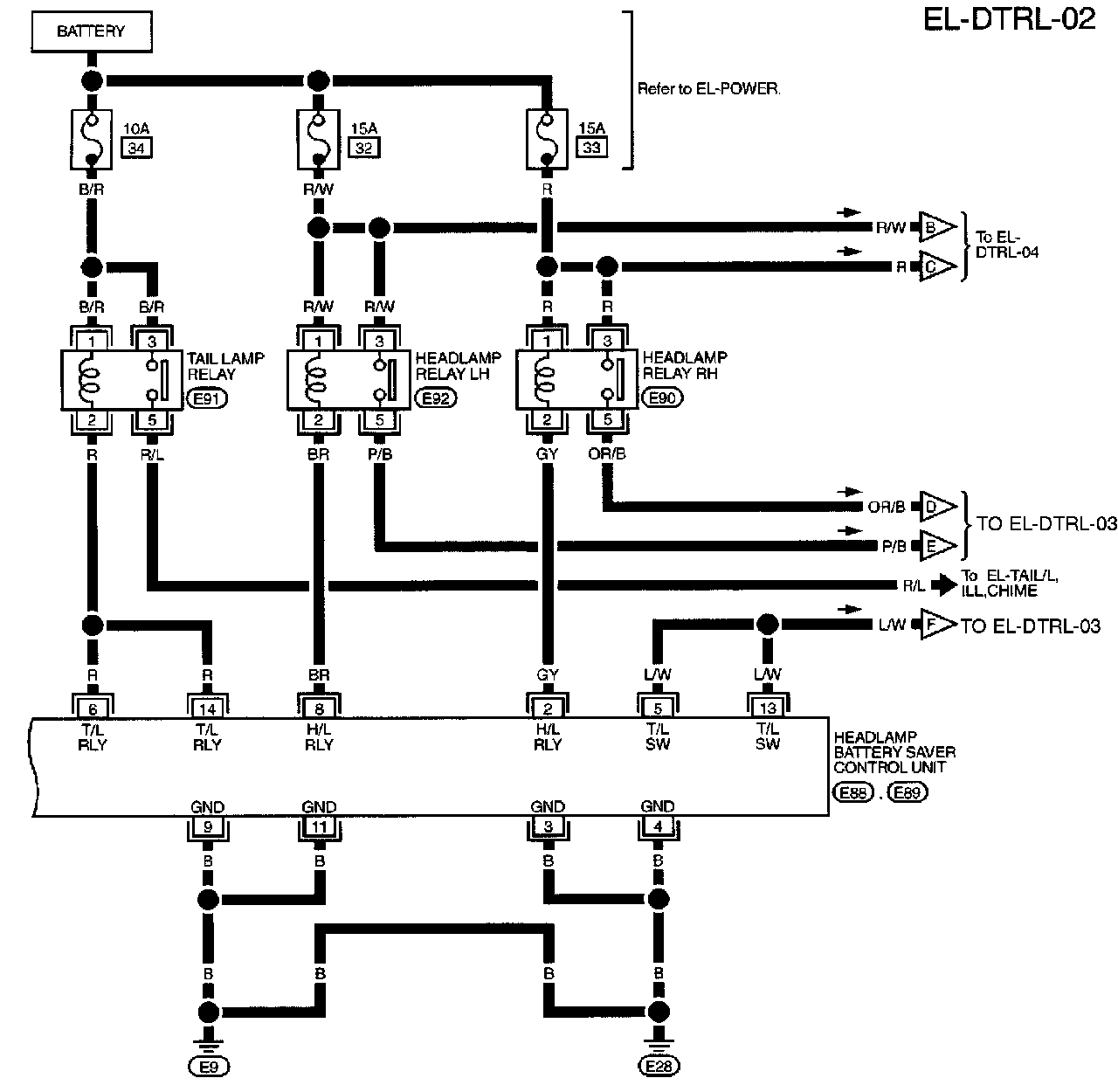

EL-DTRL-02:

(Part 2 of 4)
Tail Lamp Relay
Headlamp Relay LH
Headlamp Relay RH
Headlamp Battery Saver Control Unit

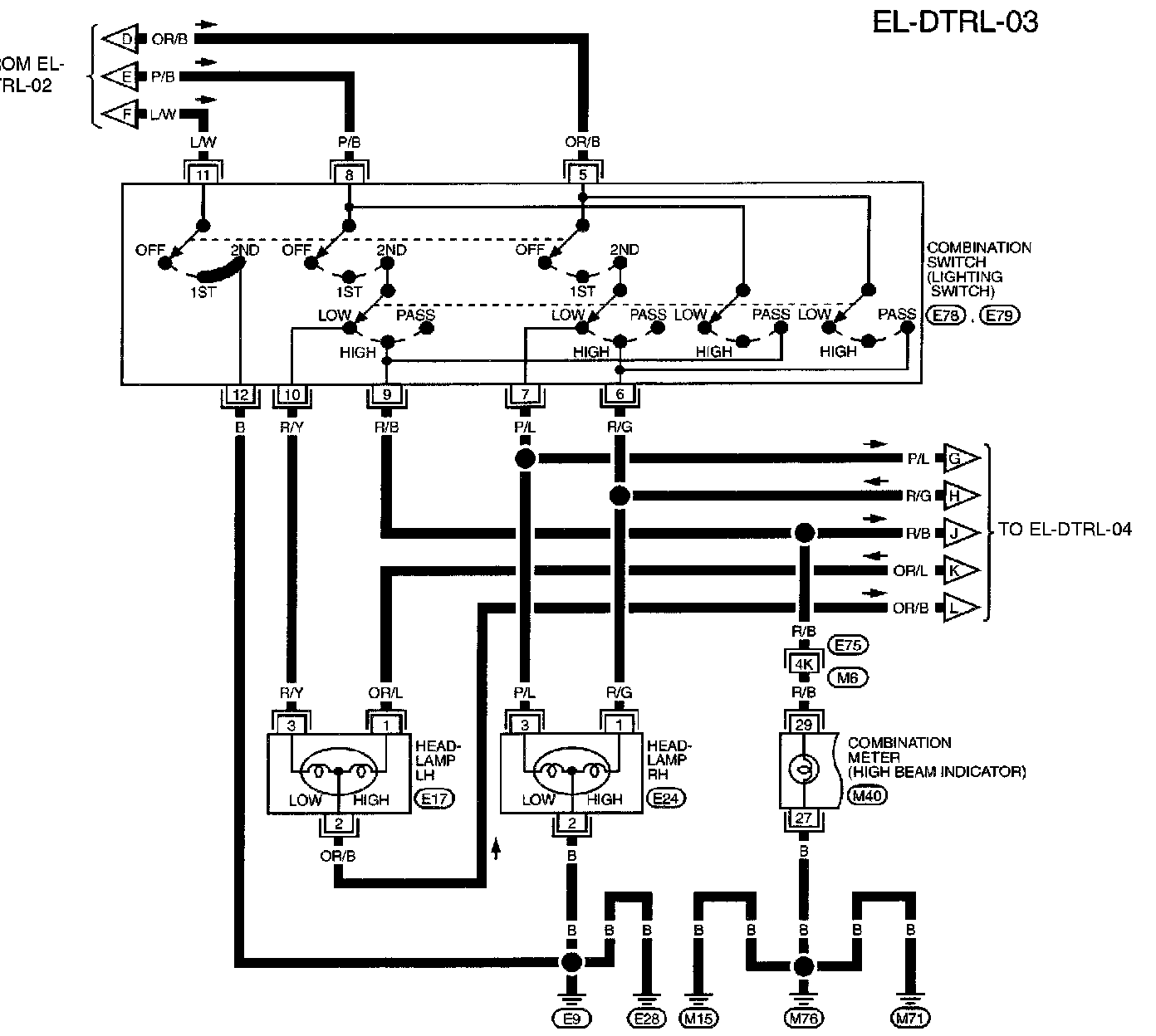

EL-DTRL-03:

(Part 3 of 4)
Combination Switch (Lighting Switch)
Headlamp LH
Headlamp RH
Combination Meter (High Beam Indicator)

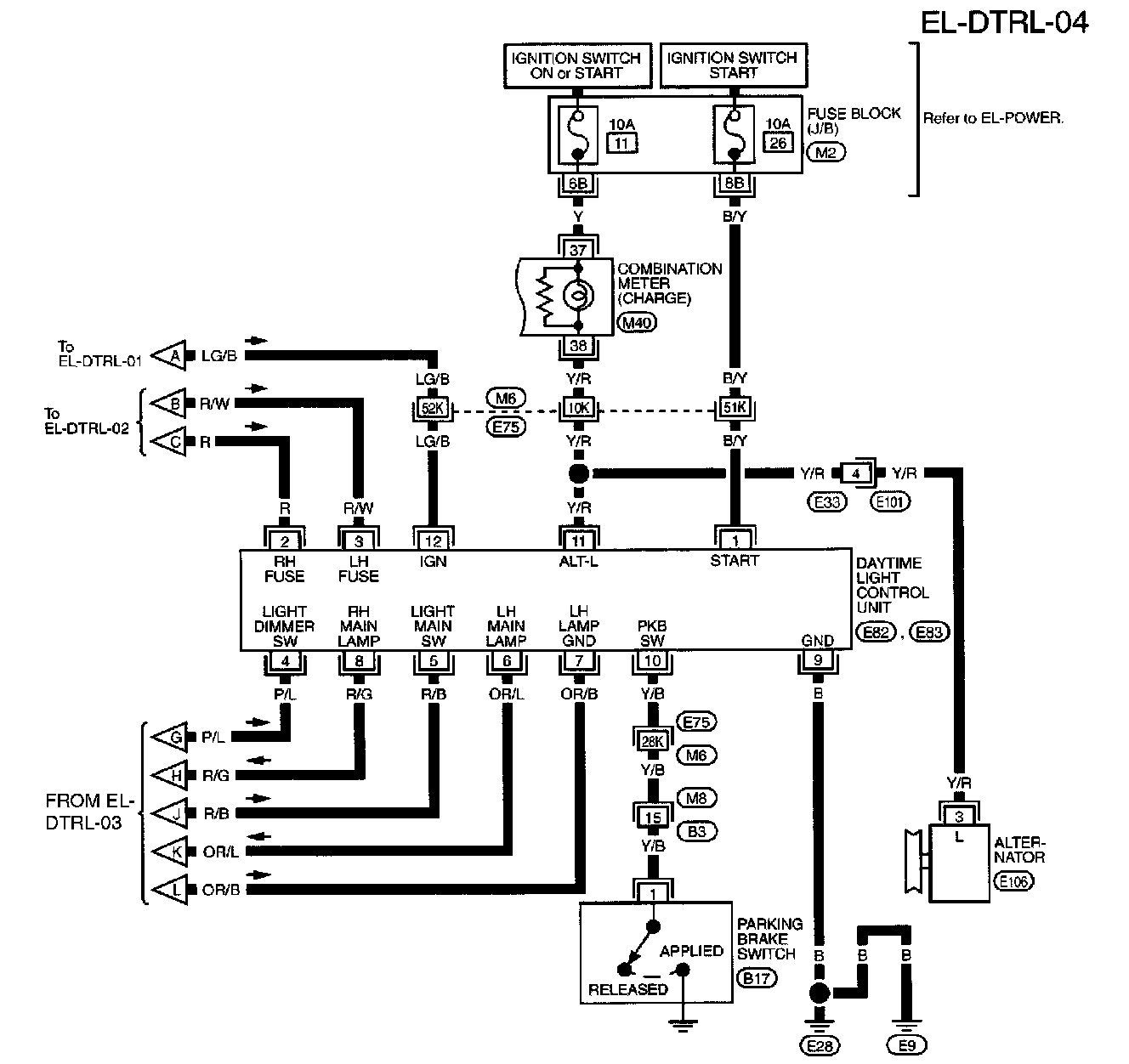

EL-DTRL-04:

(Part 4 of 4)
Fuse Block (J/B)
Combination Meter (Charge)
Daytime Light Control Unit
Alternator
Parking Brake Switch













Circuit Connectors

M6,E75 Connector Views:

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

E75, M2, M3, E72 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
