Electrical Components Inspection

COMBINATION FLASHER UNIT CHECK
- Before checking, ensure that bulbs meet specifications.

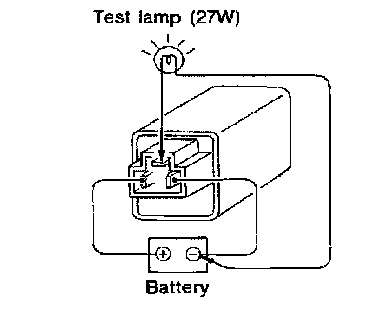

- Connect a battery and test lamp to the combination flasher unit as shown. Combination flasher unit is properly functioning it it blinks when power is supplied to the circuit.
