Thermal Transmitter Check
Thermal Transmitter Check

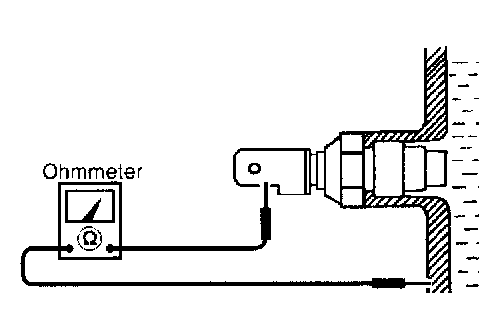

THERMAL TRANSMITTER CHECK

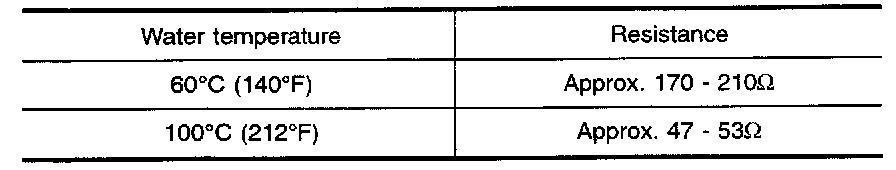

Check the resistance between the terminals of thermal transmitter and body ground.
