Meter Gauge Resistance Check







METER/GAUGE RESISTANCE CHECK
1. Disconnect FPC connector. Refer to "Flexible Print Circuit (FPC)".

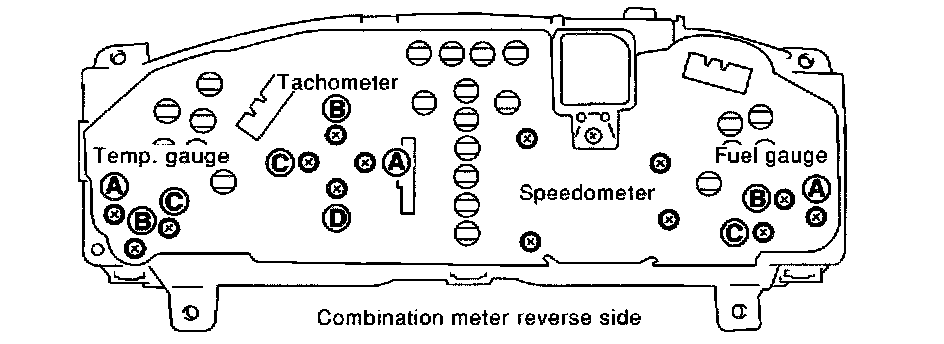

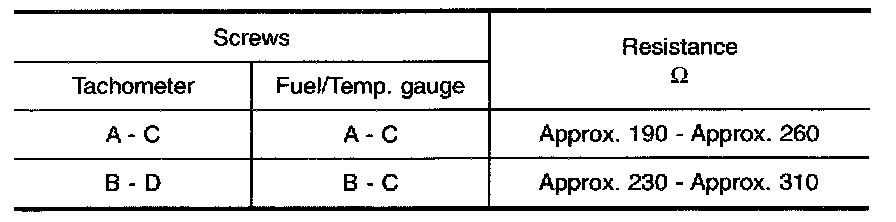

2. Check resistance between installation screws of meter/gauge.
