Insufficient Cooling (Performance Test)
TROUBLE DIAGNOSIS PROCEDURE FOR INSUFFICIENT COOLINGSYMPTOM:
- Insufficient Cooling.

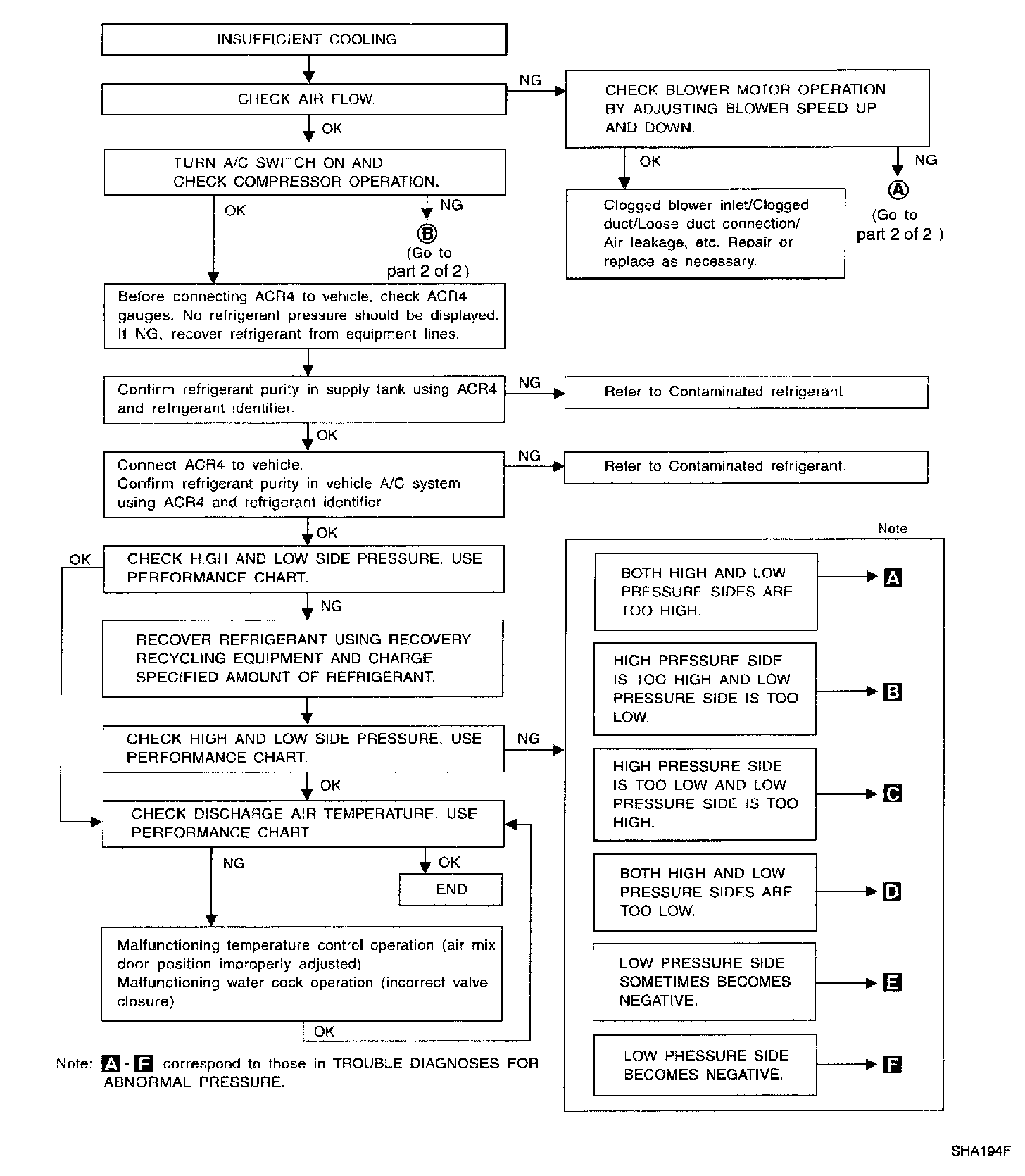

INSPECTION FLOW
Part 1 Of 2:

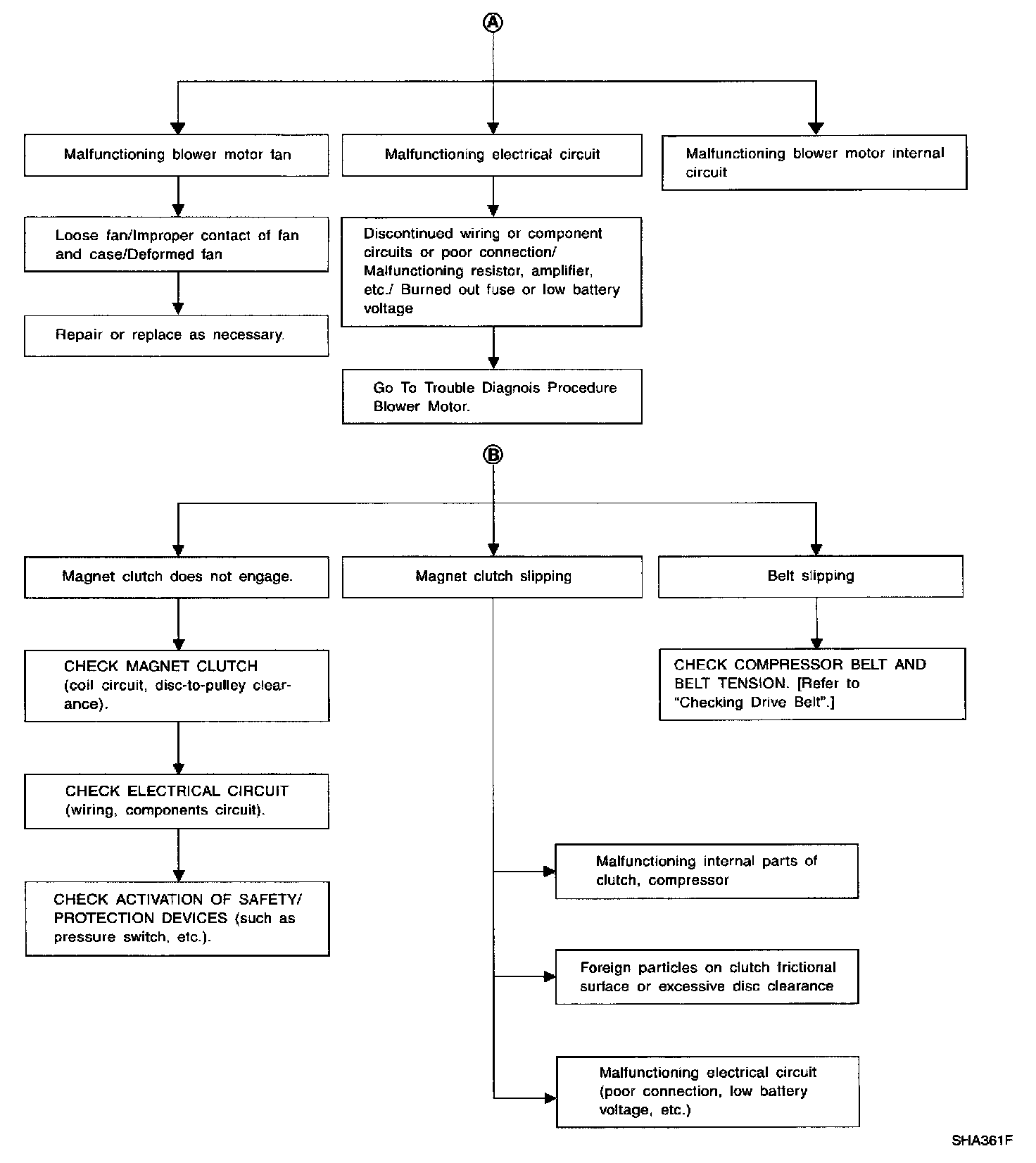

Part 2 Of 2:

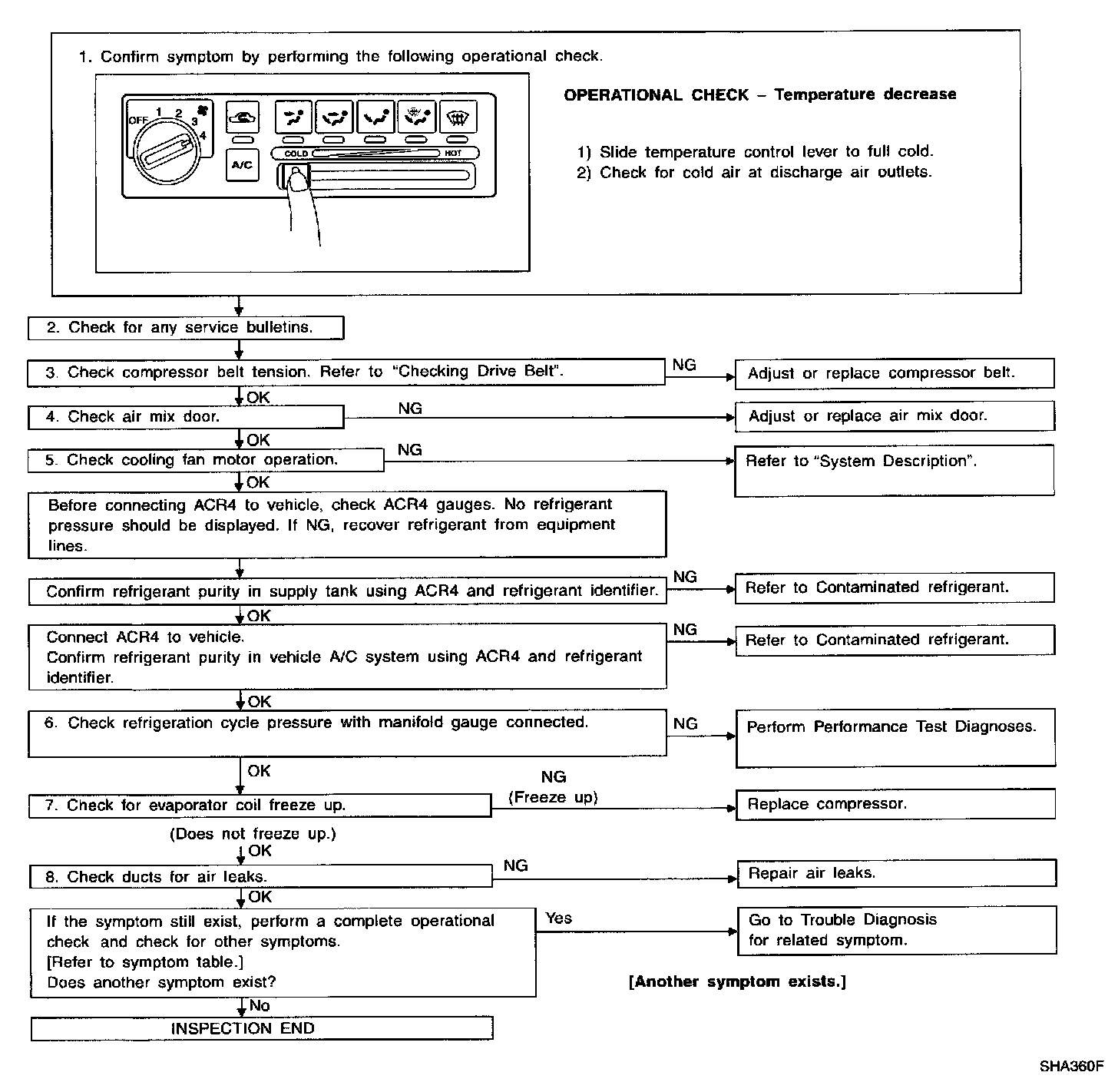

PERFORMANCE TEST DIAGNOSES
PERFORMANCE CHART
Test Condition
Testing must be performed as follows:
Vehicle location: Indoors or in the shade (in a well-ventilated place)
Doors: Closed
Door window: Open
Hood: Open
TEMR: Max. COLD
Discharge Air: Face Vent
REC switch: (Recirculation) set
FAN speed: High speed
Engine speed: Idle speed
Operate the air conditioning system for 10 minutes before taking measurements.
Test Reading

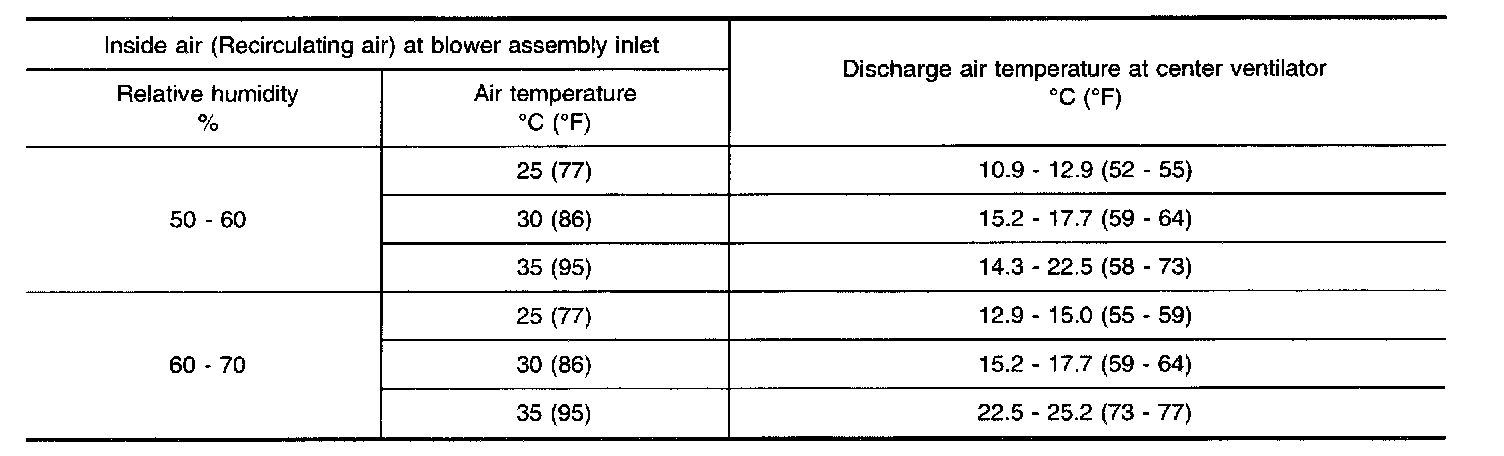

Recirculating-to-discharge Air Temperature Table

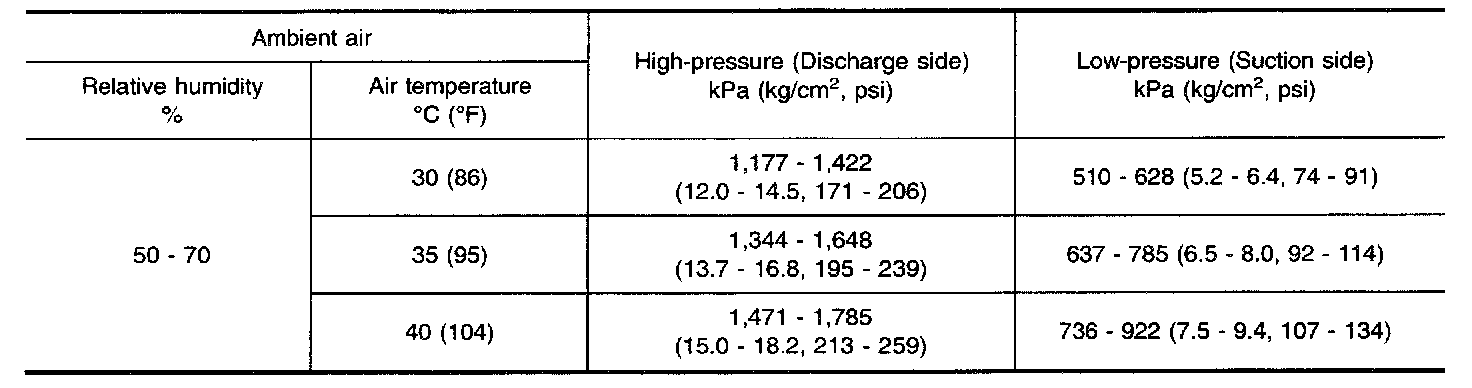

Ambient Air Temperature-to-Operating Pressure Table
TROUBLE DIAGNOSES FOR ABNORMAL PRESSURE
Whenever system's high and/or low side pressure is abnormal, diagnose using a manifold gauge. The marker above the gauge scale in the following tables indicates the standard (normal) pressure range. Since the standard (normal) pressure, however, differs from vehicle to vehicle, refer to ("Ambient air temperature- to-operating pressure table").

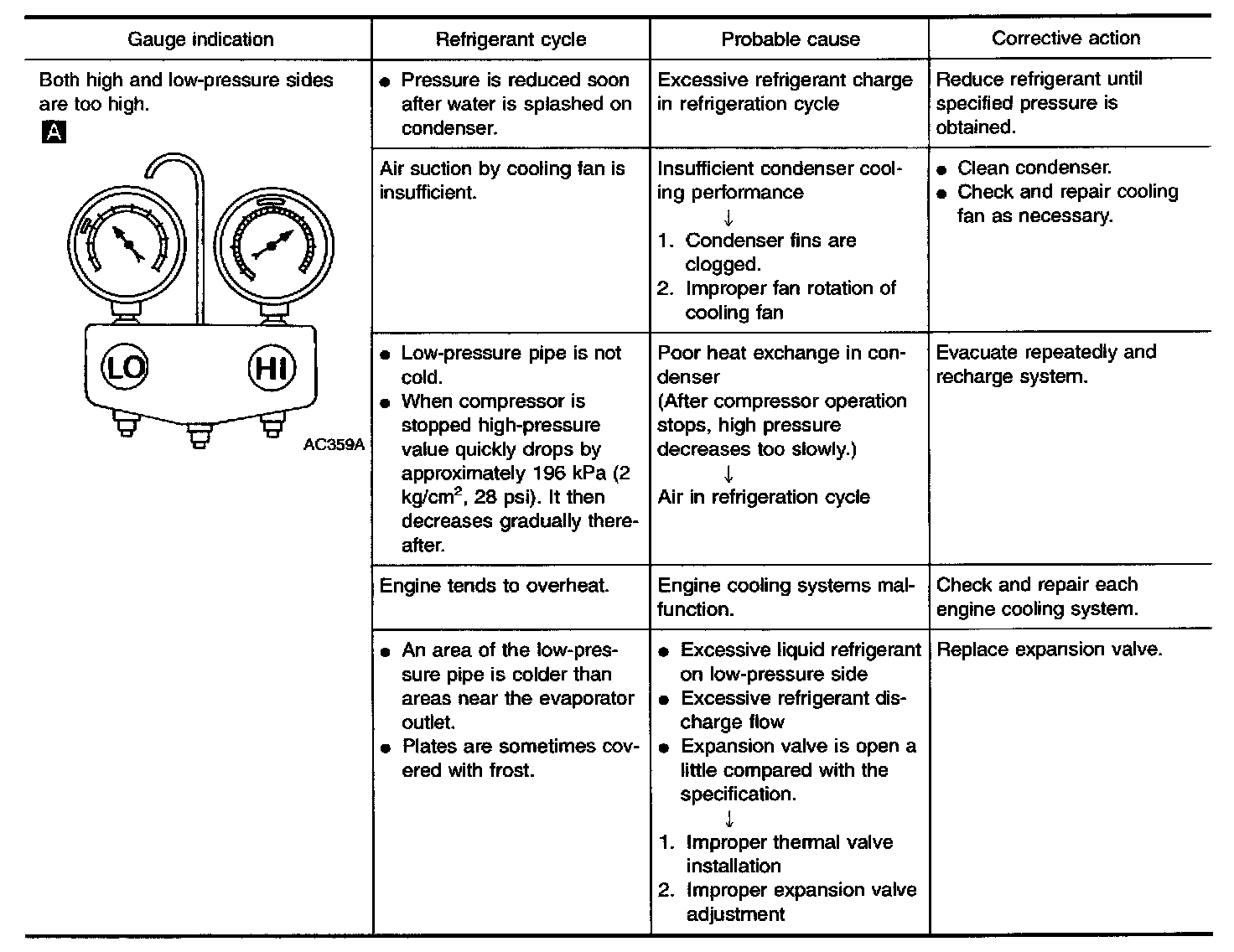

Both High and Low-pressure Sides are Too High.

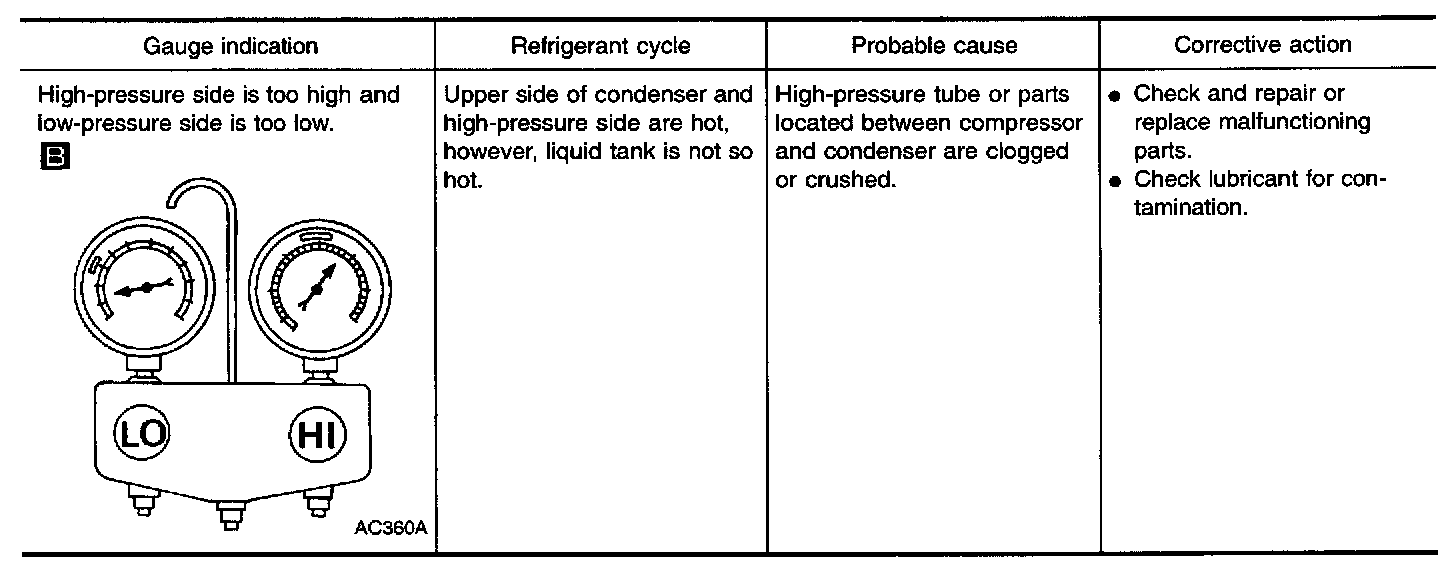

High-pressure Side is Too High and Low-pressure Side is Too Low.

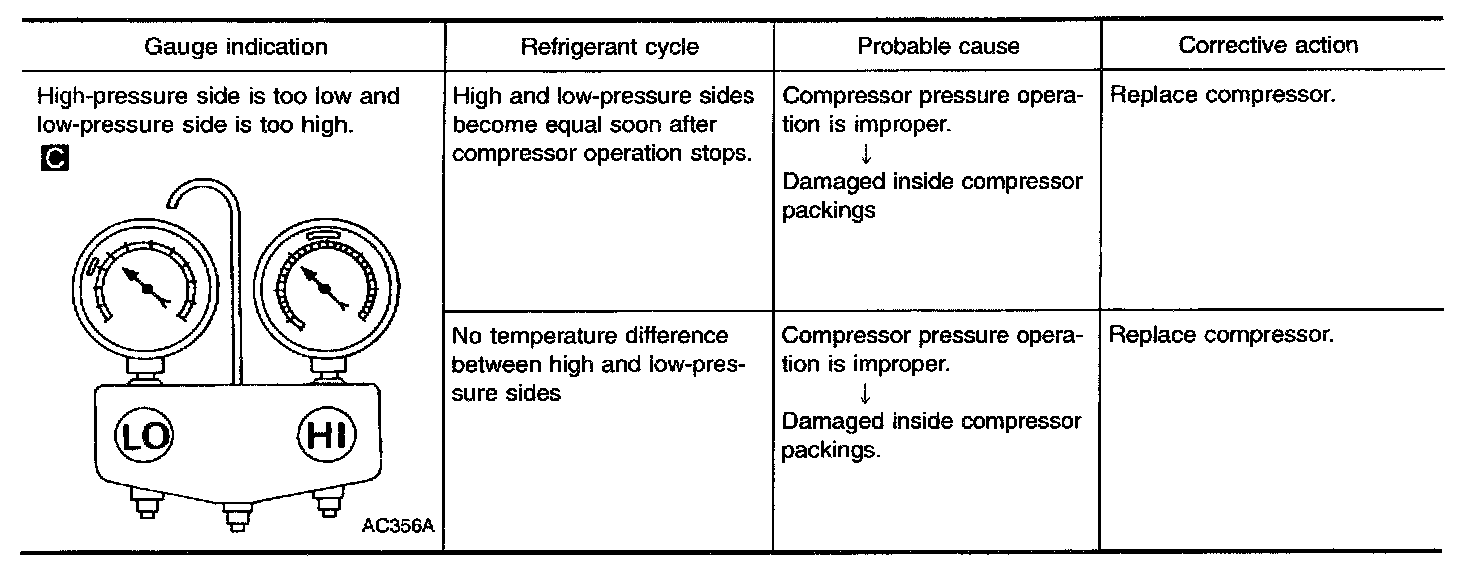

High-pressure Side is Too Low and Low-pressure Side is Too High.

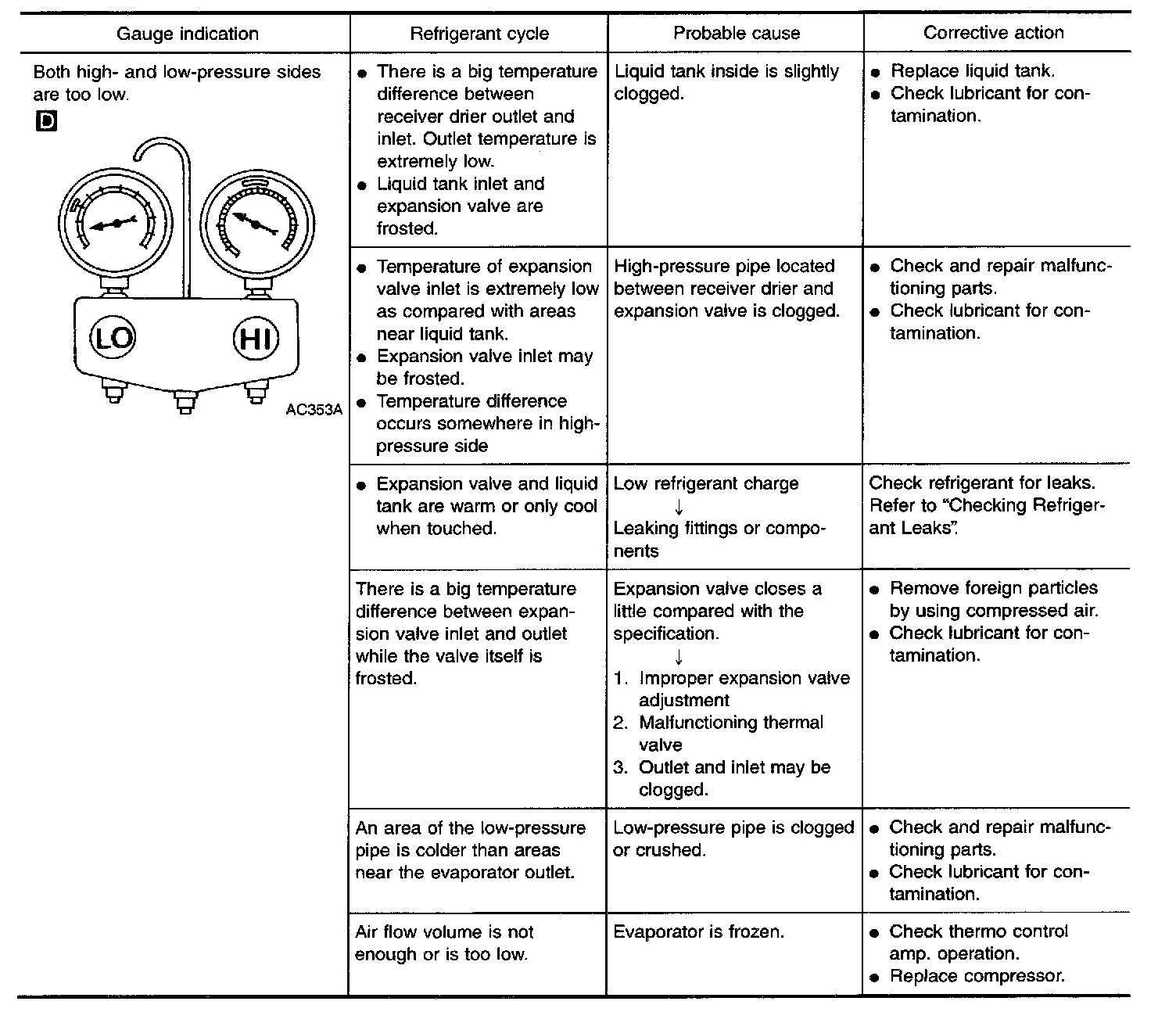

Both High- and Low-pressure Sides are Too Low.

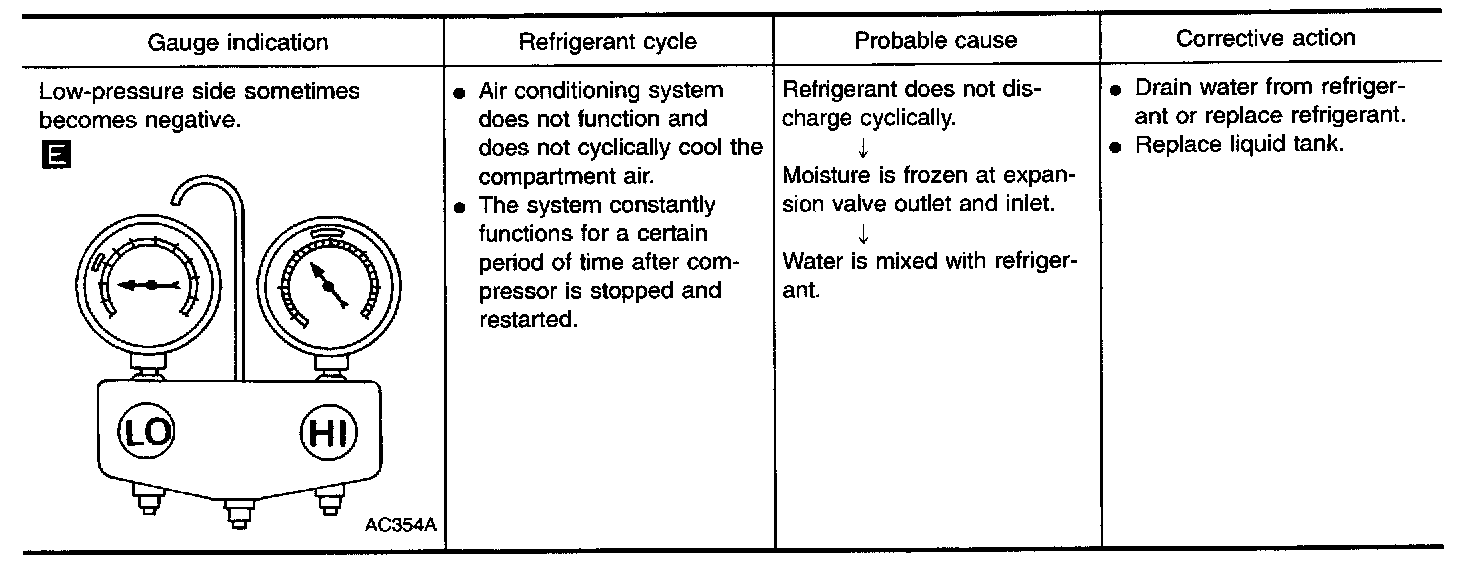

Low-pressure Side Sometimes Becomes Negative.

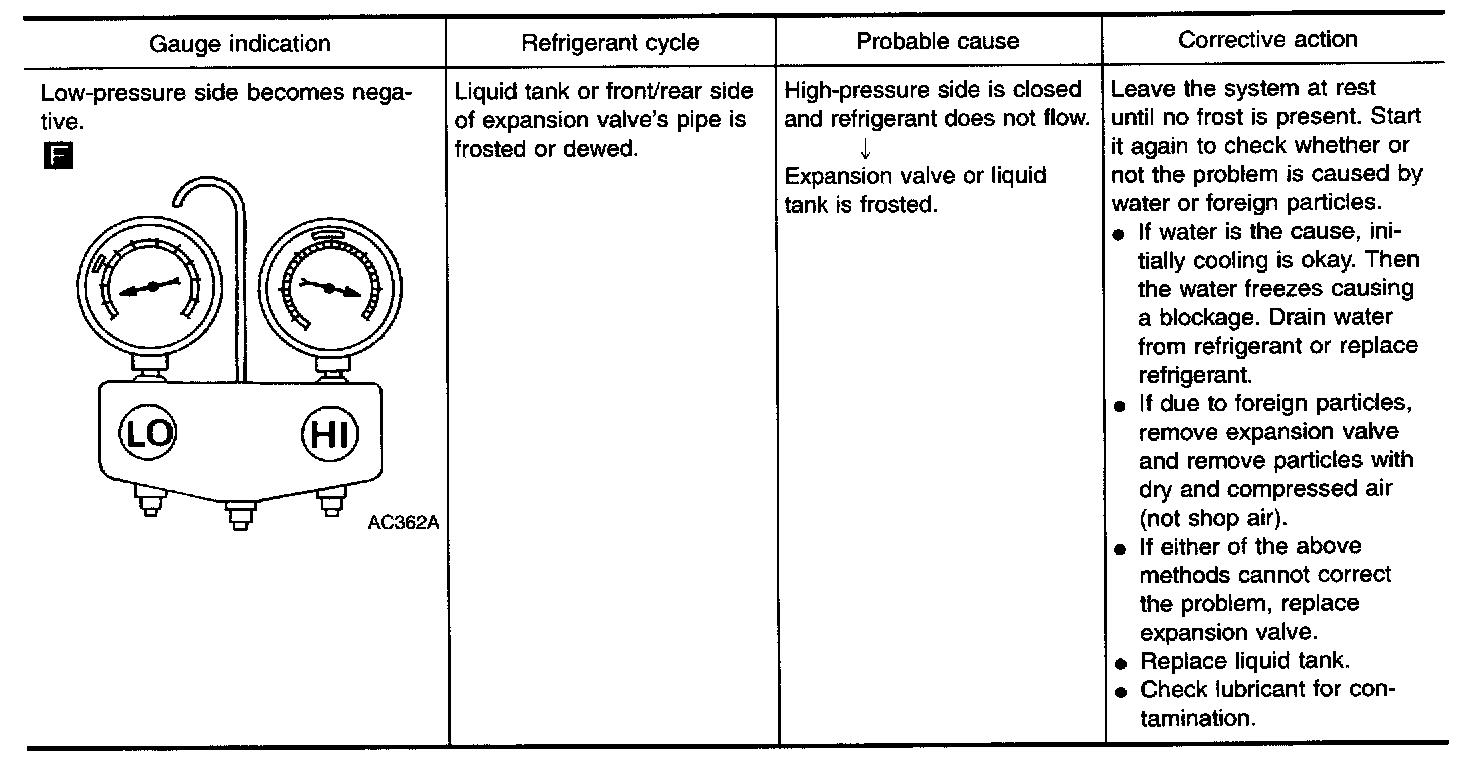

Low-pressure Side Becomes Negative.
