Pinout Values and Diagnostic Parameters

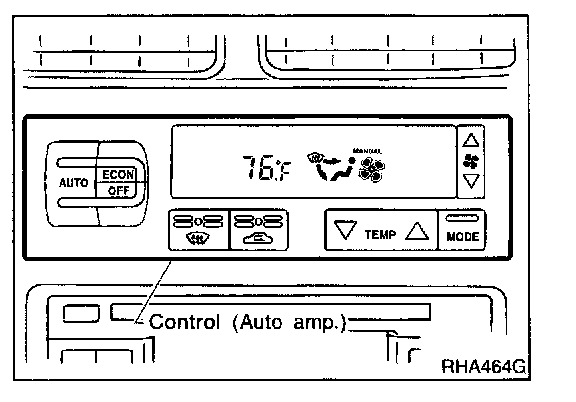

INSPECTION OF AUTO AMP.




- Measure voltage between each terminal and body ground by following "AUTO AMP. INSPECTION TABLE".

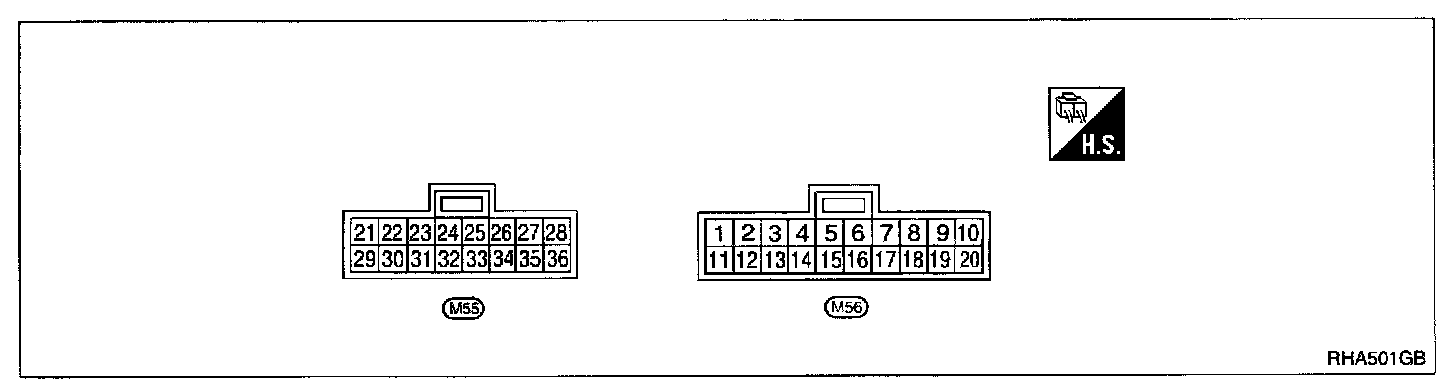

- Pin connector terminal layout

Part 1 Of 2:

Part 2 Of 2:

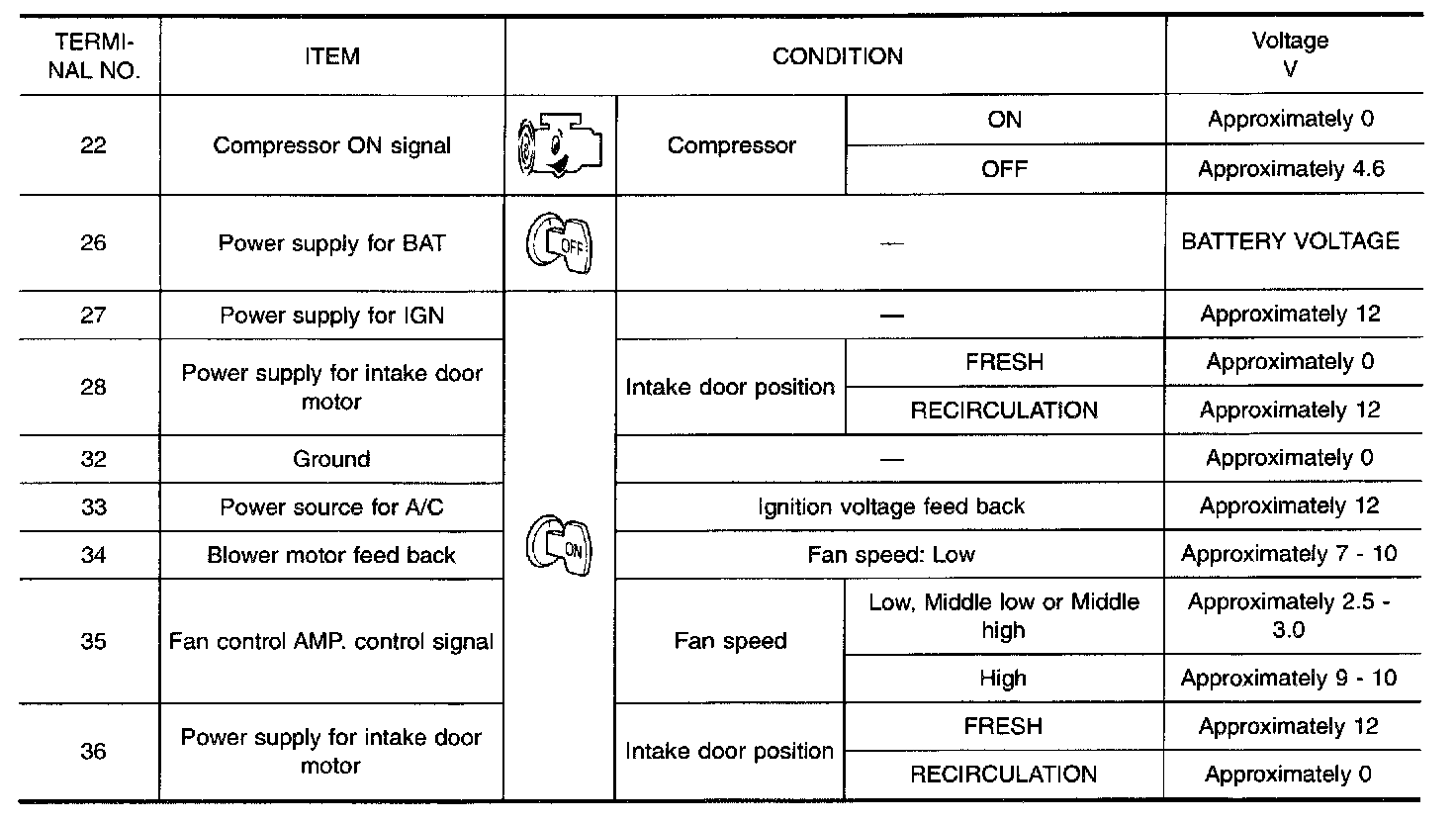

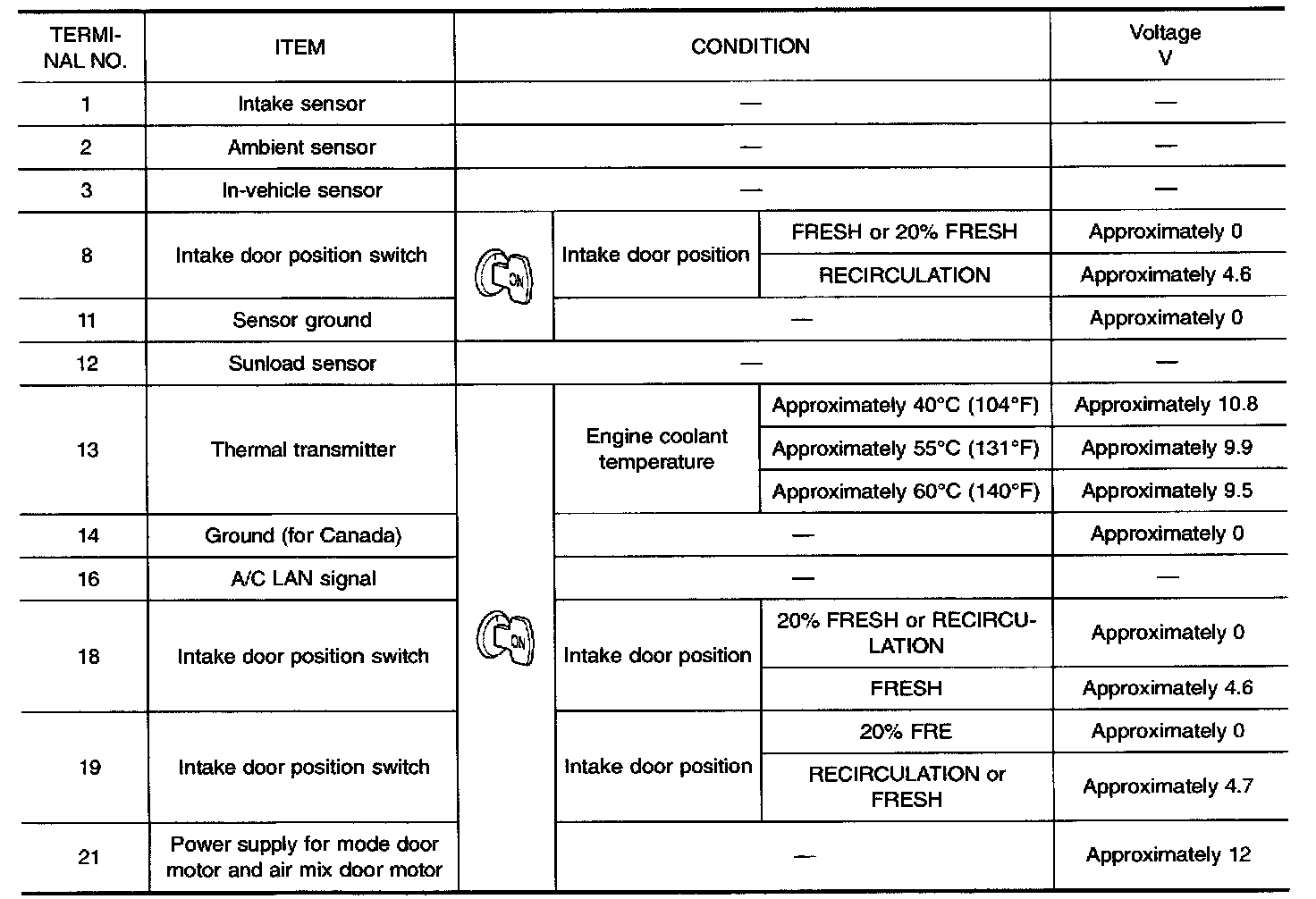

AUTO AMP. INSPECTION TABLE
