Home >> Infiniti >> 2000 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Flow of Diagnosis >> Automatic Air Conditioner

Automatic Air Conditioner

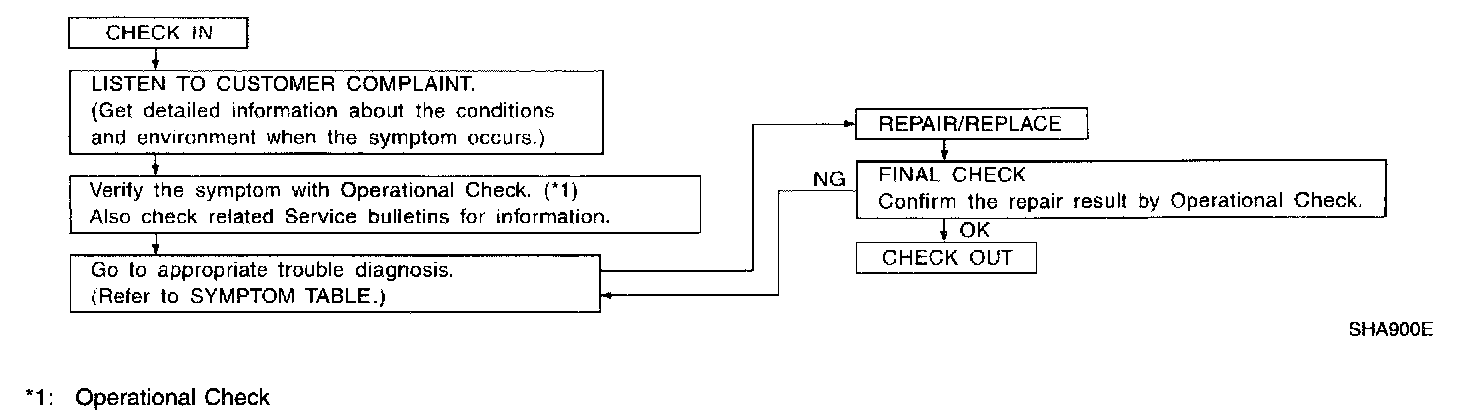

Work Flow:

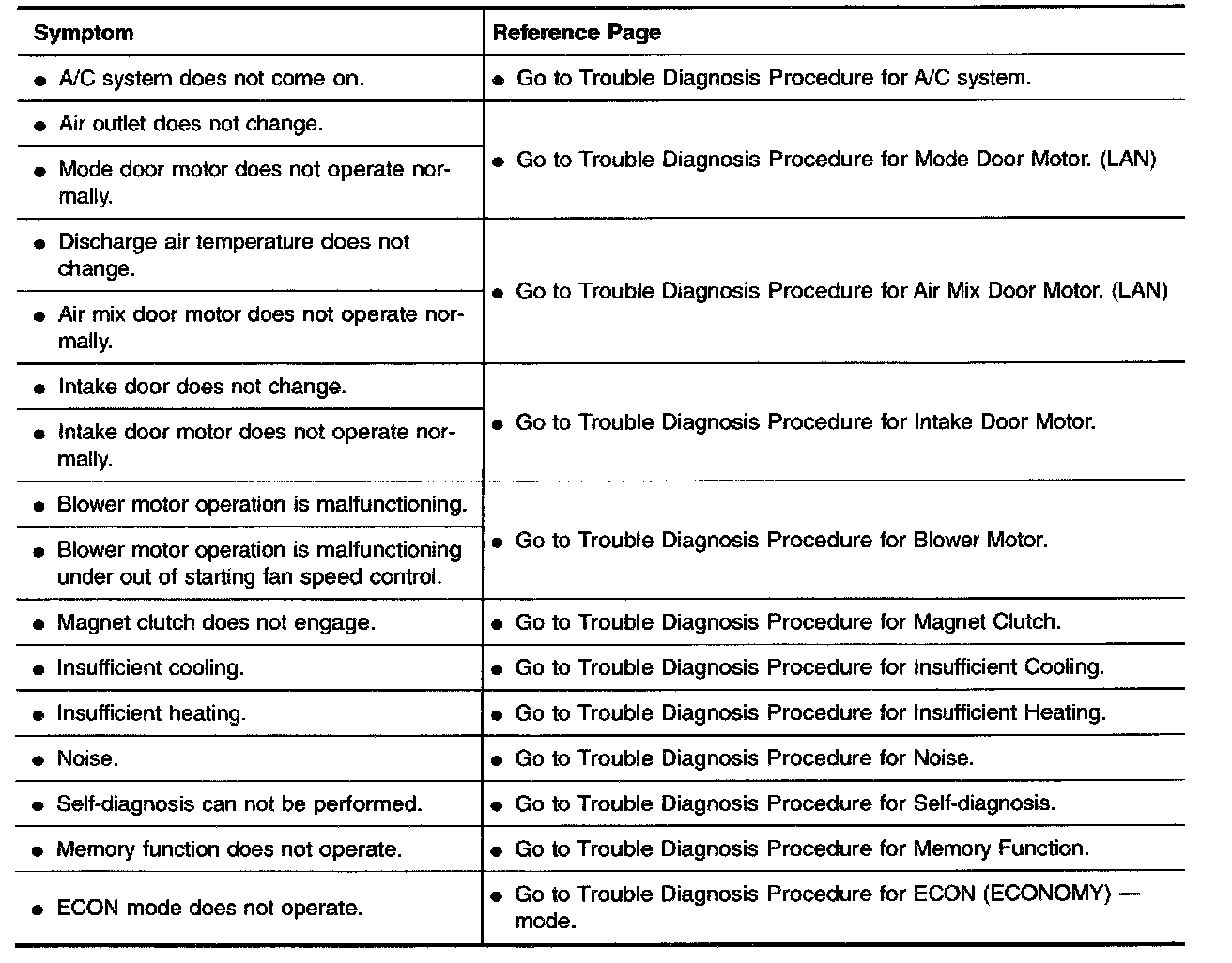

Symptom Table:
