Home >> Infiniti >> 2000 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Control System Schematic

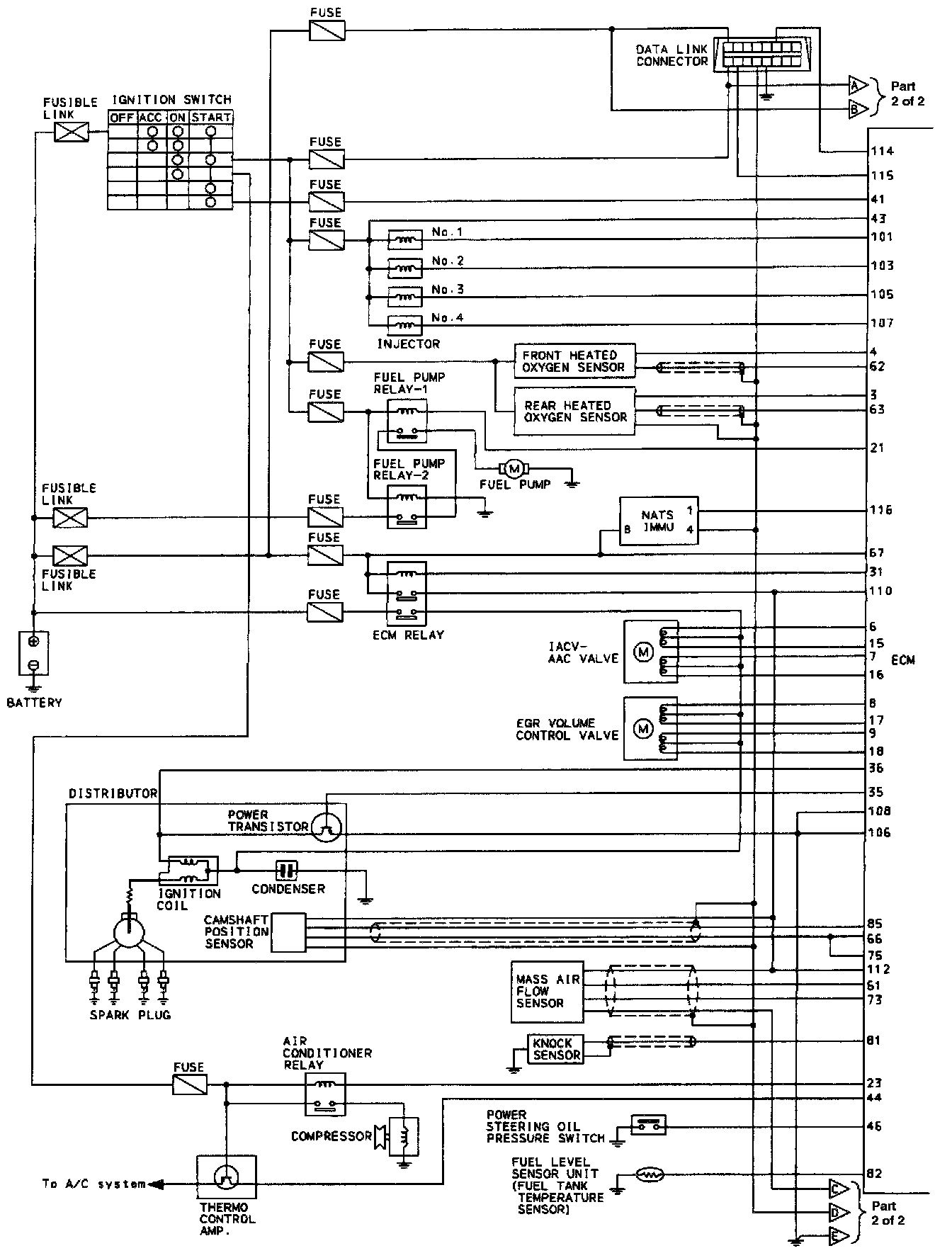

Engine Control System Schematic

(Circuit Diagram) Part 1 Of 2:



(Circuit Diagram) Part 2 Of 2:
