Cigarette Lighter

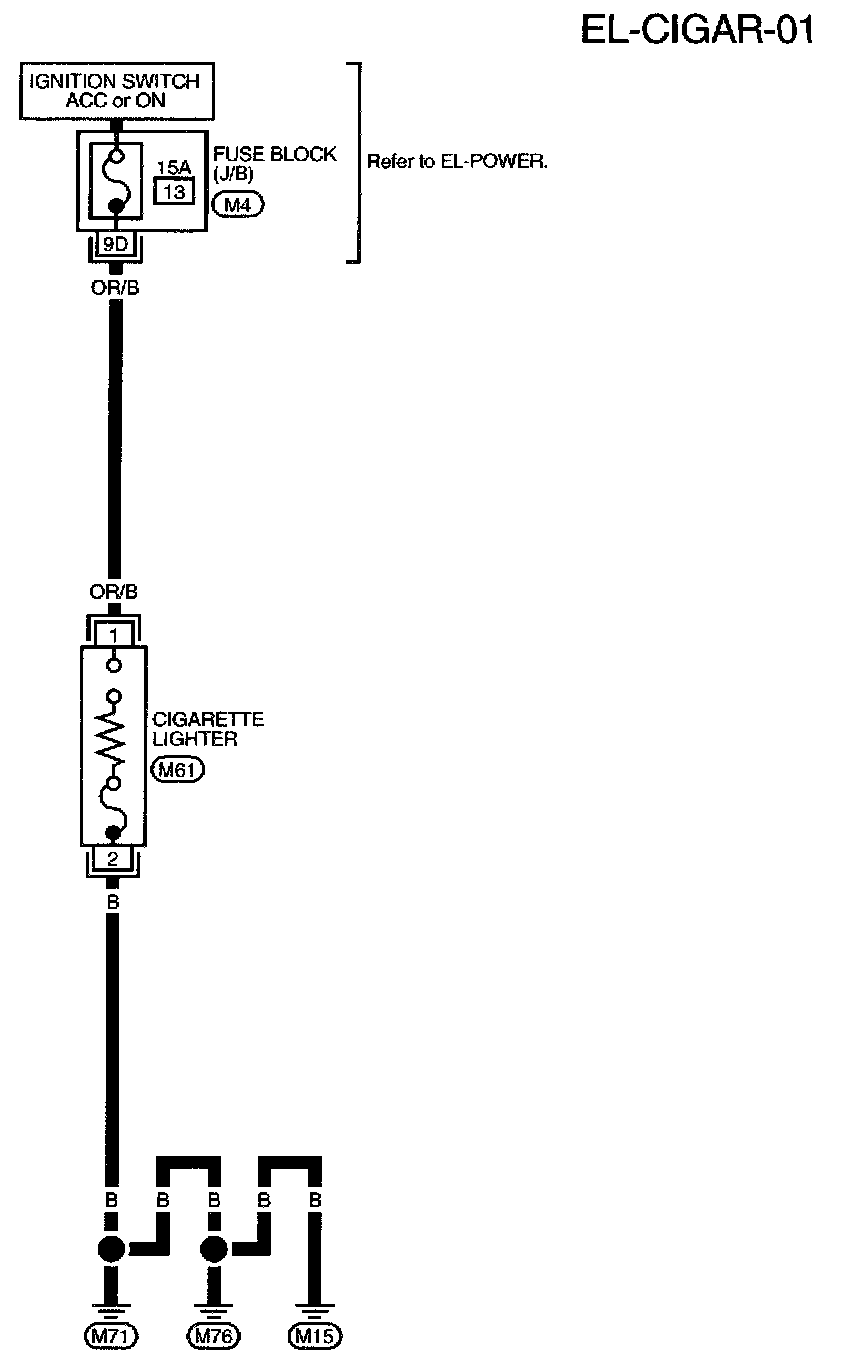

EL-CIGAR-01:




Circuit Diagrams




Circuit Connectors

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:




M4 Fuse Block - Junction Box (J/B) Terminal Arrangement
