Engine Control Module

ECM Harness Connector Terminal Layout:

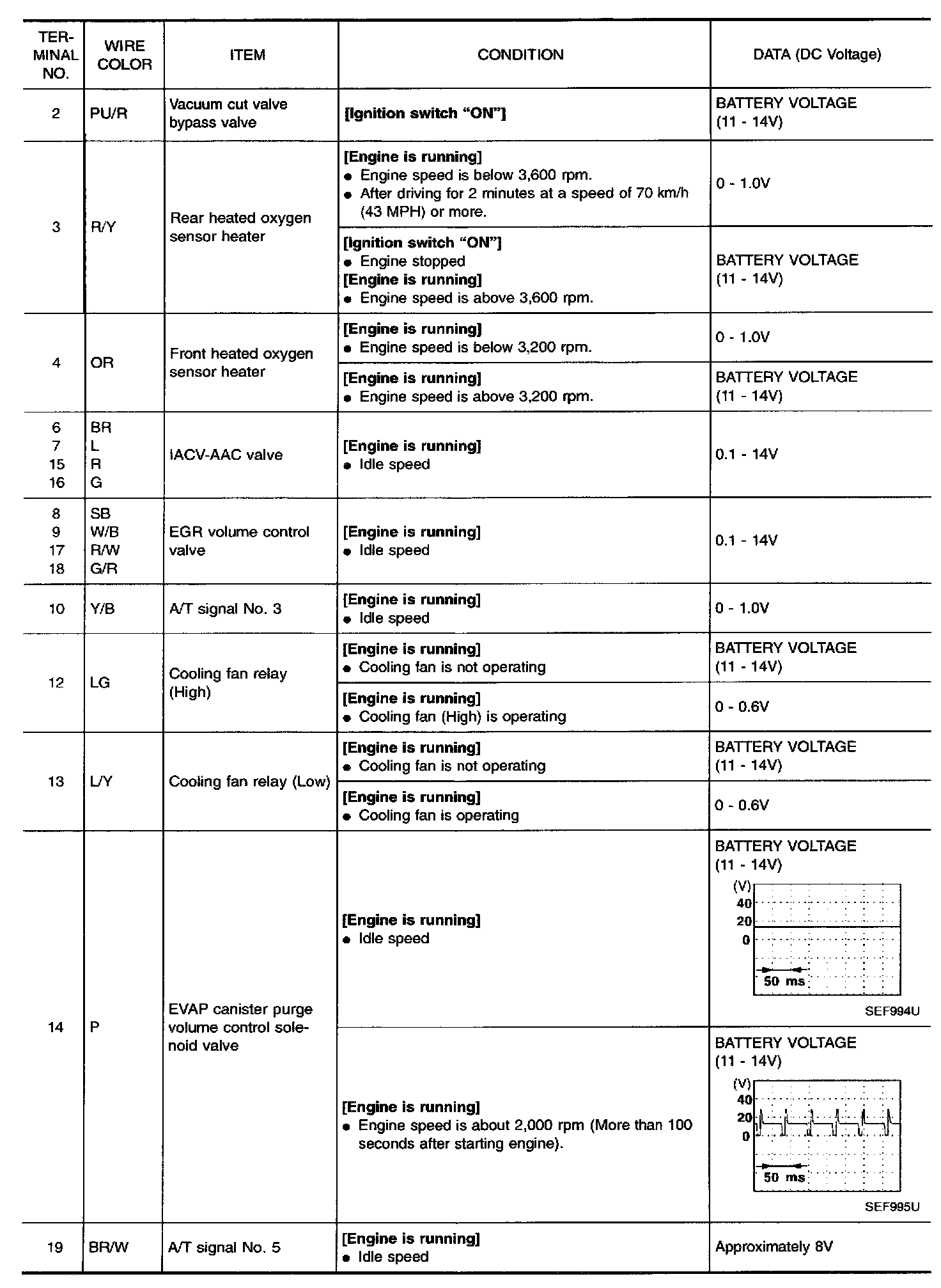

Terminals 2 - 19:

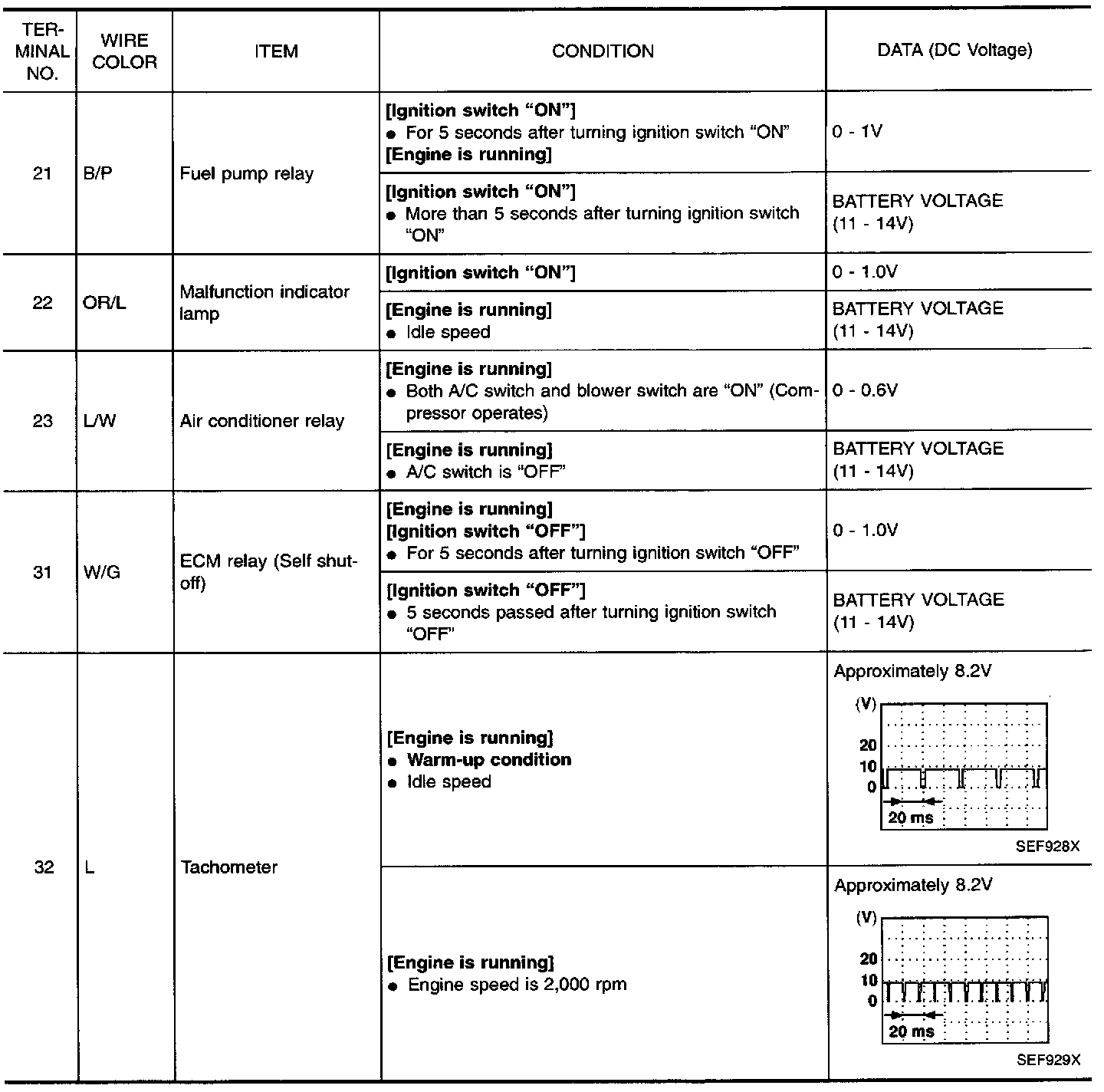

Terminals 21 - 32:

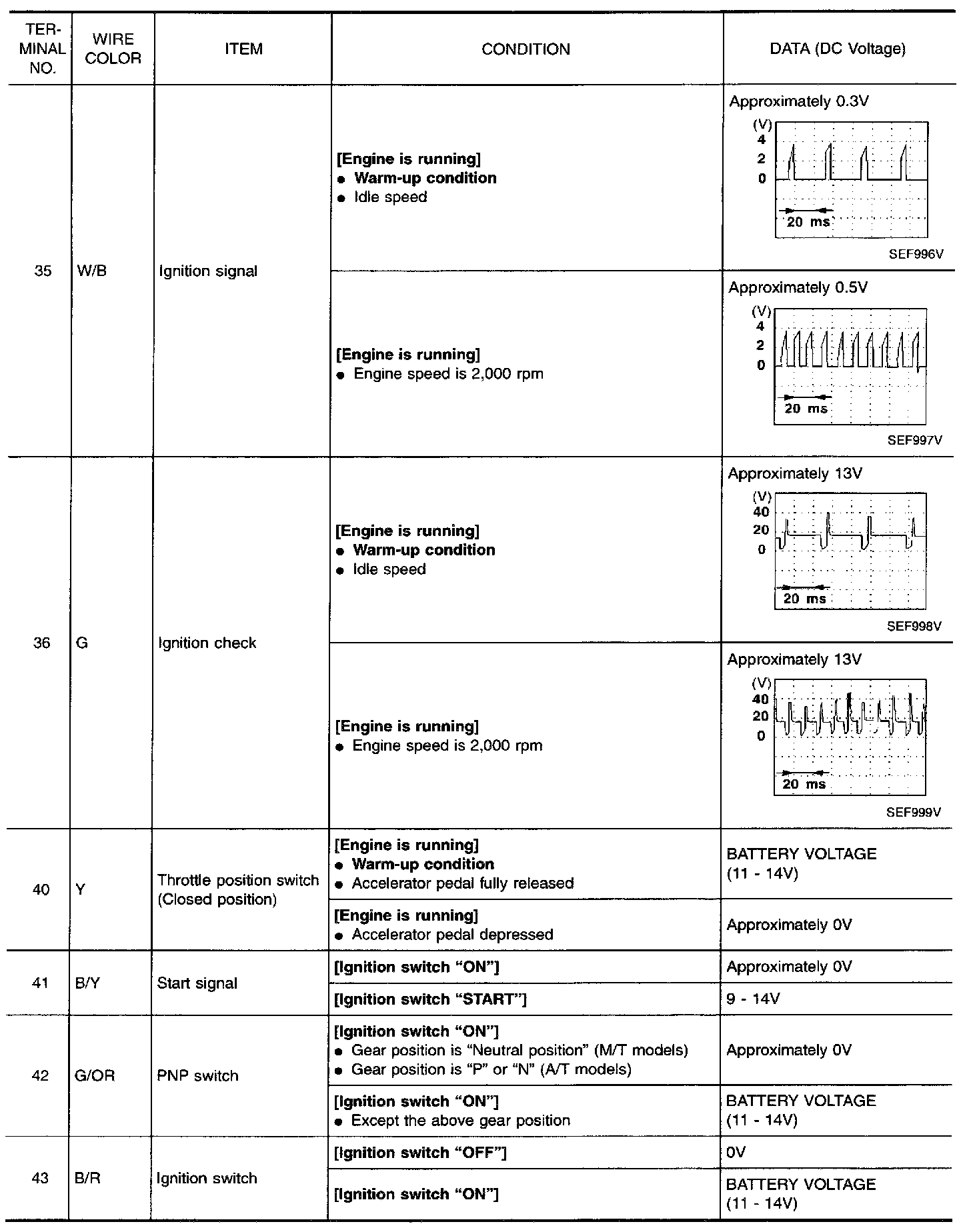

Terminals 35 - 43:

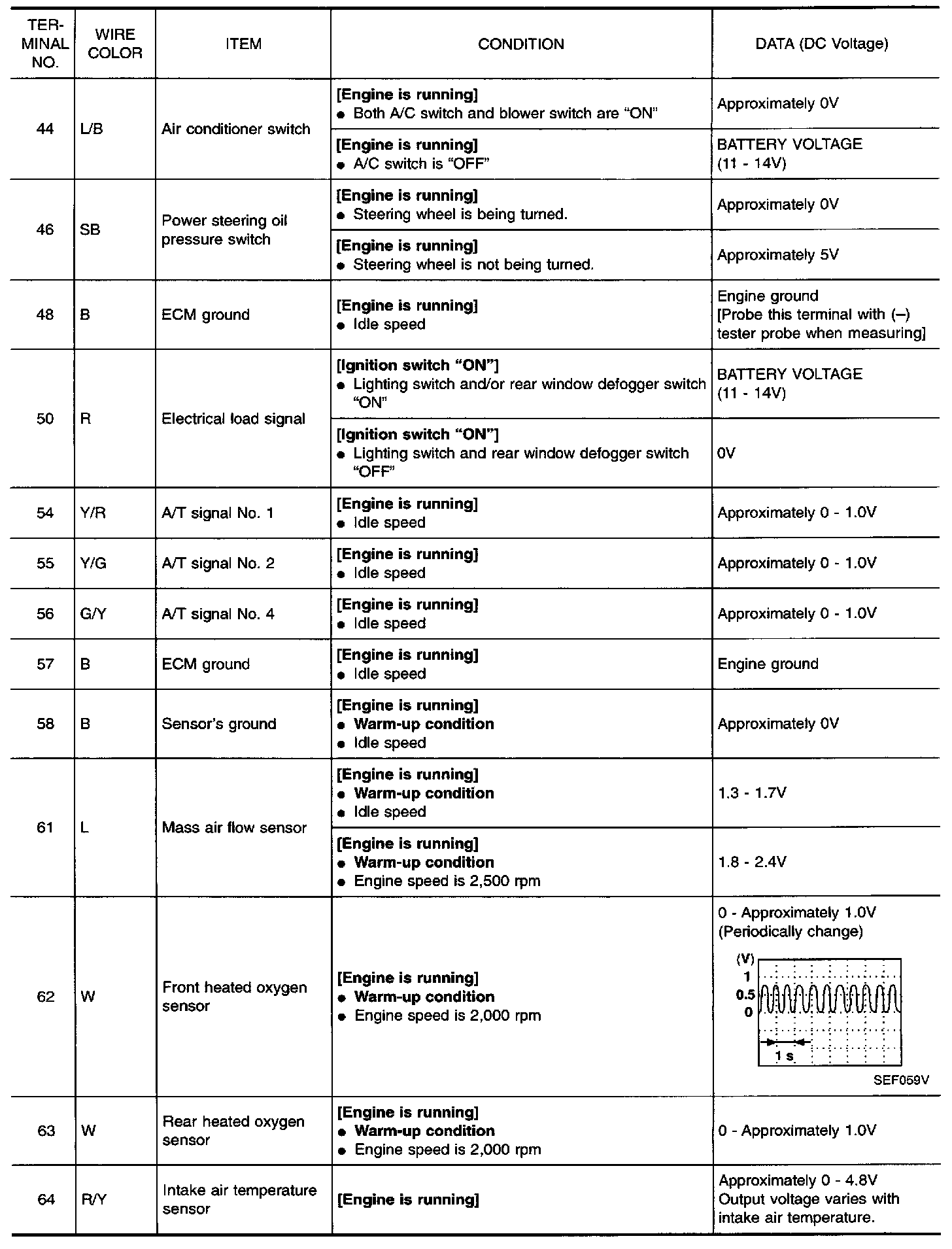

Terminals 44 - 64:

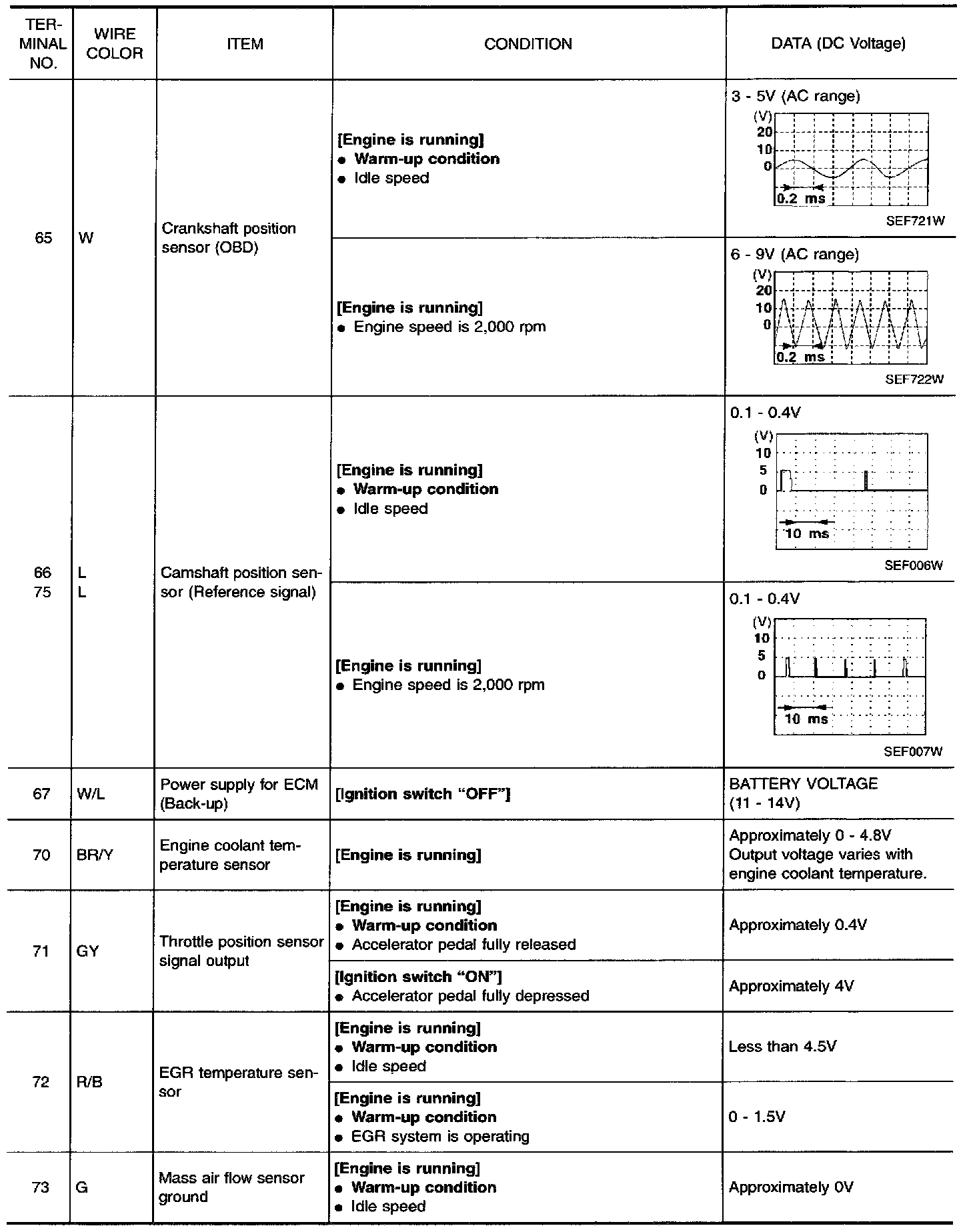

Terminals 65 - 73:

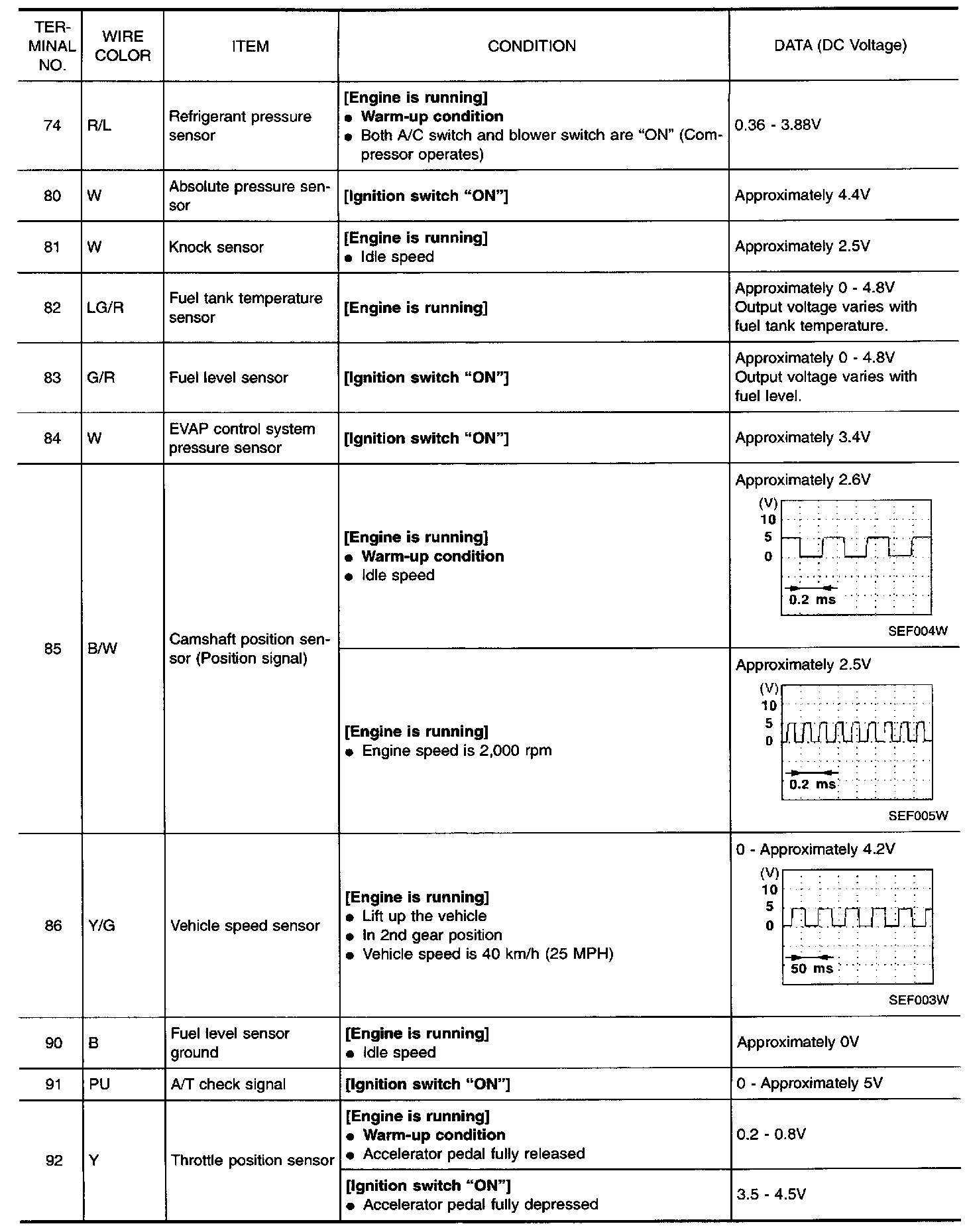

Terminals 74 - 92:

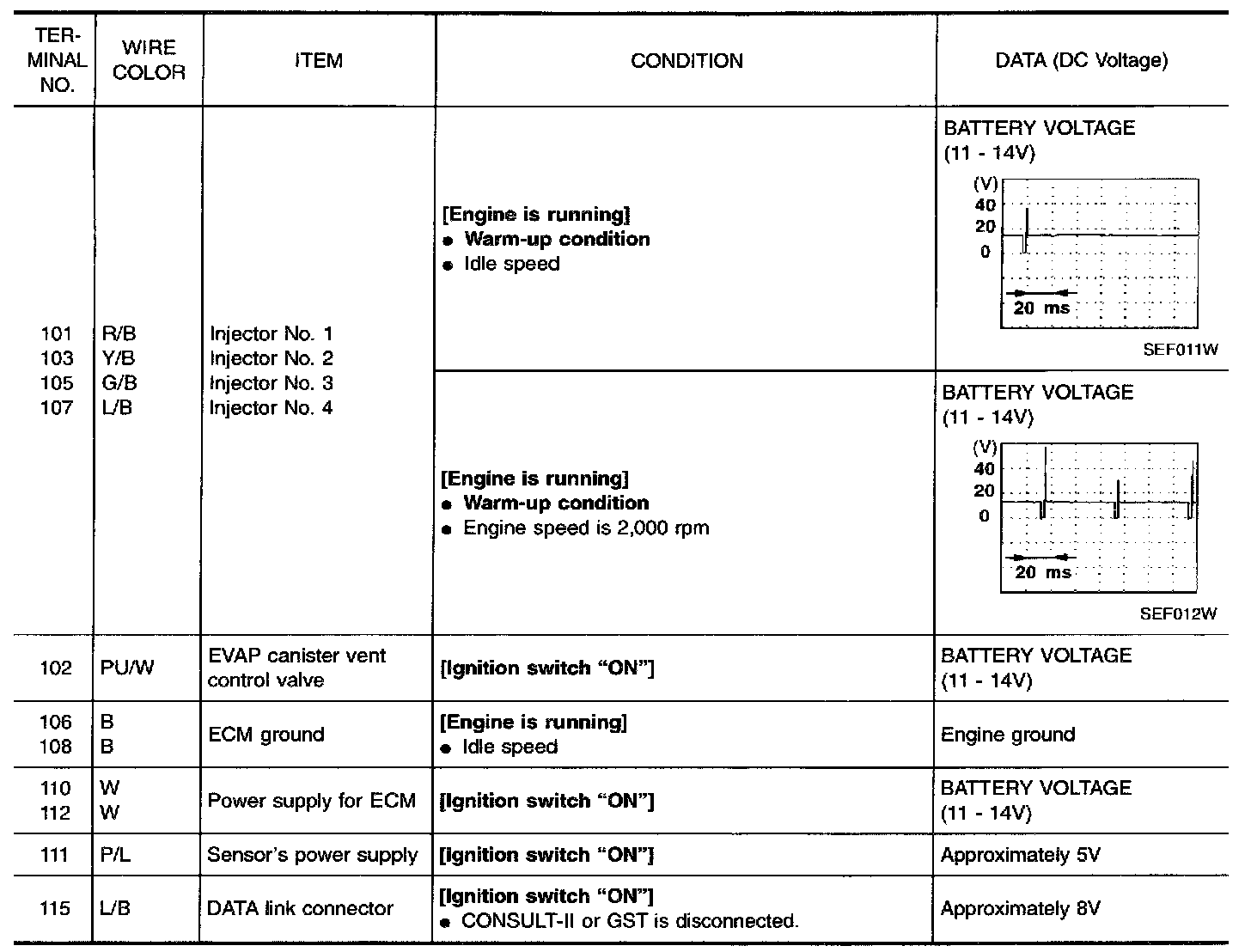

Terminals 101 - 115:

ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and 48 (ECM ground).
