Component Tests and General Diagnostics

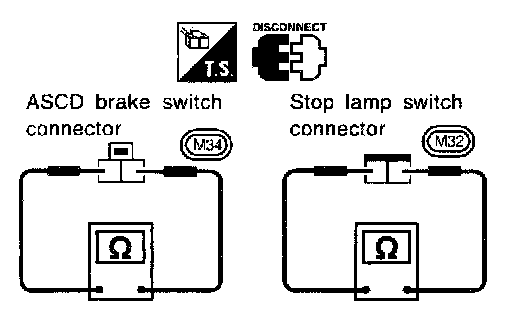

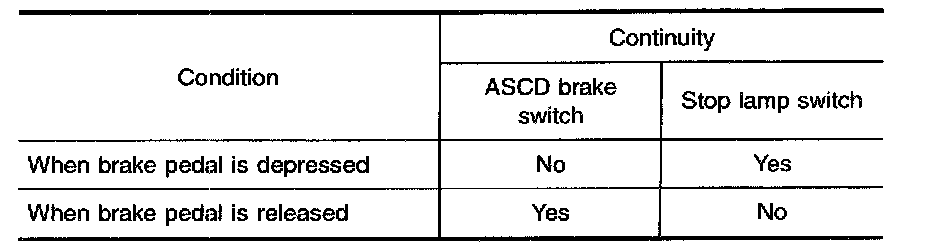

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check each switch after adjusting brake pedal.

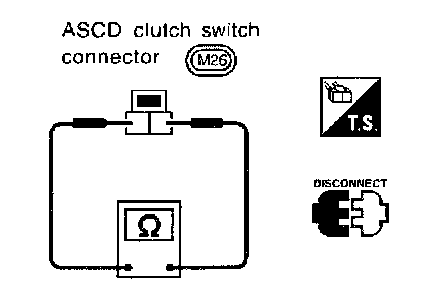

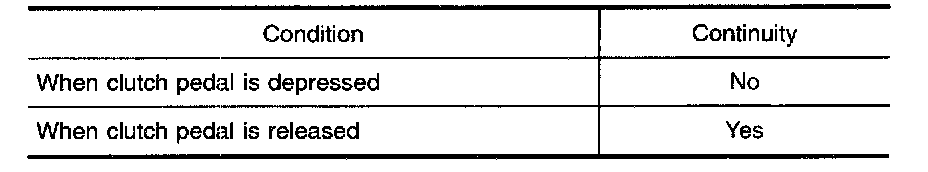

ASCD CLUTCH SWITCH (For M/T Models)

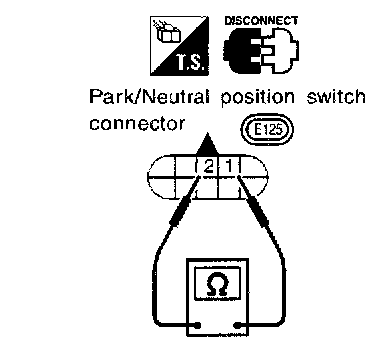

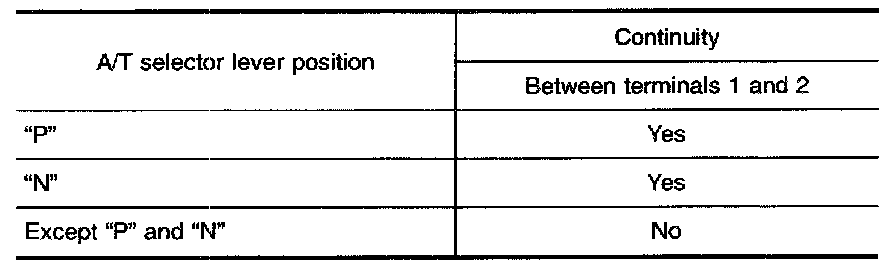

PARK/NEUTRAL POSITION (PNP) SWITCH (For A/T Models)
