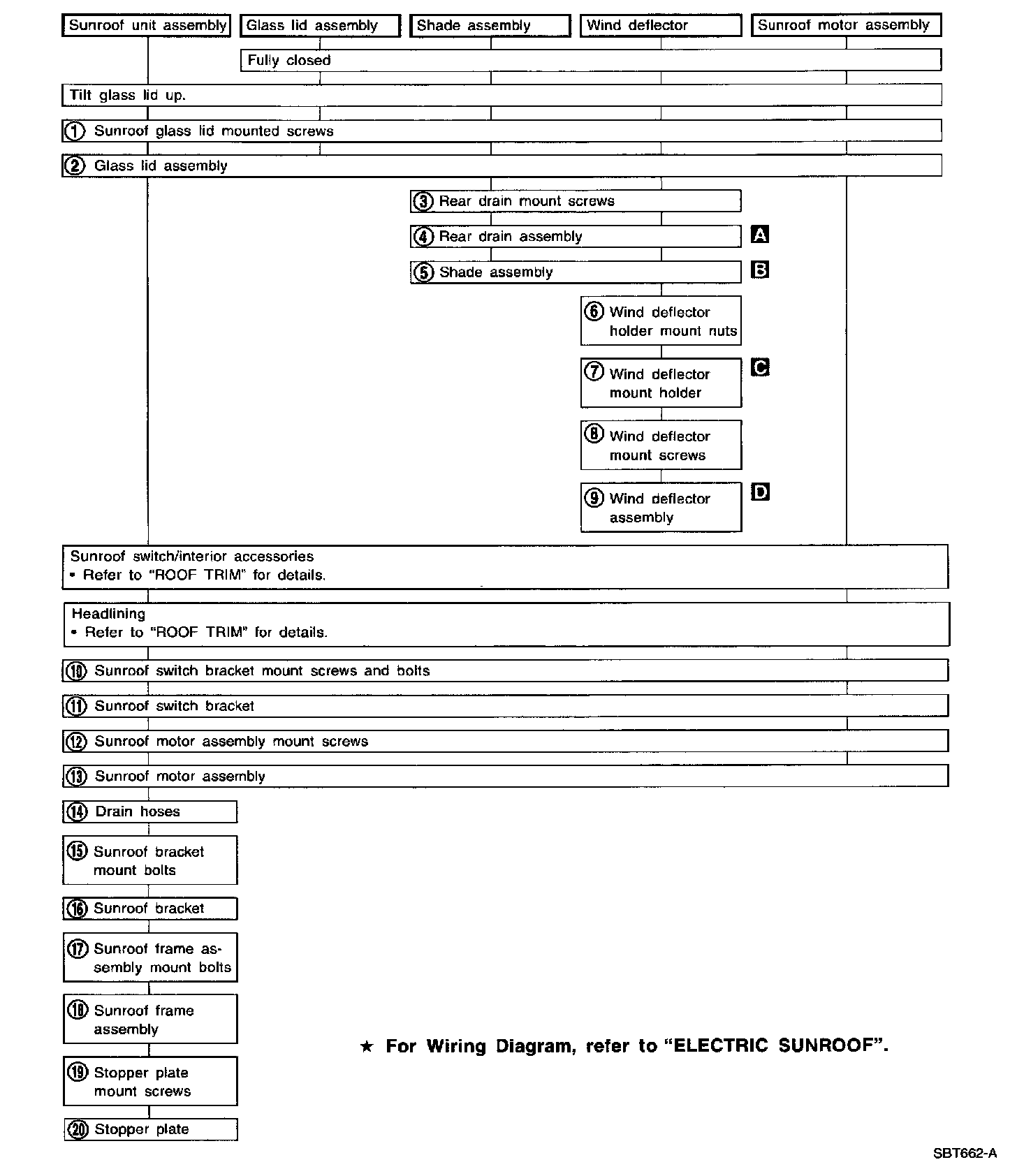

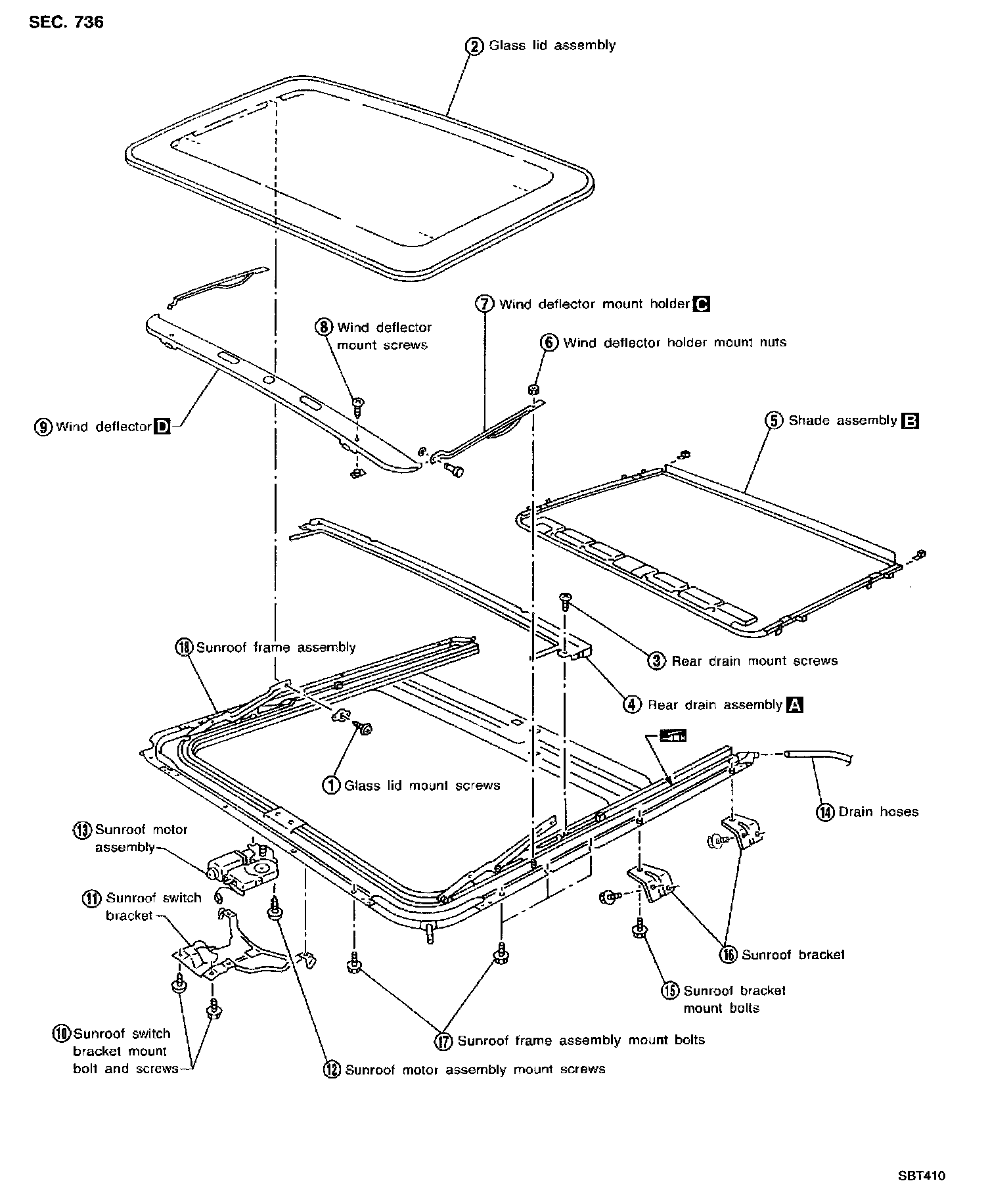

Sunroof / Moonroof: Service and Repair

- After any adjustment, check sunroof operation and lid alignment.
- Handle finisher plate and glass lid with care so not to cause damage.
- It is desirable for easy installation to mark each point before removal.


CAUTION: Always work with a helper.

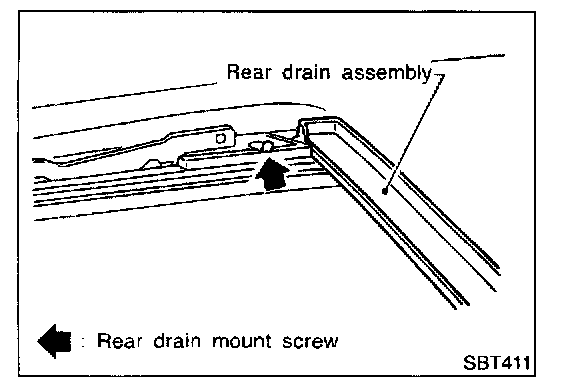

A. Remove rear drain mount screws. Disengage rear drain assembly by moving it forward. Remove rear drain assembly.

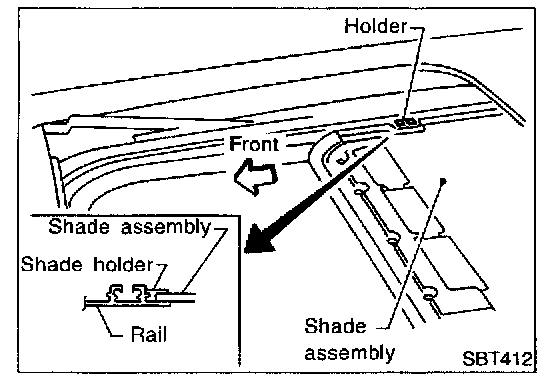

B. Using flat-bladed screwdriver, pry shade assembly holder from rail. Remove shade assembly by slowly moving it forward.

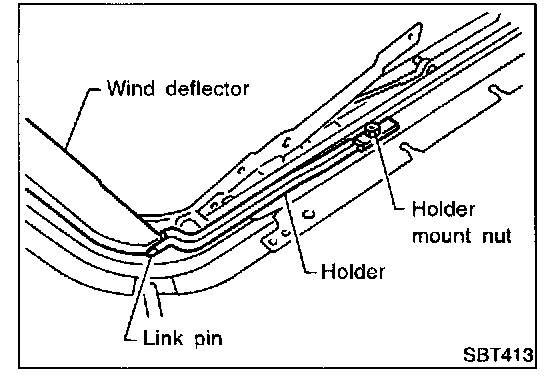

C. Remove wind deflector mount screws. Pry off pawls with flat- bladed screwdriver inserted through rail hole. Remove wind deflector holder.

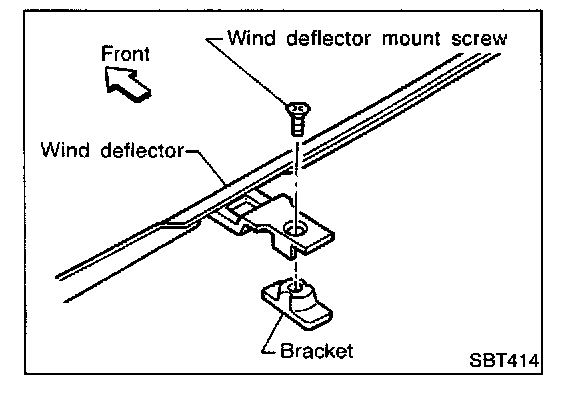

D. Remove wind deflector mount screws from front end of sunroof unit. Remove wind deflector assembly from sunroof frame assembly.
