Electrical Diagrams

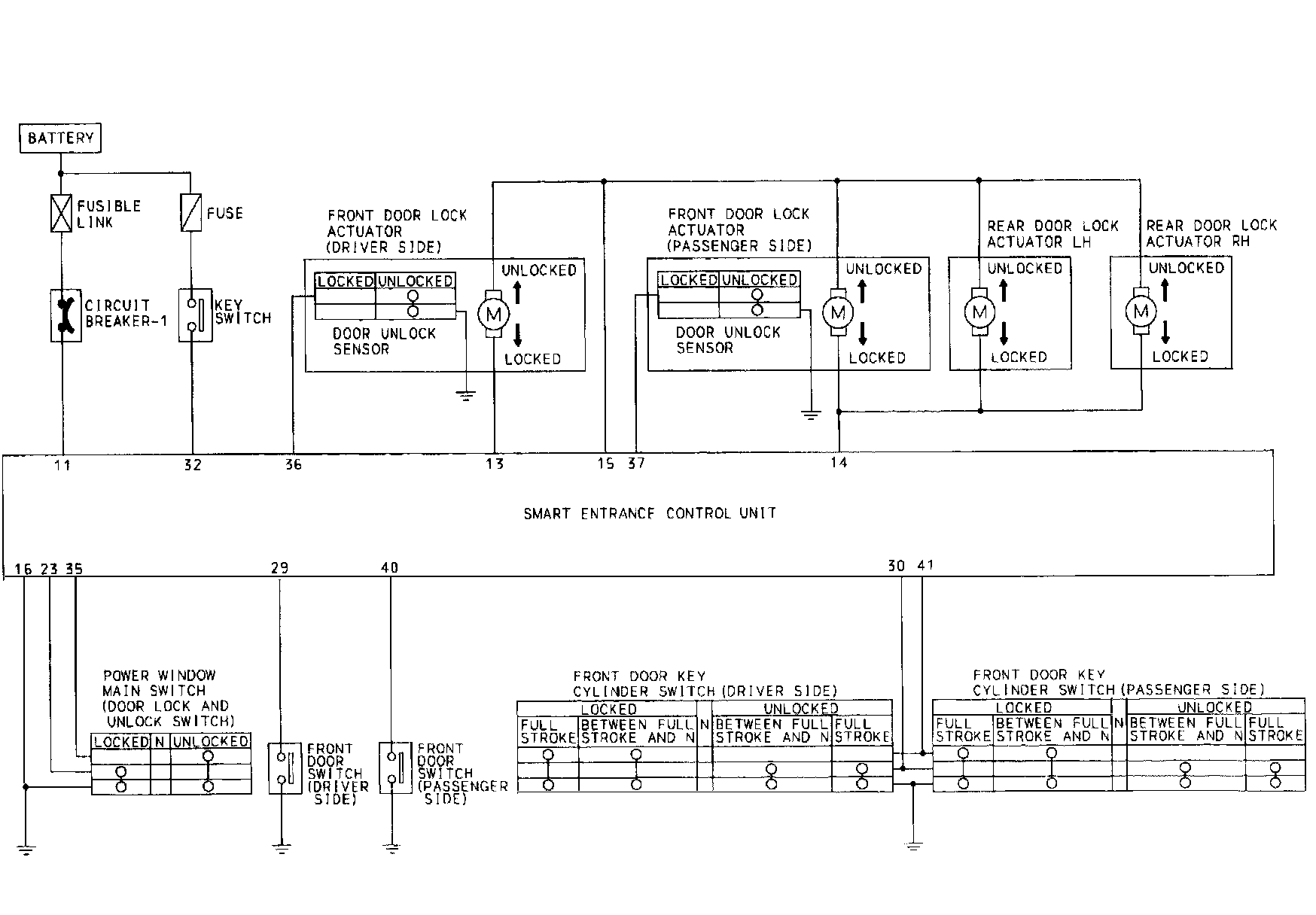

Schematic

Circuit Diagrams

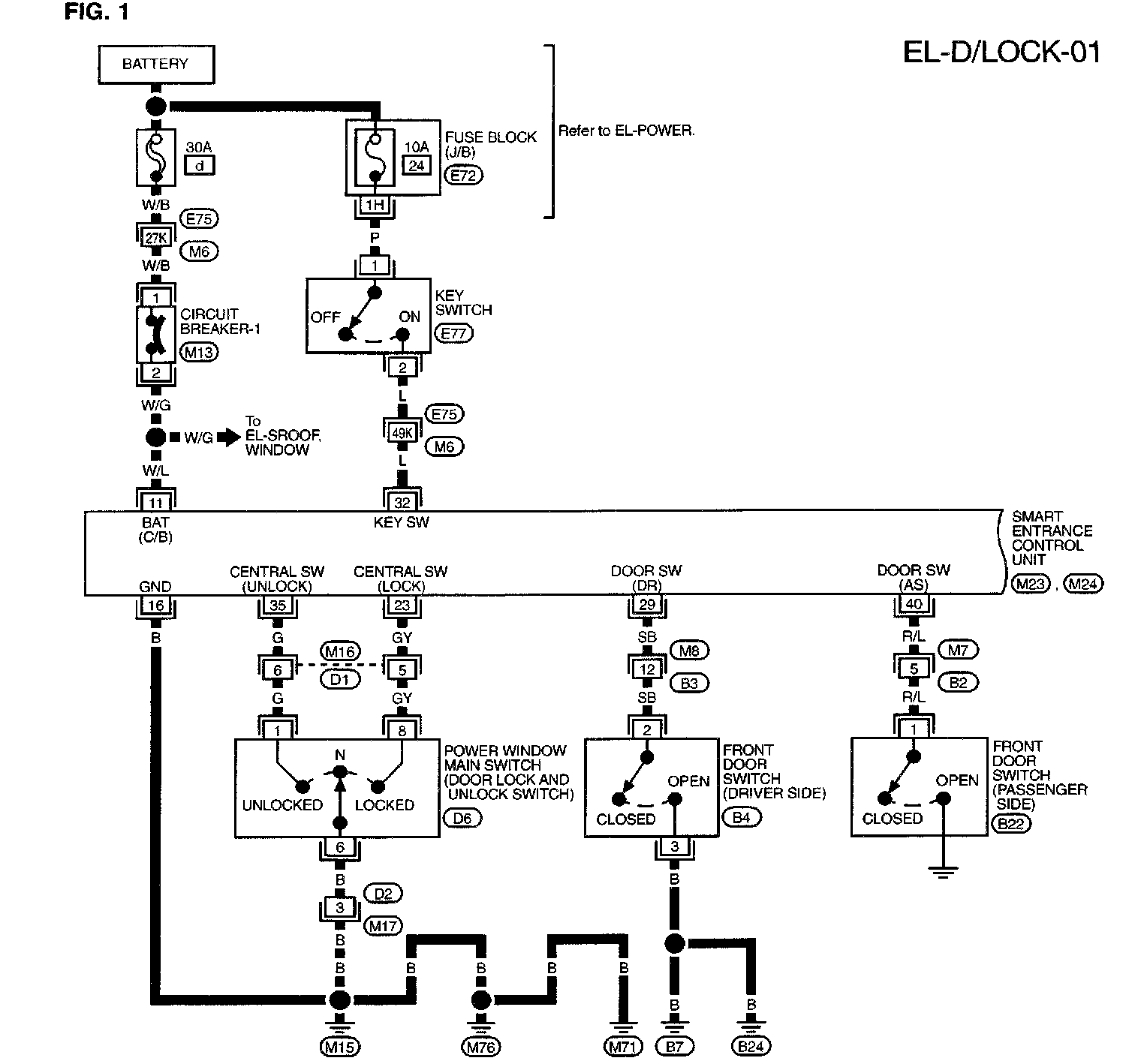

EL-D/LOCK-01:

(Part 1 of 3)
Fuse Block (J/B)
Circuit Breaker-1
Key Switch
Smart Entrance Control Unit
Power Window Main Switch (Door Lock and Unlock Switch)
Front Door Switch (Driver Side)
Front Door Switch (Passenger Side)

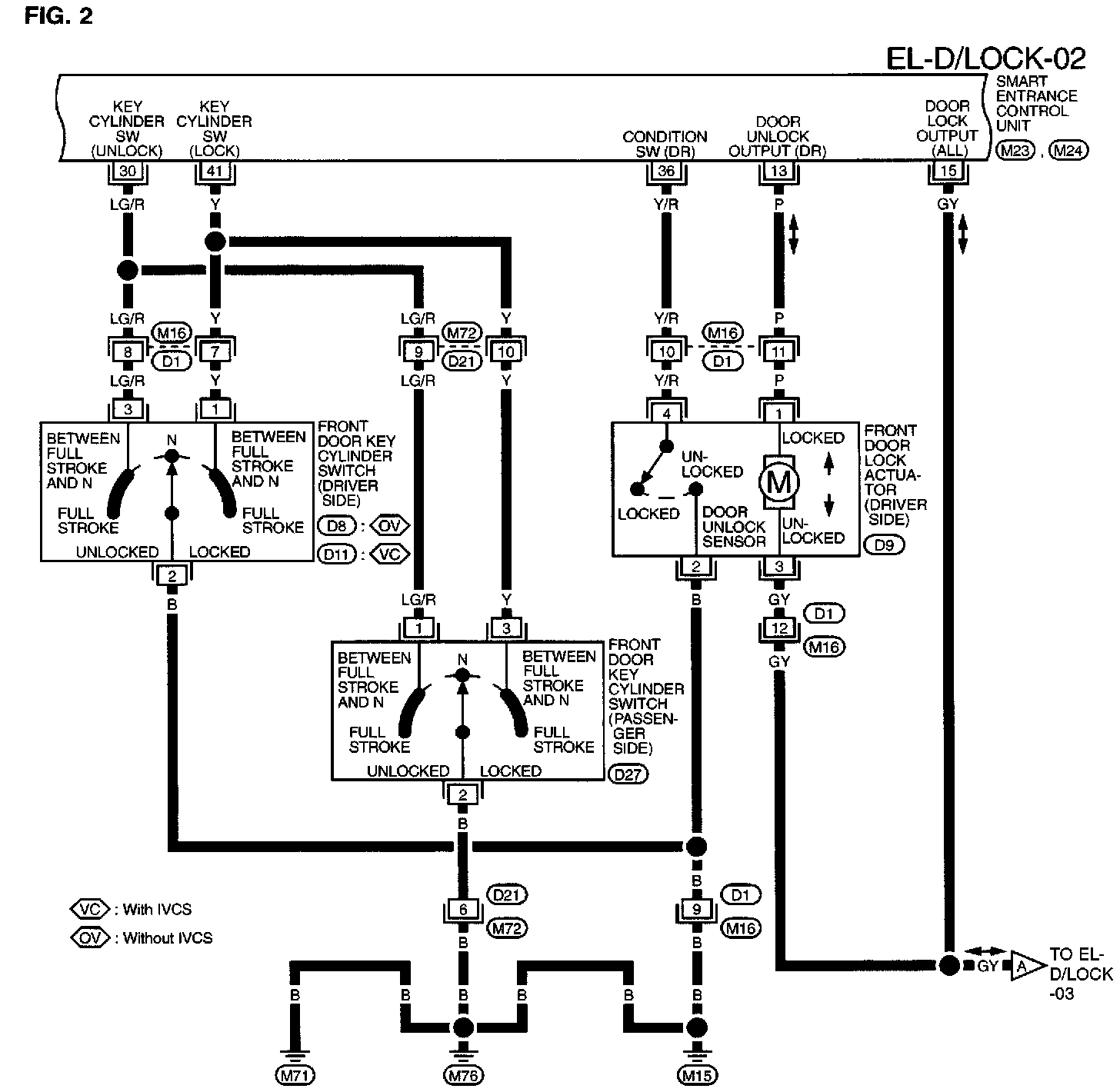

EL-D/LOCK-02:

(Part 2 of 3)
Smart Entrance Control Unit
Front Door Key Cylinder Switch (Driver Side)
Front Door Lock Actuator (Driver Side)
Front Door Key Cylinder Switch (Passenger Side)

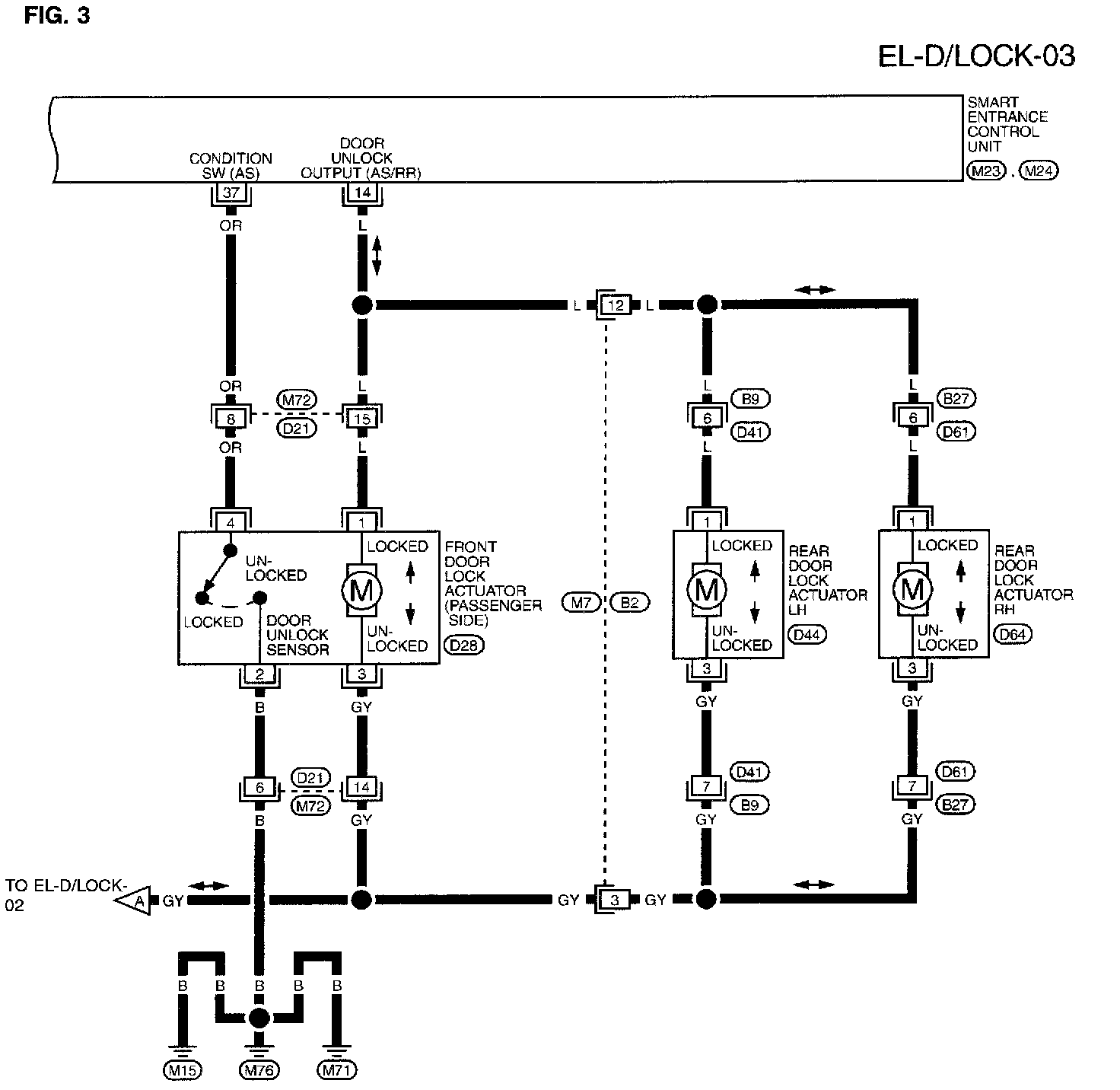

EL-D/LOCK-03:

(Part 3 of 3)
Smart Entrance Control Unit
Front Door Lock Actuator (Passenger Side)
Rear Door Lock Actuator (LH)
Rear Door Lock Actuator (RH)










Circuit Connectors

M6,E75 Connector Views:

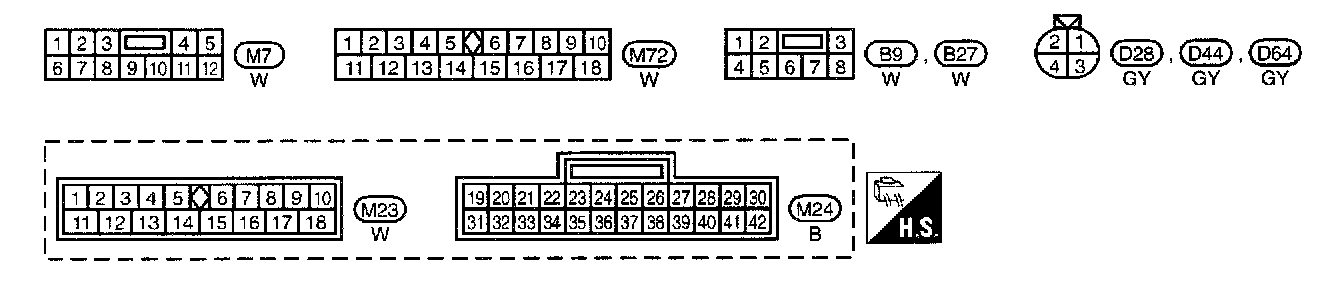

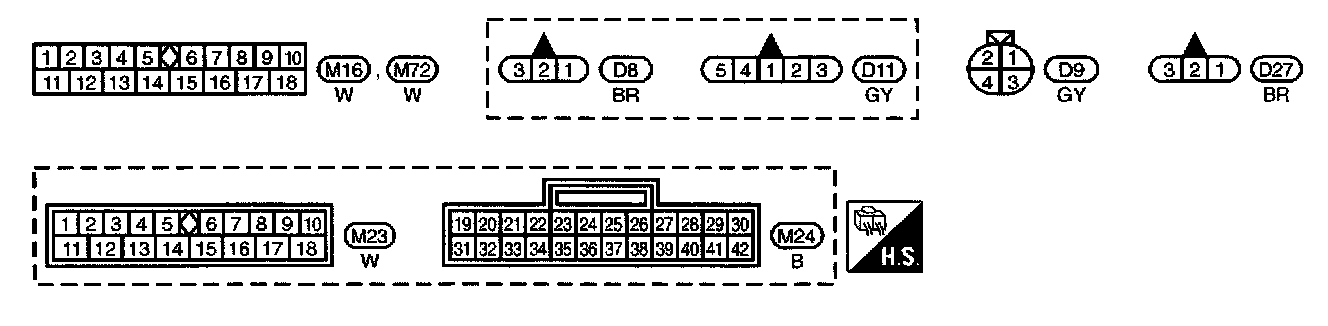

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

E75, E72 Super Multiple Junction and Fuse Block - Junction Box (J/B) Terminal Arrangement
