Dashboard / Instrument Panel: Service and Repair

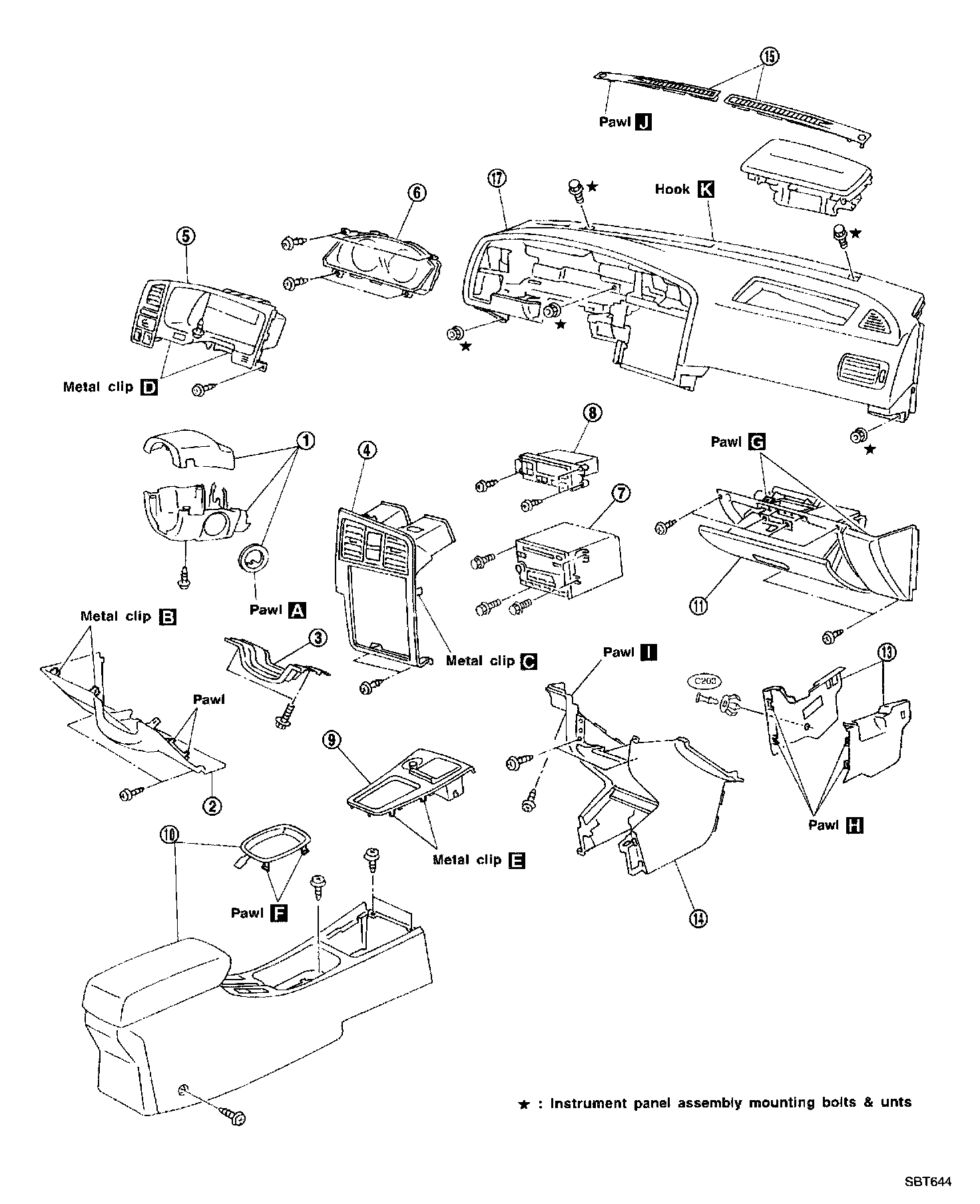

Component Location:

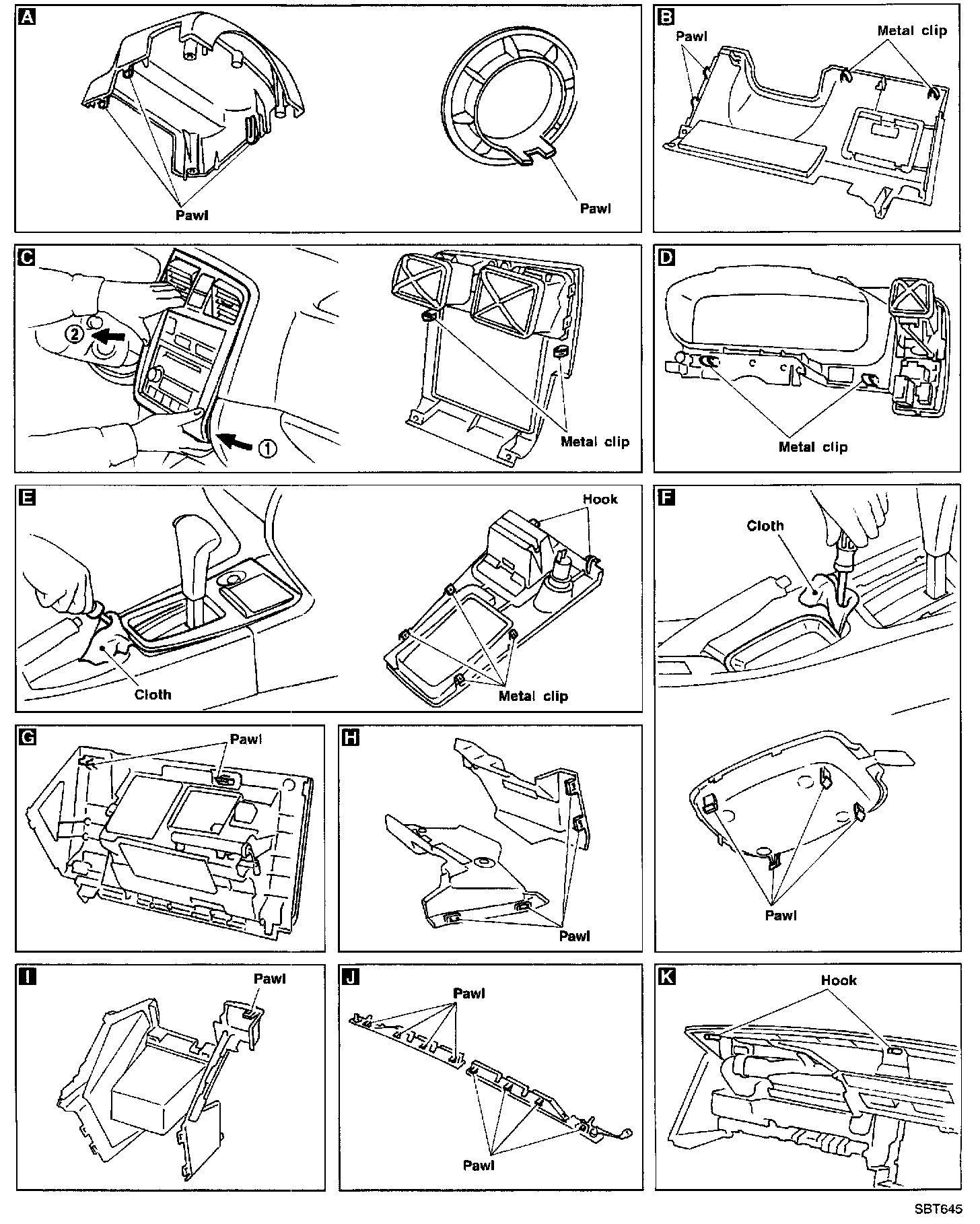

Component Views:

CAUTION:
- Disconnect both battery cables in advance.
- Disconnect air bag system line in advance.
- Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
- Be careful not to scratch pad and other parts.
- Wrap the tip of a flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
