Front Door Panel: Service and Repair

Component Location:

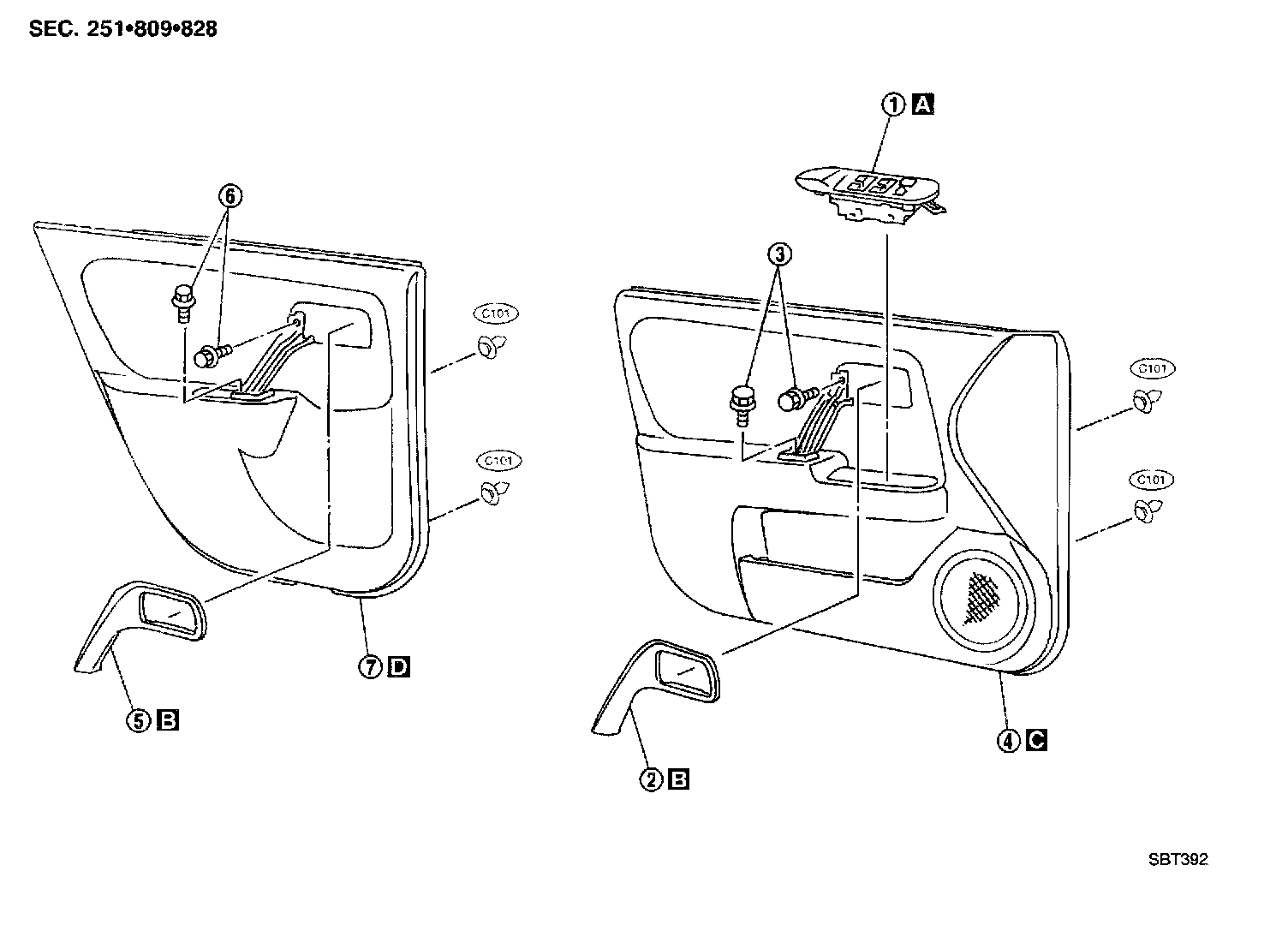

Component Views:

Front Door Trim

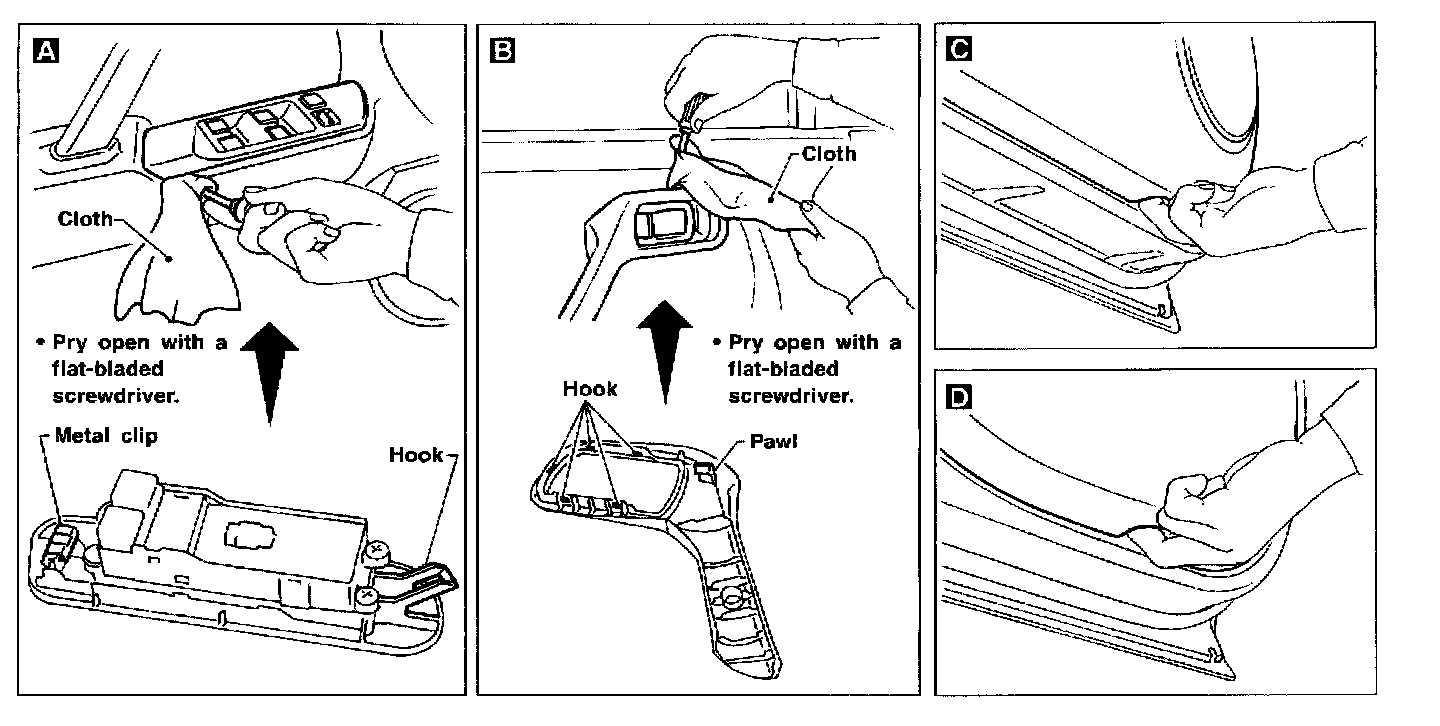

1. Remove power window switch, then disconnect the connector.[A]
2. Remove inside handle escutcheon.[B]
3. Remove bolts securing door finisher.
4. Pull on door finisher to remove clips from door panel and remove door finisher.[C]

Rear Door Trim
5. Remove inside handle escutcheon.[B]
6. Remove bolts securing door finisher.
7. Pull on door finisher to remove clips from door panel and remove door finisher, then disconnect power window switch connector.[D]
