Front Bumper: Service and Repair

- When removing or installing hood, place a cloth or other padding on the front fender panels and cowl top. This prevents vehicle body from being scratched.
- Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.
- Hood adjustment: Adjust at hinge portion.
- Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood locks engaging mechanism.
- Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.

Component Views:

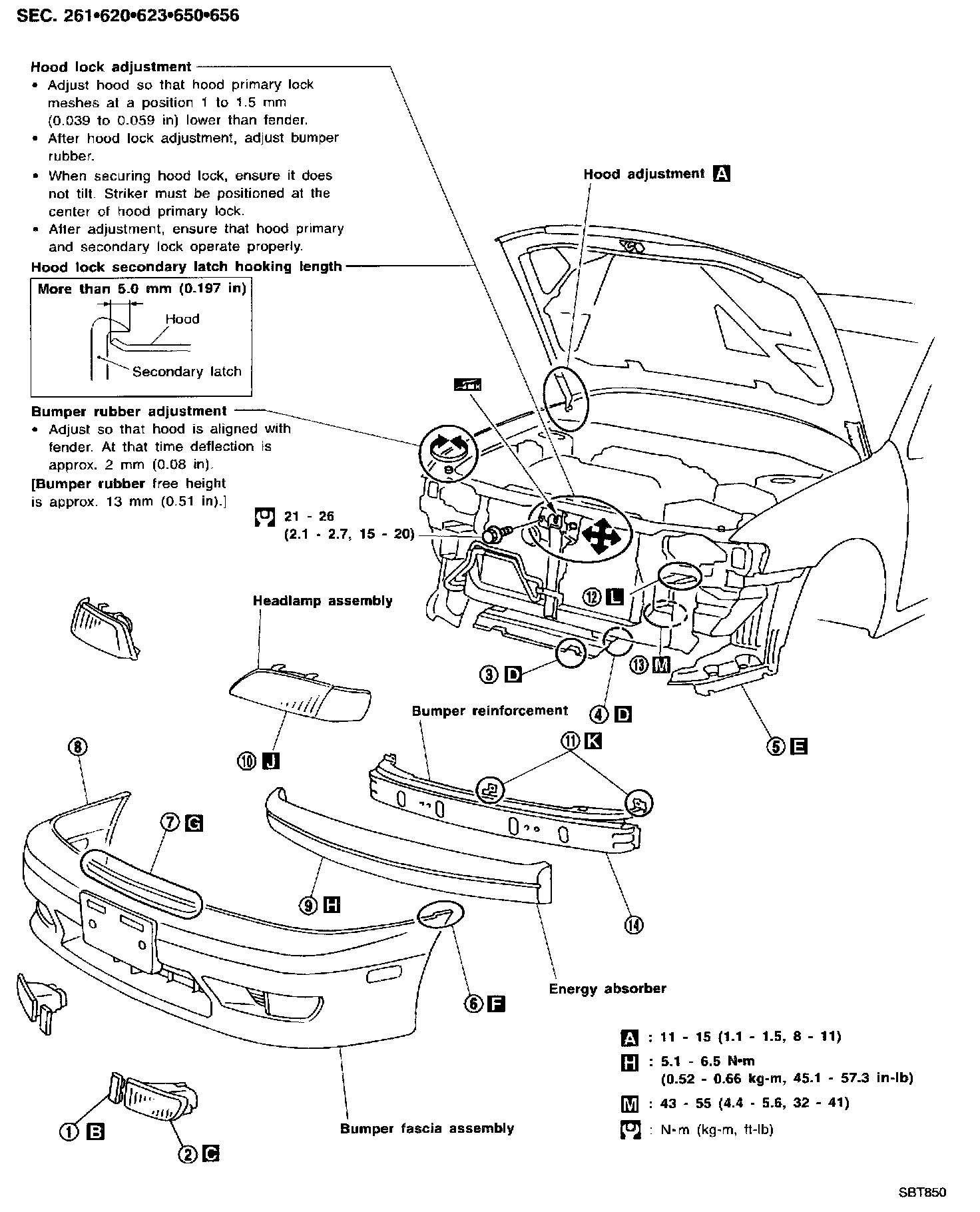

Component Location:

Component Views:

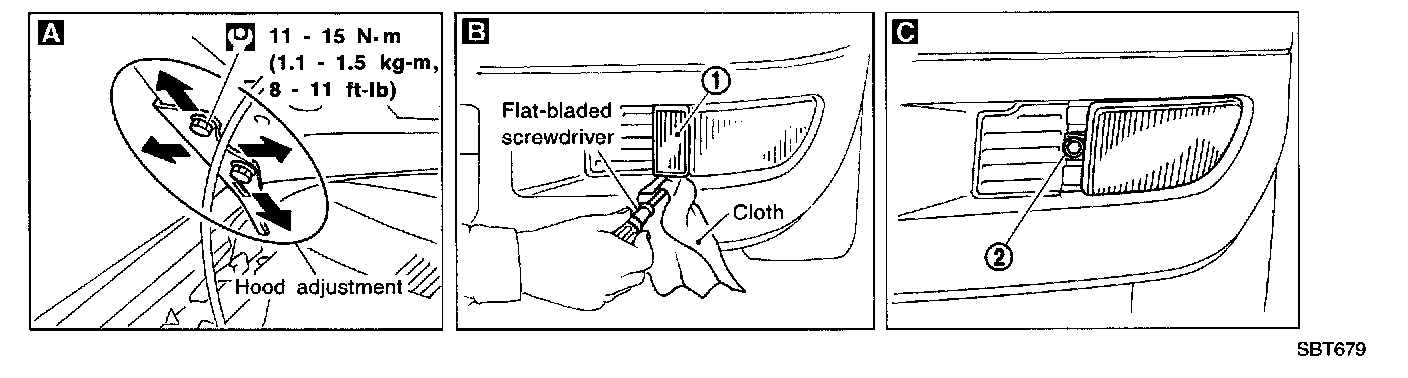

1. Remove fog lamp rim.[B]
2. Remove bolt securing fog lamp assembly. Then disconnect fog lamp connector.[C]

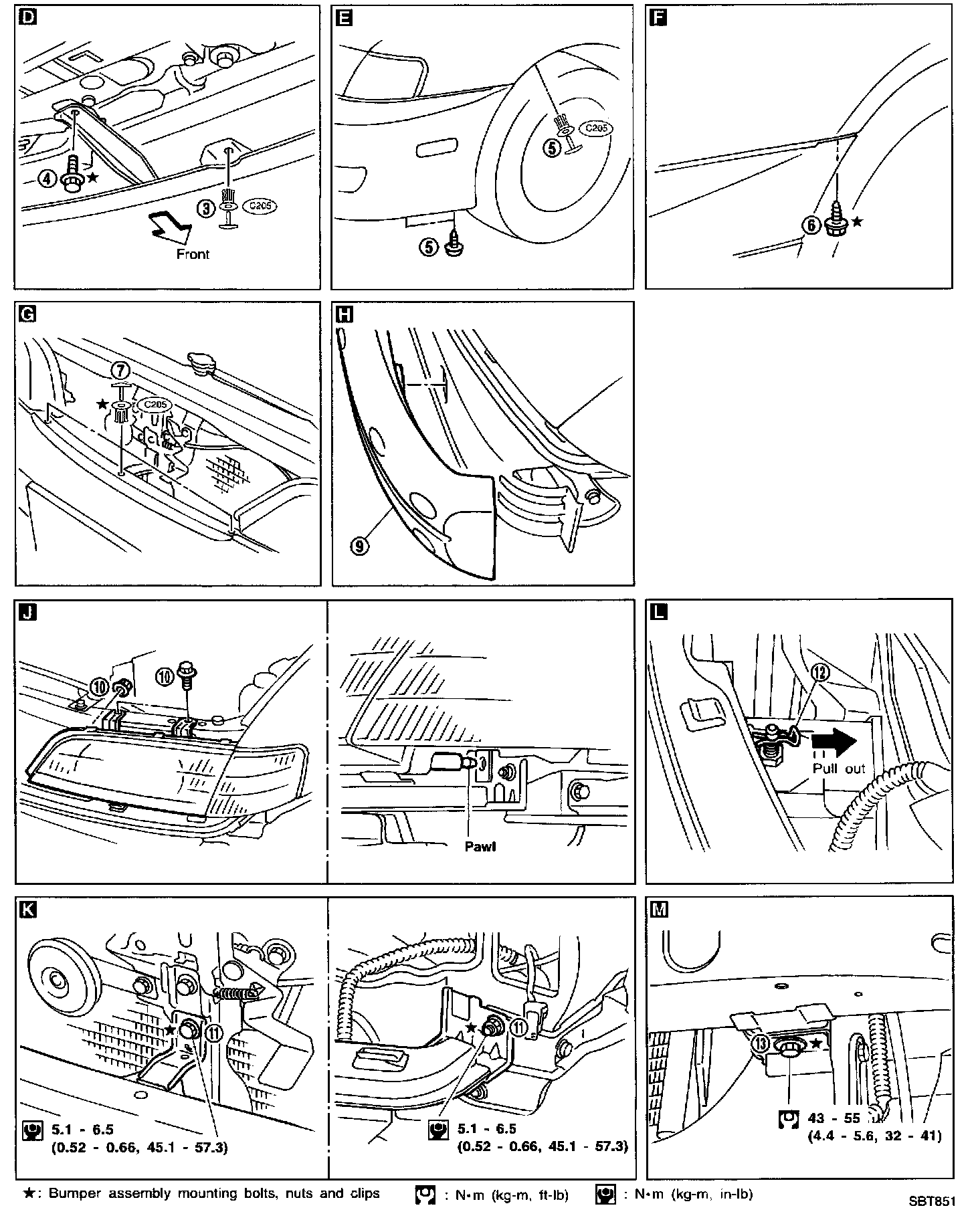

3. Remove clips securing bumper fascia to engine undercover.[D]
4. Remove bolts securing bumper fascia to radiator core lower support.[D]
5. Remove screws and clips securing left and right sides of front fender protector.[E]
6. Remove bolts securing left and right front fenders to bumper fascia.[F]
7. Remove clips securing bumper reinforcement assembly to bumper fascia.[G]
8. Extract bumper fascia assembly.
9. Remove energy absorber.[H]
10. Remove bolts and nuts securing headlamp assembly.[J]
11. Remove bolt and nuts securing bumper reinforcement assembly.[K]
12. Remove the pin from the bolts which fix the bumper reinforcement assembly.[L]
13. Remove bolts securing bumper reinforcement assembly.[M]
14. Extract bumper reinforcement assembly.
