Vehicle Security Theft Warning System

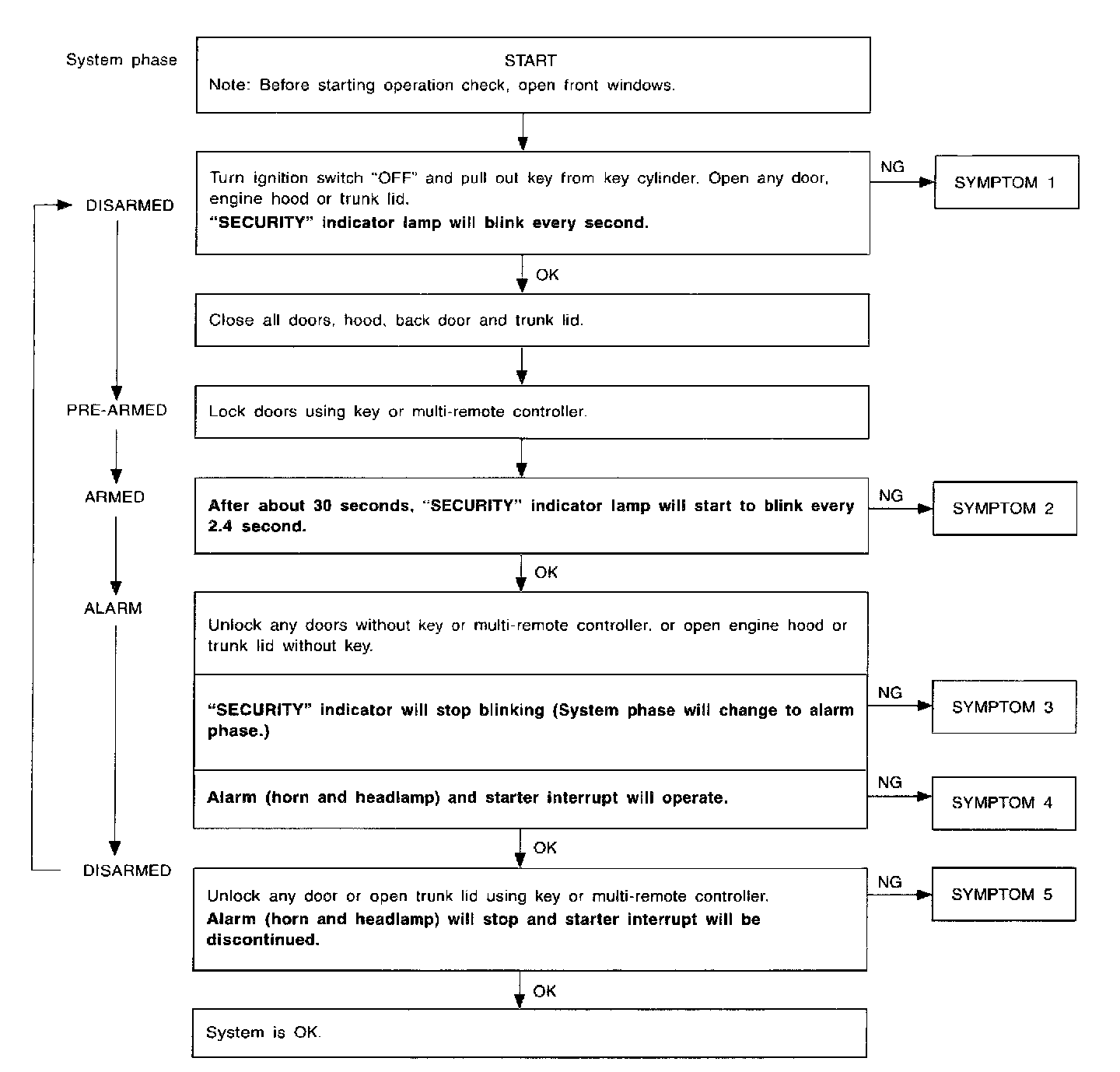

PRELIMINARY CHECK
The system operation is canceled by turning ignition switch to "ACC" at any step between START and ARMED in the following flow chart.
After performing preliminary check, go to symptom chart.

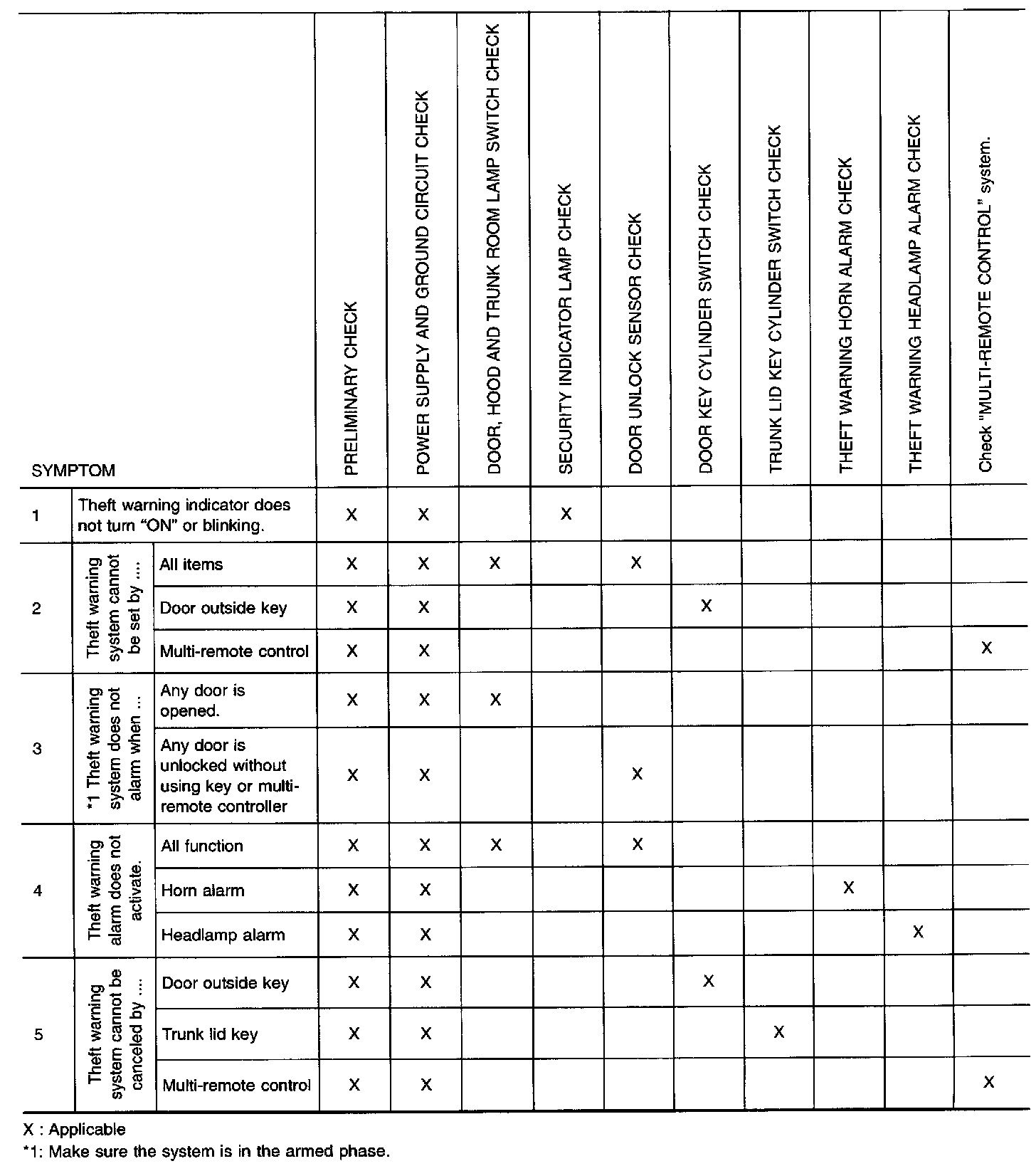

SYMPTOM CHART
Before starling trouble diagnoses above, perform preliminary check.
Symptom numbers in the symptom chart correspond with those of preliminary check.







POWER SUPPLY AND GROUND CIRCUIT CHECK

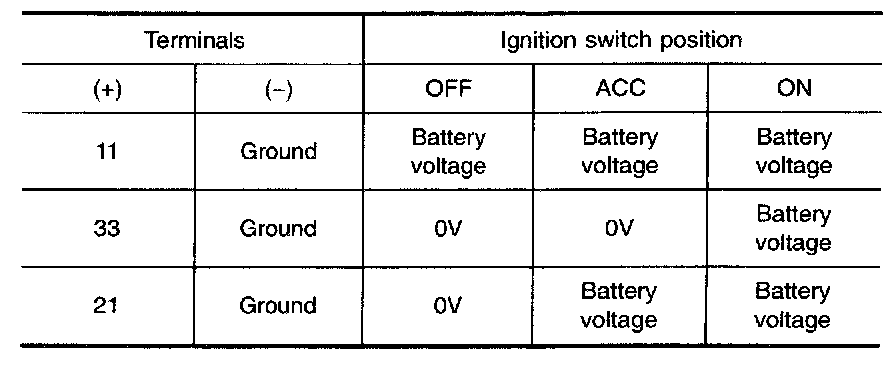

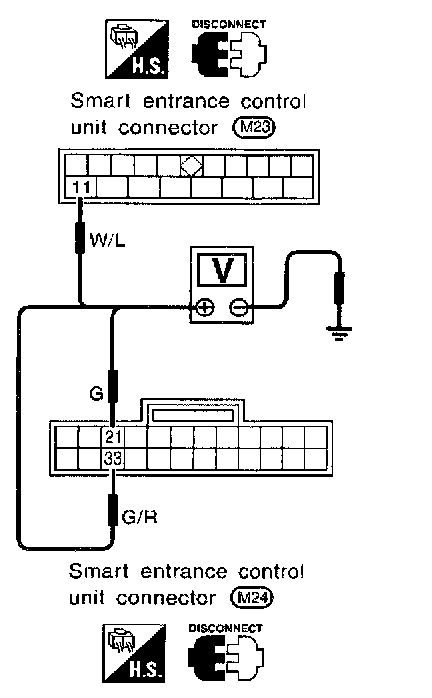

Power Supply Circuit Check

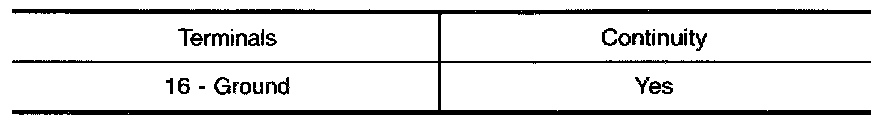

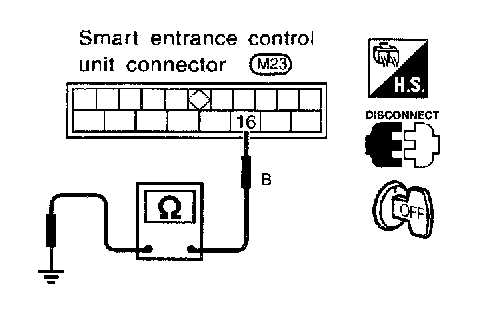

Ground Circuit Check







DOOR, HOOD AND TRUNK ROOM LAMP SWITCH CHECK

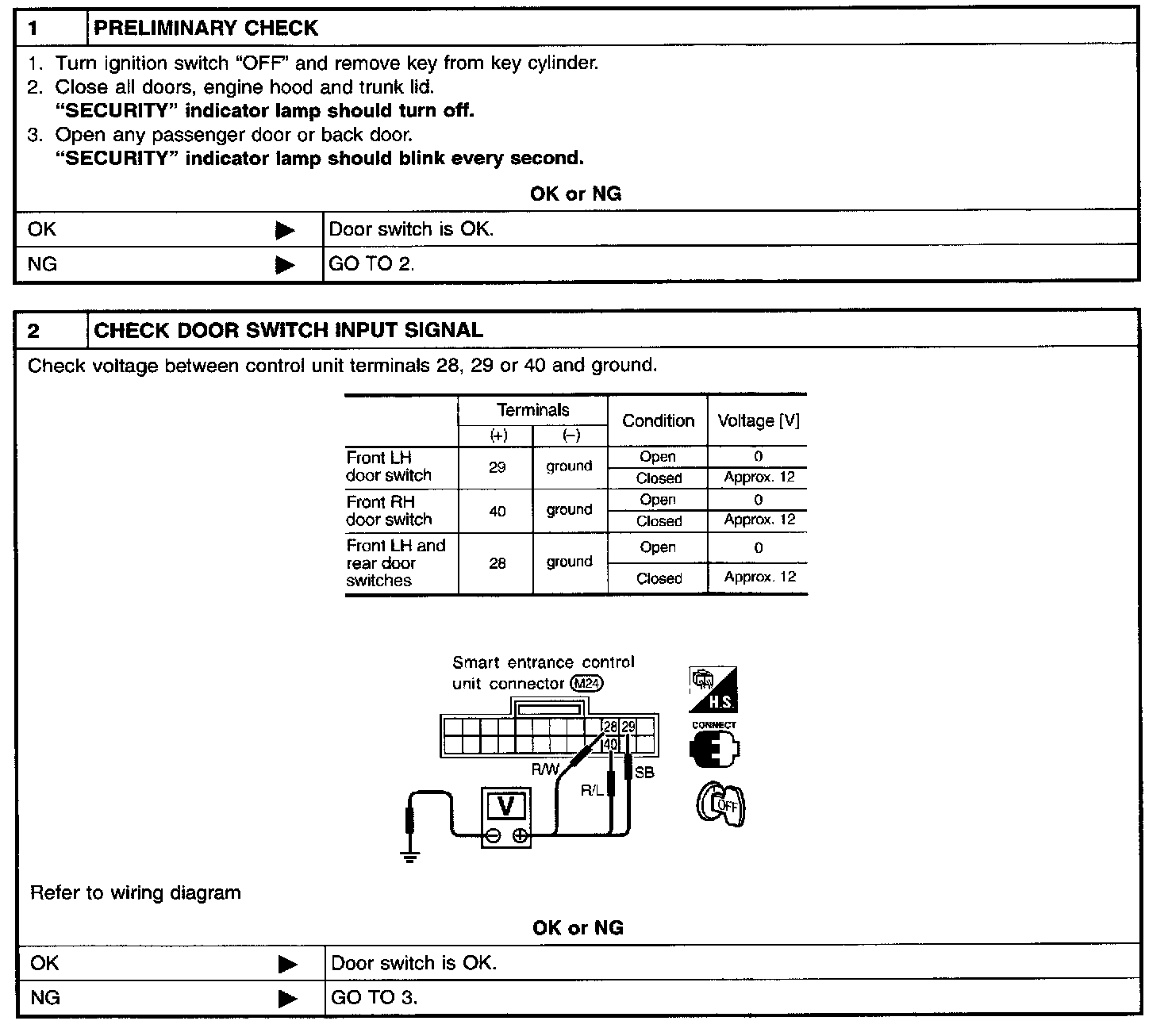

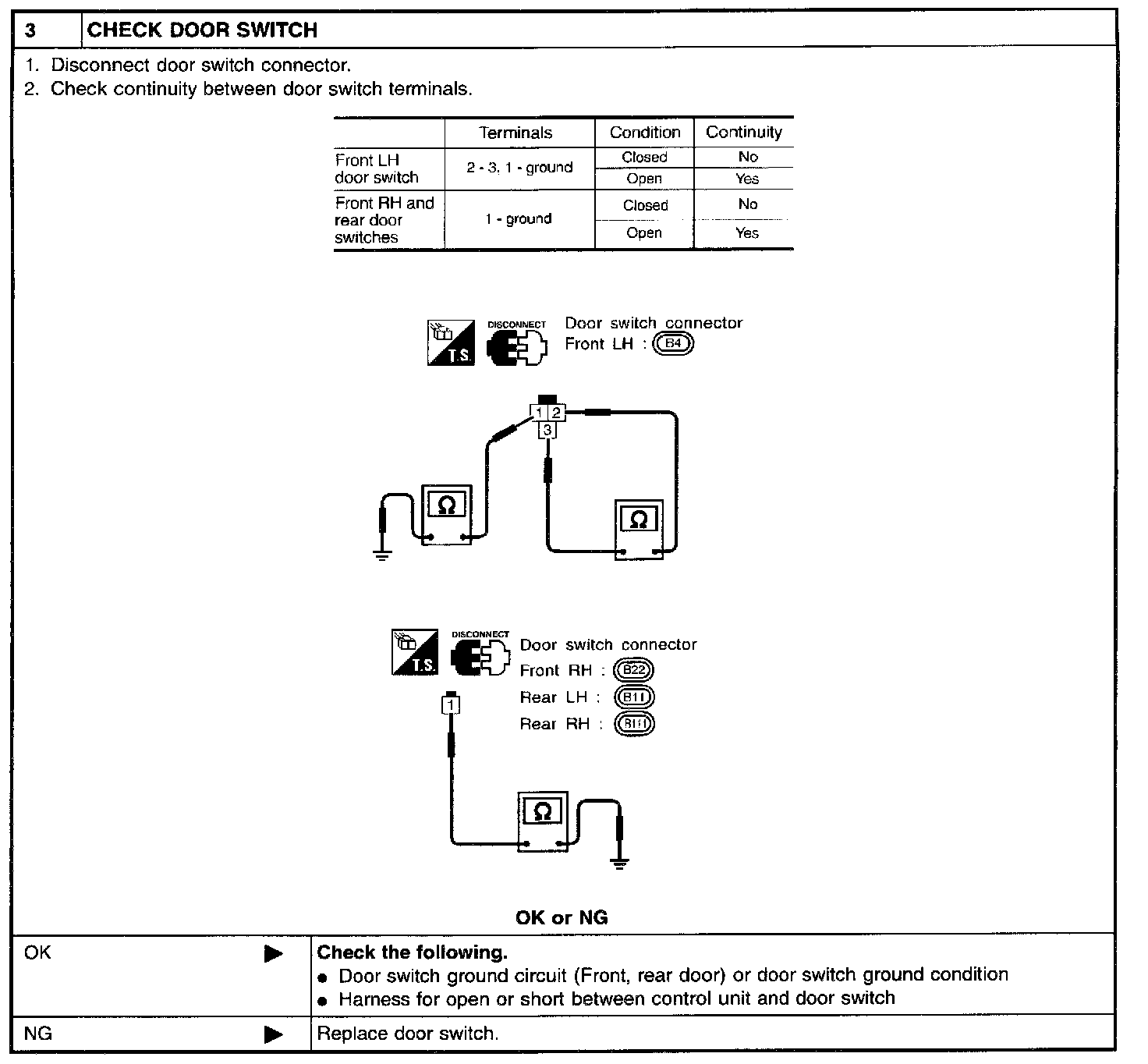

Door Switch Check

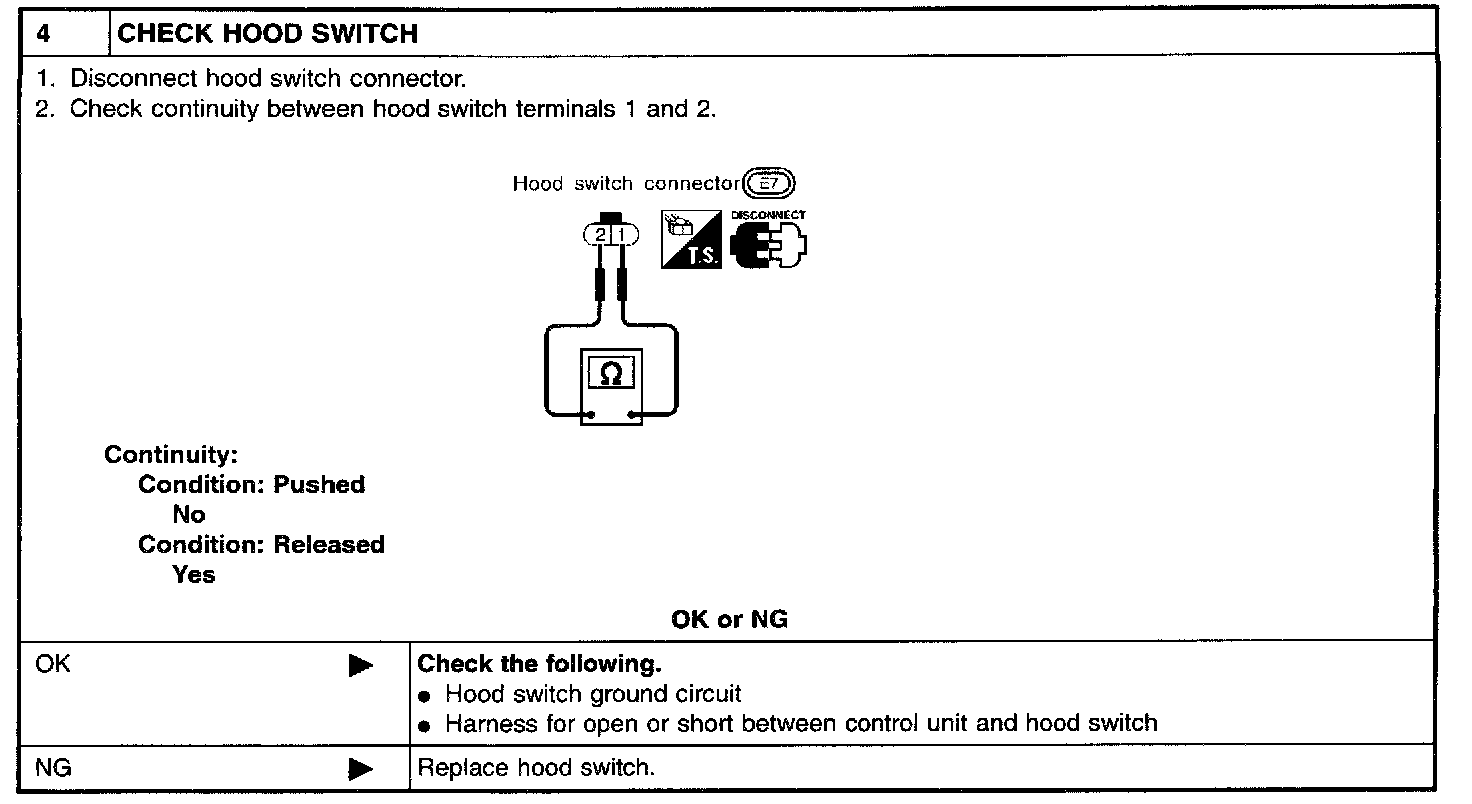

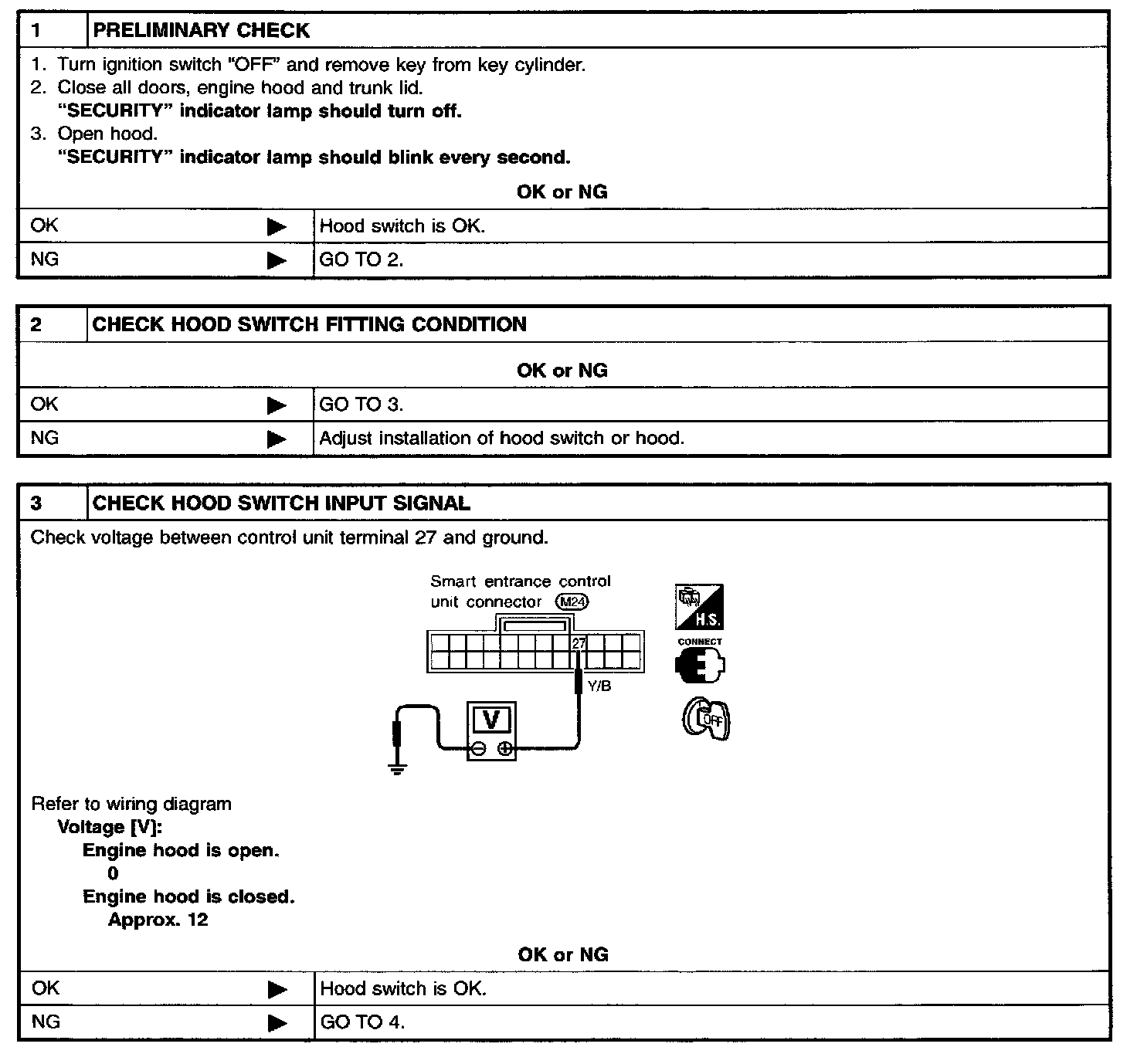

Hood Switch Check

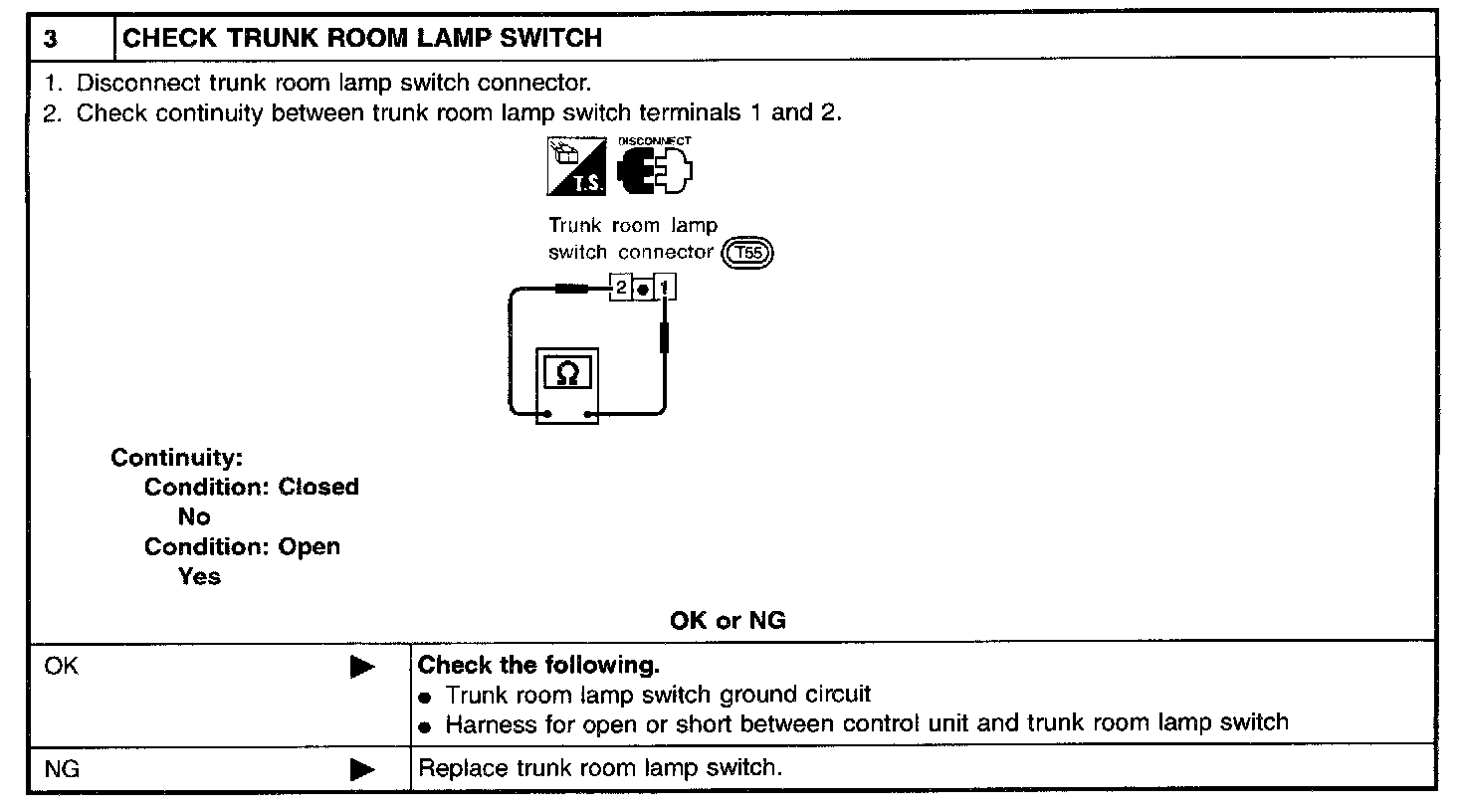

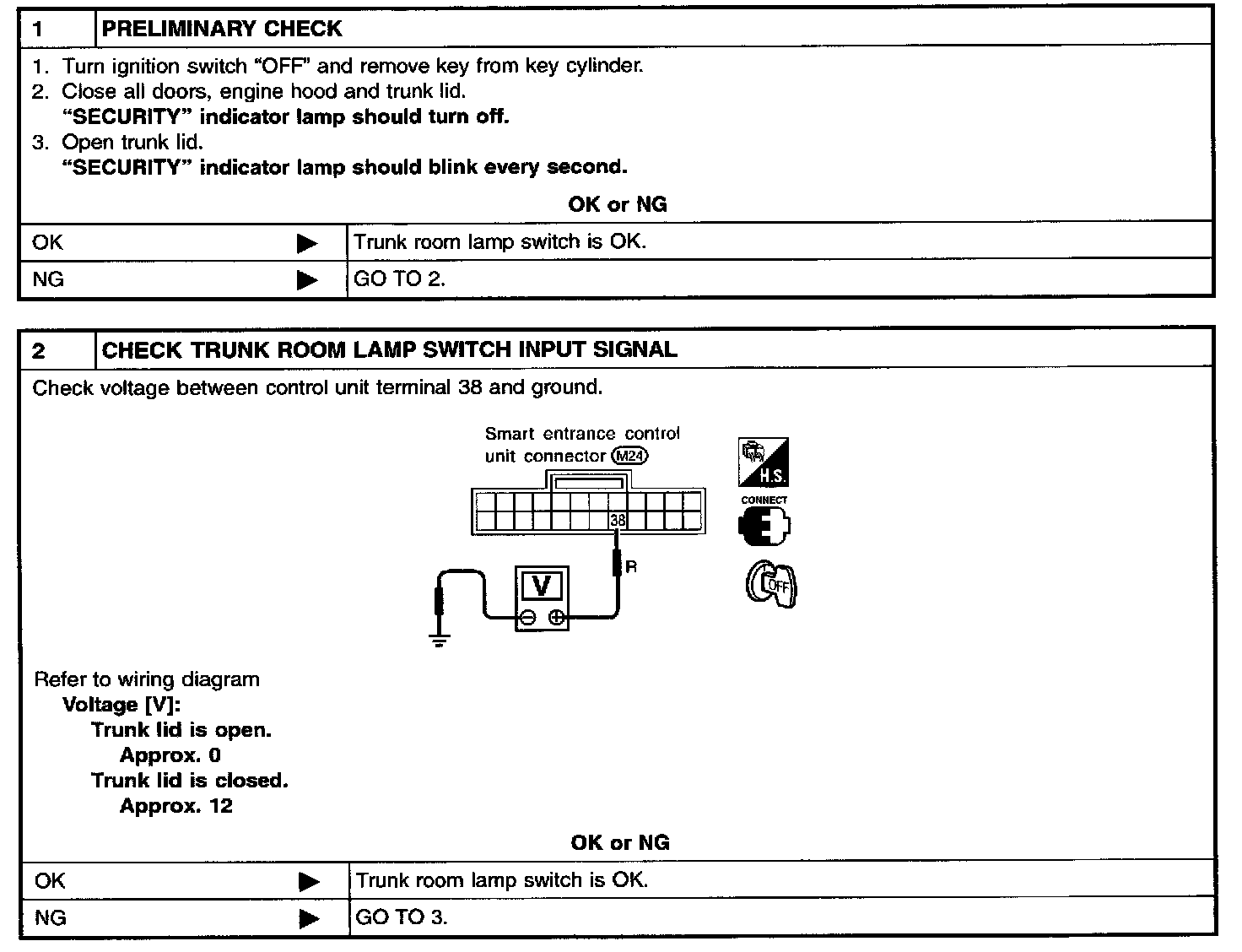

Trunk Room Lamp Switch Check

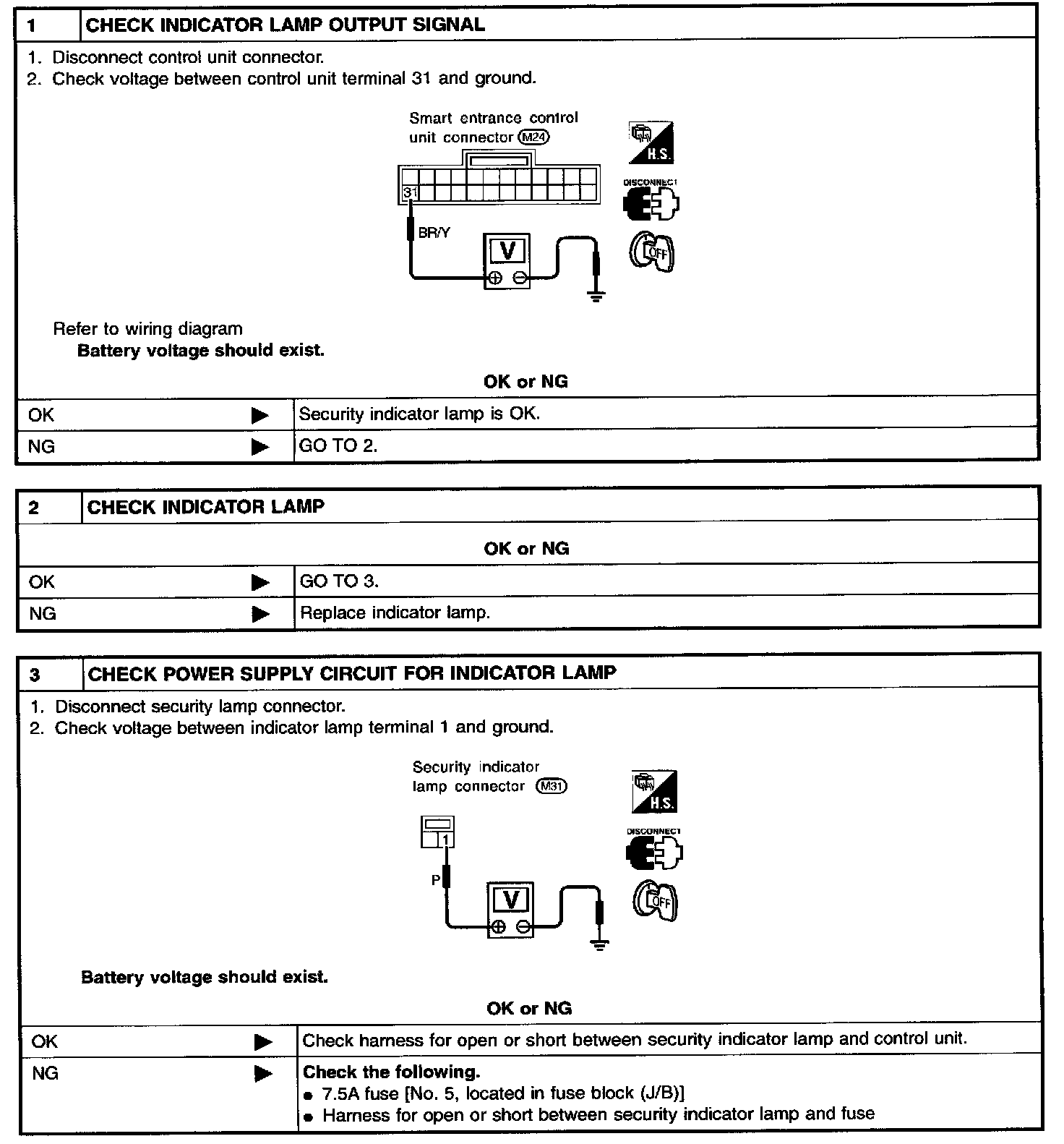

SECURITY INDICATOR LAMP CHECK

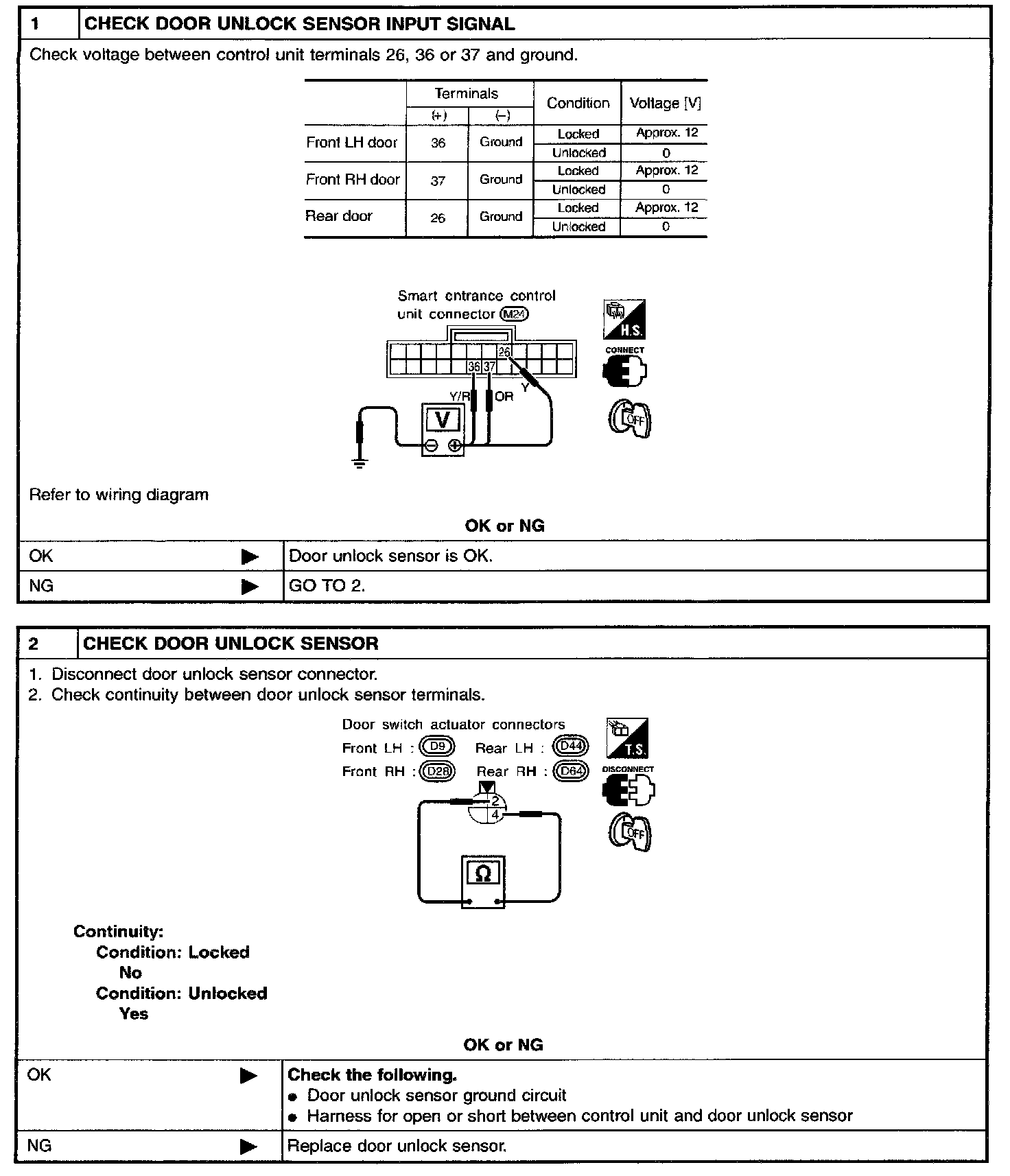

DOOR UNLOCK SENSOR CHECK

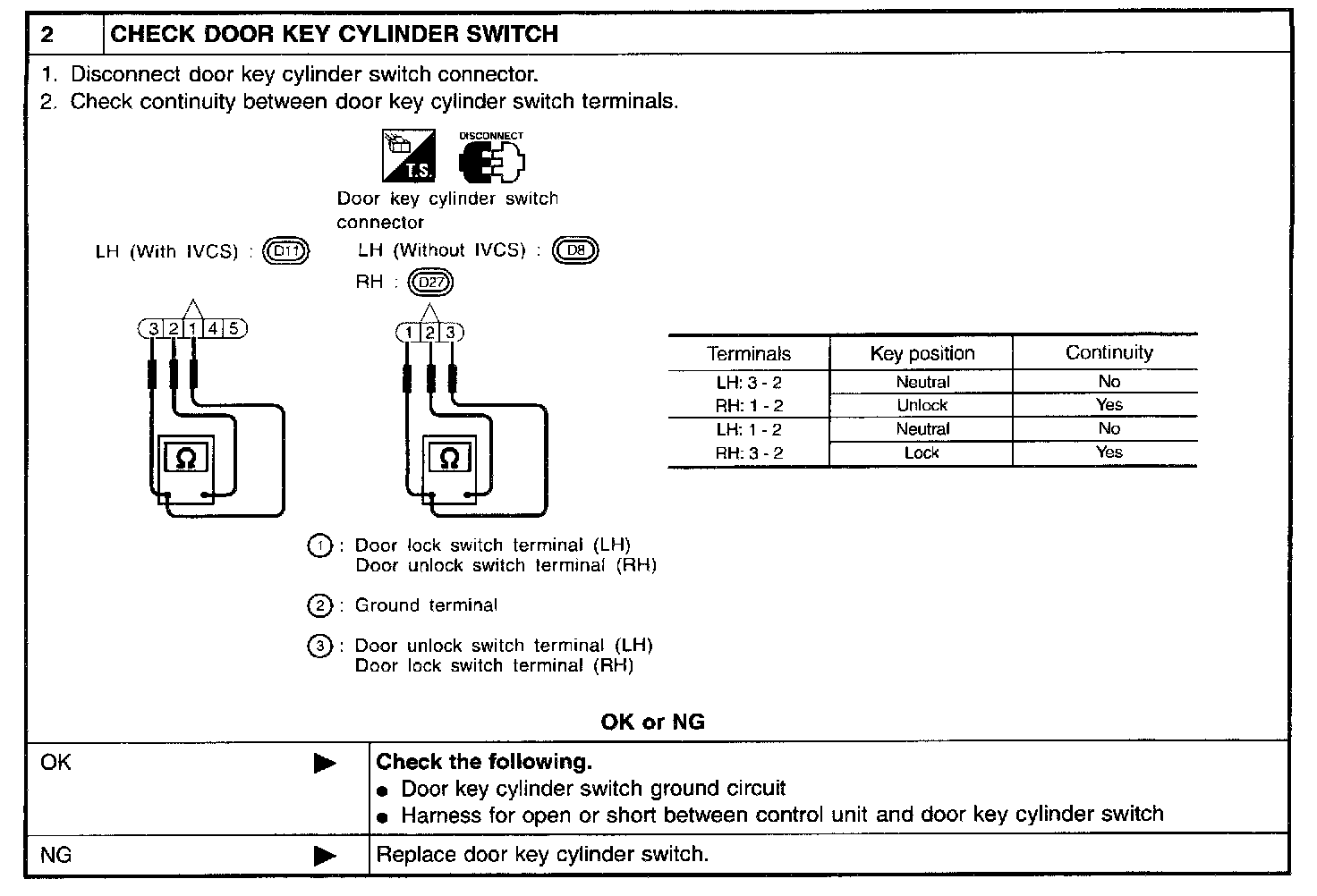

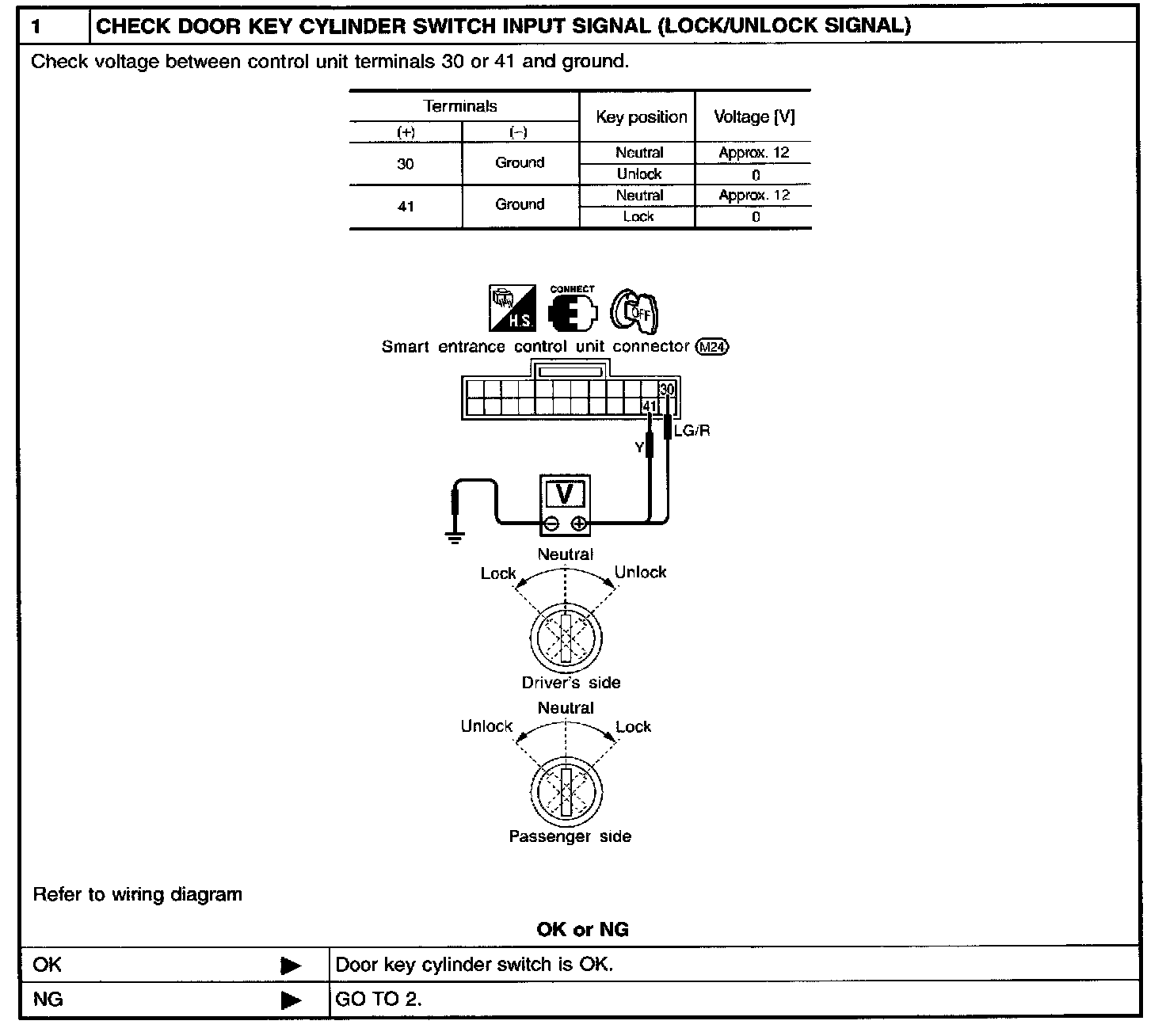

DOOR KEY CYLINDER SWITCH CHECK

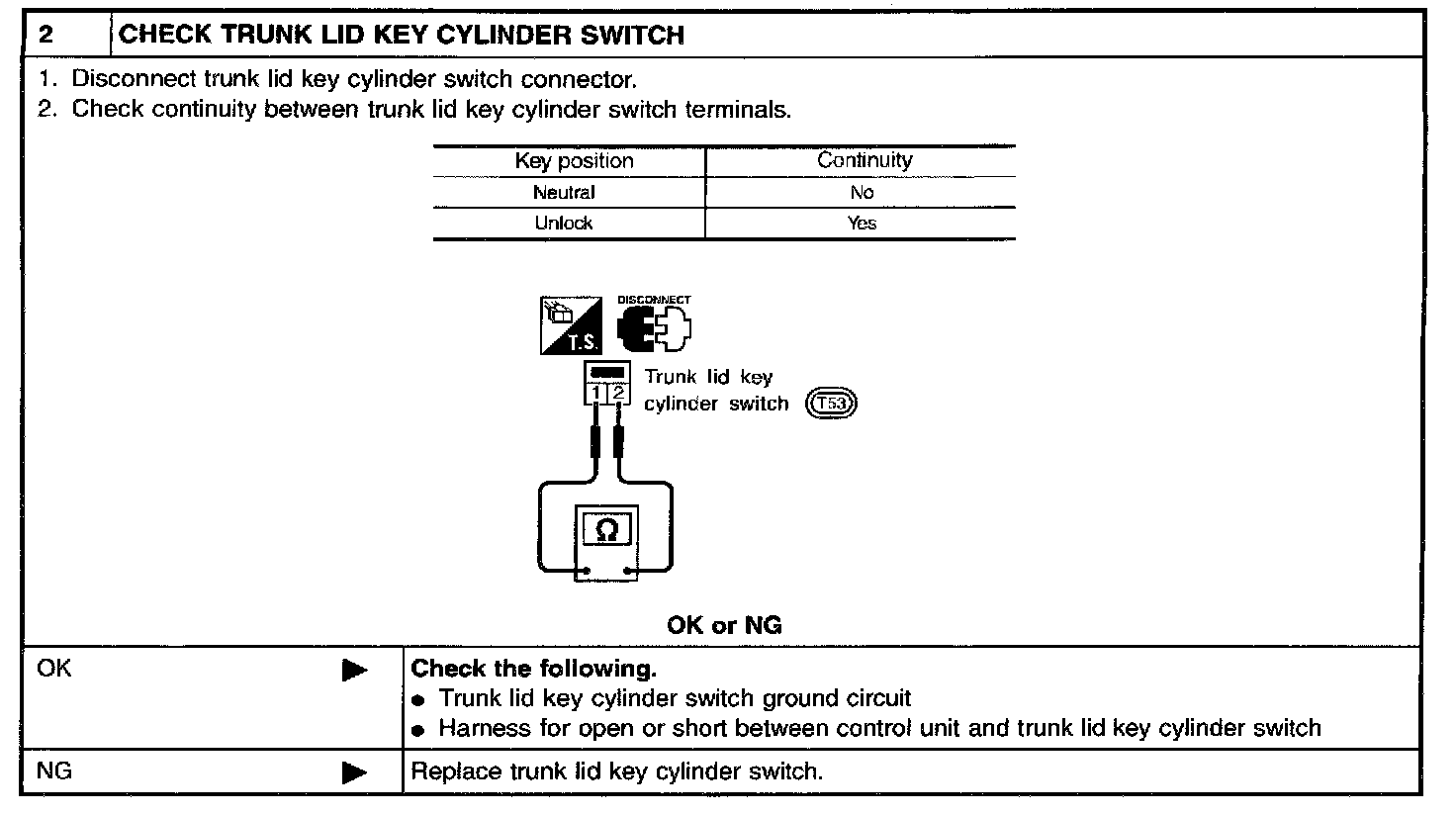

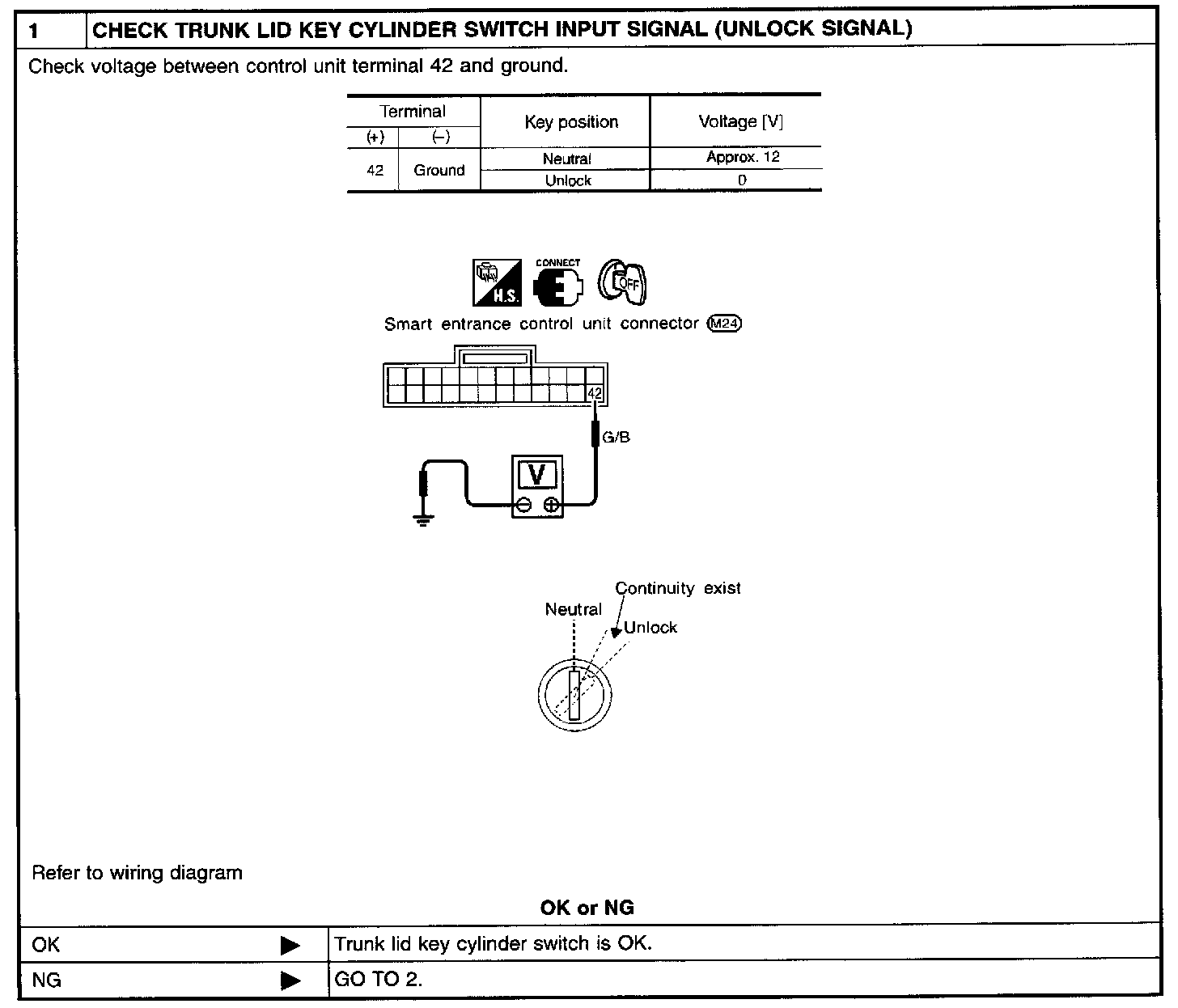

TRUNK LID KEY CYLINDER SWITCH CHECK

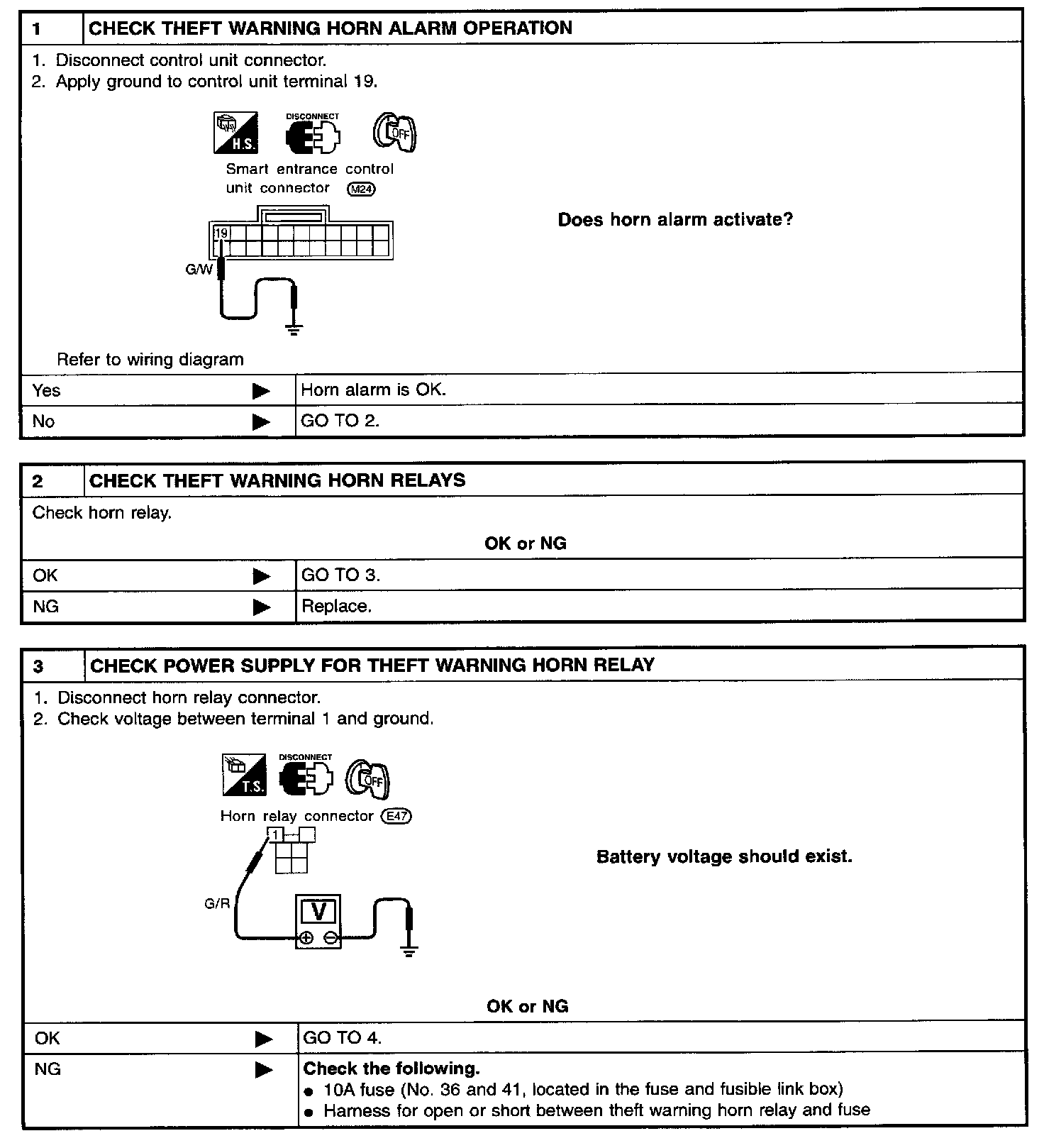

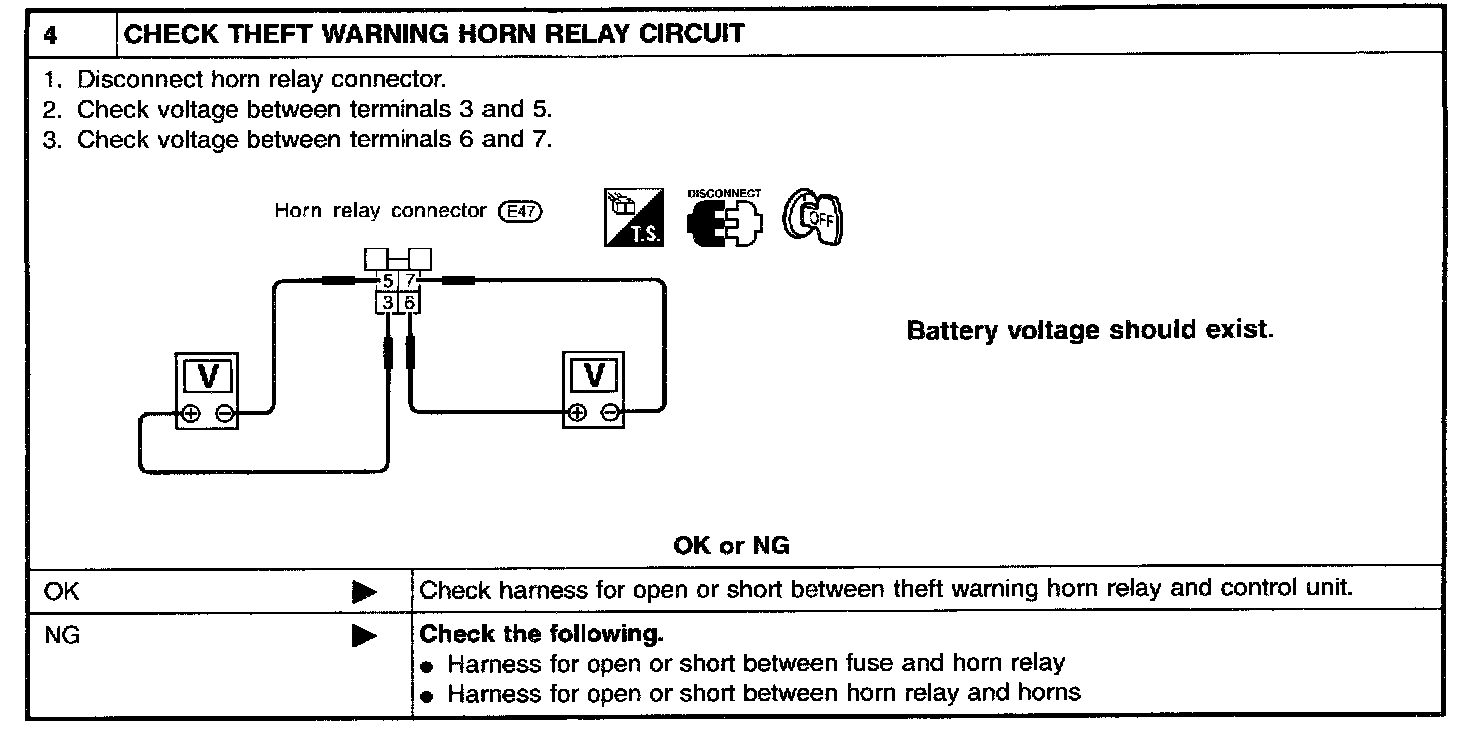

THEFT WARNING HORN ALARM CHECK

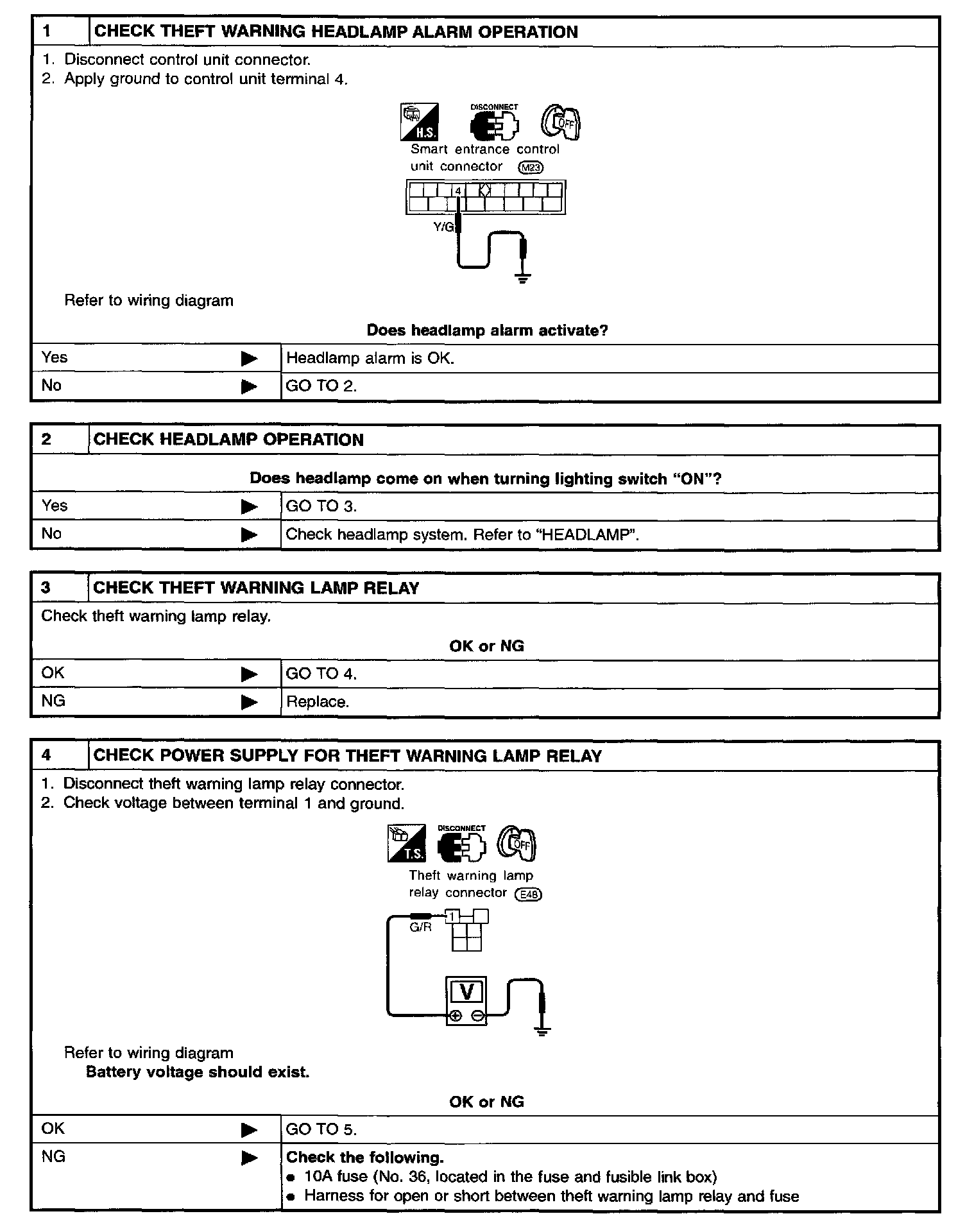

THEFT WARNING HEADLAMP ALARM CHECK
