Data Monitor Mode

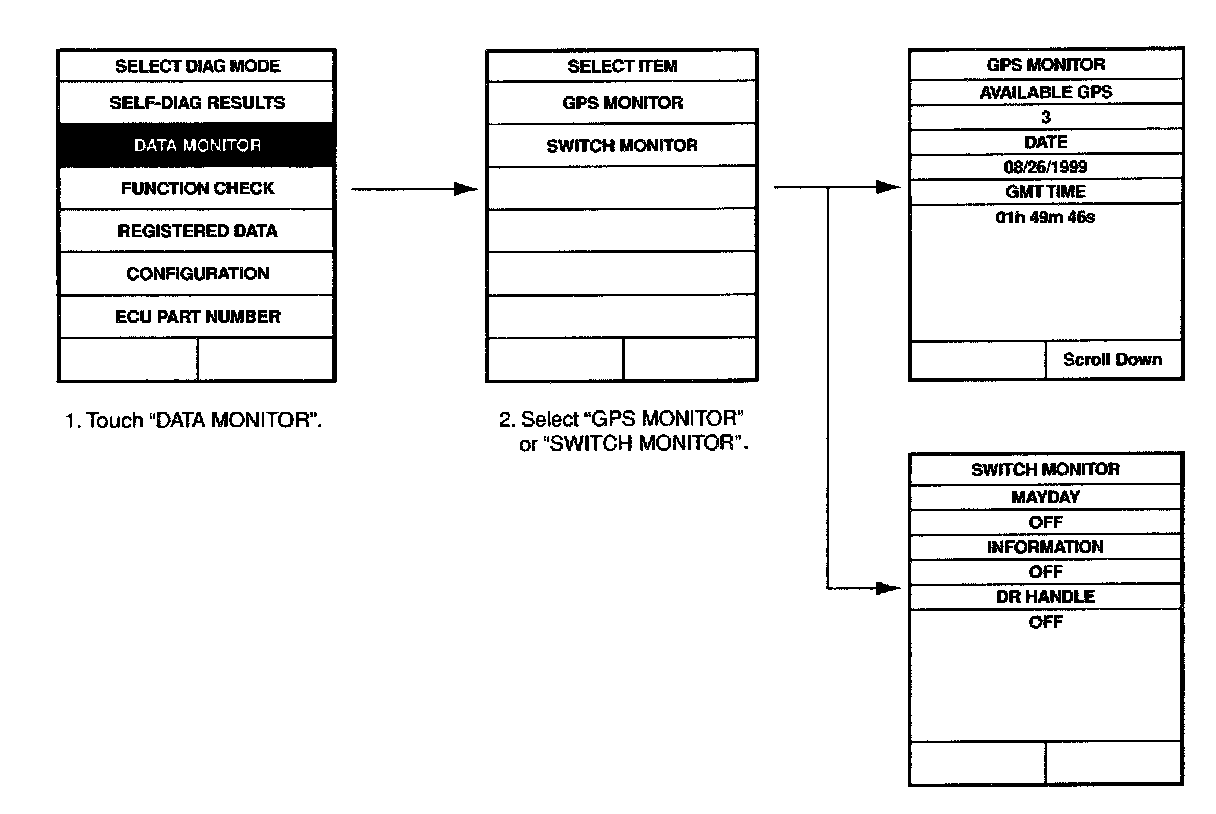

How to Perform Data Monitor

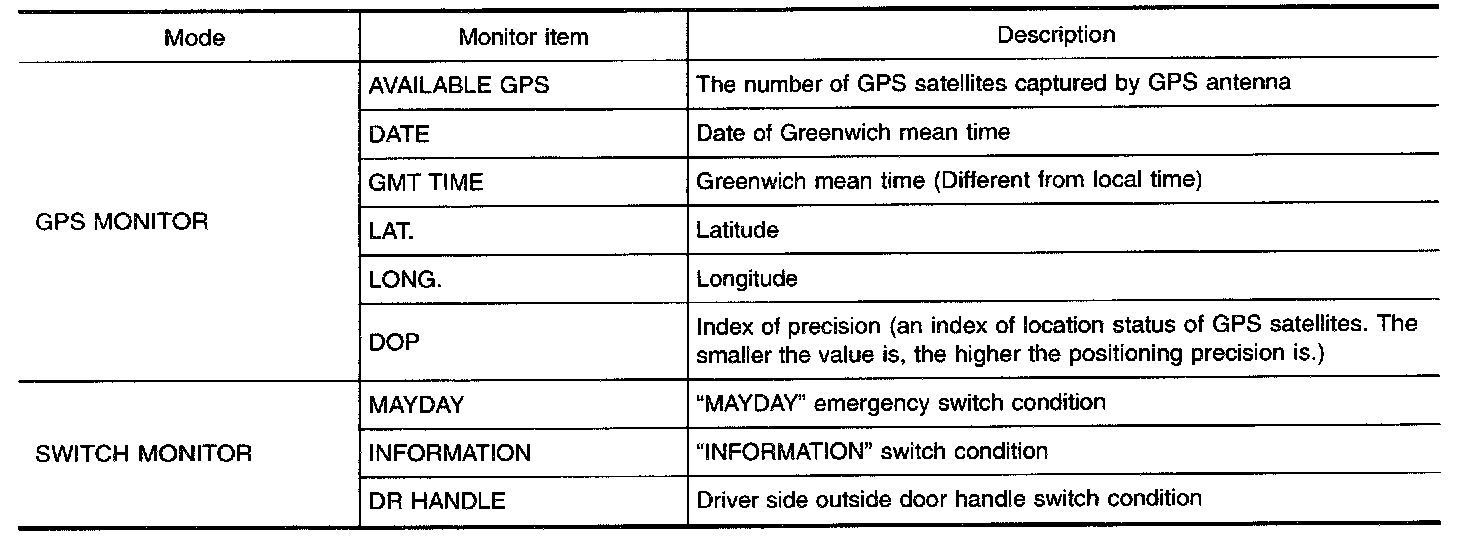

Data Monitor Item Chart

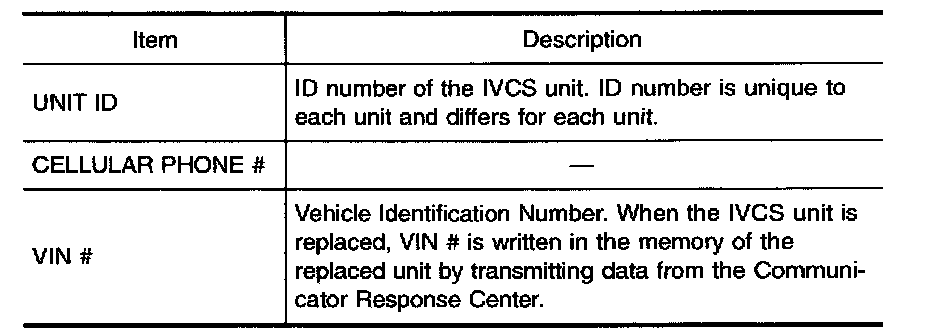

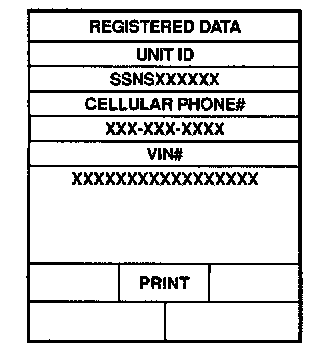

Registered Data Mode

NOTE: No data can be changed in this CONSULT-II mode.
