Vehicle Immobilizer System

CONSULT-II
CONSULT-II INSPECTION PROCEDURE




1. Turn ignition switch OFF

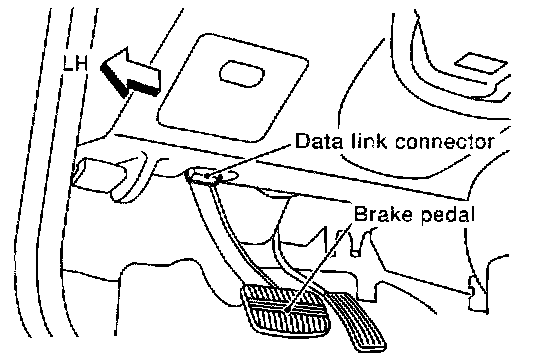

2. Connect "CONSULT-II" to Data link connector.




3. Insert IVIS (NATS) program card:NATS (UEN99A) into CONSULT-II.
4. Turn ignition switch ON.

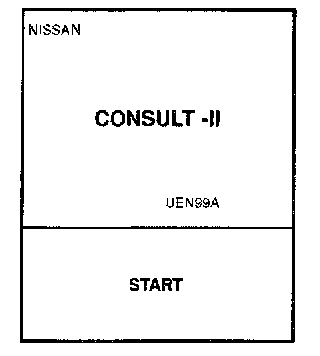

5. Touch "START".

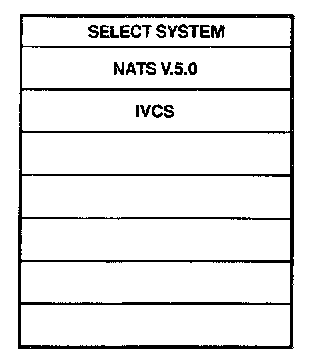

6. Select "NATS V.5.0".




7. Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual, IVIS/NVIS.

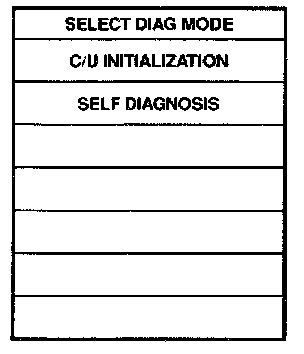

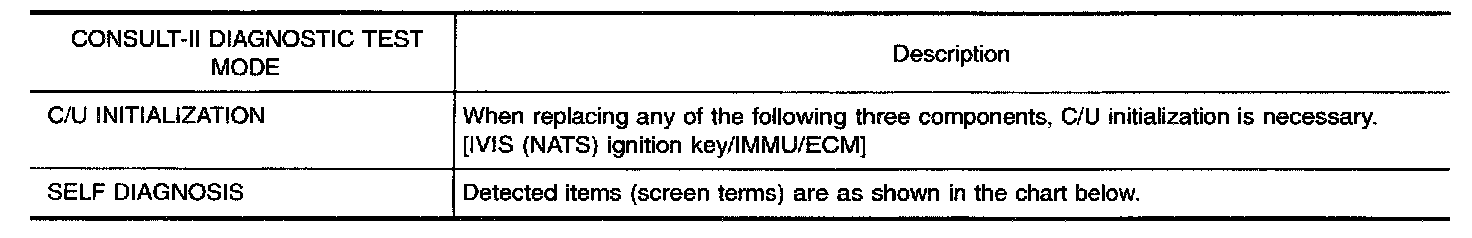

CONSULT-II DIAGNOSTIC TEST MODE FUNCTION

NOTE:
- When any initialization is performed, all IDs previously registered will be erased and all IVIS (NATS) ignition keys must be registered again.
- The engine cannot be started with an unregistered key. In this case, the system may show "DIFFERENCE OF KEY" or "LOCK MODE" as a self-diagnostic result on the CONSULT-II screen.
- "CHAIN OF ECM-IMMU" might be stored as a self-diagnostic result during the key registration procedure, even if the system is not malfunctioning.
