With Manufacturer's Scan Tool (CONSULT-II)
CONSULT-IICONSULT-II INSPECTION PROCEDURE
1. Turn ignition switch OFF

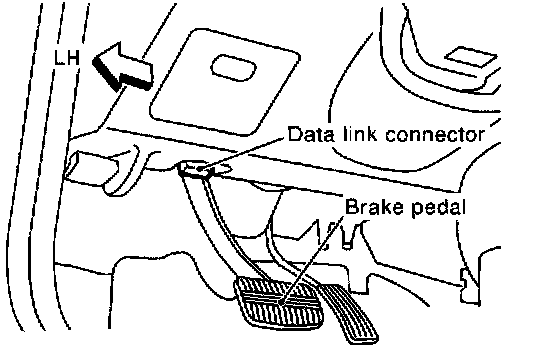

2. Connect "CONSULT-II" to Data link connector.
3. Insert UEN99A program card into CONSULT-II.
4. Turn ignition switch ON.

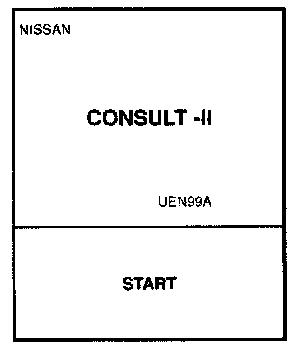

5. Touch "START".
6. Touch IVCS.

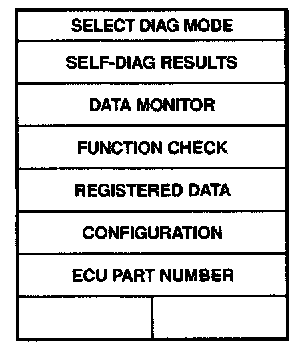

7. Perform each diagnostic item according to the item application chart.
8. When CONSULT-II inspection is terminated, follow the procedure shown below.

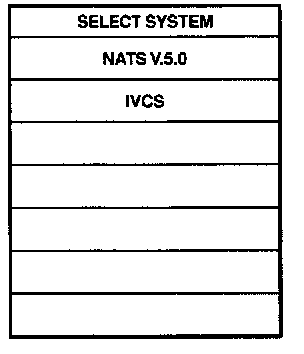

a. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears, then turn off CONSULT-II.
b. Turn ignition switch to OFF position.
c. Disconnect CONSULT-II DDL connector.
NOTE: If the DDL connector is disconnected before turning ignition switch to "OFF" position, INFINITI communicator may not operate properly.
