Symptom Related Diagnostic Procedures

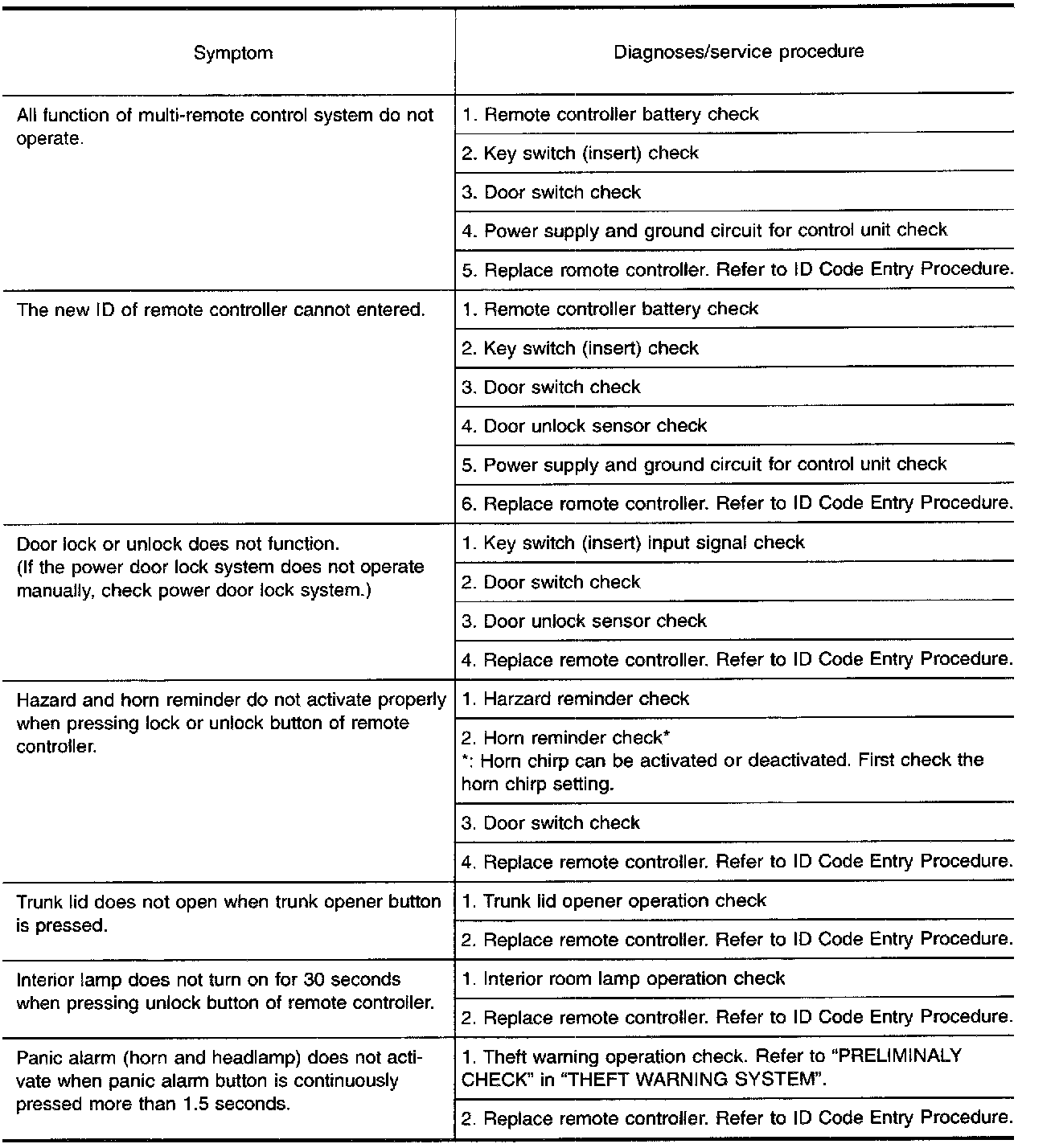

SYMPTOM CHART

NOTE:
- The unlock and panic alarm operation of multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.
- The lock operation of multi-remote control system does not activate with the key inserted in the ignition key cylinder or if one of the doors is opened.

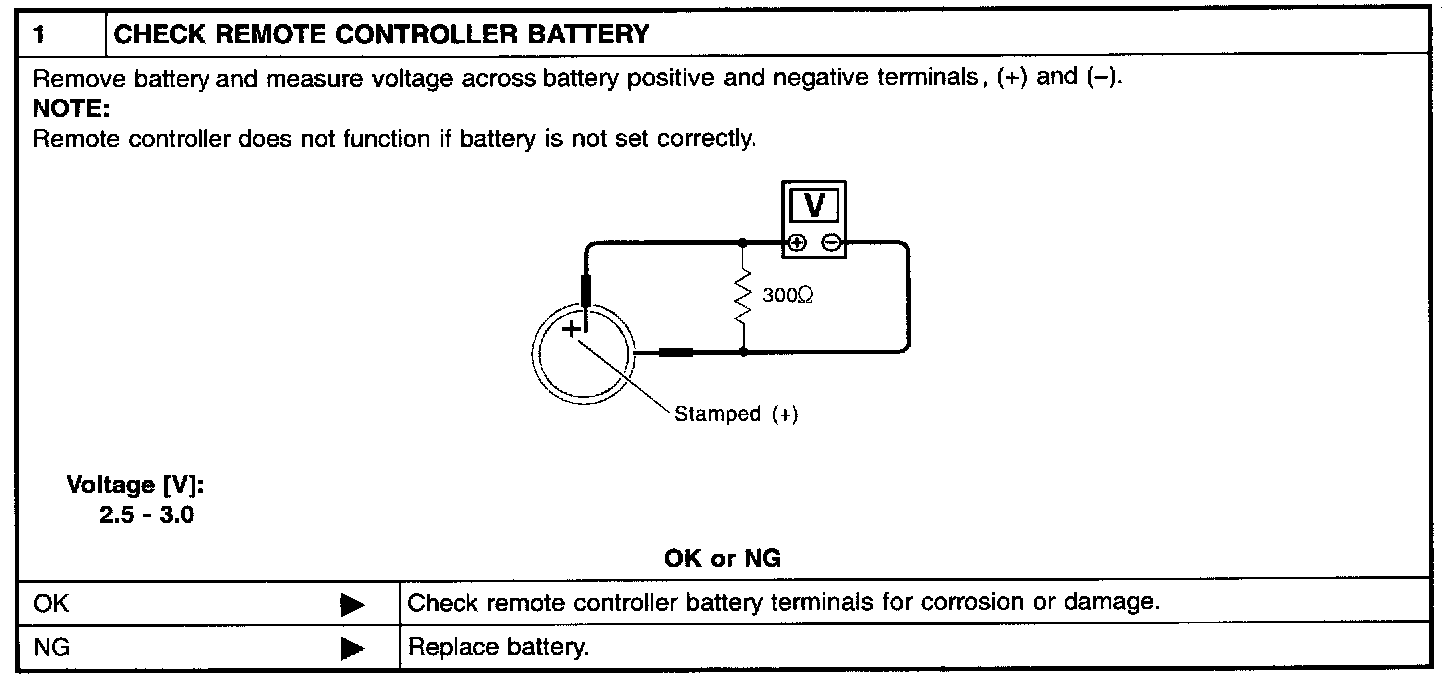

REMOTE CONTROLLER BATTERY CHECK

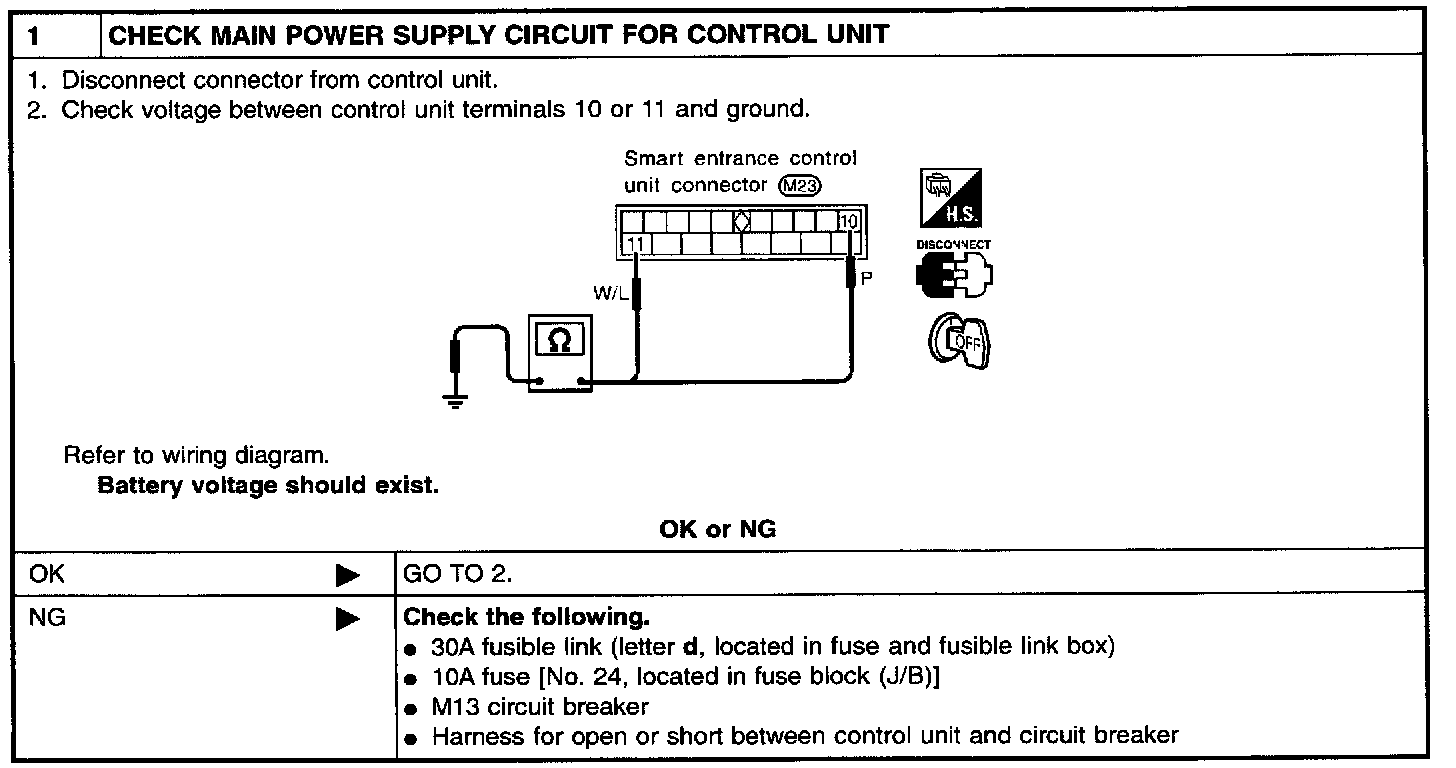

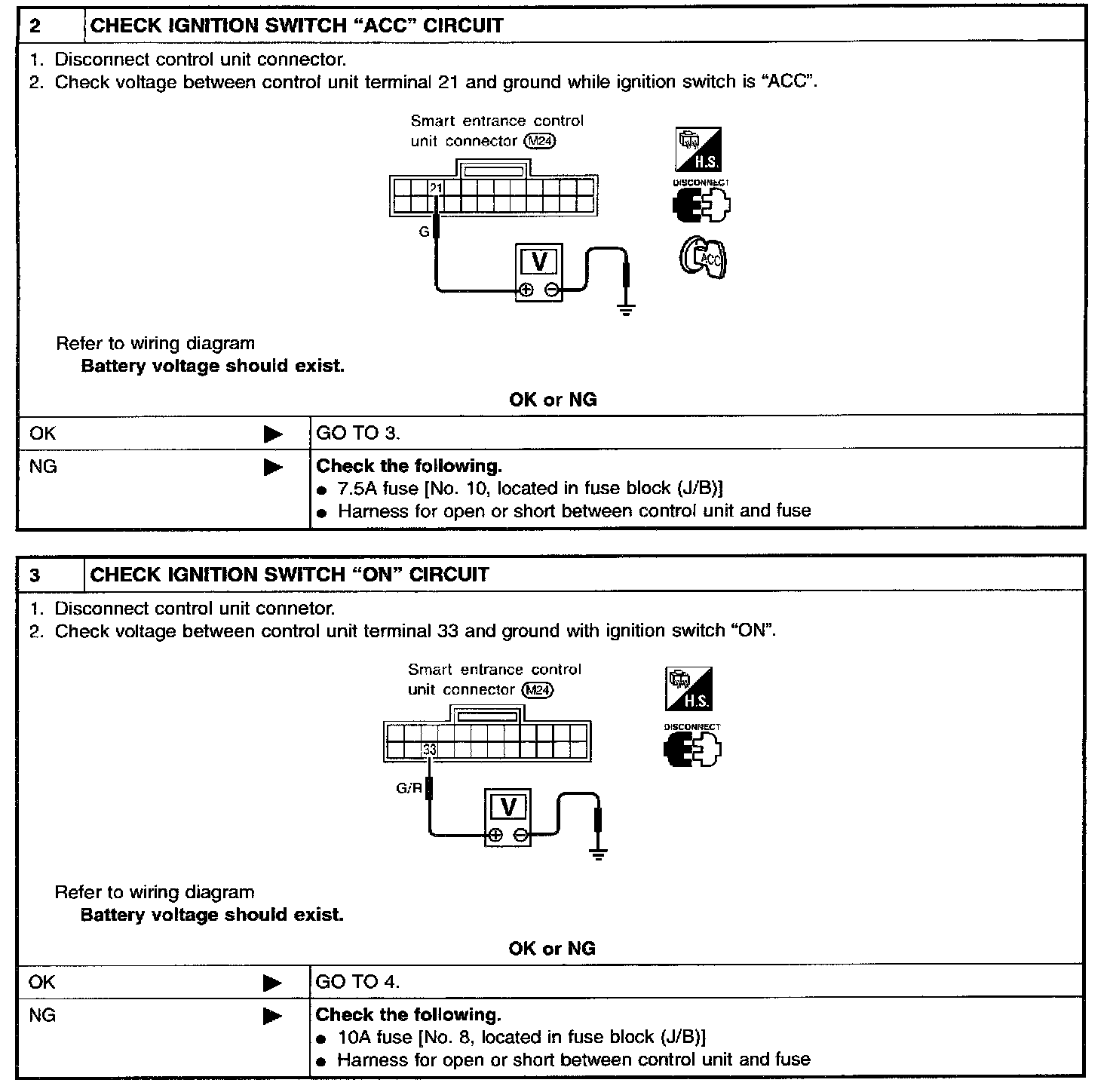

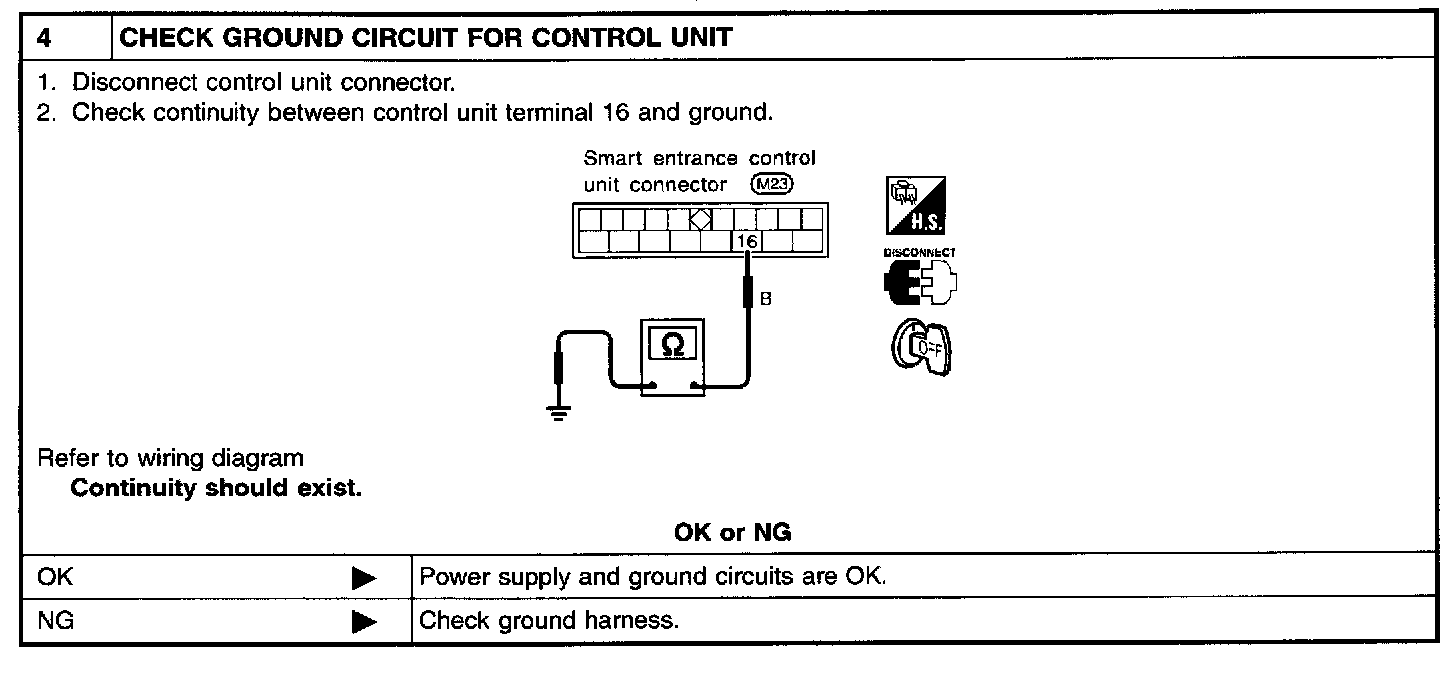

POWER SUPPLY AND GROUND CIRCUIT CHECK

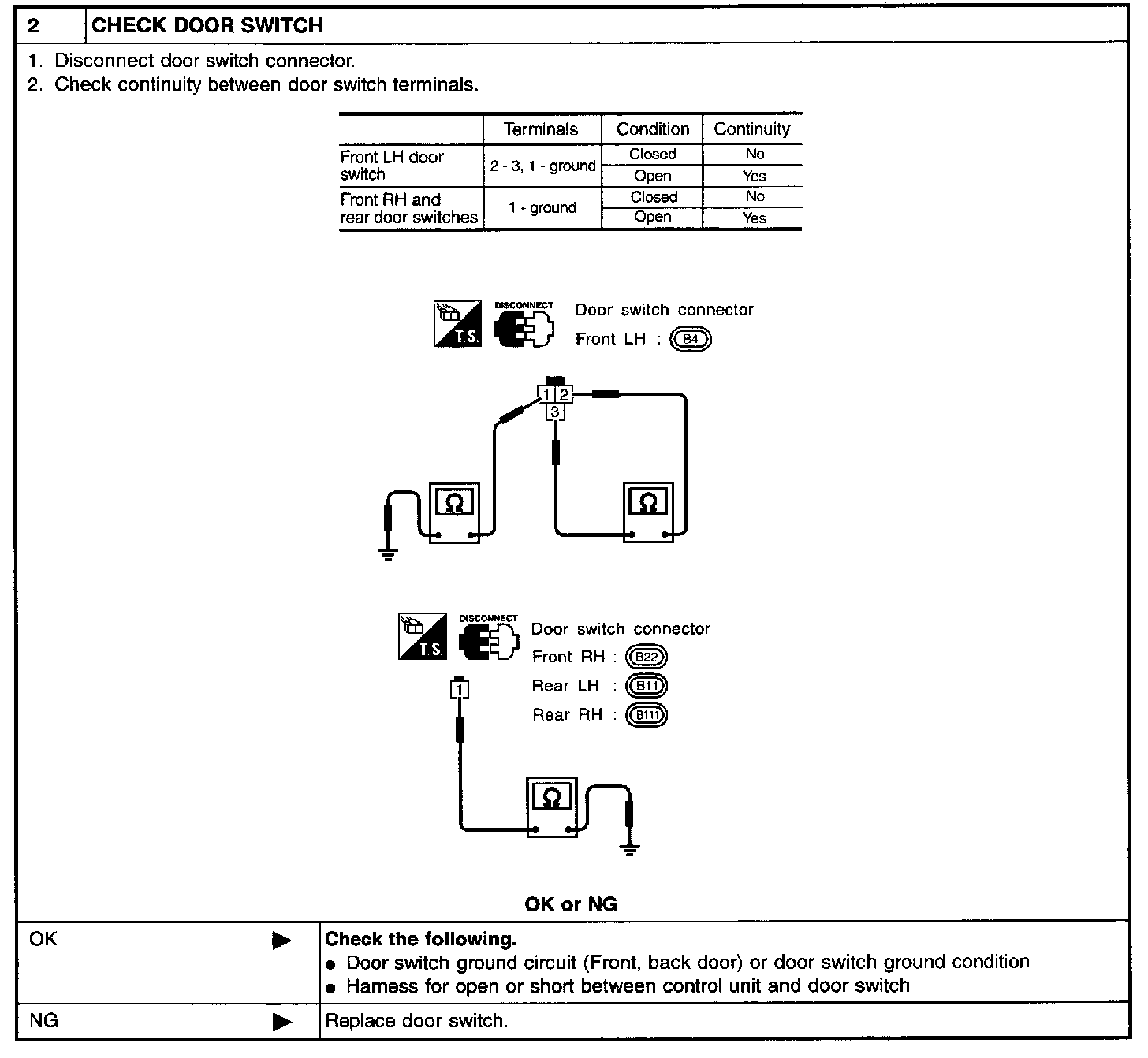

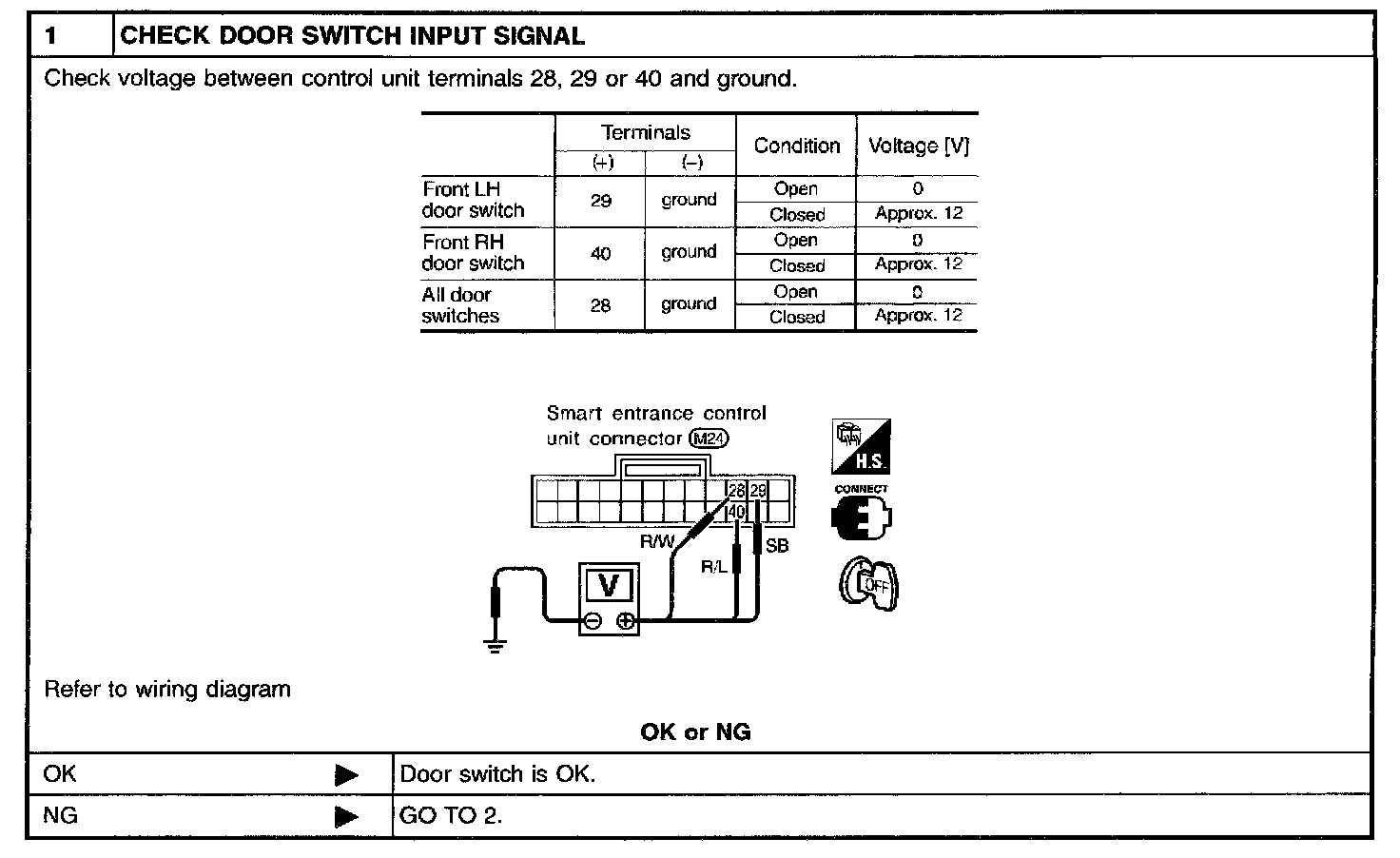

DOOR SWITCH CHECK

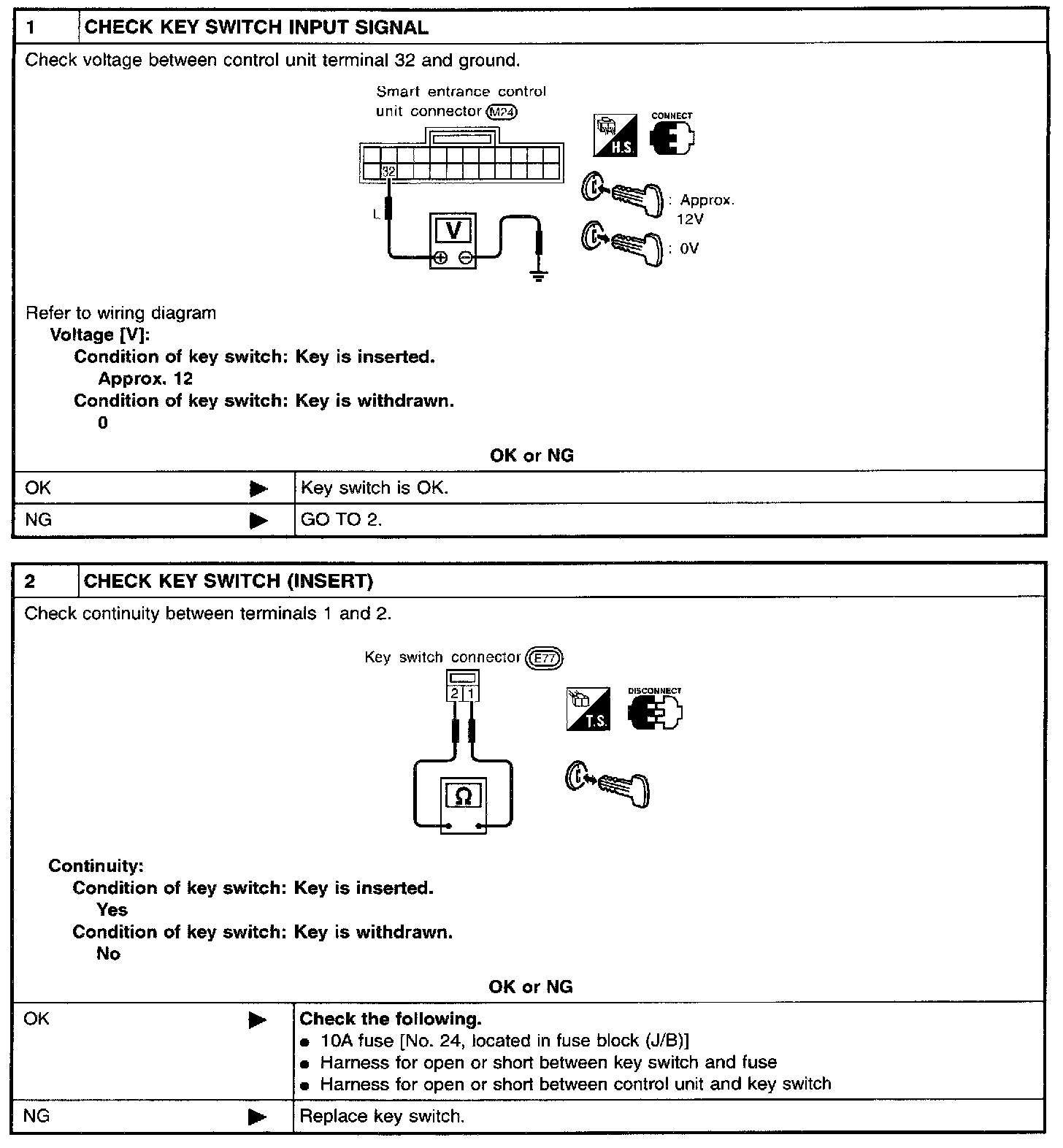

KEY SWITCH (INSERT) CHECK

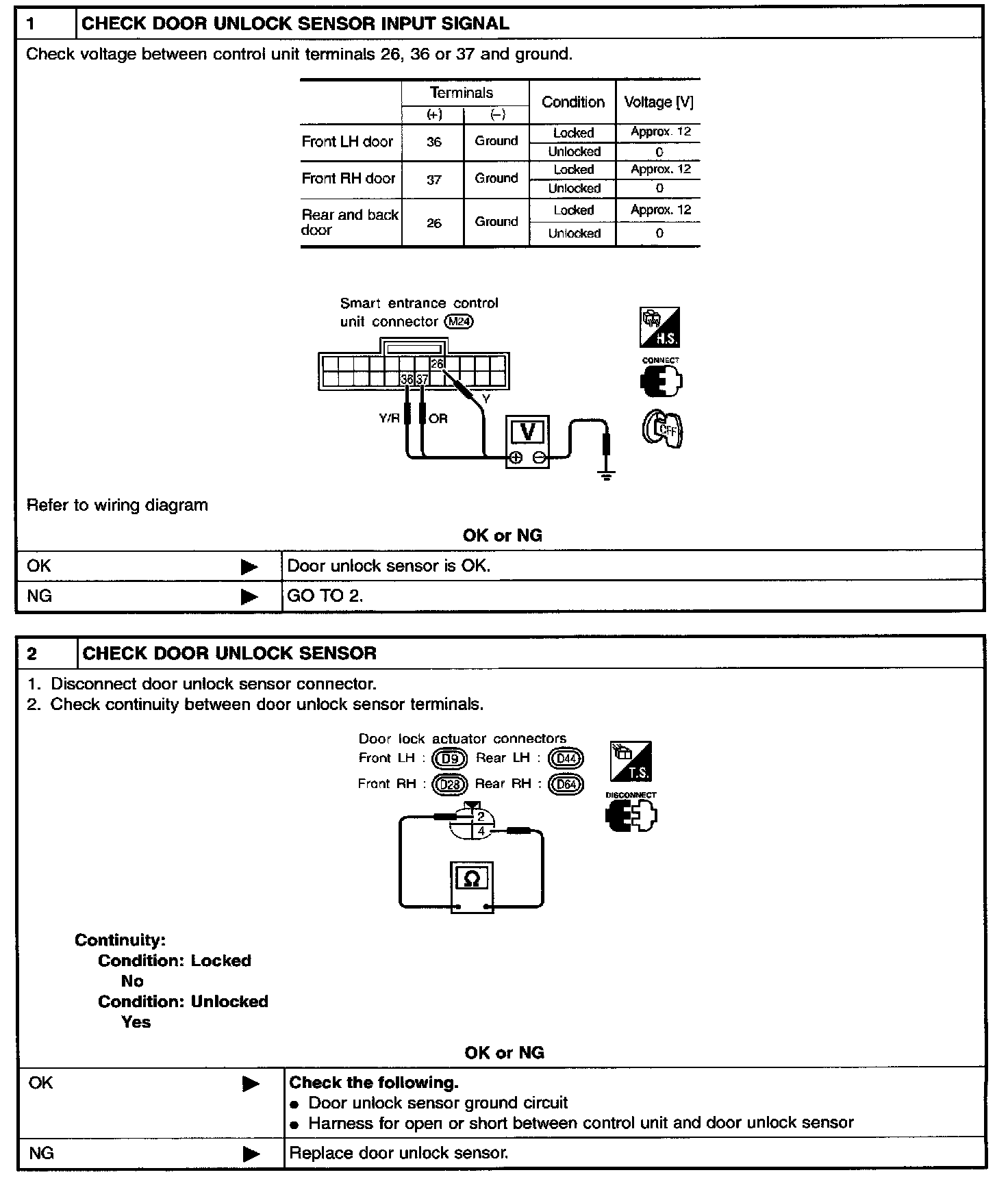

DOOR UNLOCK SENSOR CHECK

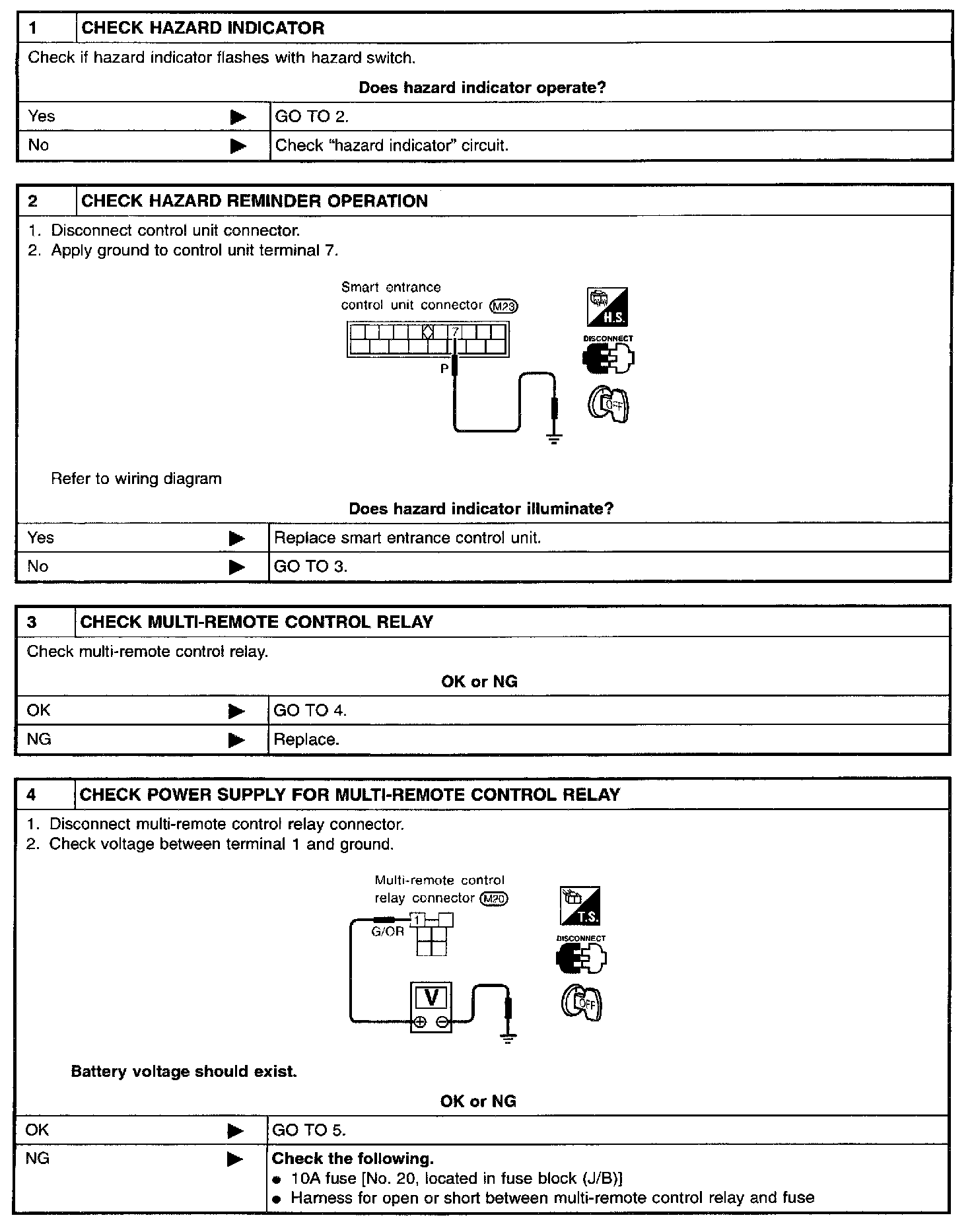

HAZARD REMINDER CHECK

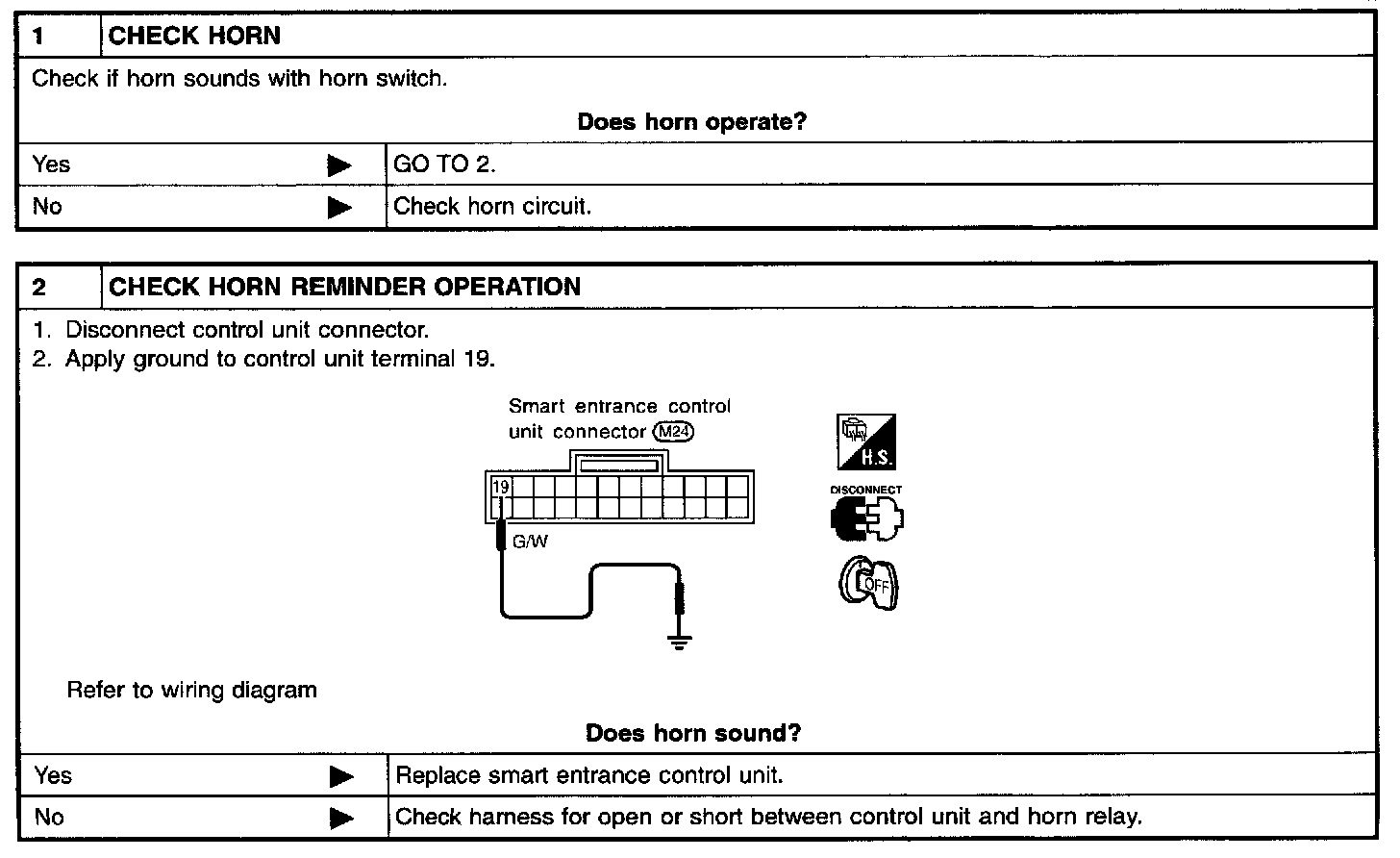

HORN REMINDER CHECK

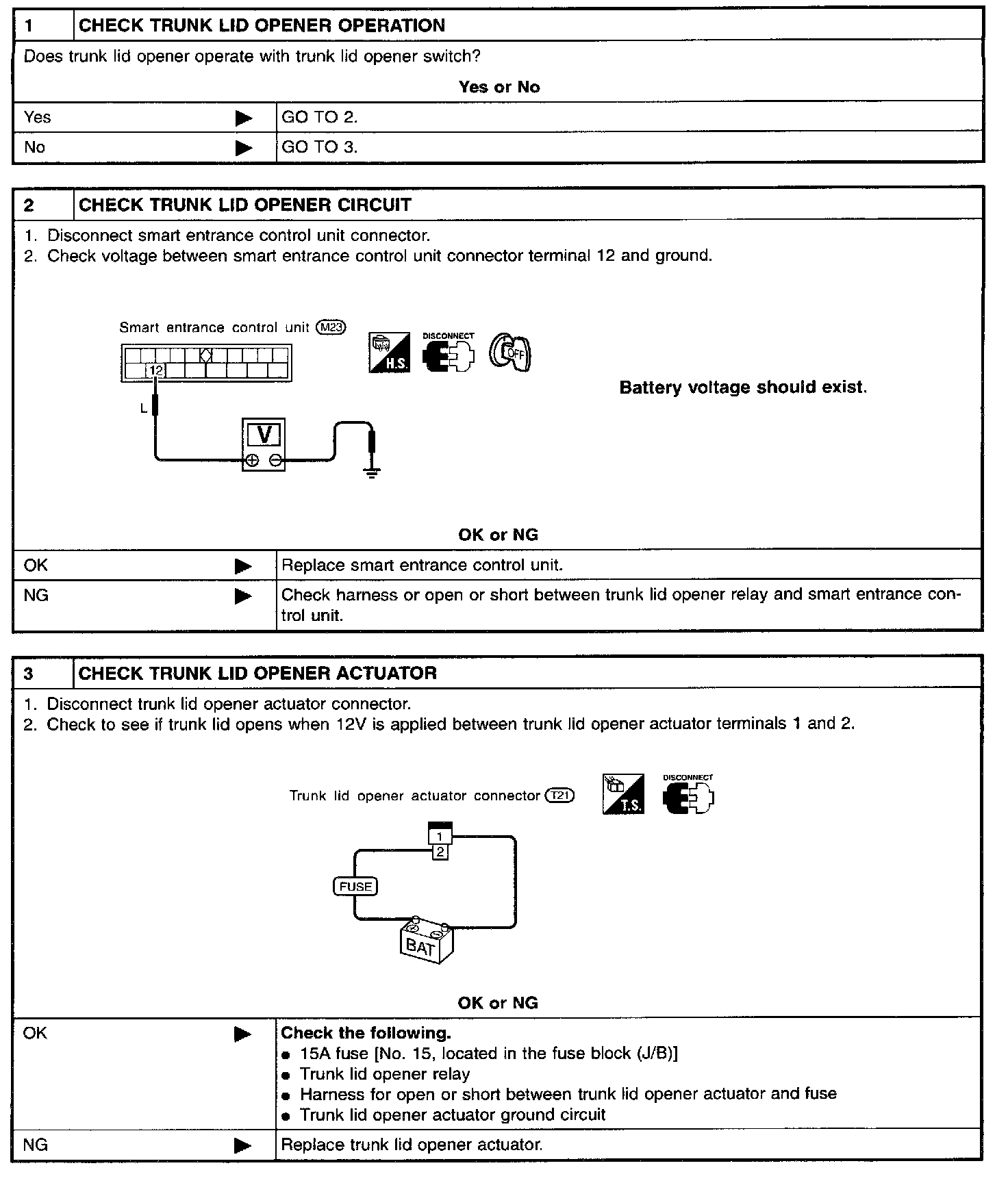

TRUNK LID OPENER CHECK




INTERIOR ROOM LAMP OPERATION CHECK
