P0510




Component Description
A closed throttle position switch and wide open throttle position switch are built into the throttle position sensor unit. The wide open throttle position switch is used only for A/T control.
When the throttle valve is in the closed position, the closed throttle position switch sends a voltage signal to the ECM. The ECM only uses this signal to open or close the EVAP canister purge control valve when the throttle position sensor is malfunctioning.

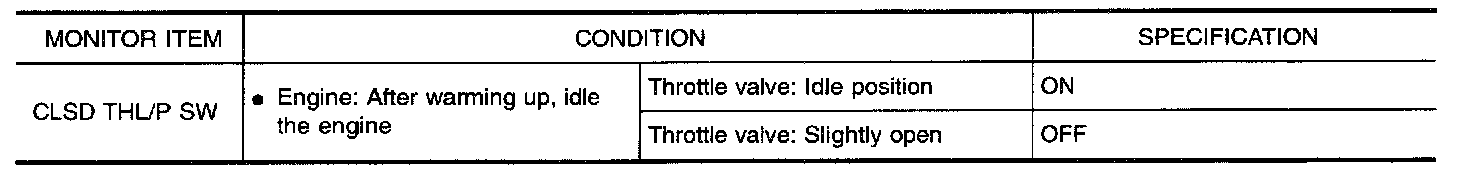

CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

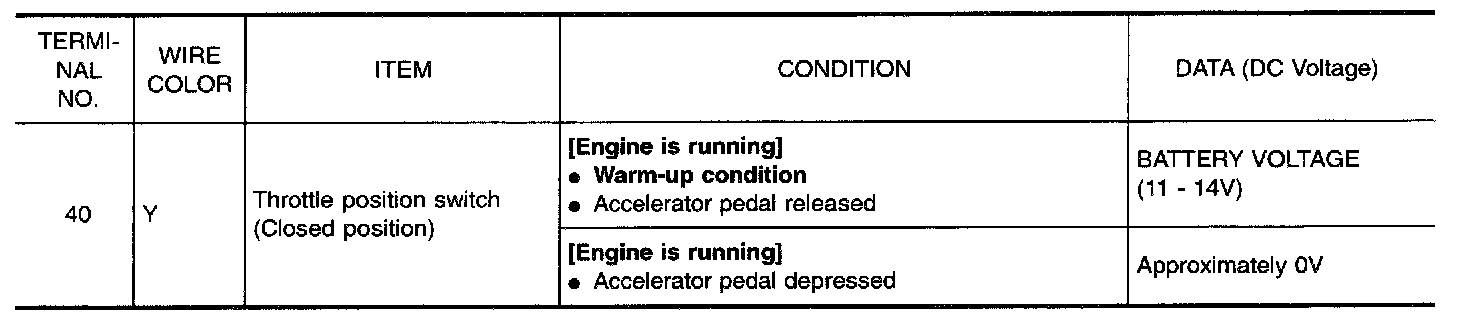

ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and 48 (ECM ground).

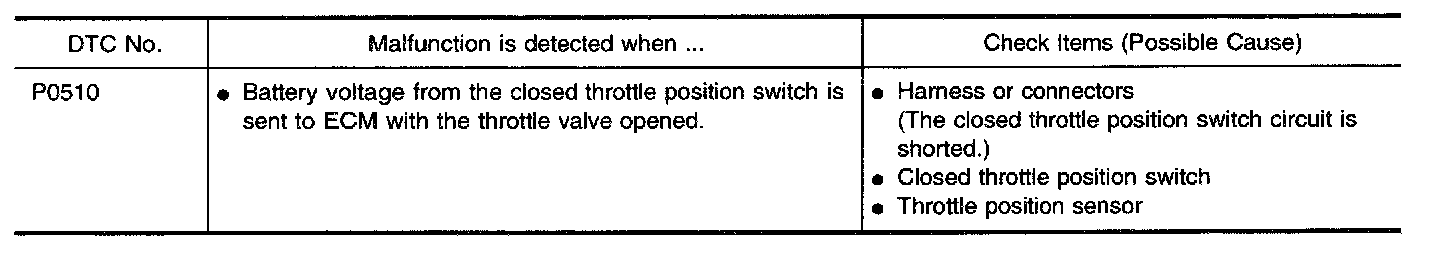

ON BOARD DIAGNOSIS LOGIC:






DTC CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF", wait at least 5 seconds and then start engine.
3. Select "CLSD THL/P SW" in "DATA MONITOR" mode.

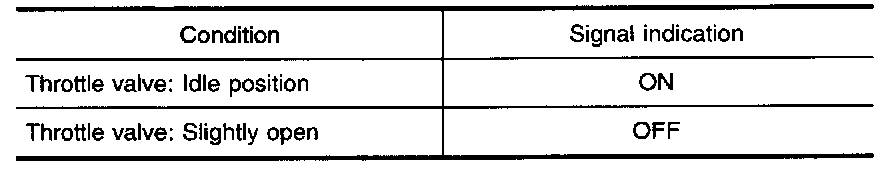

4. Check the signal under the following conditions.
If the result is NG, go to "Diagnostic Procedure". If OK, go to following step.

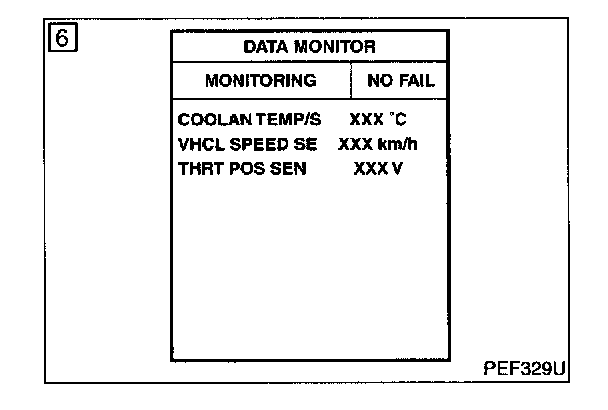

5. Select "DATA MONITOR" mode with CONSULT-II.

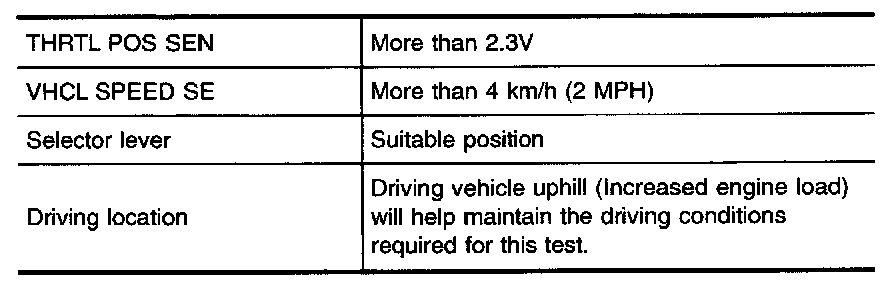

6. Drive the vehicle for at least 5 consecutive seconds under the following condition.
7. If 1st trip DTC is detected, go to "Diagnostic Procedure".

Overall Function Check
Use this procedure to check the overall function of the closed throttle position switch circuit. During this check, a 1st trip DTC might not be confirmed.

Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.

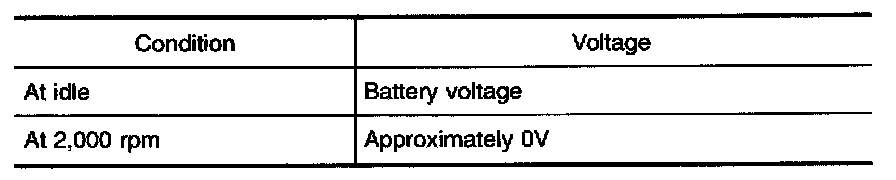

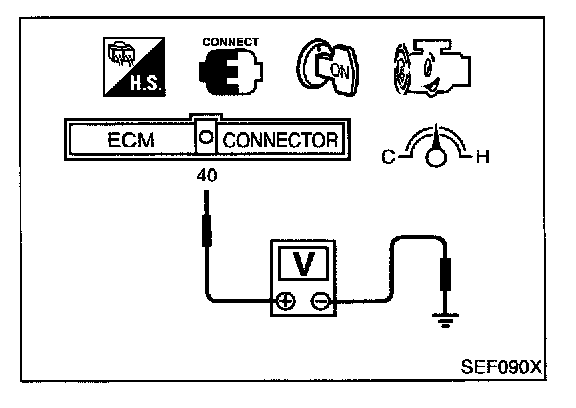

2. Check the voltage between ECM terminal 40 (Closed throttle position switch signal) and ground under the following conditions.
3. If NG, go to "Diagnostic Procedure".

EC-TP/SW-01:




EC-TP/SW-01 - Connector Views:




WIRING DIAGRAM

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:






Step 1:




Step 2:




Step 3:




Step 4:




Step 5:




Step 6:




Step 7:




Step 8:




Step 9:




Step 10:




Step 11:

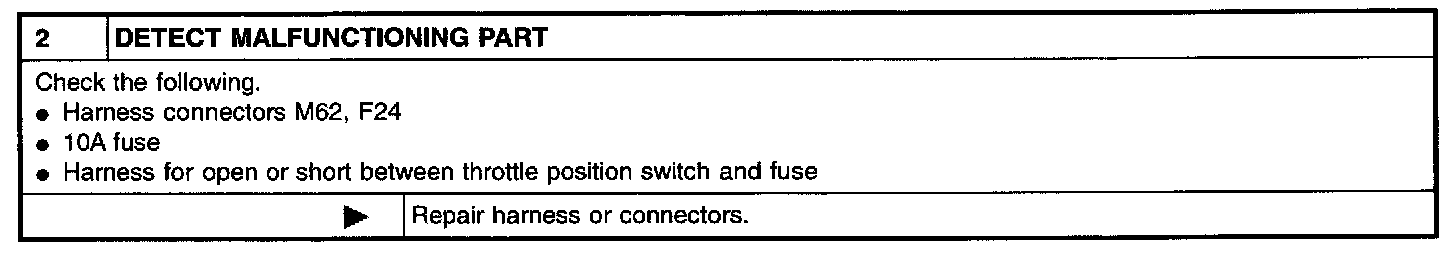

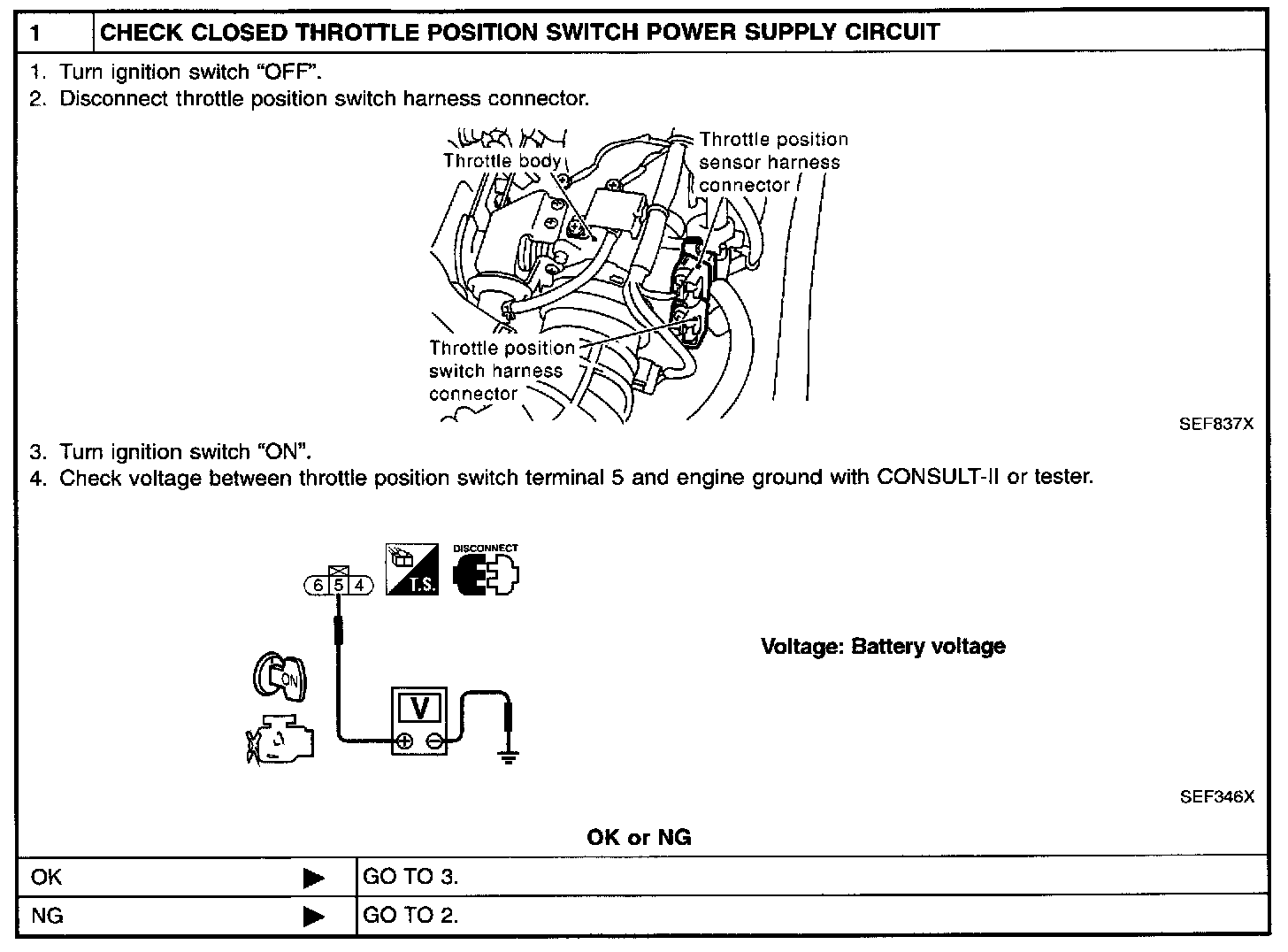

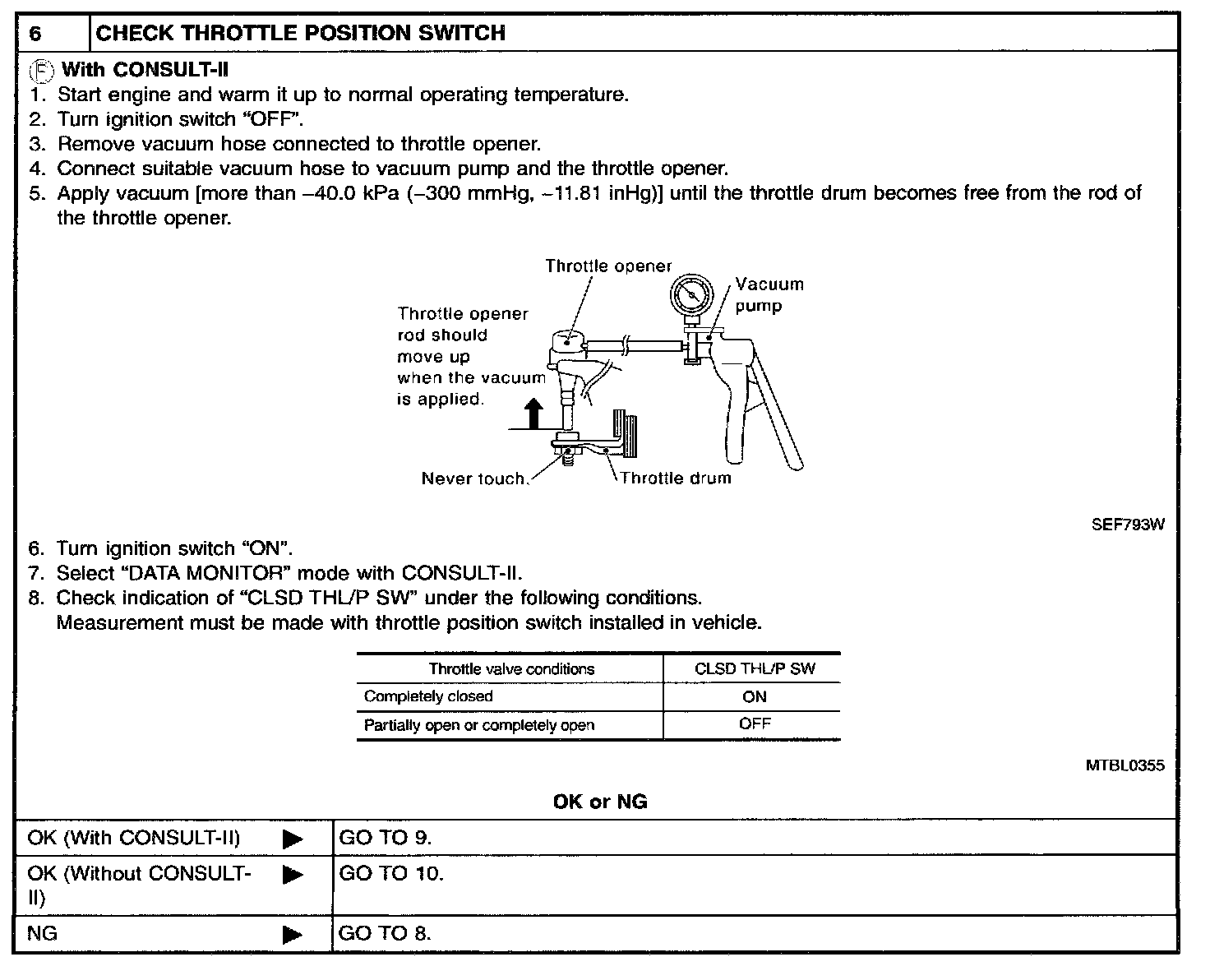

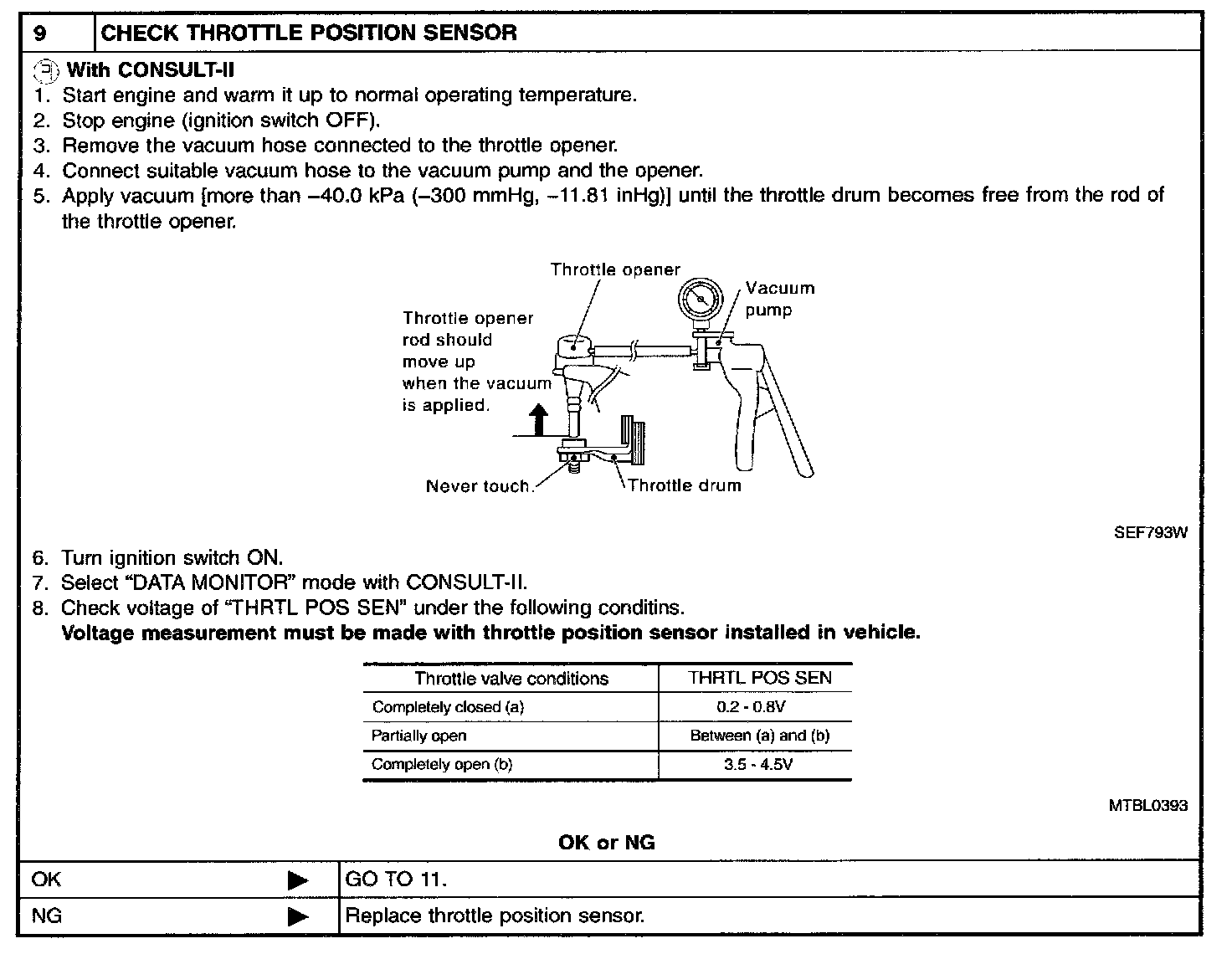

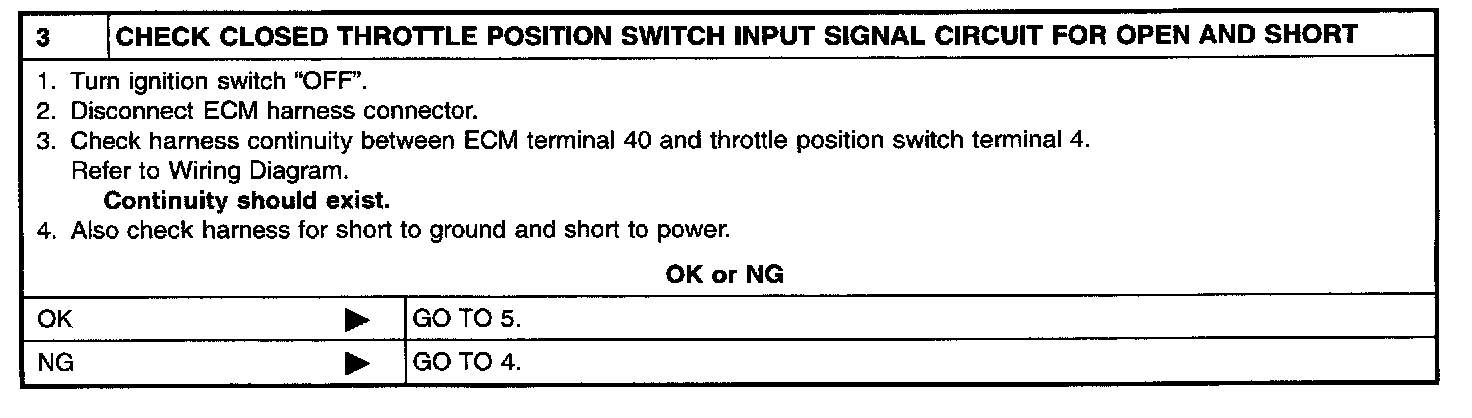

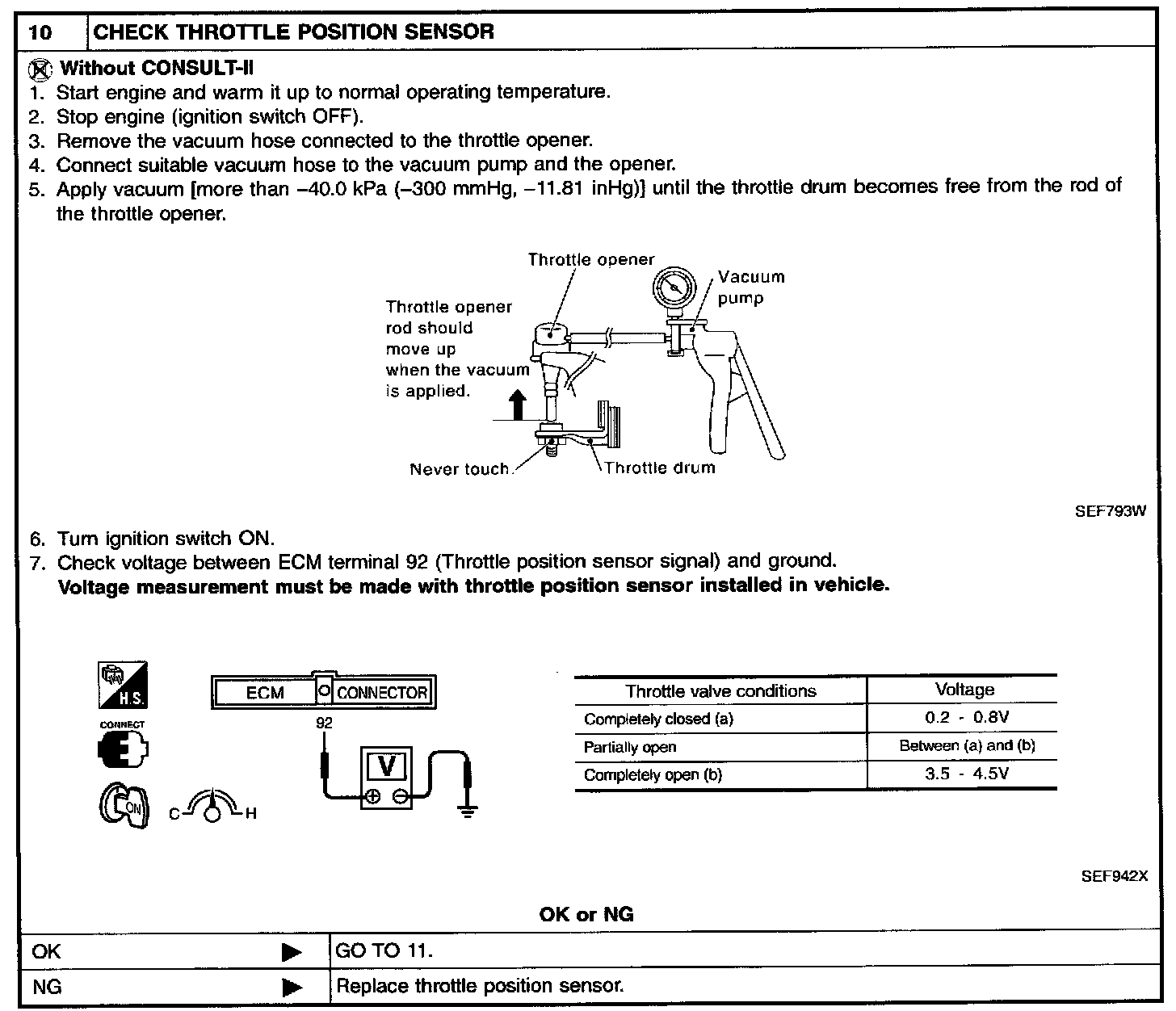

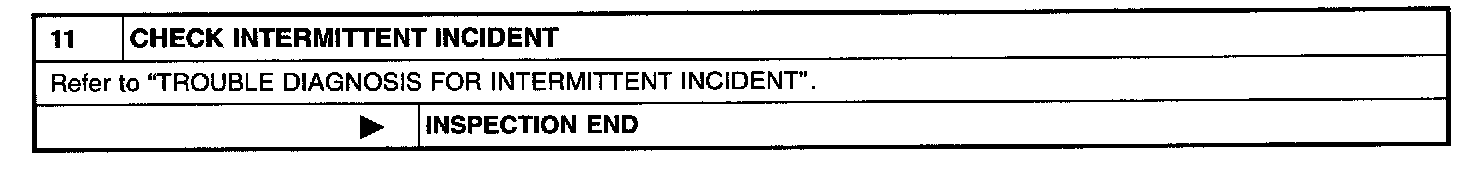

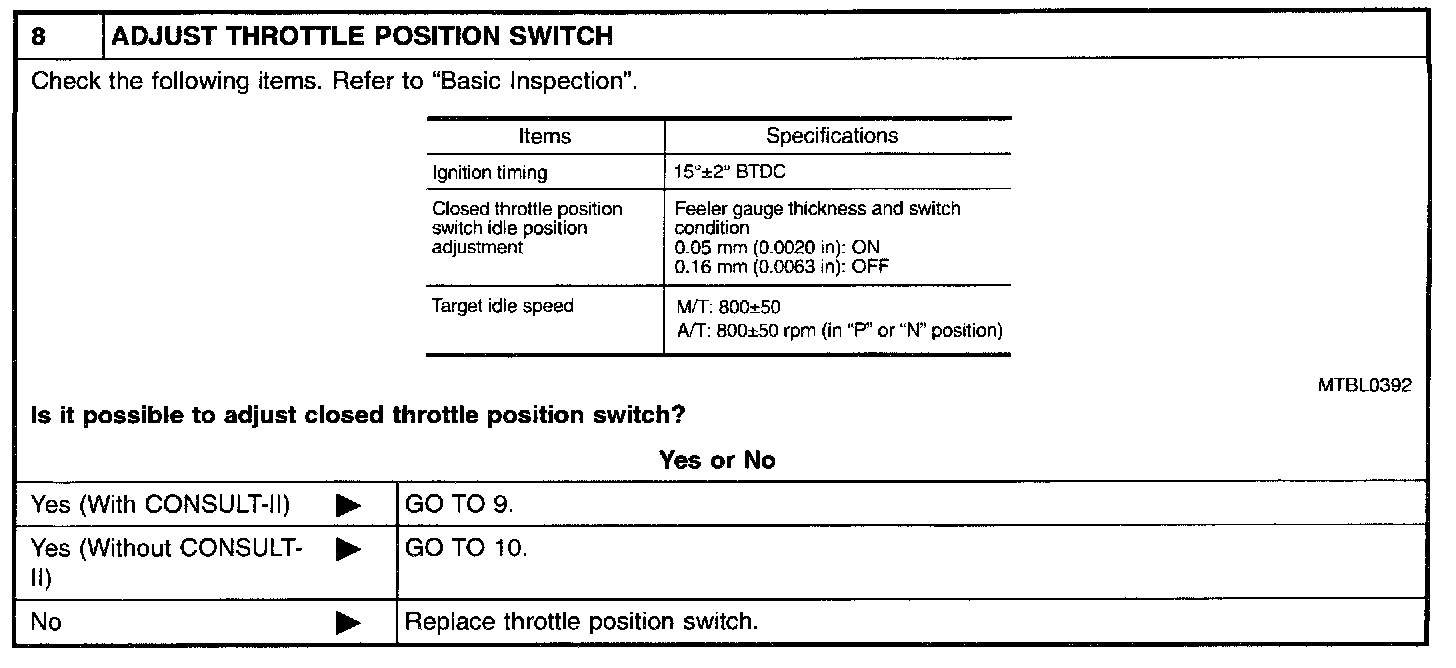

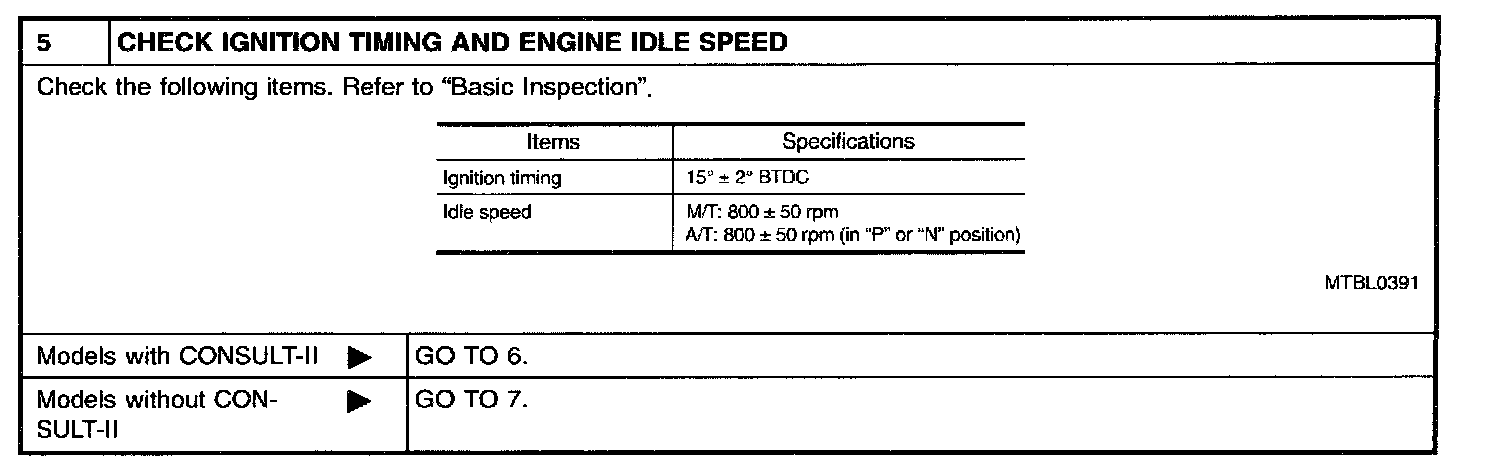

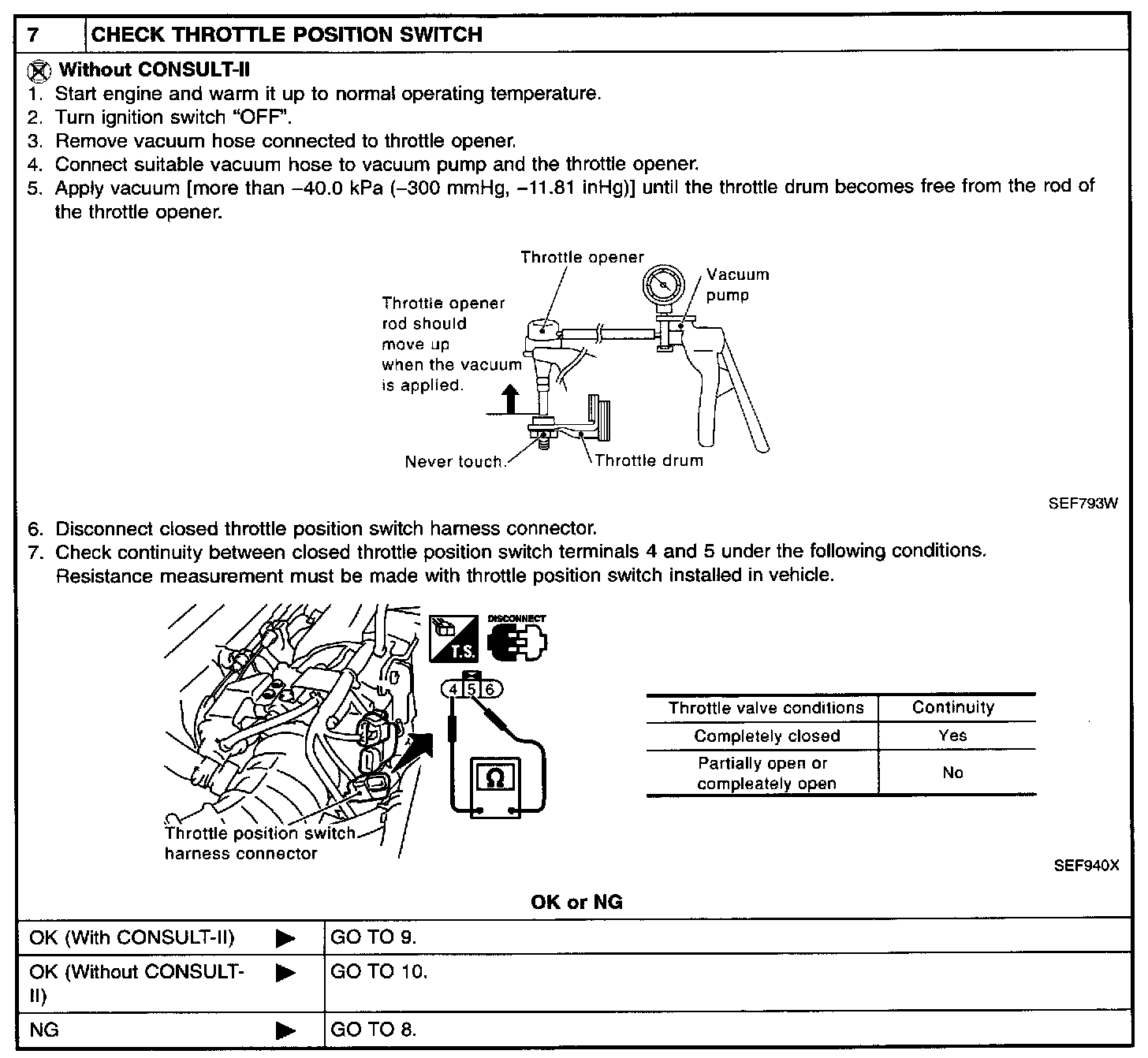

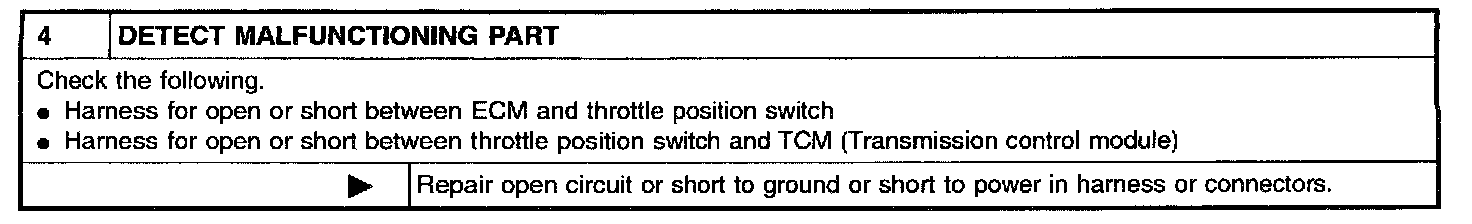

DIAGNOSTIC PROCEDURE
