P0180

Component Description
The fuel tank temperature sensor is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

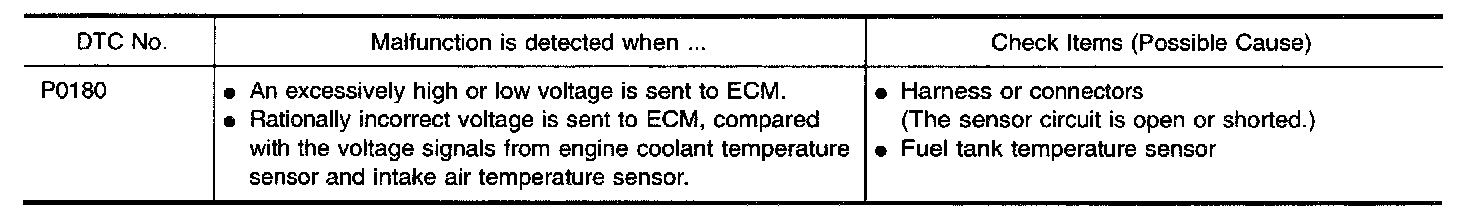

ON BOARD DIAGNOSIS LOGIC:

DTC CONFIRMATION PROCEDURE

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.




With CONSULT-II
1. Turn ignition switch "ON".

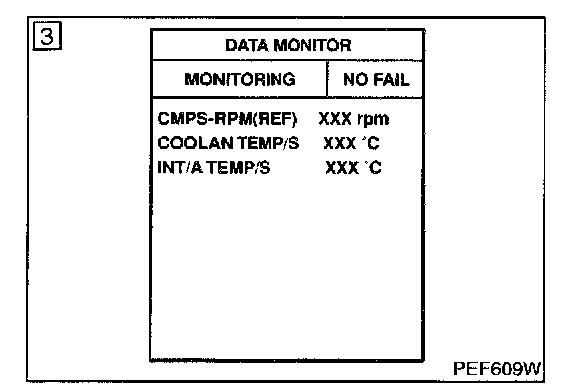

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 10 seconds.
If 1st trip DTC is detected, go to "Diagnostic Procedure".
If the result is OK, go to following step.
4. Check "COOLAN TEMP/S" signal.
If the signal is less than 60 °C (140 °F), the result will be OK. If the signal is above 60 °C (140 °F), go to the following step.
5. Cool engine down until "COOLAN TEMP/S" signal is less than 60 °C (140 °F).
6. Wait at least 10 seconds.
7. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With Generic Scan Tool
Follow the procedure "With CONSULT-II" above.

EC-TFTS-01:

EC-TFTS-01 - Connector Views:

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

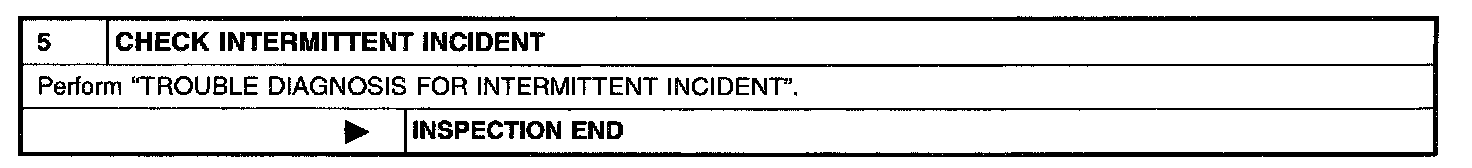

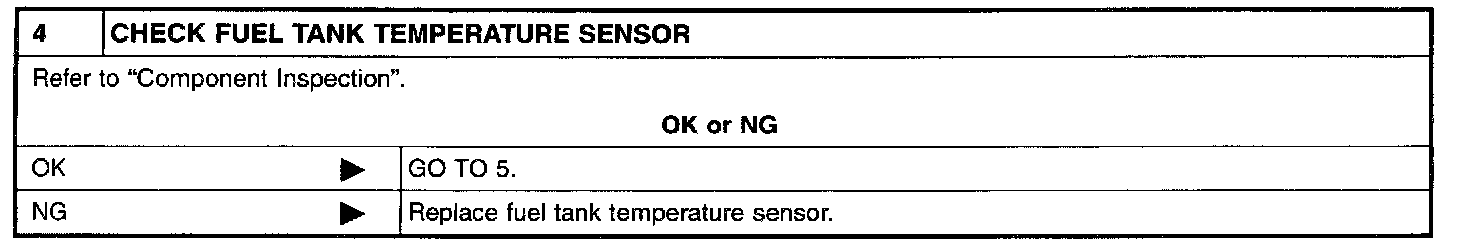

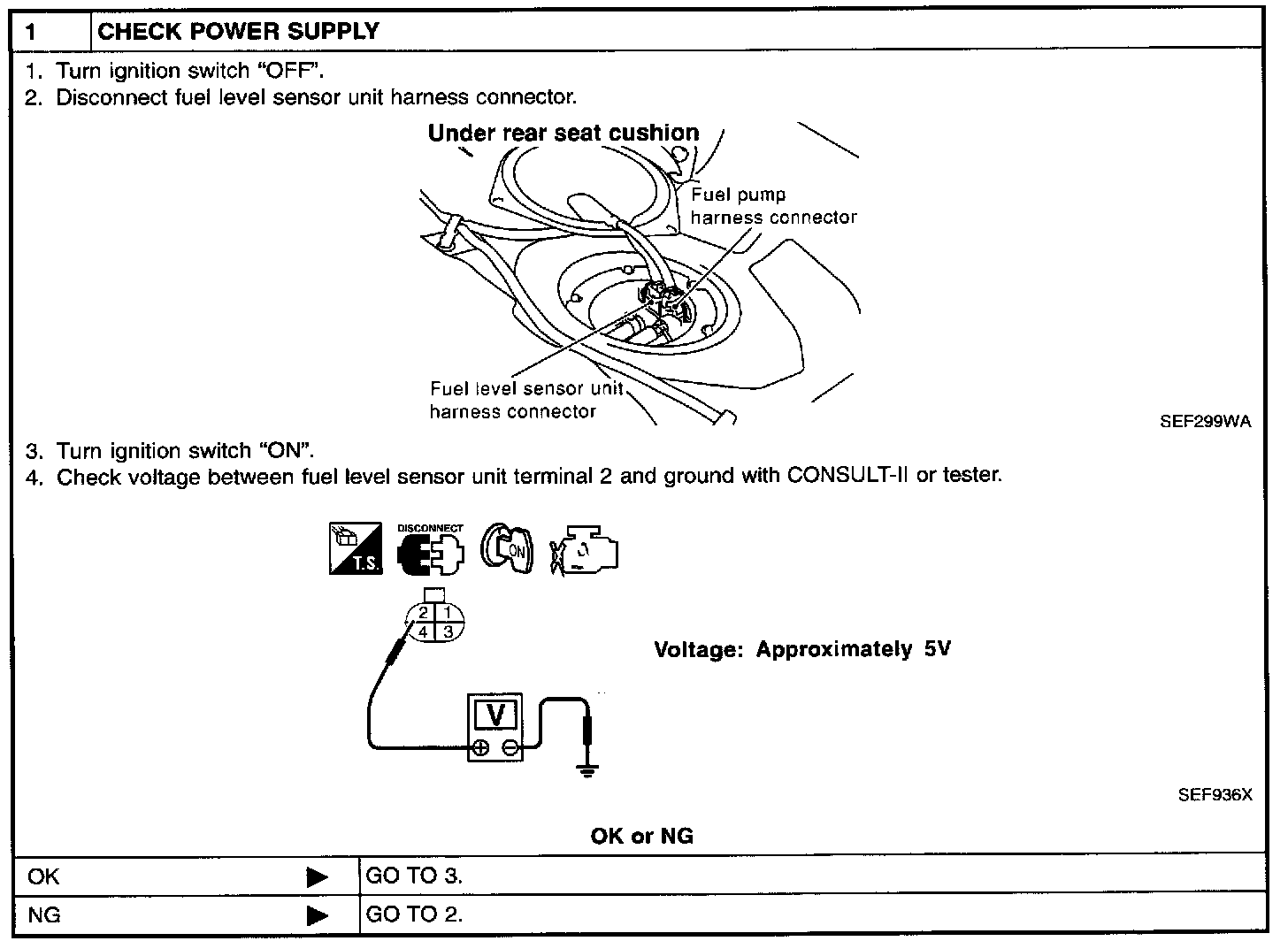

DIAGNOSTIC PROCEDURE







Component Inspection
Check resistance by heating with hot water or heat gun as shown in the image.
If NG, replace fuel tank temperature sensor.
