P0115

Reference Data:

Component Description
The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

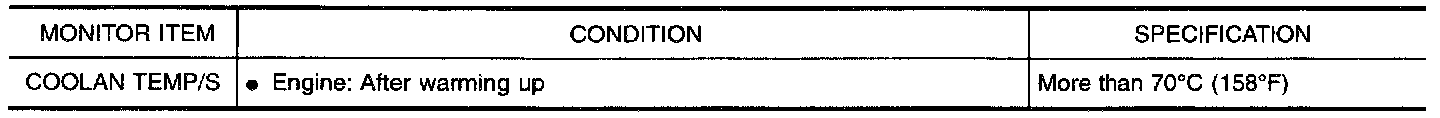

CONSULT-II Reference Value in Data Monitor Mode:

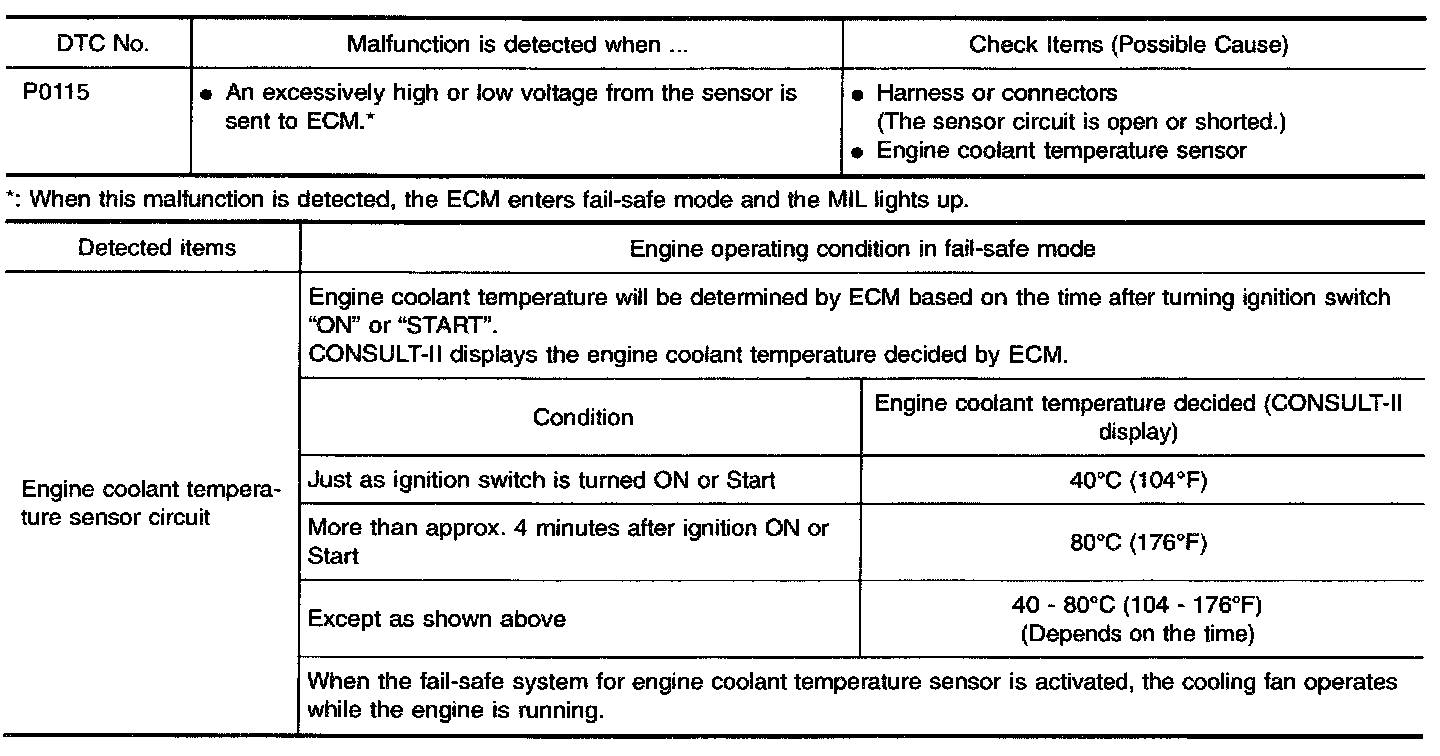

ON BOARD DIAGNOSIS LOGIC:

DTC CONFIRMATION PROCEDURE

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.




With CONSULT-II
1. Turn ignition switch "ON".

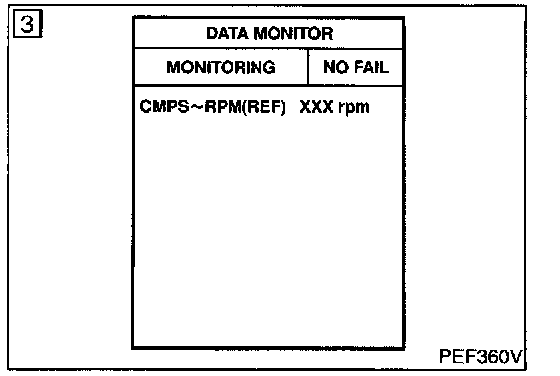

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With Generic Scan Tool
Flow the procedure "With CONSULT-II" above.

EC-ECTS-01:

EC-ECTS-01 - Connector Views:

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

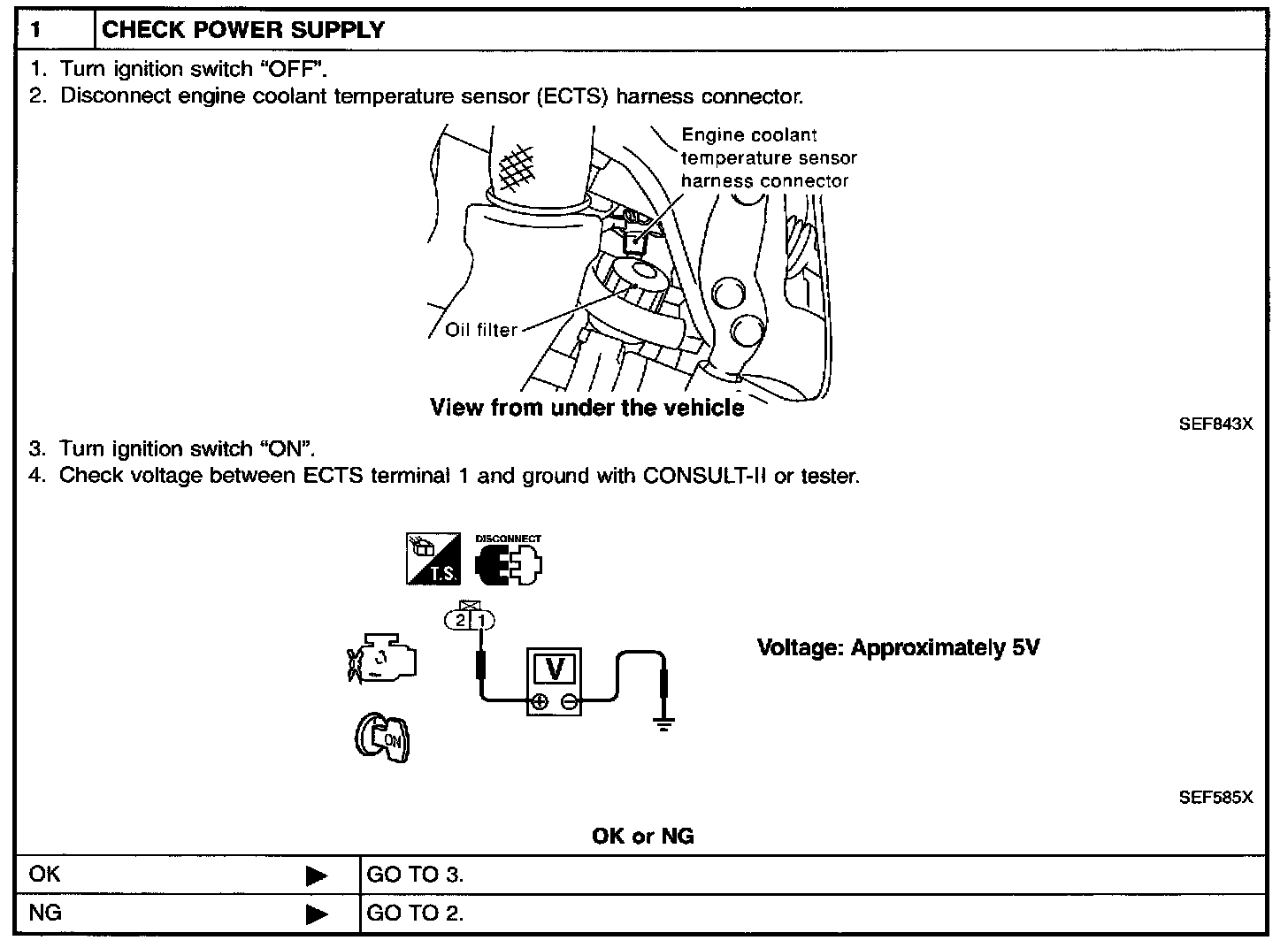

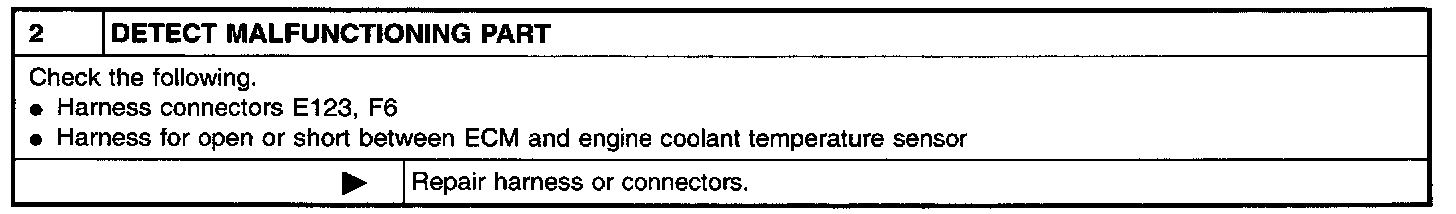

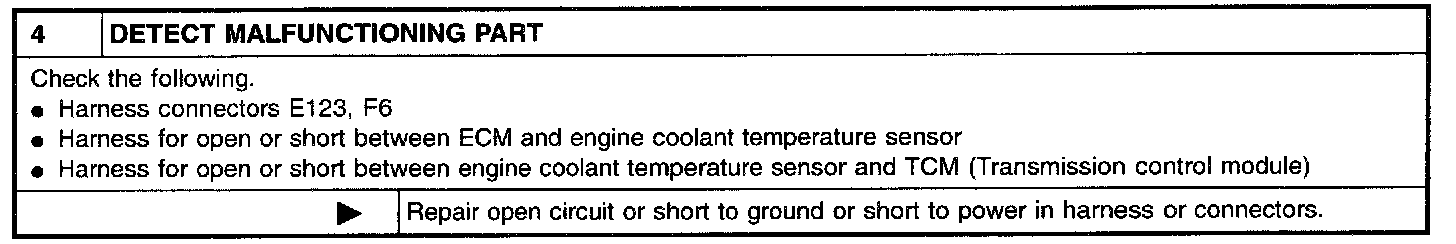

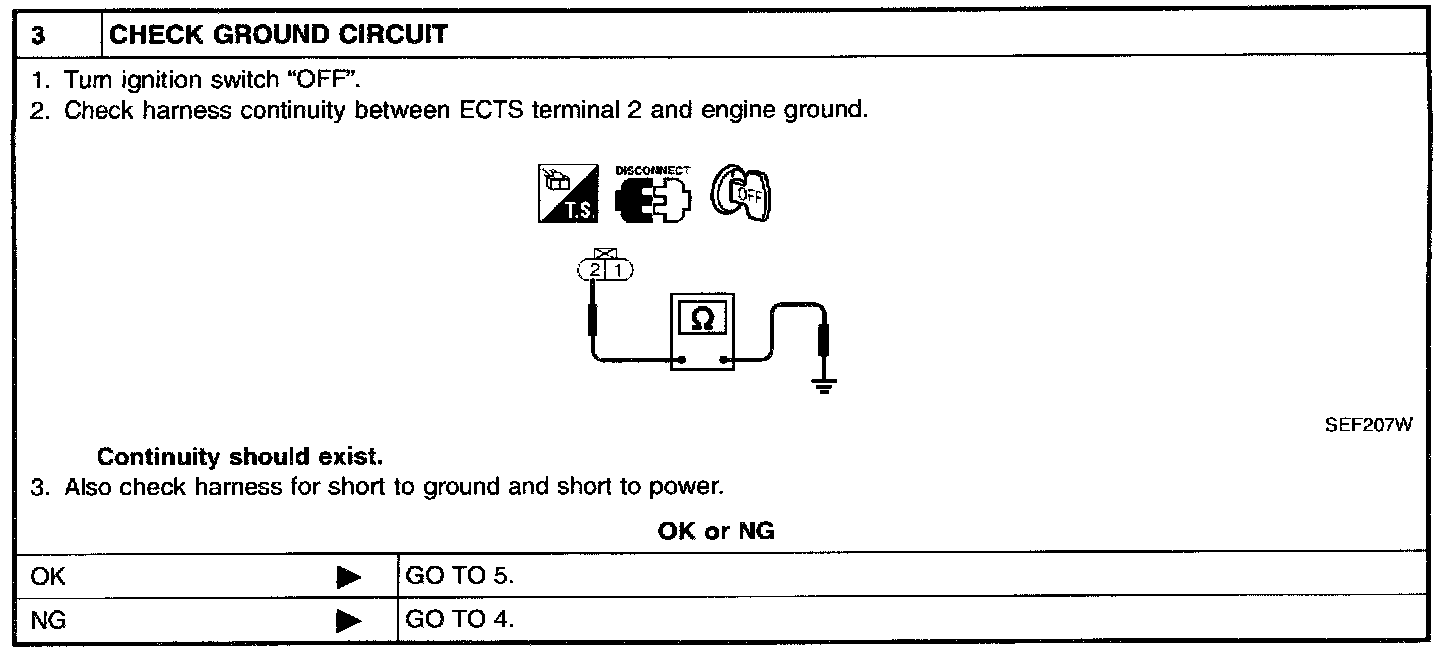

DIAGNOSTIC PROCEDURE

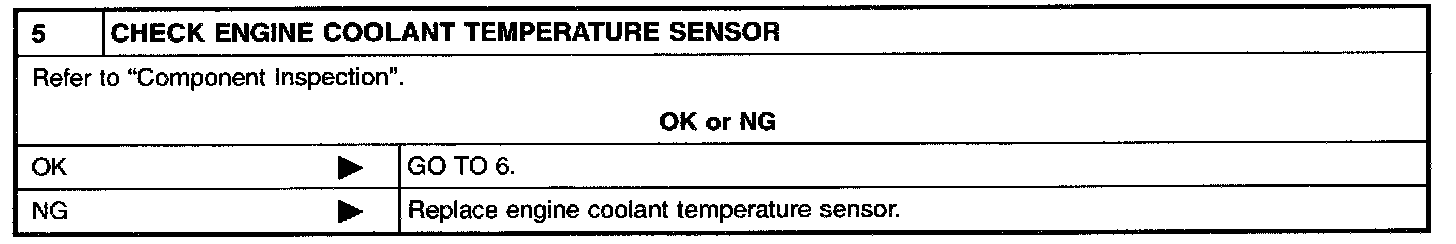

Component Inspection
Check resistance as shown in the figure.
If NG, replace engine coolant temperature sensor.
