P0110







Reference Data:




Component Description
The intake air temperature sensor is mounted to the air duct housing. The sensor detects intake air temperature and transmits a signal to the ECM.
The temperature sensing unit uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rise.

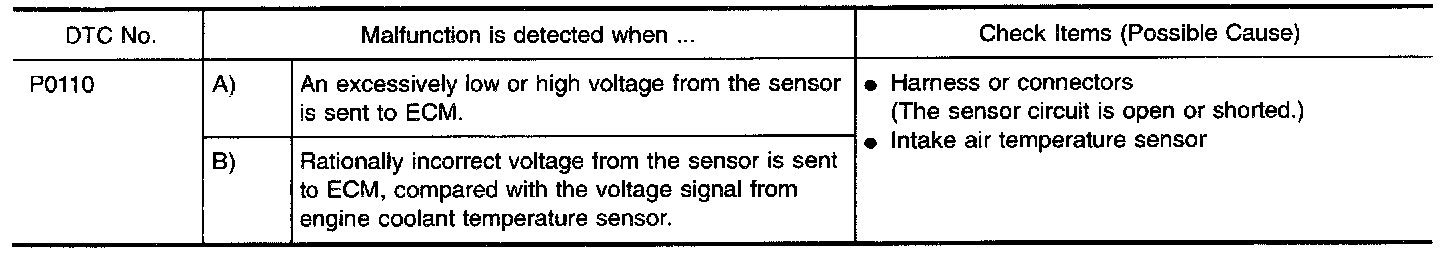

ON BOARD DIAGNOSIS LOGIC:






DTC CONFIRMATION PROCEDURE
Perform "PROCEDURE FOR MALFUNCTION A" first. If the 1st trip DTC cannot be confirmed, perform "PROCEDURE FOR MALFUNCTION B".

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

PROCEDURE FOR MALFUNCTION A




With CONSULT-II
1. Turn ignition switch "ON".

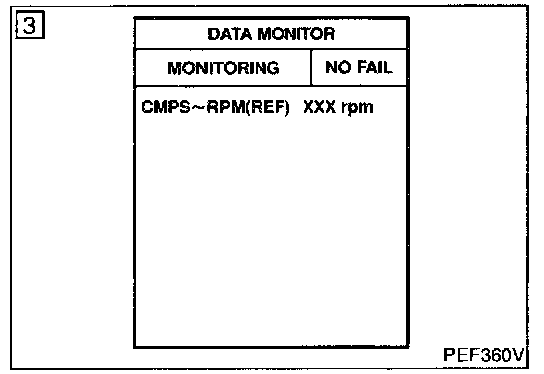

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With Generic Scan Tool
Follow the procedure "With CONSULT-II" above.

PROCEDURE FOR MALFUNCTION B

CAUTION: Always drive vehicle at a safe speed.

TESTING CONDITION: This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.




With CONSULT-II
1. Wait until engine coolant temperature is less than 90 °C (194 °F).
a. Turn ignition switch "ON".
b. Select "DATA MONITOR" mode with CONSULT-II.
c. Check the engine coolant temperature.
d. If the engine coolant temperature is not less than 90 °C (194 °F), turn ignition switch "OFF" and cool down engine.
- Perform the following steps before engine coolant temperature is above 90 °C (194 °F).
2. Turn ignition switch "ON".

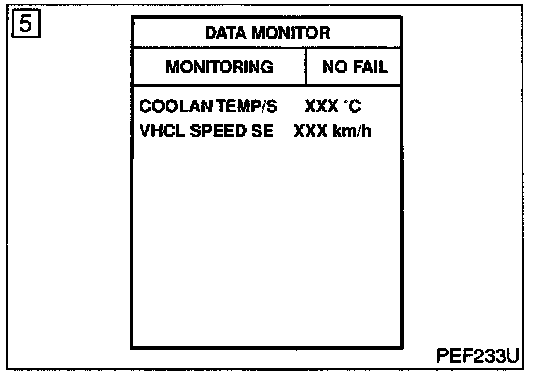

3. Select "DATA MONITOR" mode with CONSULT-II.
4. Start engine.
5. Hold vehicle speed more than 70 KPH (44 MPH) for 105 consecutive seconds.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With Generic Scan Tool
Follow the procedure "With CONSULT-II" above.

EC-IATS-01:




EC-IATS-01 - Connector Views:




WIRING DIAGRAM

M6,E75 Connector Views:

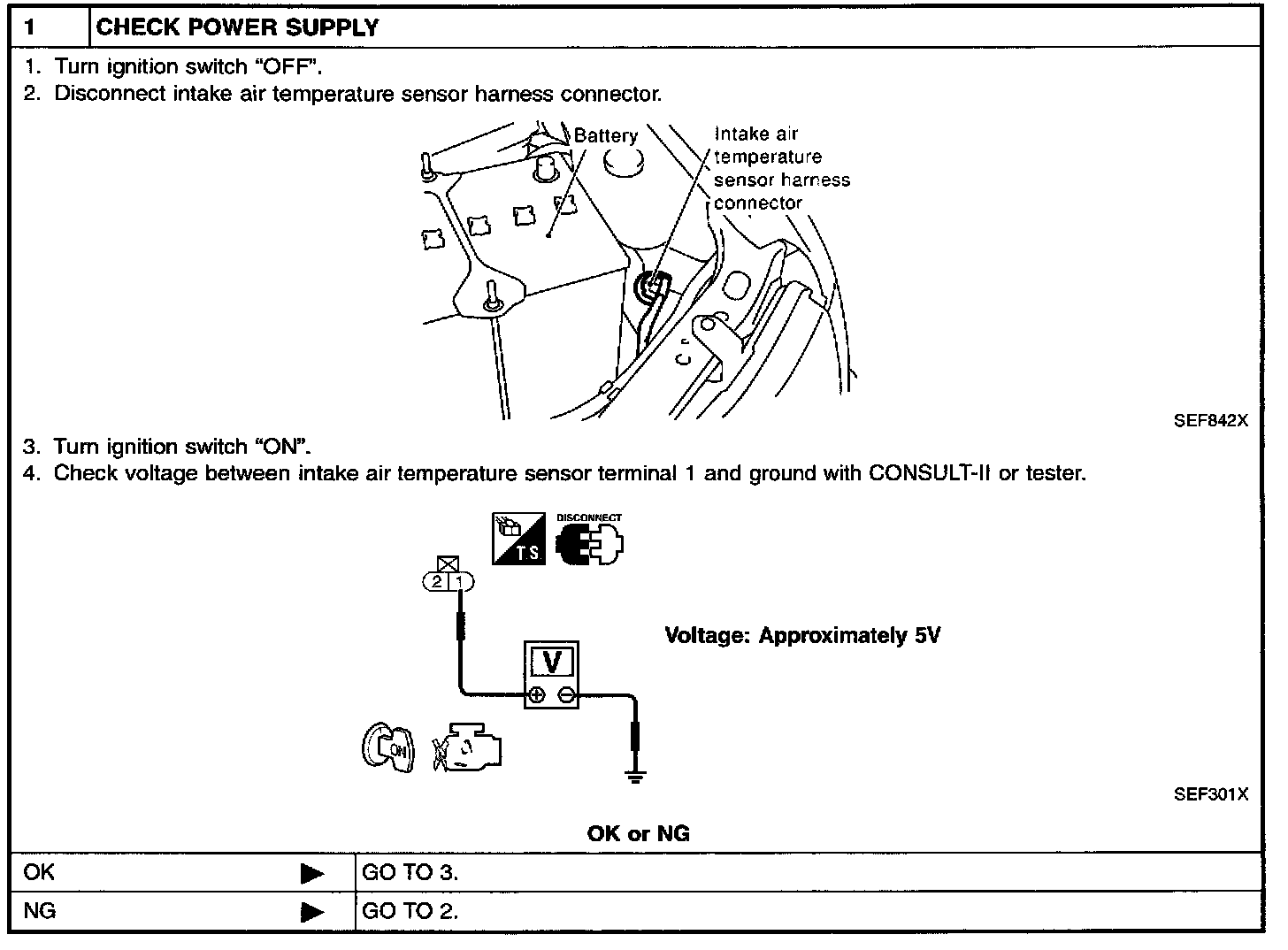

Step 1:

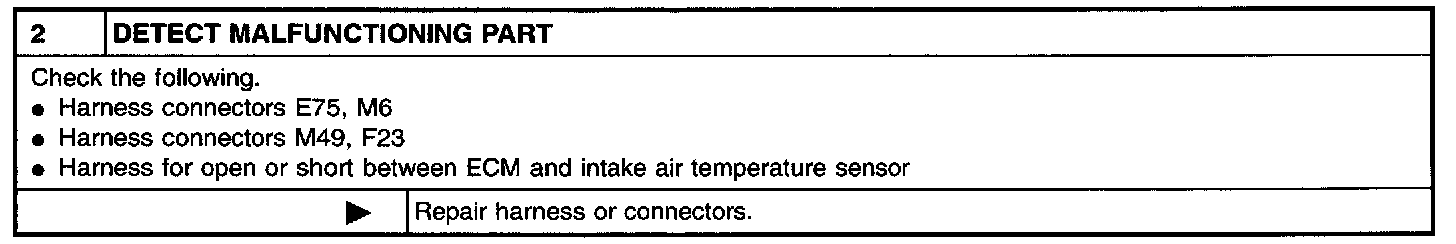

Step 2:

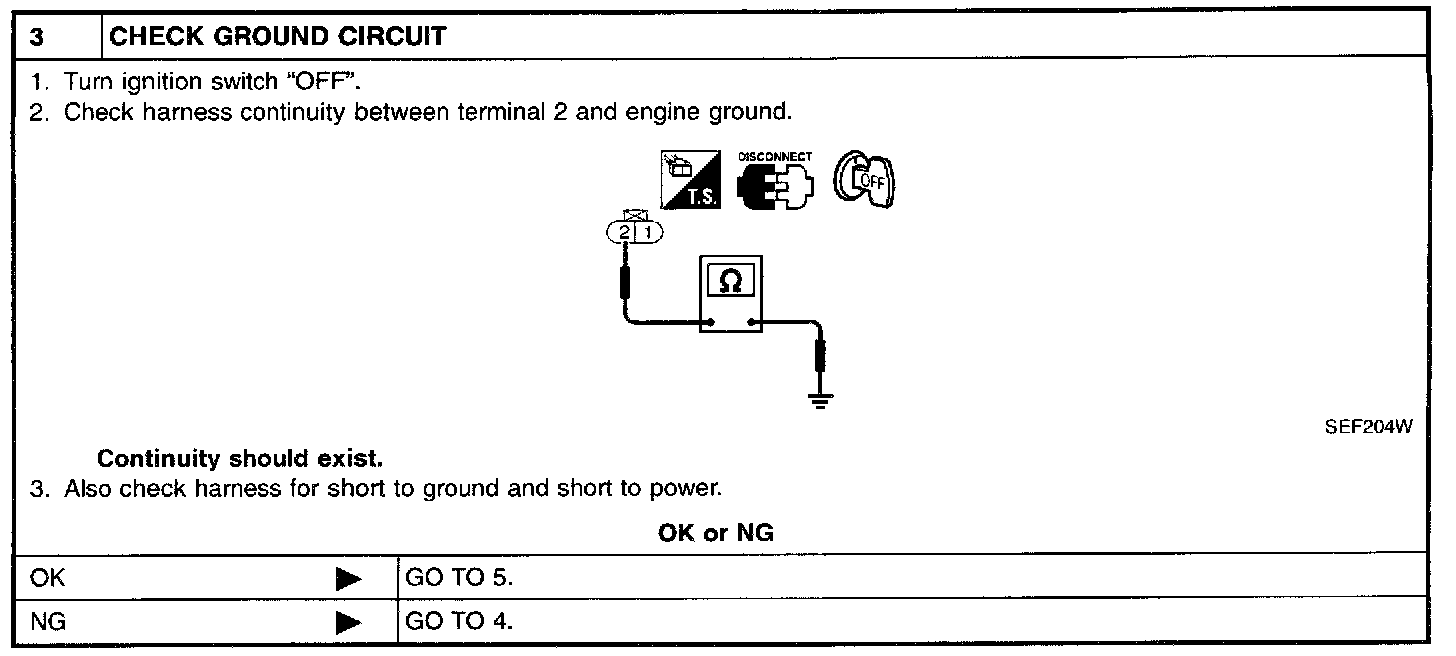

Step 3:

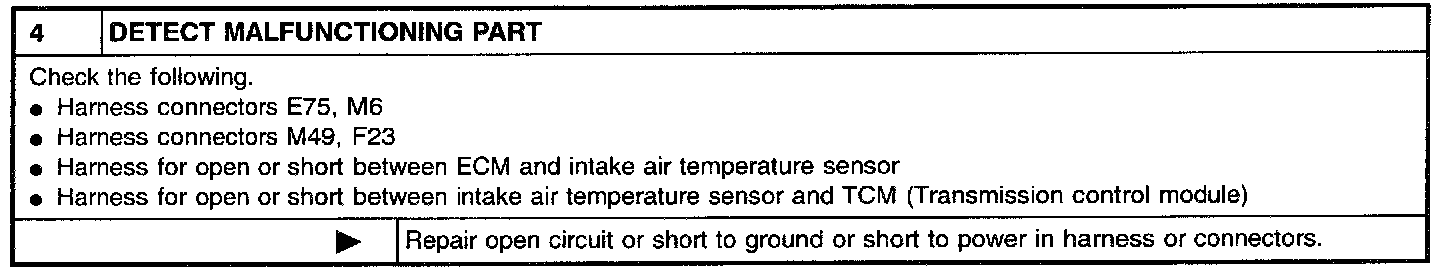

Step 4:

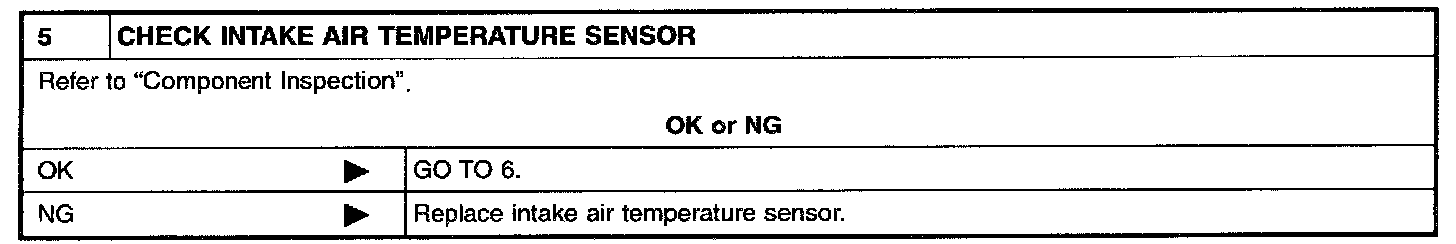

Step 5:




Step 6:




DIAGNOSTIC PROCEDURE










Component Inspection
Check resistance as shown in the image.
