P0105

Component Description
The absolute pressure sensor detects ambient barometric pressure and sends the voltage signal to the ECM. As the pressure increases, the voltage rises.

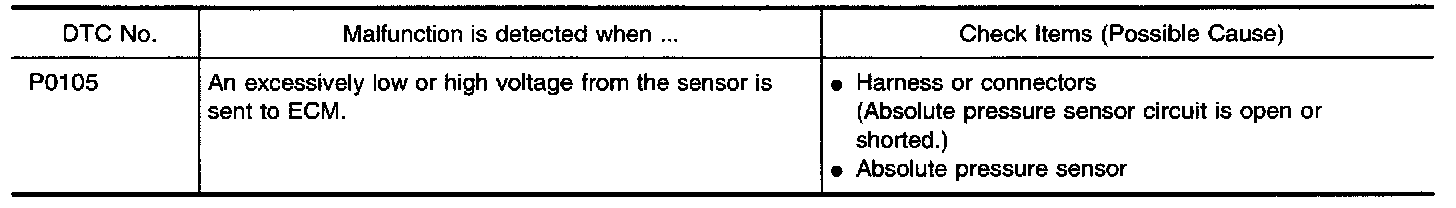

ON BOARD DIAGNOSIS LOGIC:

DTC CONFIRMATION PROCEDURE

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.




With CONSULT-II
1. Turn ignition switch "ON".

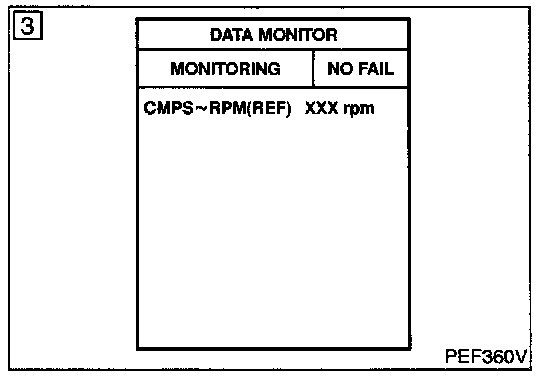

2. Select "DATA MONITOR" mode with CONSULT-II.
3. Wait at least 6 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure".

With Generic Scan Tool
Follow the procedure "With CONSULT-II" above.

EC-AP/SEN-01:

EC-AP/SEN-01 - Connector Views:

WIRING DIAGRAM

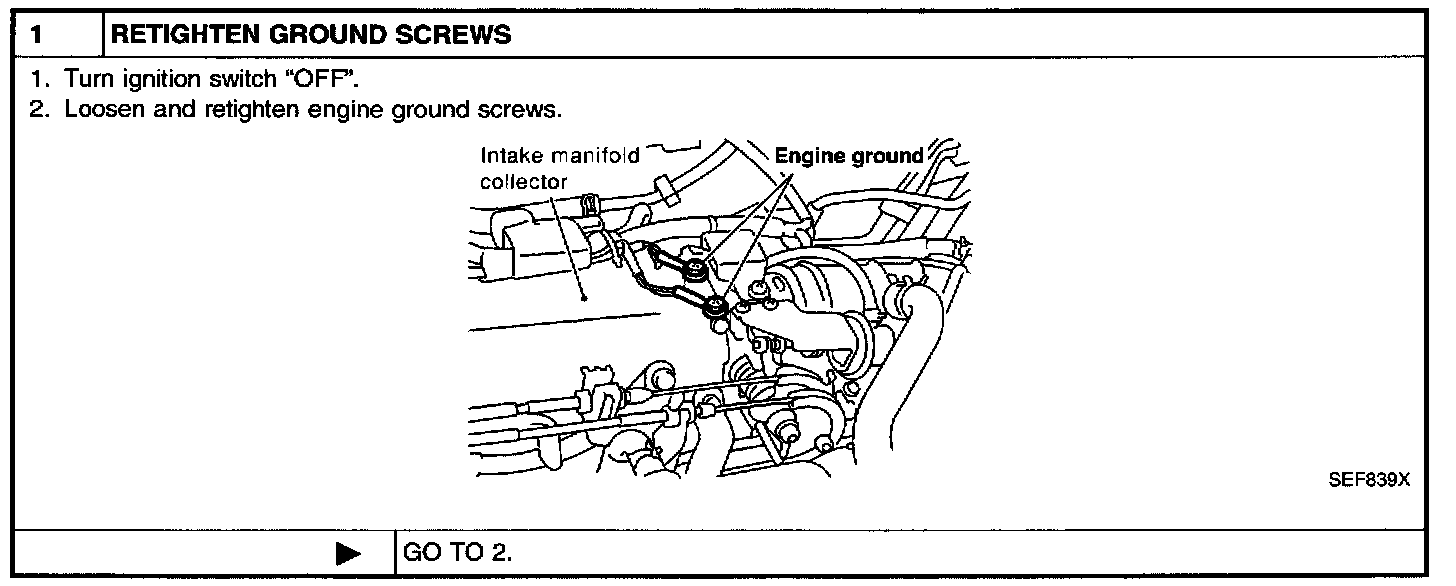

Step 1:

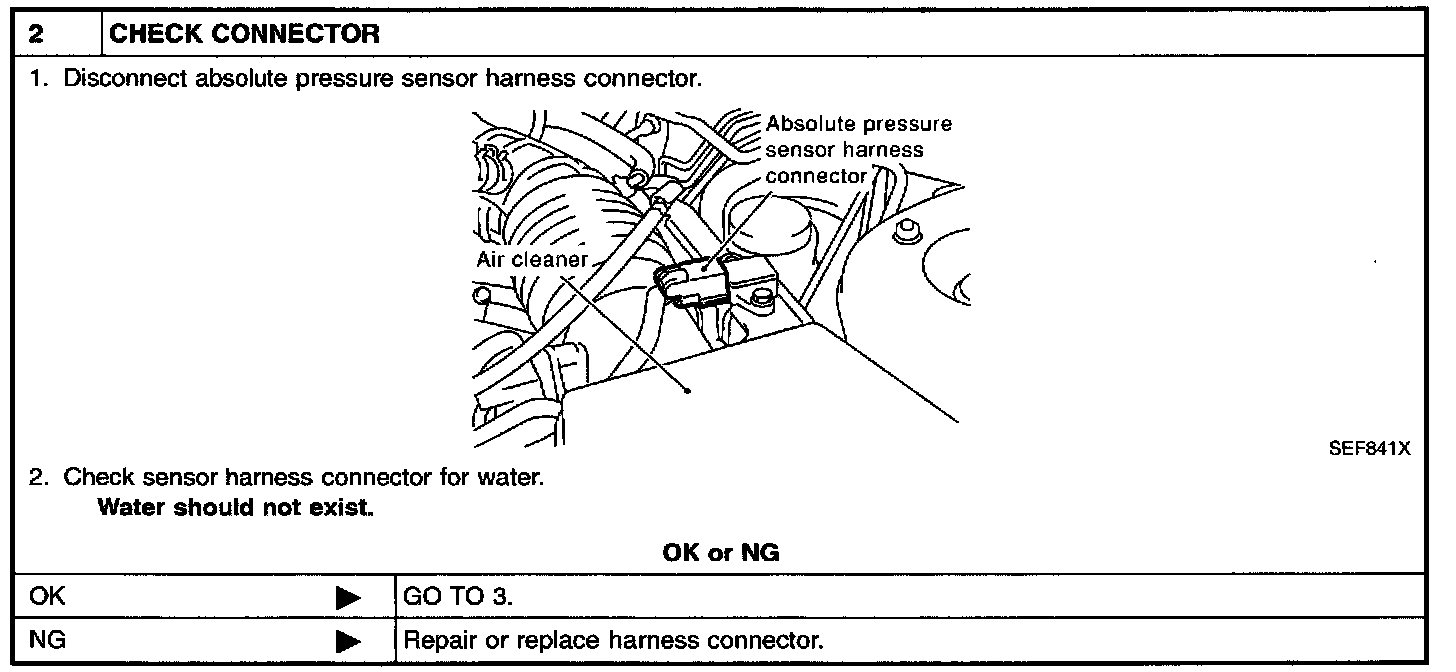

Step 2:

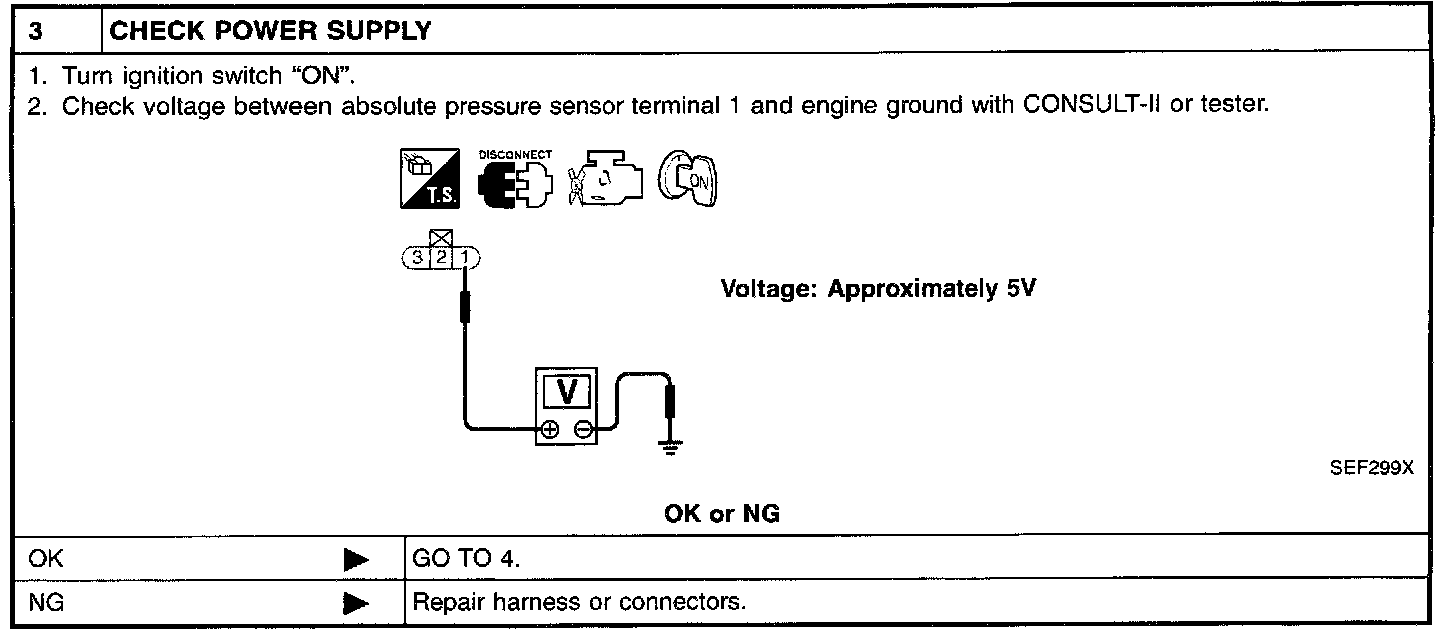

Step 3:

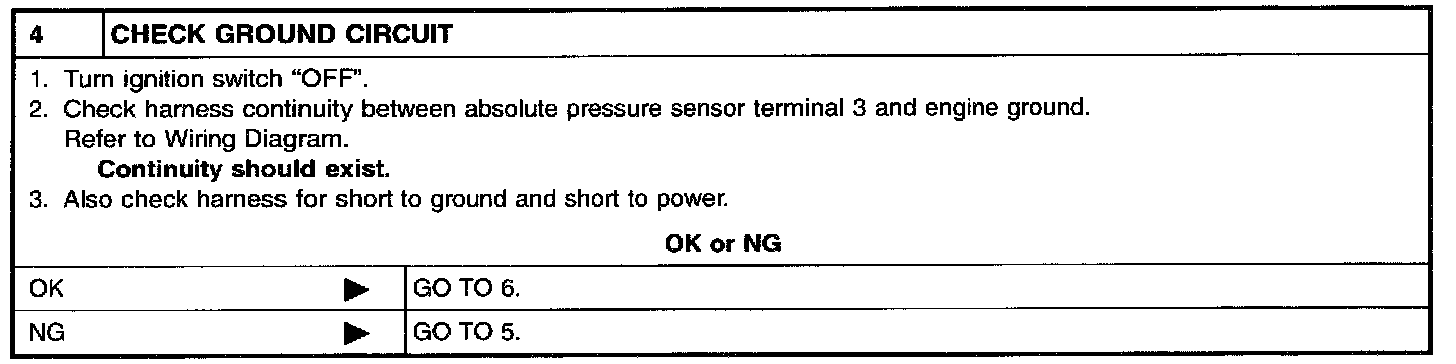

Step 4:

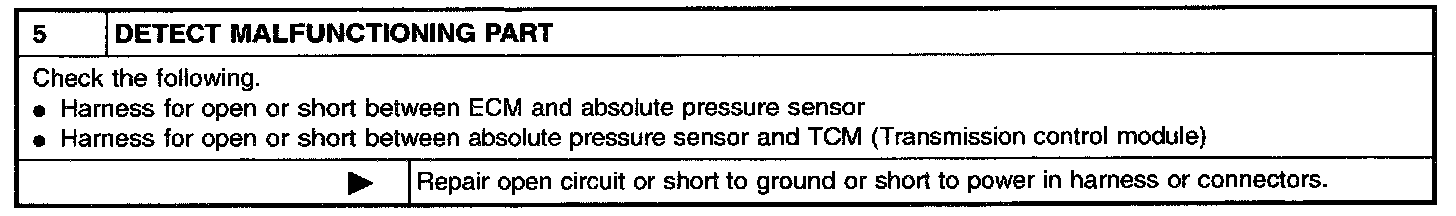

Step 5:

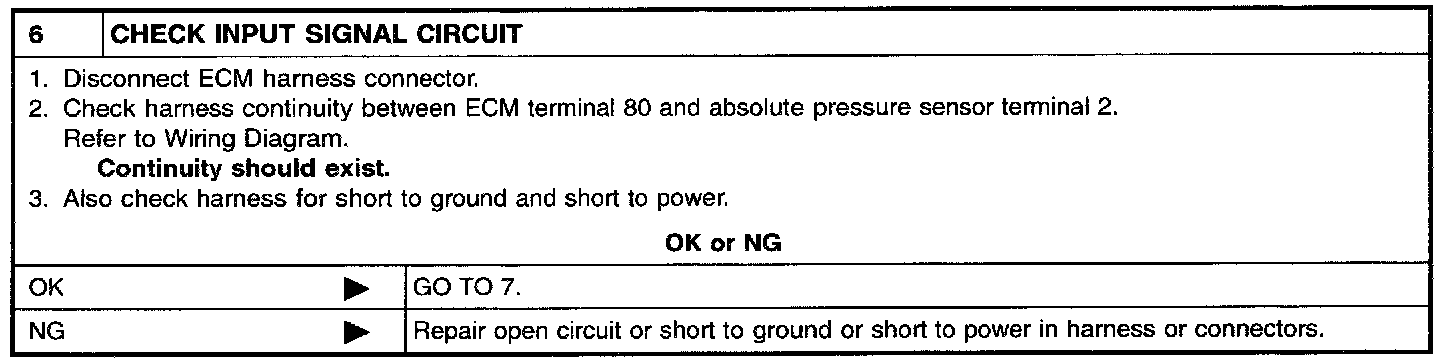

Step 6:

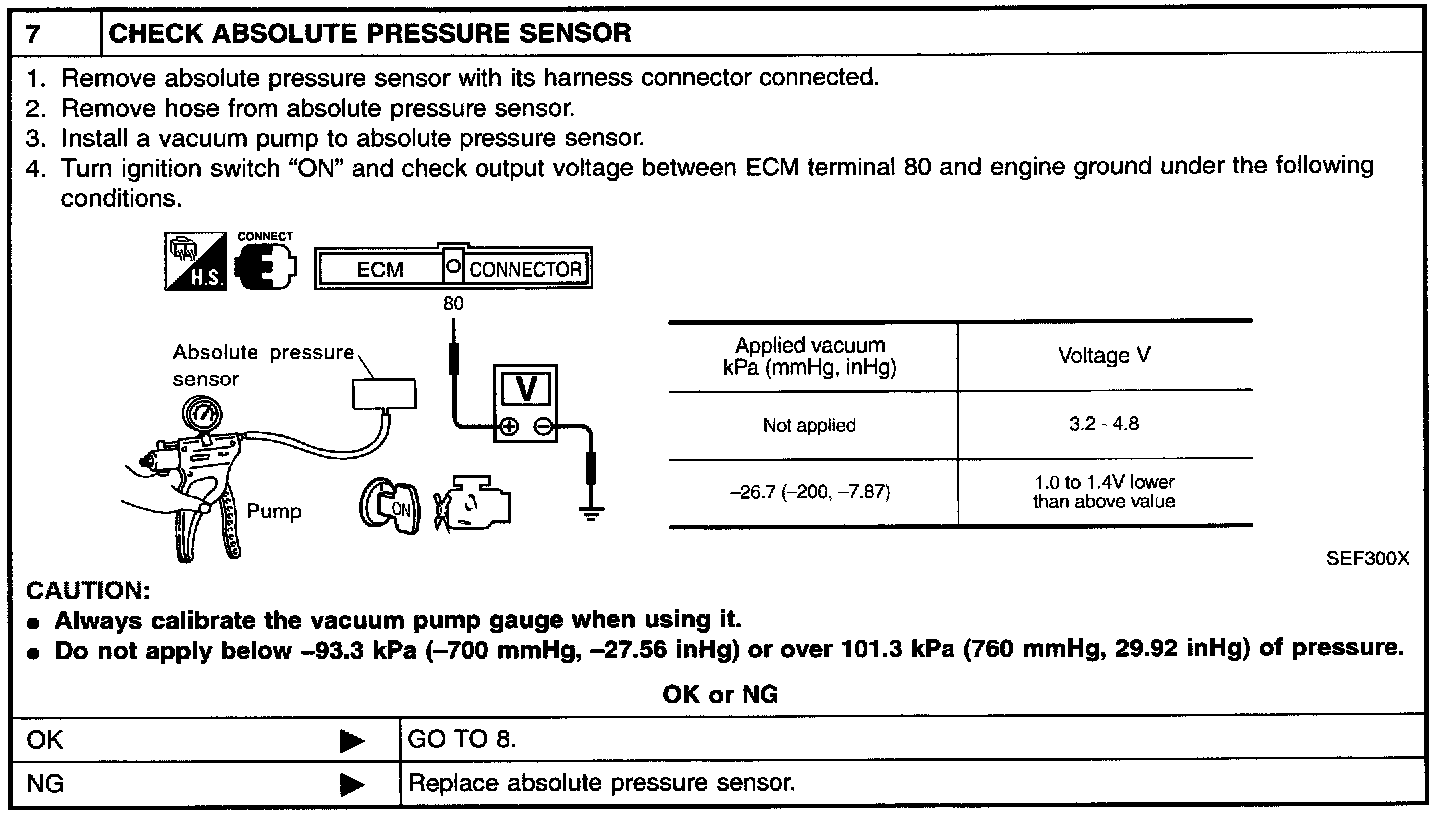

Step 7:

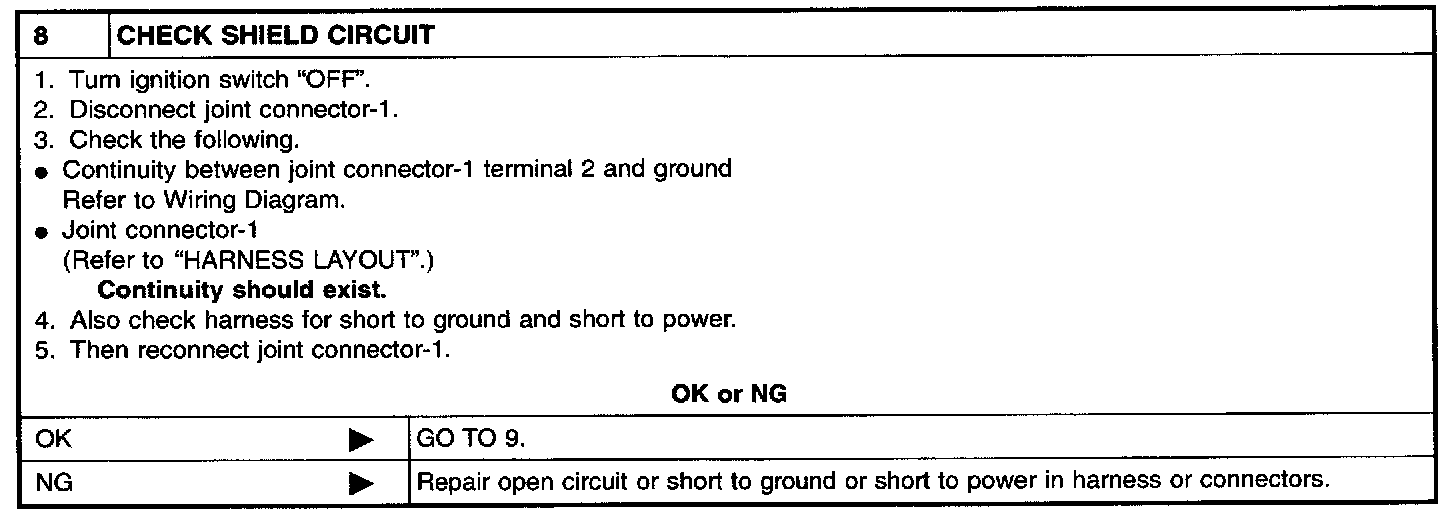

Step 8:

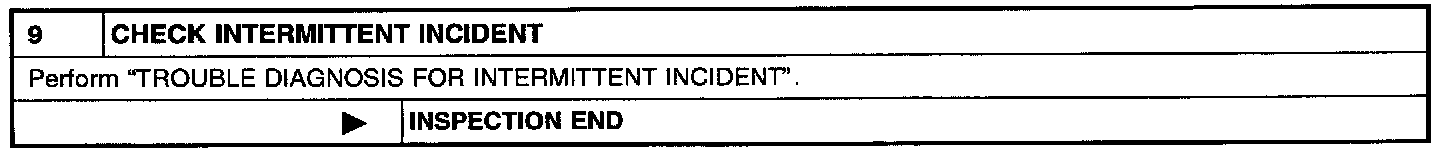

Step 9:

DIAGNOSTIC PROCEDURE
