Home >> Infiniti >> 2000 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control System >> Antilock Brake System >> Diagnostic Procedures >> 7: ABS Warning Lamp Stays on When Ign. Swtch Is Turned on

7: ABS Warning Lamp Stays on When Ign. Swtch Is Turned on

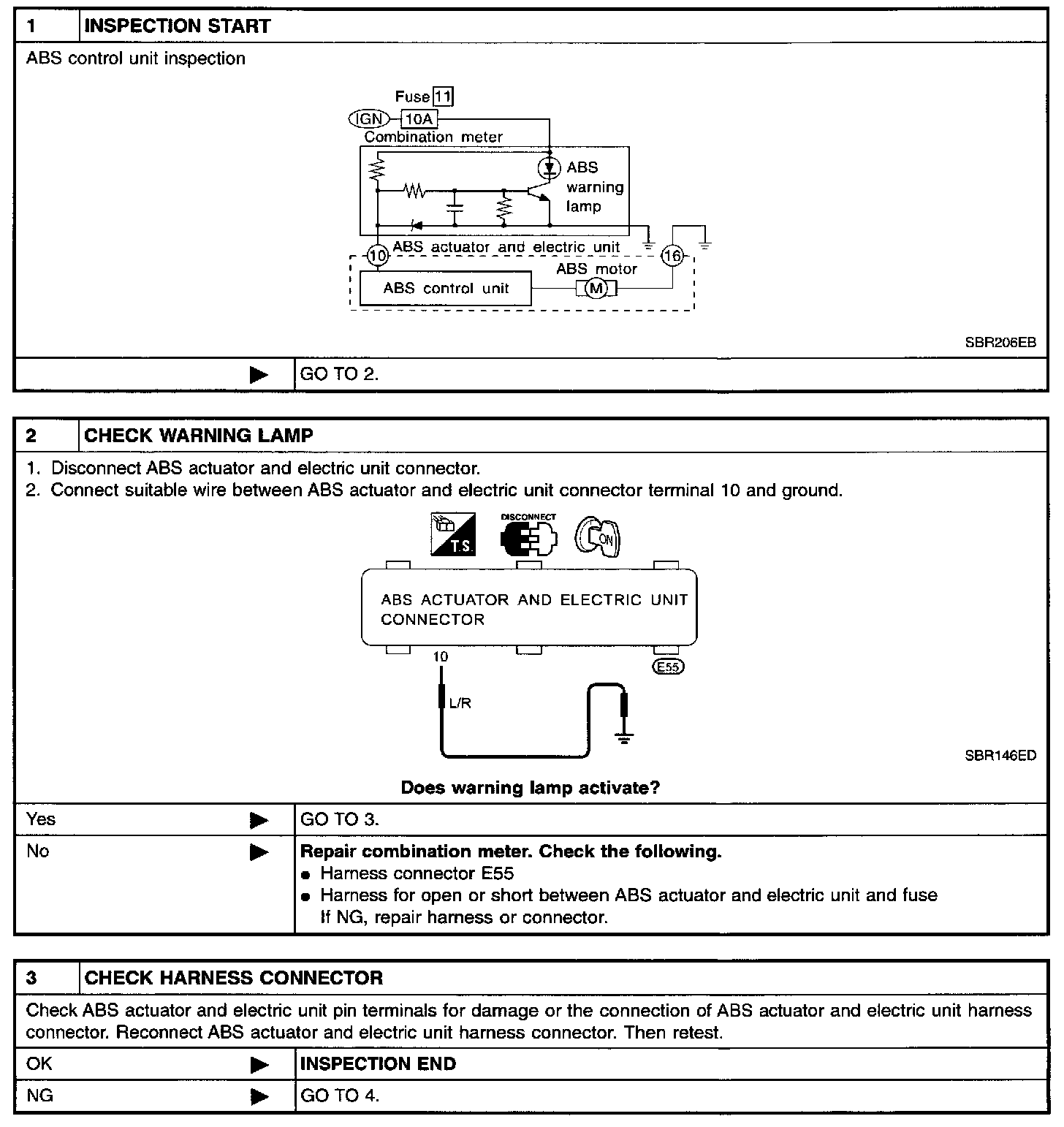

Steps 1-3:




Step 4:






ABS Warning Lamp Stays On When Ignition Switch Is Turned On
