Home >> Hyundai >> 2013 >> Veloster L4-1.6L Turbo >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

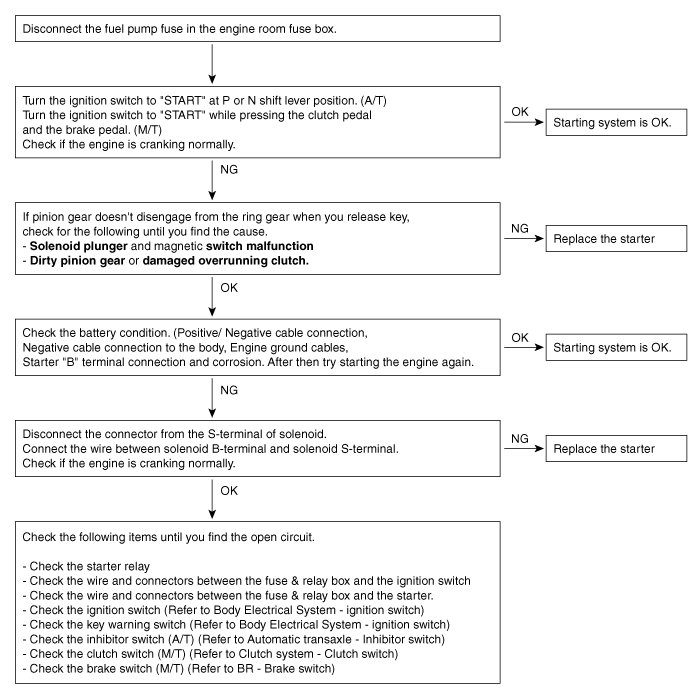

Troubleshooting

NOTE:
- The battery must be in good condition and fully charged for this troubleshooting.
