Components and Components Location





Components

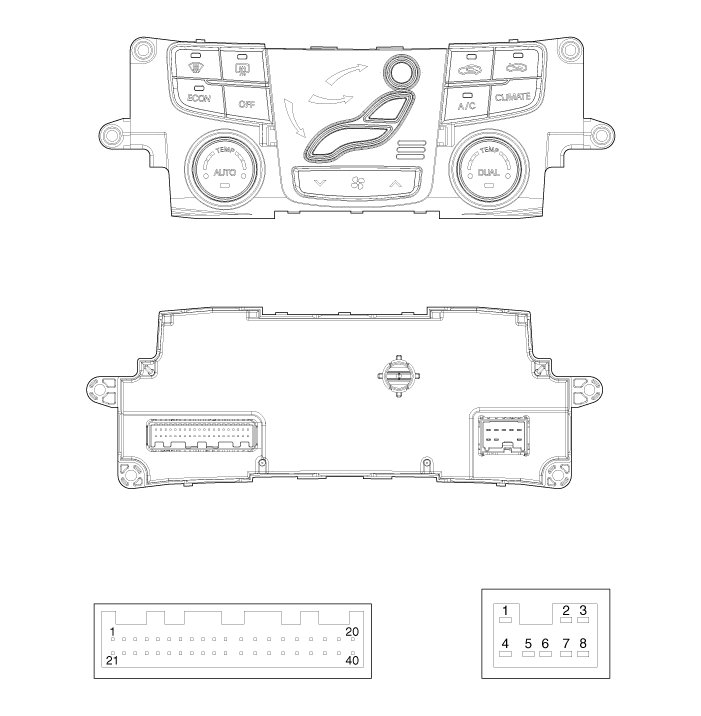

Control Panel (AVN Type)

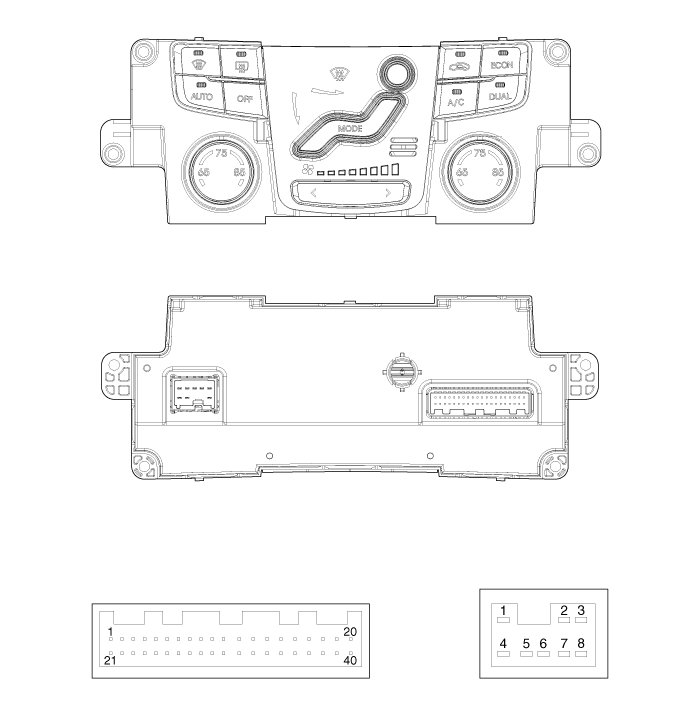

Control Panel (Audio Type)

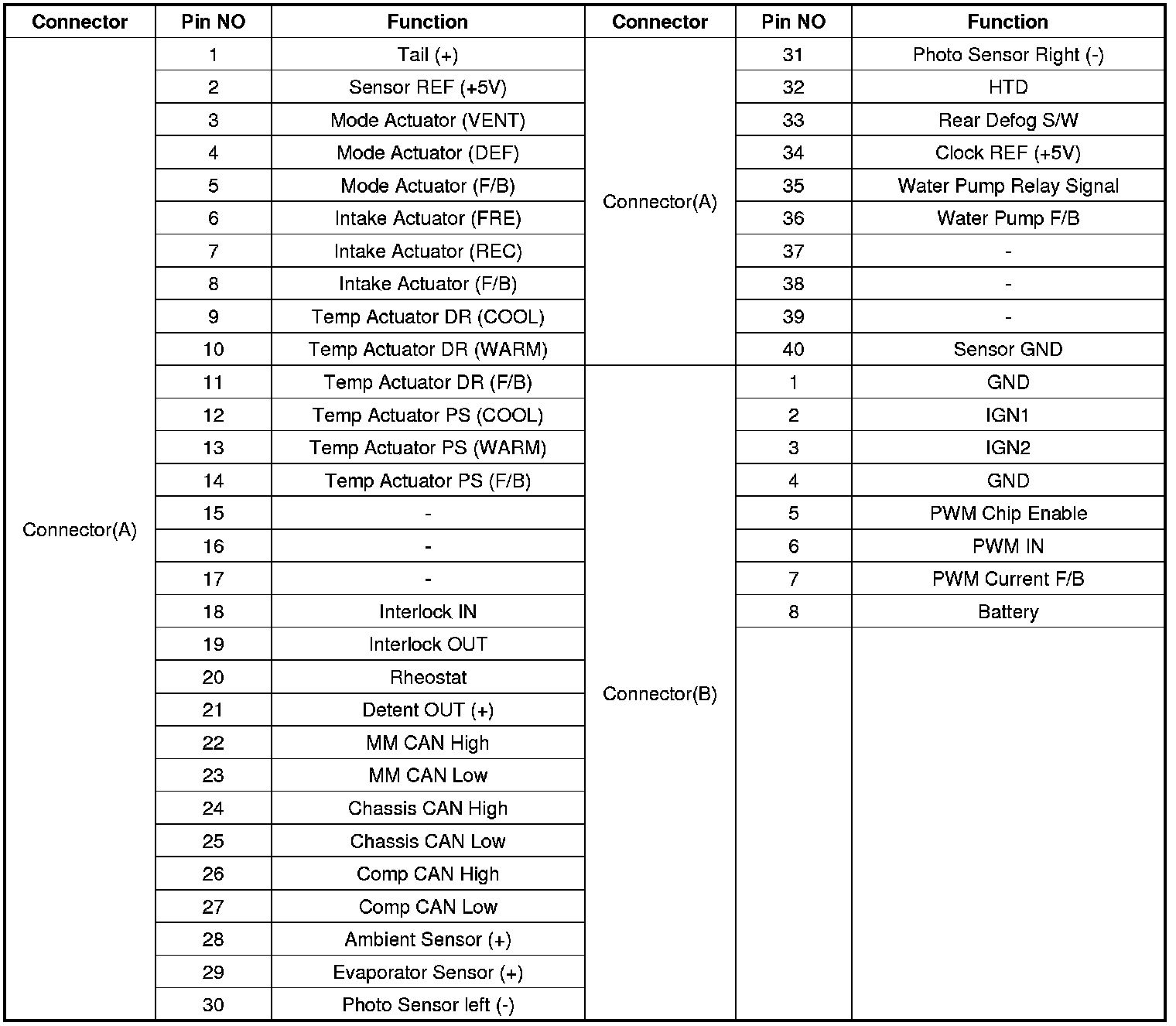

Connector pin function
