Rear Curtain

Inspection

Connect the battery voltage and check the rear curtain motor rotation. If the motor does not operate properly, substitute with a known-good rear curtain motor and check for proper operation.






Removal

1. Disconnect the negative (-) battery terminal.

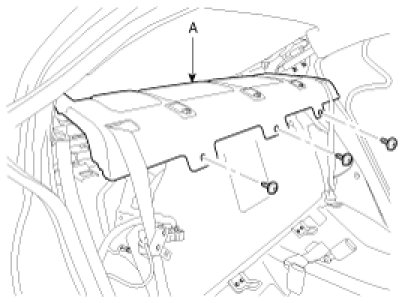

2. Remove the rear package tray (A) after removing the rear seat.




3. Remove the connector of the rear curtain and mounting bolts (6EA).
4. Remove the rear curtain (A) from the rear package trim.






Installation

1. Install the rear curtain and connector.
2. Install the rear package tray and rear seat.
3. Connect the negative (-) battery terminal.
