Transaxle Fluid Repair Procedures

EOL Input

Description
When shift shock is occurred or parts related with the transaxle are replaced, EOL should be performed.
In the following case, EOL is required.
- Transaxle assembly replacement
- TCM replacement
Bar code location




EOL Input procedure

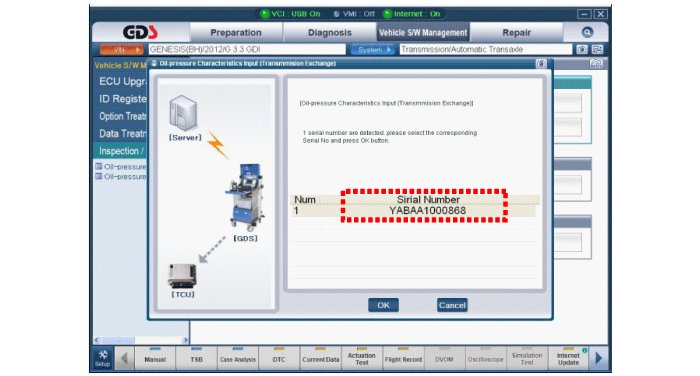

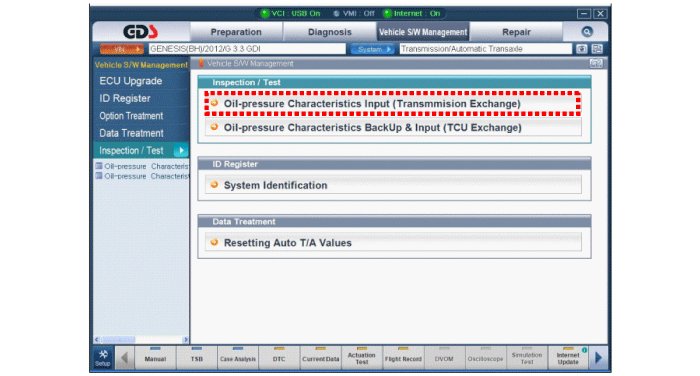

- Transaxle assembly replacement

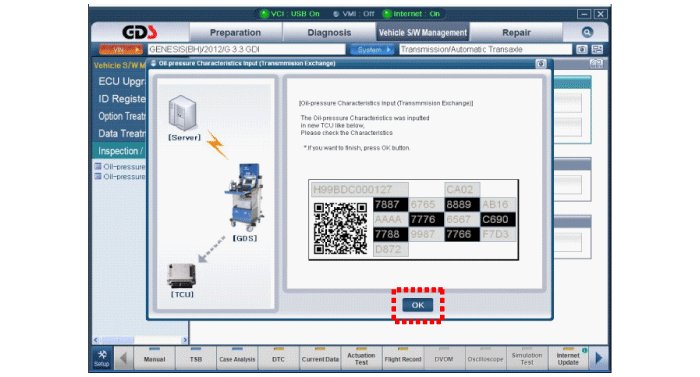

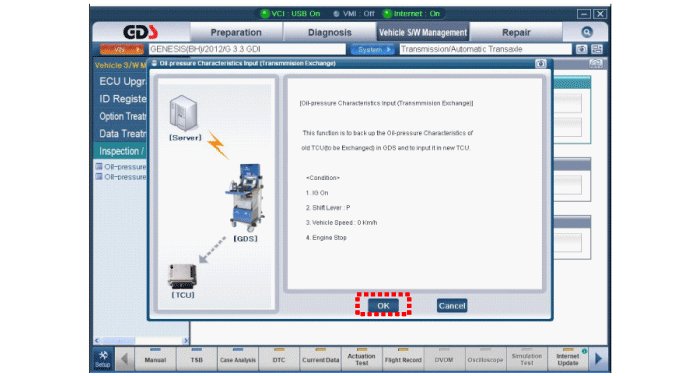

Internet :On

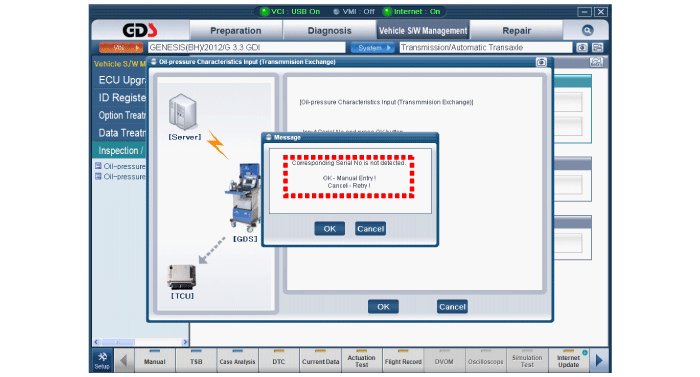

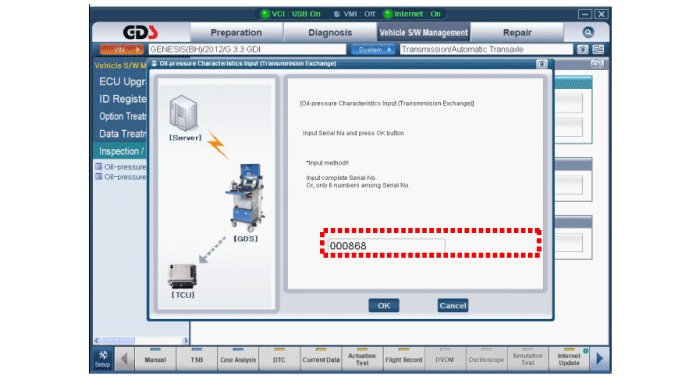

Internet :Off

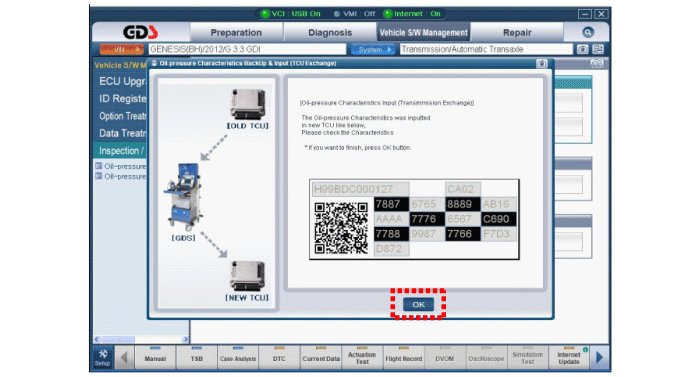

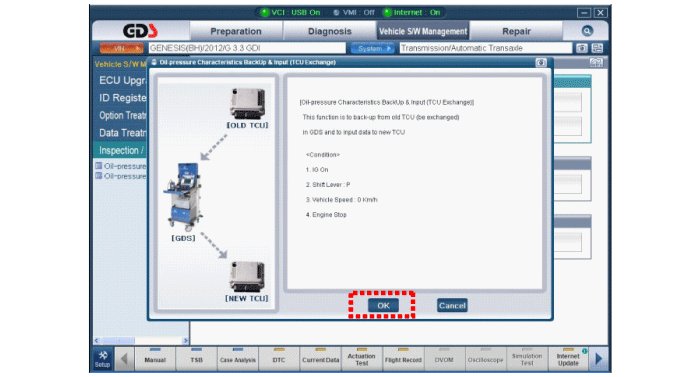

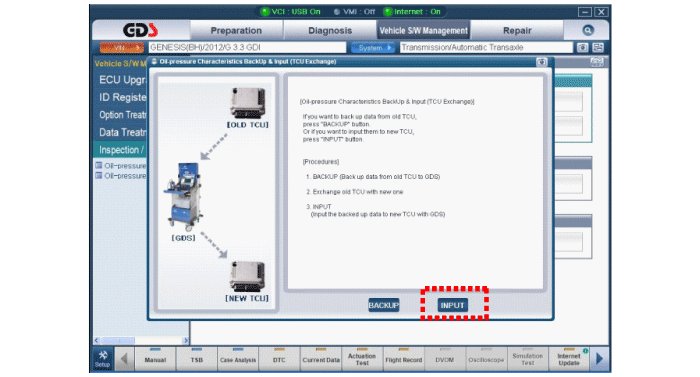

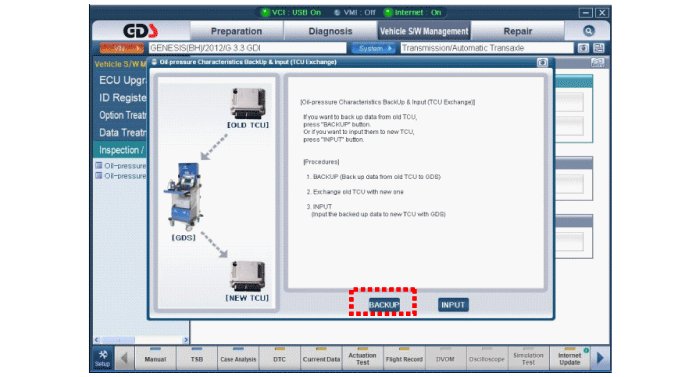

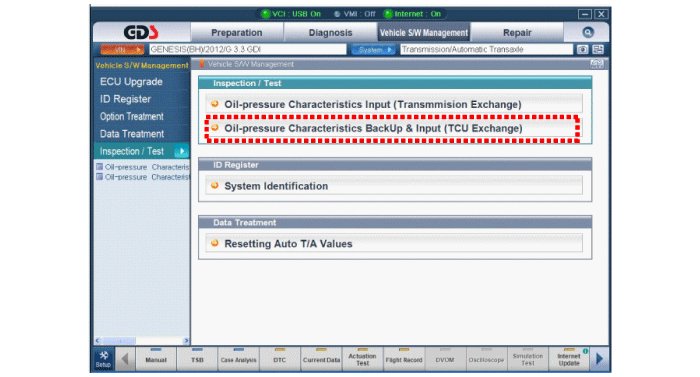

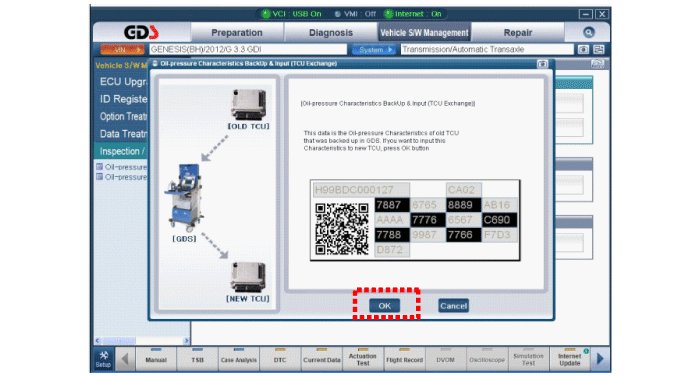

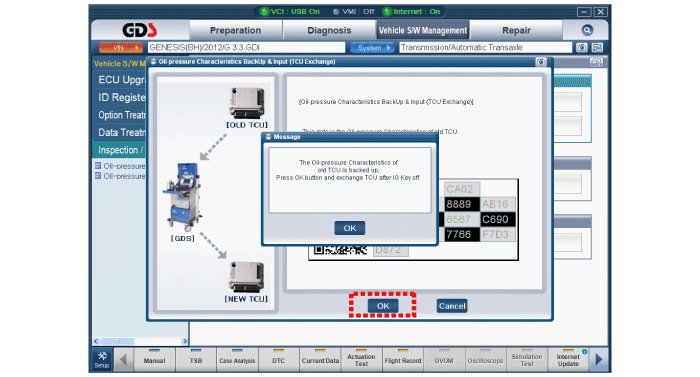

- TCM replacement
