Repair Procedures

Removal

1. Disconnect (-) terminal from the battery.

NOTE:
The battery is placed right side of the temporary tire in the trunk.




2. Remove the under cover (A).




3. Remove the under cover (A).

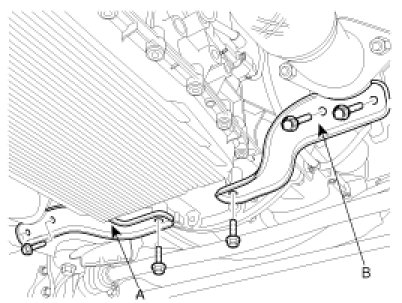

4. Remove the stay (A) and (B).




5. Disconnect the ground wire (A) by removing the bolt.




6. Remove the propeller shaft assembly (A).





7. Remove the oil cooler tubes.




8. Disconnect the inhibitor connector (B).
9. Remove the shift cable (A).




10. Disconnect the solenoid valve connector (A) and the oxygen sensor connector (B).




11. Remove the CKP sensor (A) itself and the brackets for wire.




12. Remove the dust cover (A).




13. Remove the torque converter mounting bolts (A-6ea) by rotating the crank shaft.

Tightening torque :
45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)




14. Using a jack support the transmission assembly.
15. Remove the mounting bolts (A-4ea) lower in the engine side.

Tightening torque :
40 - 47 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)




16. Remove the mounting bolt (A-1ea, B-2ea) left in the transmission side.

Tightening torque :
(A) 80 - 100 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)
(B) 34.3 - 46.1 N.m (3.5 - 4.7 kgf.m, 25.3 - 34.0 lb-ft)

17. Remove the cross member (A) by removing bolts.

Tightening torque :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

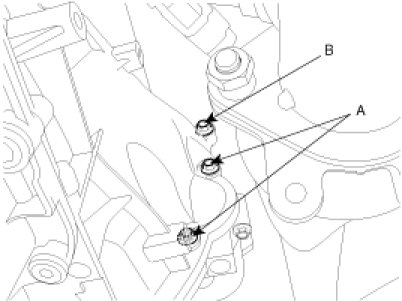

18. Remove the mounting bolts (A-2ea) for the starter motor.
19. Remove the mounting bolt (B-1ea).

NOTE:
Before removing one mounting bolt on the transmission side and the other bolt for the starter motor, remove the cross member and lower the transmission assembly.

Tightening torque :
(A) 50 - 65 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
(B) 34.3 - 46.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 34.0 lb-ft)




20. Remove the mounting bolts (A-2ea) on the transmission side.

Tightening torque:
65 - 85 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)




21. Remove the transmission assembly by lowering the supporting jack.

CAUTION:
Be careful not to damage tubes, hoses or wire.

Installation

1. Installation is the reverse of removal.

NOTE:
After replacement or reinstallation procedure of the automatic transmission assembly, perform the procedures below.
- Adding automatic transmission fluid.
- After servicing the automatic transmission or TCM, clear the diagnostic trouble codes (DTC) using the GDS tool.
Diagnostic trouble codes (DTC) cannot be cleared by disconnecting the battery.
When deleting diagnostic trouble code, use the GDS.

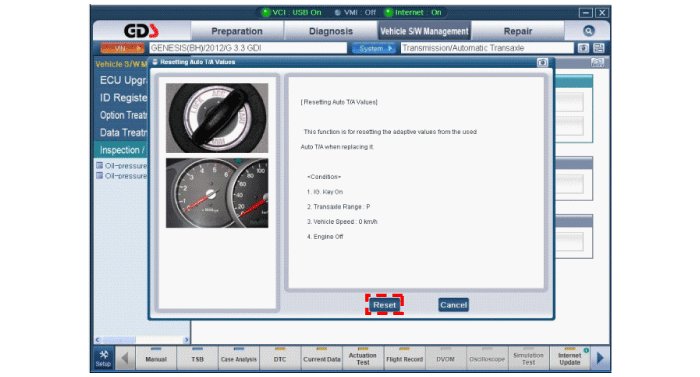

- When replacing the automatic transmission, reset the automatic transmissions values by using the GDS.
- After exchanging automatic transmission, input the EOL(End of line).

- Perform TCM learning after replacing the transmission to prevent slow transmission response, jerky acceleration and jerky startup.
