Exhaust Manifold

Exhaust Manifold

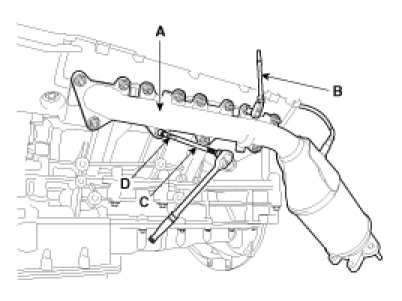

Install the exhaust manifold (A).

Tightening torque 49.0 - 53.9N.m (5.0 - 5.5kgf.m, 36.2 - 39.8lb-ft)

NOTE: The "TOP" mark of the gasket must be face the exhaust manifold.

[RH]






[LH]






NOTE: Tighten the exhaust manifold mounting nuts as following method.

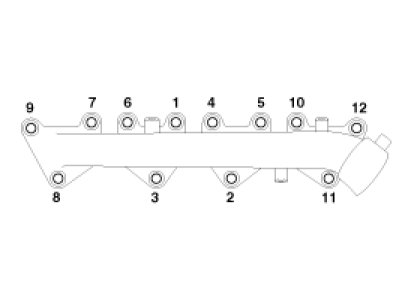

[RH]

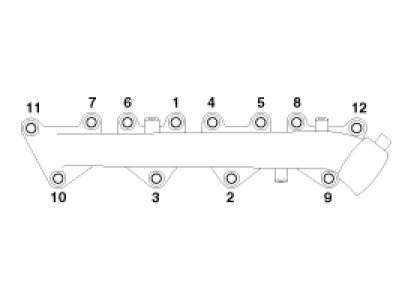

[LH] - With engine assembly removal

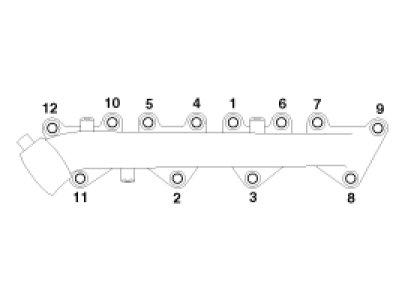

[LH] - Without engine assembly removal
