Cylinder Head

Cylinder Head

Install the cylinder head bolts.

Do not apply engine oil on the cylinder head bolts.

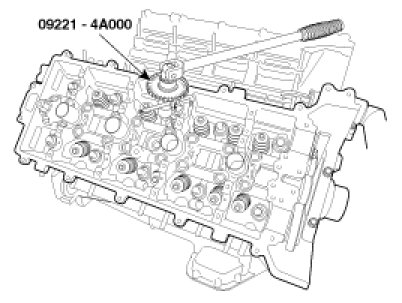

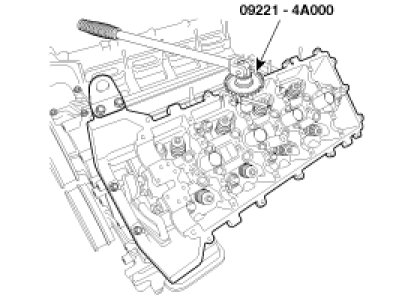

Using SST(09221-4A000), install and tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque
Cylinder head bolts (1 - 10) 32.4 - 36.3N.m(3.3 - 3.7kgf.m, 23.9 - 26.8lb-ft) + 88°~92°+ 118°~122°
Flange bolts (11 - 12) 33.3 - 36.3N.m(3.4 - 3.7kgf.m, 24.6 - 26.8lb-ft)

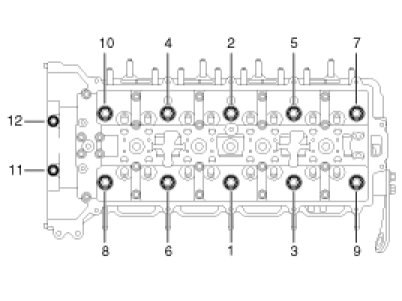

[RH]

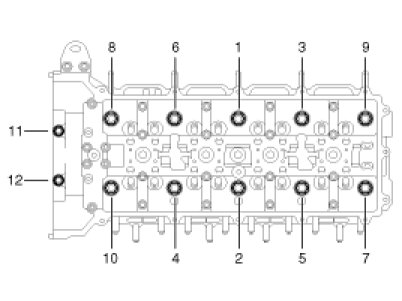

[LH]

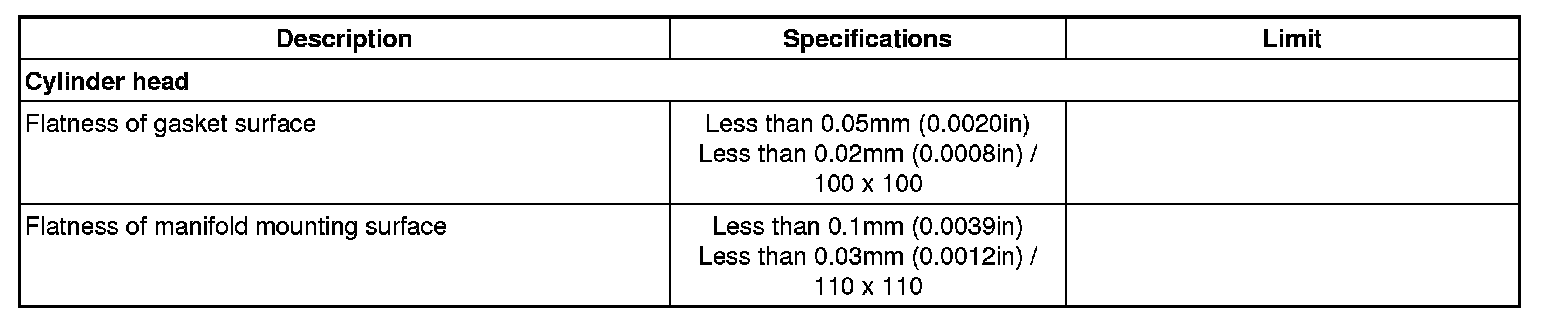

SURFACE VARIATION - WARPAGE
