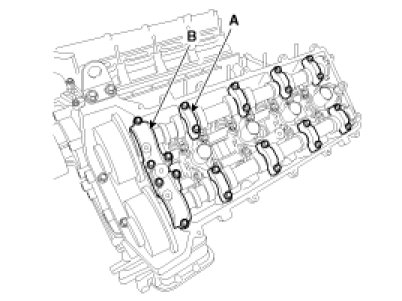

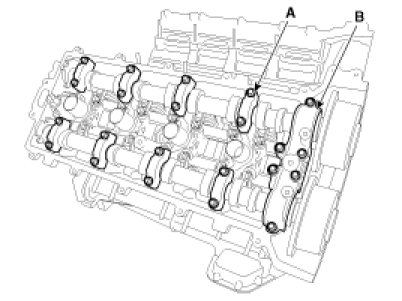

Install the camshaft bearing caps and the camshaft thrust bearing cap.

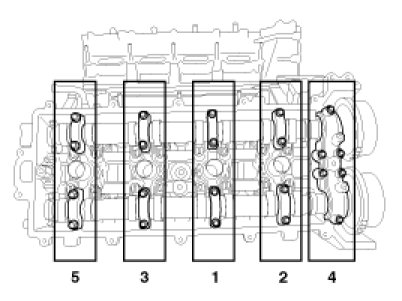

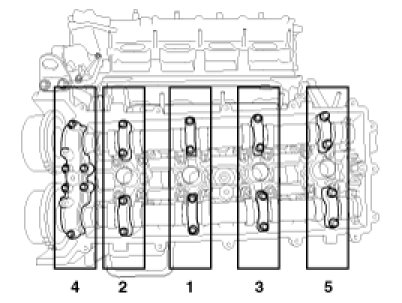

Tighten the bolts in order to below sequence.

Tightening torque
1st step 6.9 - 7.8N.m ( 0.7 - 0.8kgf.m, 5.1 - 5.8lb-ft)
2nd step 13.7 - 14.7N.m (1.4 - 1.5kgf.m, 10.1 - 10.8lb-ft)










NOTE: Be careful the right, left bank, intake, exhaust side before assembling.

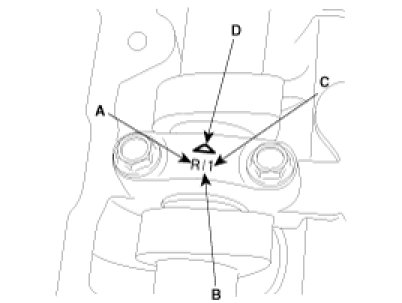

A : L(LH),R(RH)
B : I(Intake), E(Exhaust)
C : Journal number
D : Front mark

CAUTION: Be sure to install the thrust bearing cap and bearing cap bolts in the correct places.
