Axle Shaft Assembly
Axle Shaft Assembly

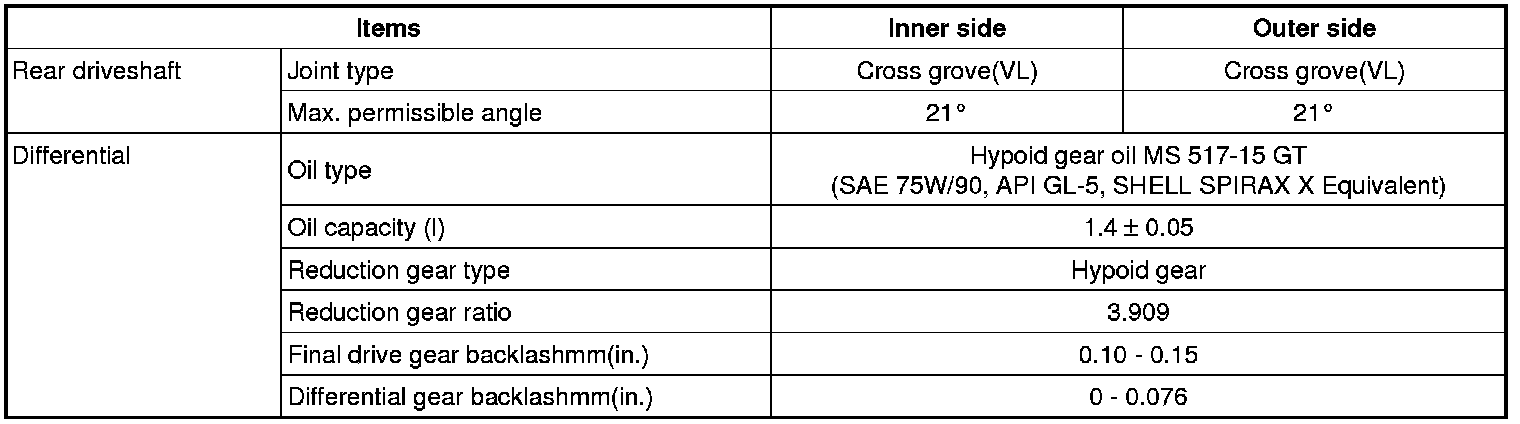

Specifications

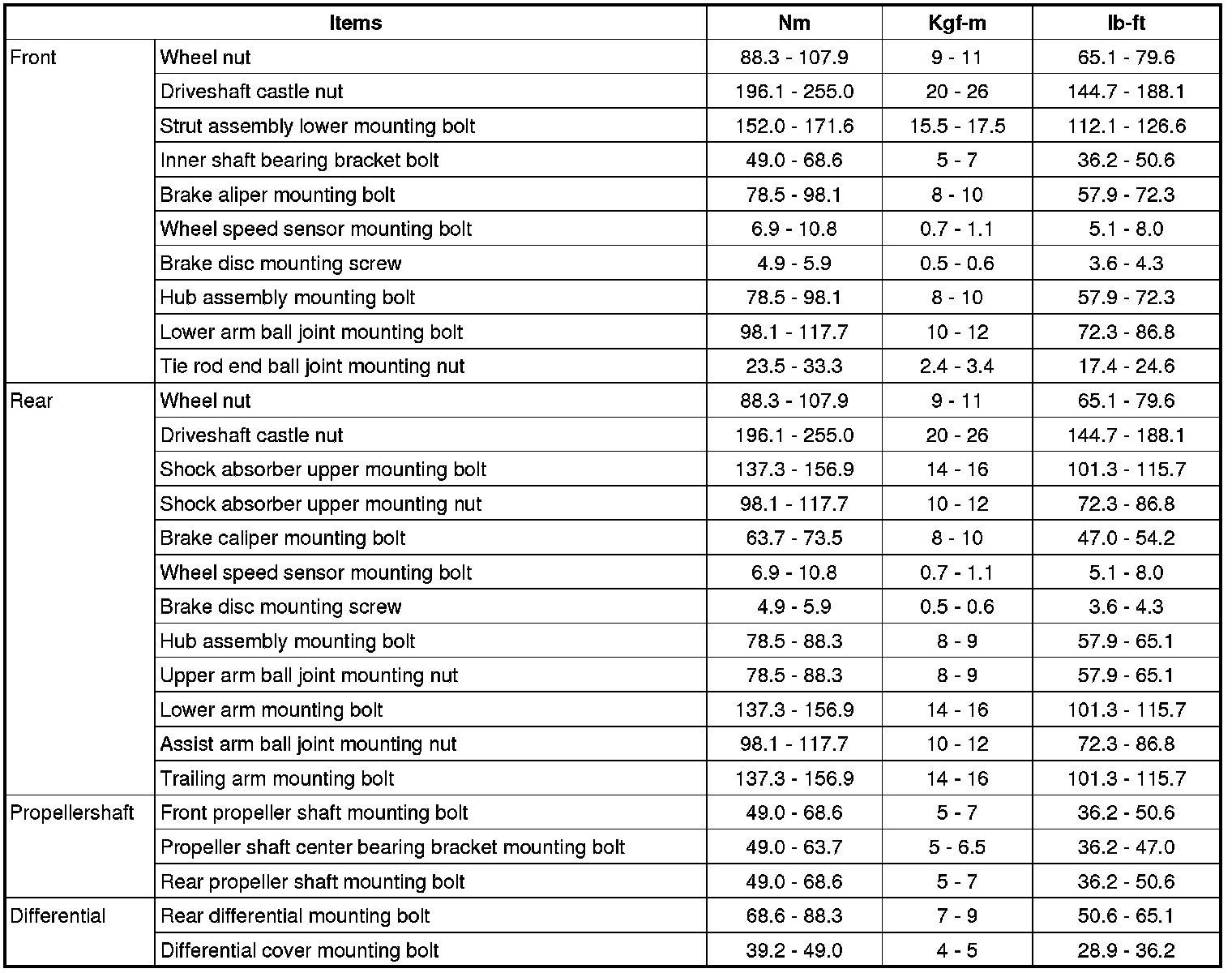

Tightening Torques
CAUTION:
Replace self-locking nuts with new ones after removal.

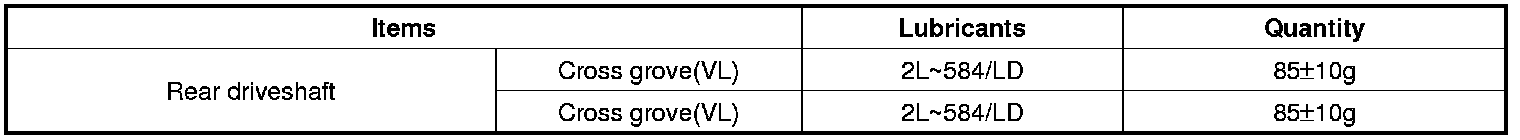

Lubricants
