Wiper Switch: Service and Repair

Removal

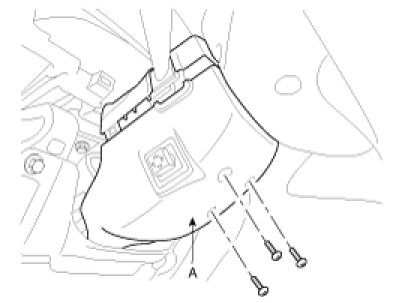

1. Remove the steering column upper and lower shrouds (A) after removing 3 screws.




2. Remove the multi function switch assembly (A) after disconnecting the connector and removing the screws (2EA).










Installation

1. Install the multi function switch assembly after connecting the connectors.
2. Install the steering column upper and lower shrouds.

Inspection

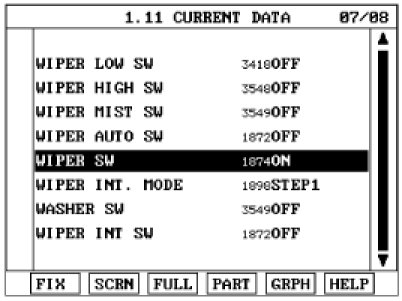

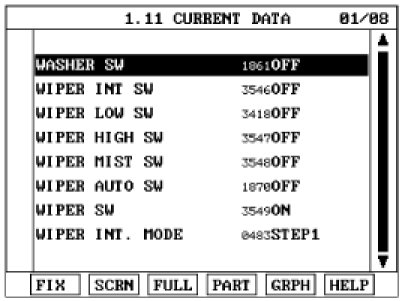

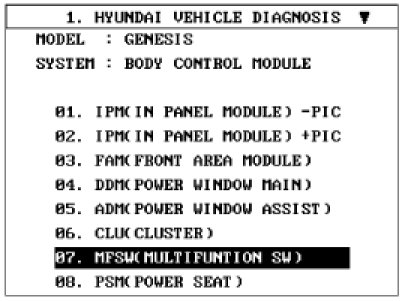

1. Check BCM input/output specification of windshield wiper/washer switch using the scan tool. If the specification is abnormal, replace the windshield deicer switch module.

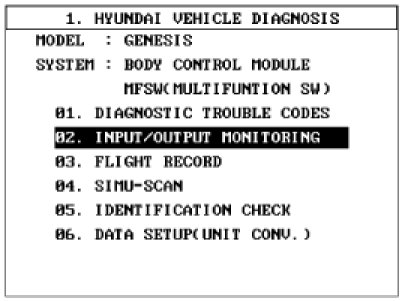

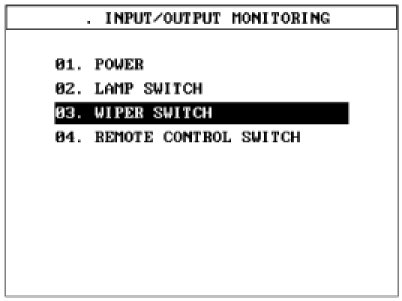

2. Select option "Input/output monitoring".
