Repair Procedures

Inspection

1. Check BCM input/output specification of multifunction switch using the scan tool. If the specification is abnormal, replace the head lamp or wiper switch.

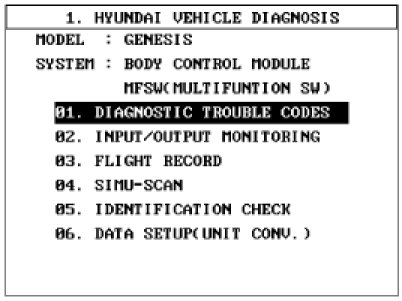

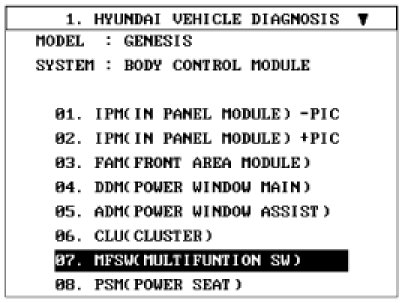

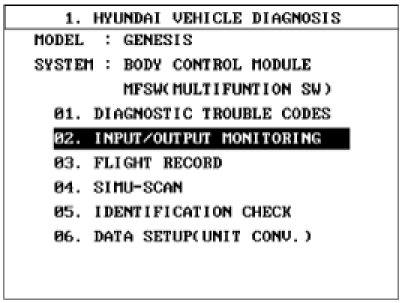

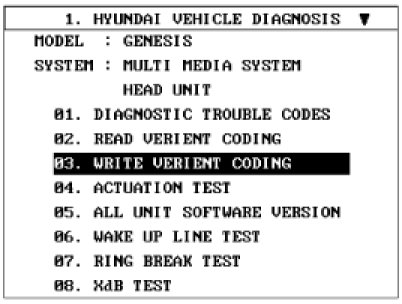

2. If diagnosis is required on the multifunction switch, select model and "BCM"

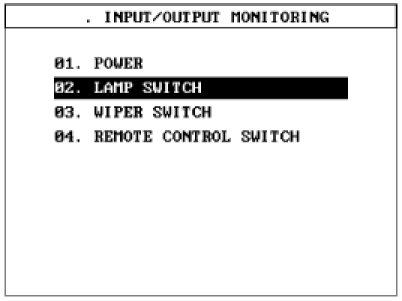

3. Select "Input/output monitoring".

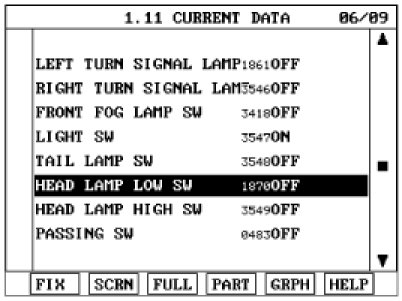

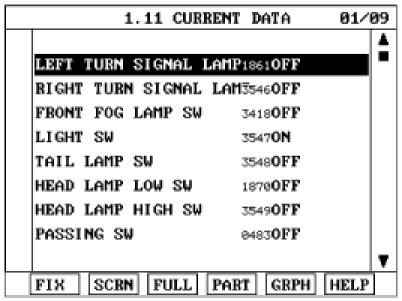

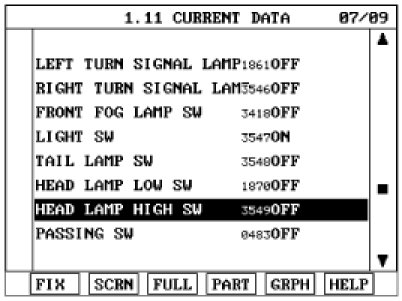

4. Check the input/output condition of "Lamp switch".

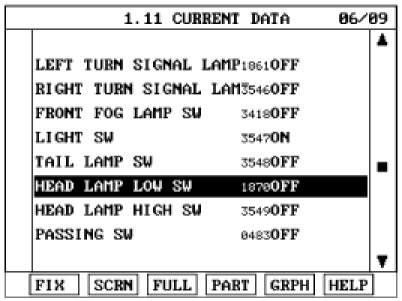

5. Check the input/output condition of "LAMPS".

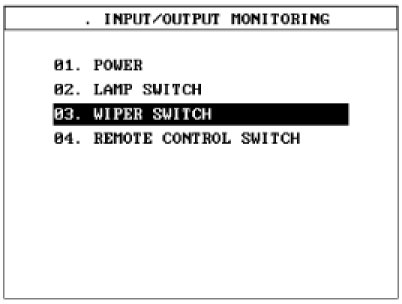

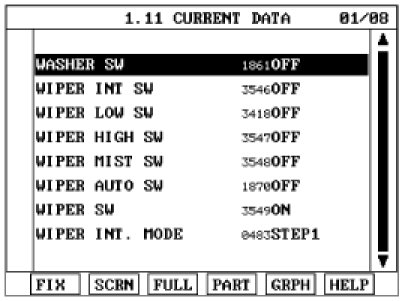

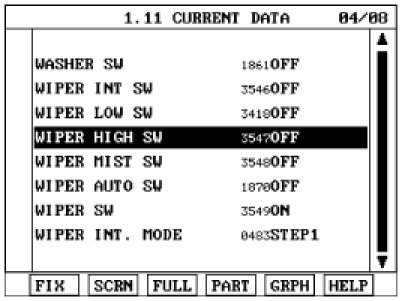

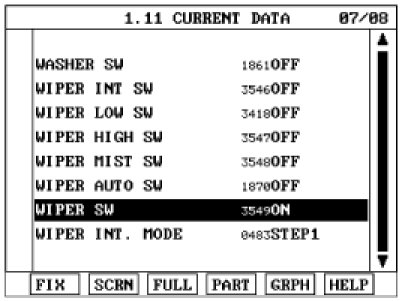

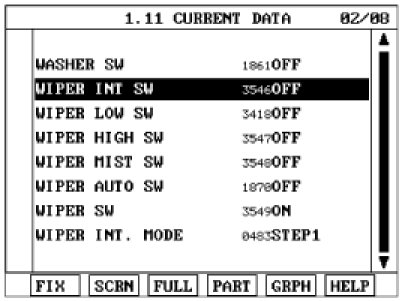

6. Check the input/output condition of "WIPER".

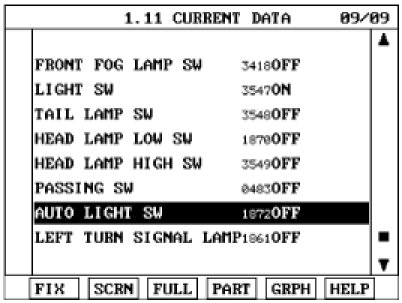

7. Check the input/output condition of "AUTO LIGHT".




8. To check the DTC of the multifunction switch, select "DIAGNOSTIC TROUBLE CODES"






Removal

1. Disconnect the negative (-) battery terminal.

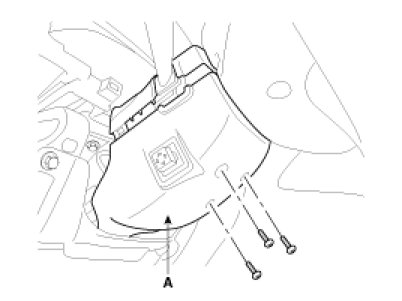

2. Remove the steering column upper and lower shrouds (A) after removing 3 screws and connector.

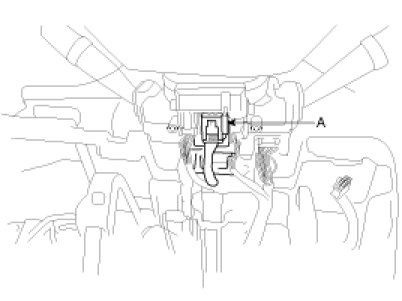

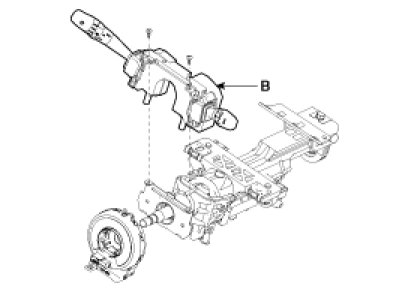

3. Remove the multifunction switch (B) after disconnecting the connector(A).










Installation

1. Install the multifunction switch after connecting the connectors.
2. Install the steering column upper and lower shrouds.
