Electric Parking Brake Switch: Service and Repair

Removal

1. Turn ignition switch off and disconnect the battery (-) cable from the battery
2. Remove the driver side crash pad side cover.

3. Remove the crash pad lower panel.

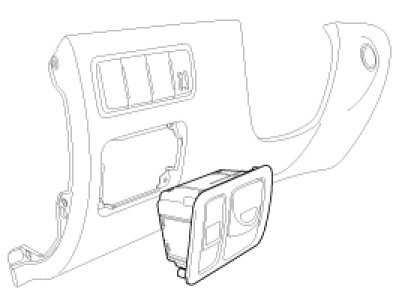

4. Remove the EPB switch after removing 4 screws from the crash pad lower panel.






Inspection

EPB Switch

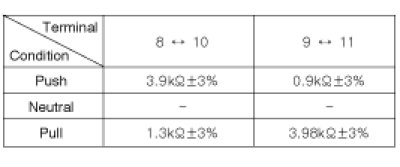

1. Measure resistance between EPB switch terminals as below.





Auto Hold Switch

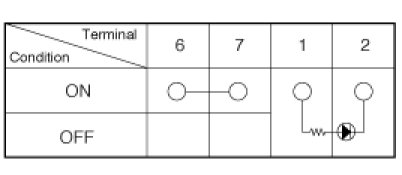

1. Measure resistance between Auto Hold switch terminals as below.






Installation

1. Install EPB switch assembly.
2. Connect the crash pad switch assembly connector to EPB switch.
3. Install the crash pad lower panel.
4. Install the driver side crash pad side cover.
