Collision Avoidance System Switch: Service and Repair

Inspection

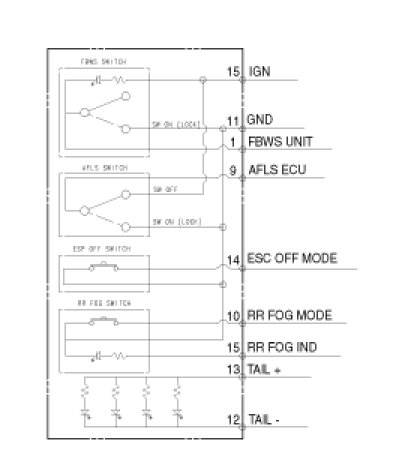

1. Check for the continuity between the terminals. If continuity is not specified, replace the switch.






Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the lower crash pad (B) switch assembly (A) by using the scraper and then disconnect the connectors.




3. Remove the switch assembly from lower crash pad switch assembly (A).






Installation

1. Install the switch assembly to the lower crash pad.
2. Connect the negative (-) battery terminal.
