Collision Avoidance Sensor: Service and Repair

Removal

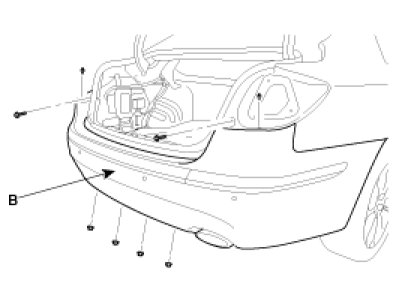

1. Remove the rear bumper (B) after removing the connector (A).

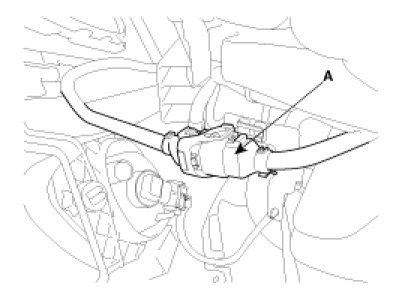

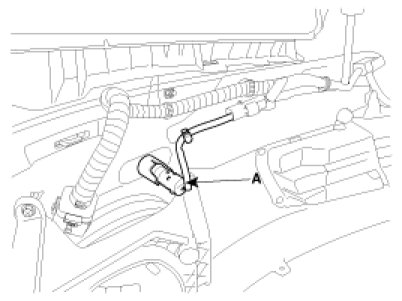

2. Disconnect the sensor connector at the inside of the rear bumper, and then remove the sensor (A) from the housing.









CAUTION:
Be careful not to damage the sensor housing.

Installation

1. Connect the connector, and then install the sensor.
2. Install the rear bumper.
