Repair Procedures

Removal

CCP (Central Control Panel)

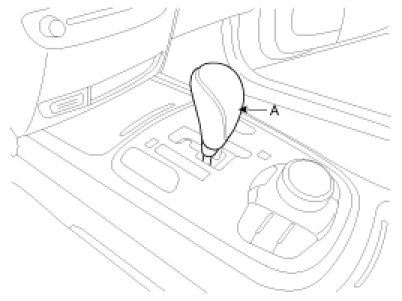

1. Remove the knob (A).

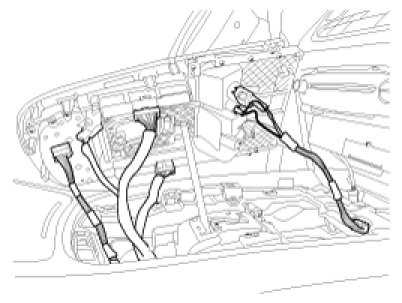

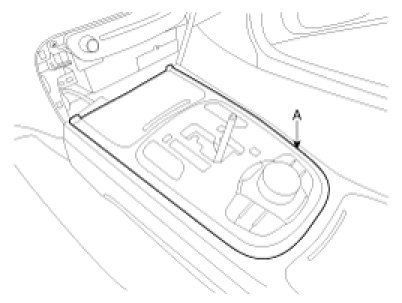

2. Remove the console under cover (A) and remove the connector.

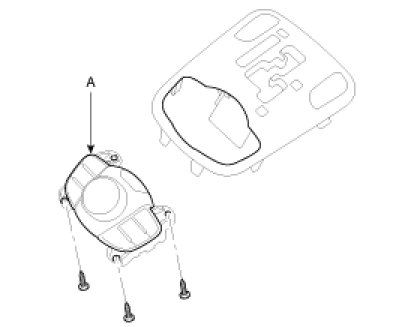

3. Remove the central control panel (A).






Installation

CCP (Central Control Panel)
1. Install the central control panel to the console under cover.
2. Install the console under cover and knob.
