Ignition Coil: Service and Repair

Replacement

Ignition coil

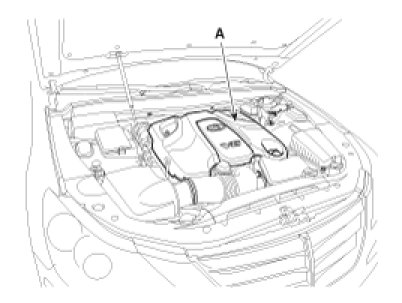

1. Remove the engine cover (A).




2. Disconnect the ignition coil connectors (A).








3. Remove the ignition coils (A).

Tightening torque :9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)








4. Installation is reverse order of removal.
