Variable Induction Control Actuator: Description and Operation

Description

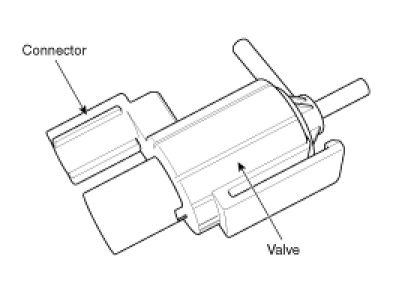

Variable Intake Manifold (VIS) Valve is installed on the intake manifold. It combines or divides the two banks' intake air passages to improve intake efficiency in accordance with the ECM control signal calculated by engine operating condition.

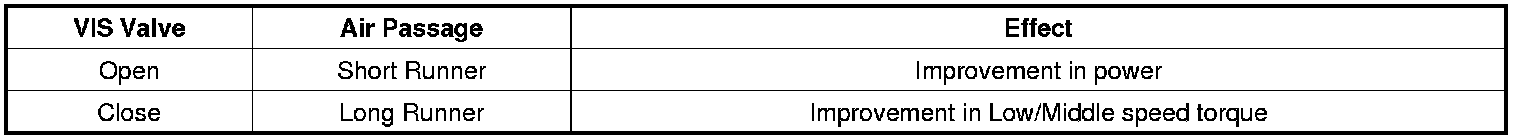

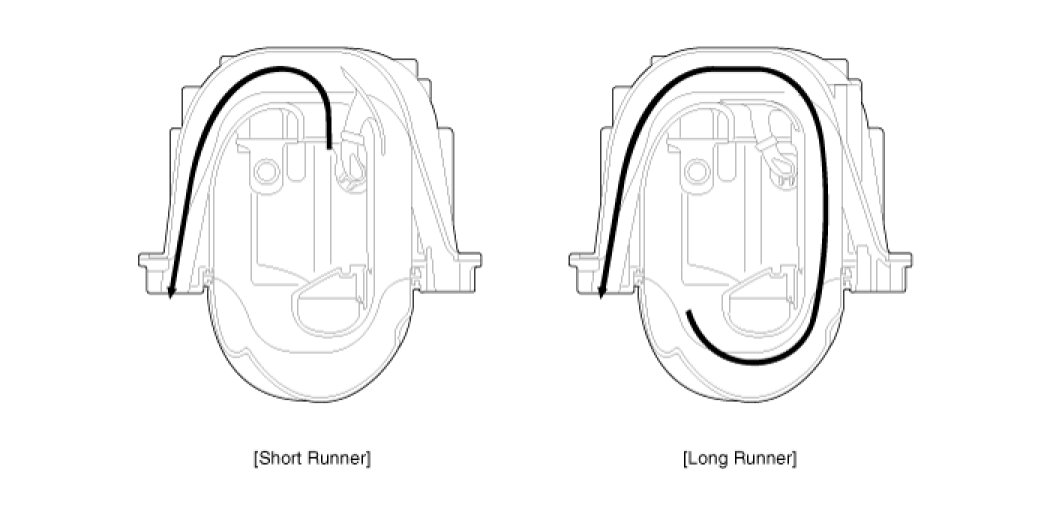

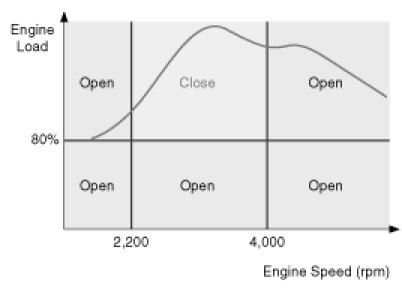

[The operation section of VIS valve]
