Oscilloscope Patterns and Waveforms





Wave Form

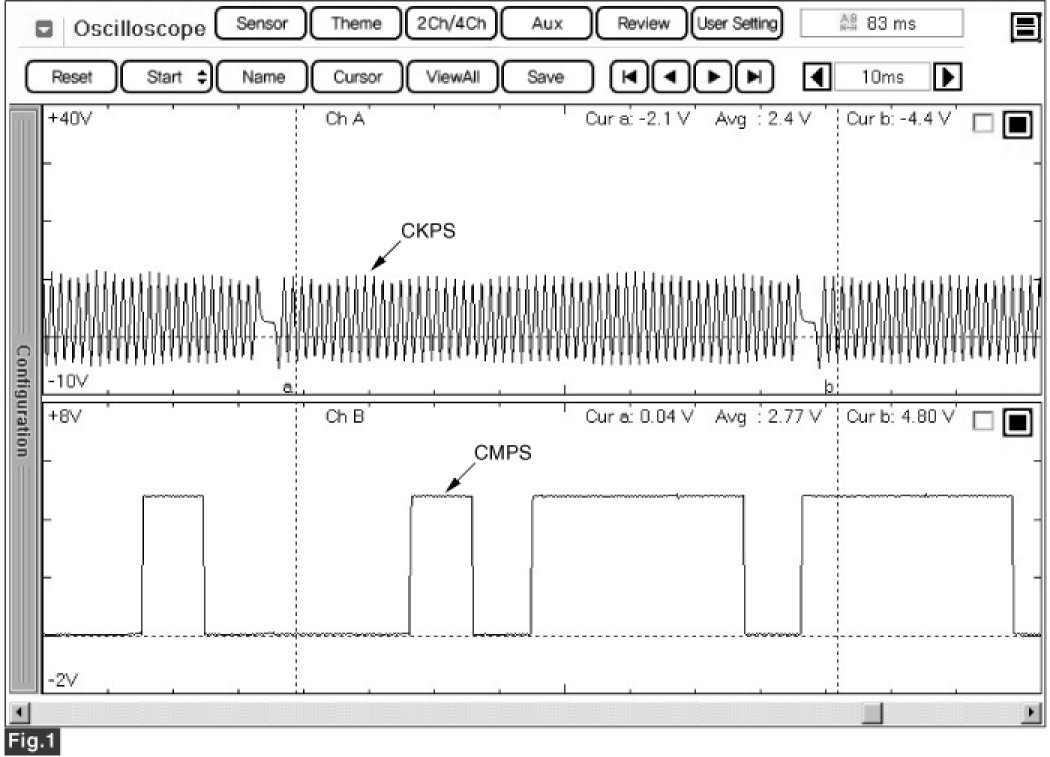

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
