Relay Box (Passenger Compartment)





Components

Passenger Compartment Relay Box LH

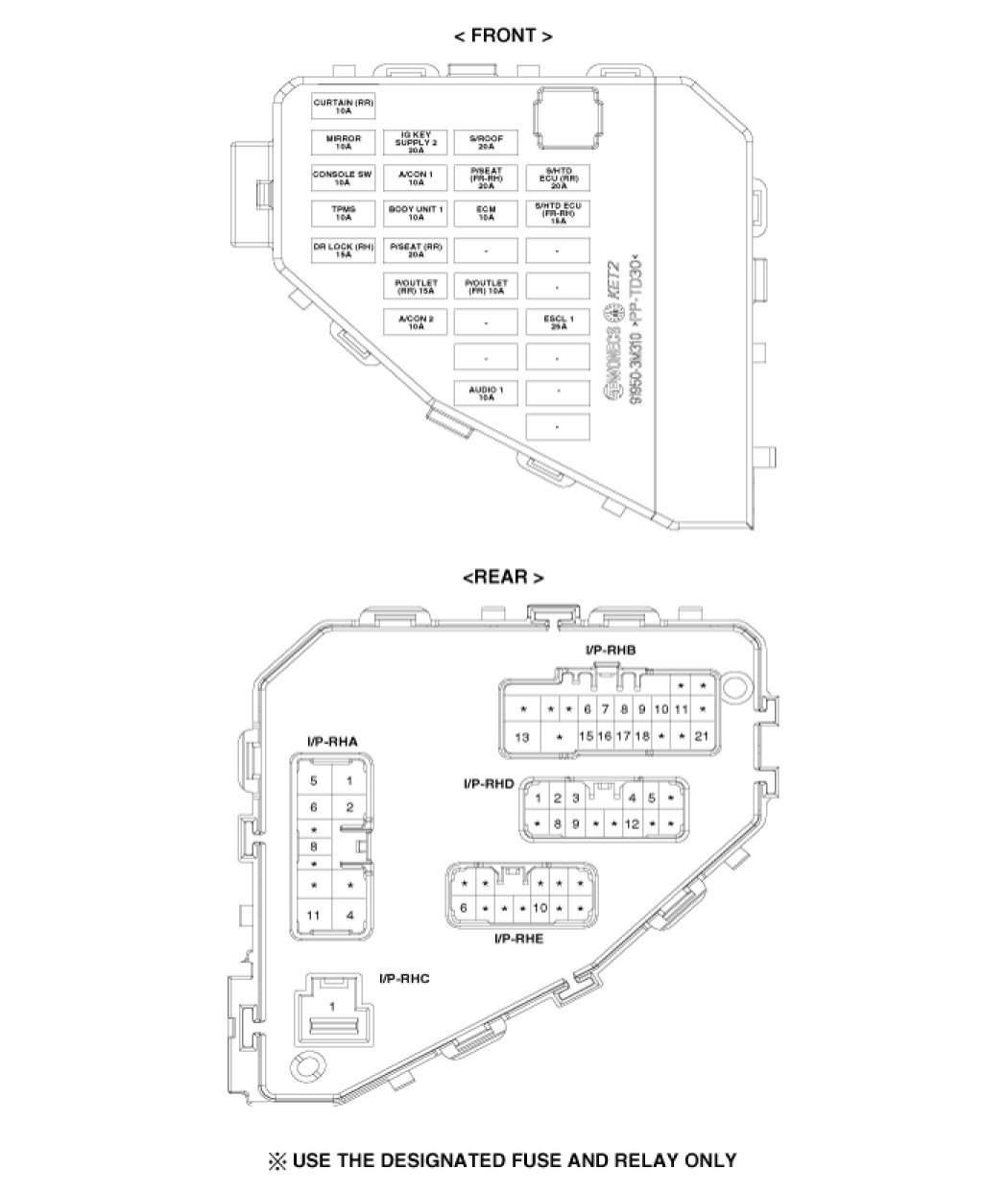

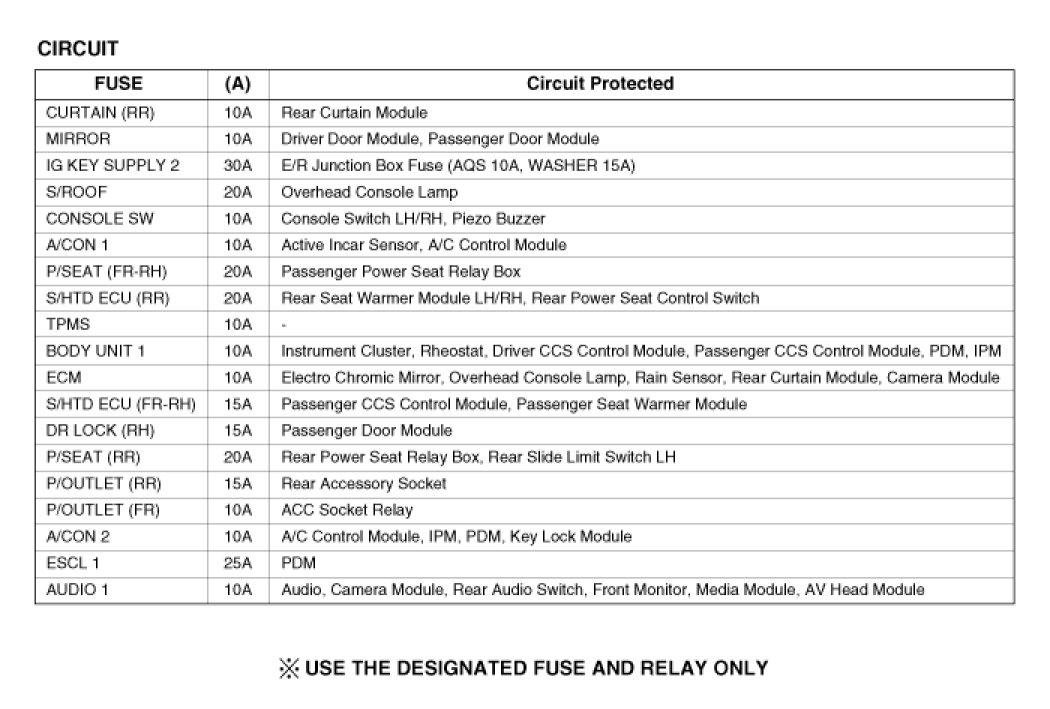

Passenger Compartment Relay Box RH
